Product code: MT-DTA700

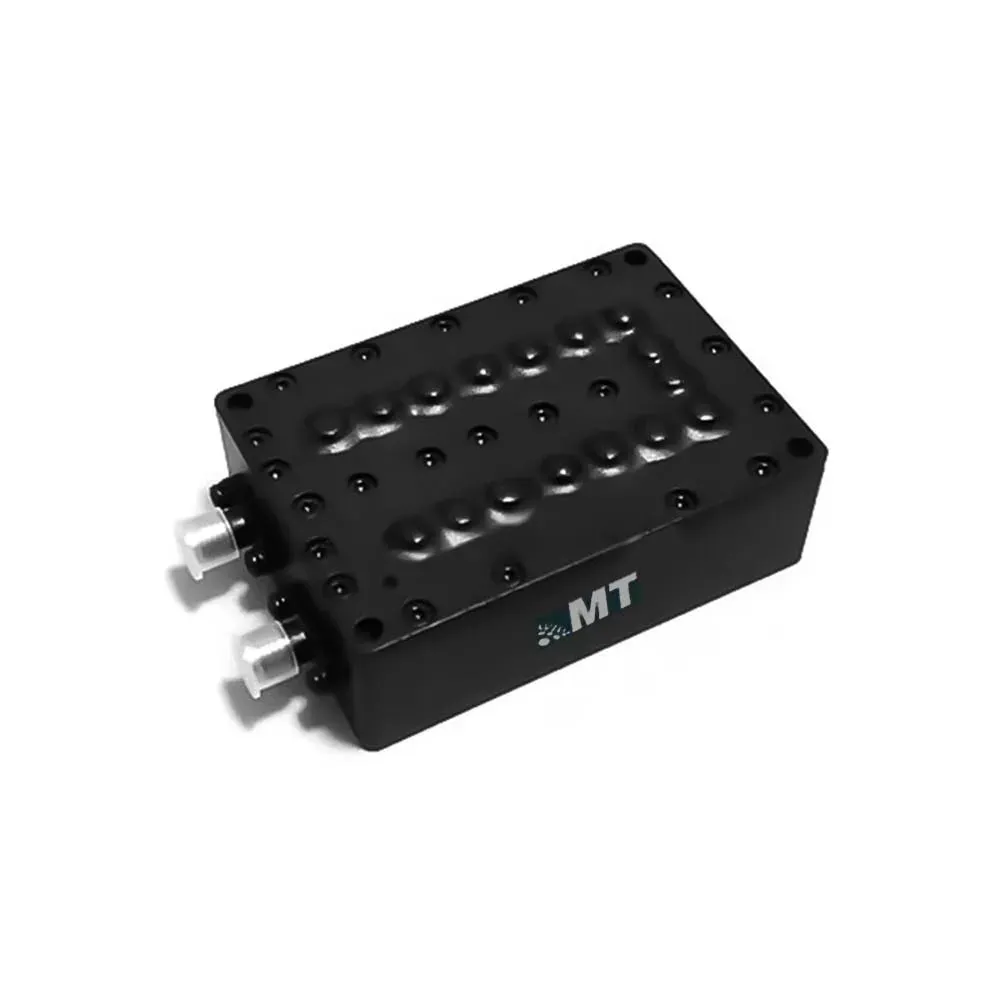

1400-1500MHz Cavity Band Pass Filter

  • P/N：MT-DTA700
  • Pass Band Frequency：1400-1500MHz
  • Stop Band Rejection：≥40dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA700
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)1450MHz
2Pass Band Frequency1400 ~ 1500MHz
3Pass Band Insertion Loss≤1.3dB
4Pass Band Ripple≤0.6dB
5Pass Band Return Loss≥20dB
6Stop Band Rejection≥40dB @ DC ~ 1350MHz @ 1550 ~ 6000MHz
7Impedance50 Ohms
8Power Handling20W Max.
9ConnectorsSMA-Female
10Surface FinishPainted Black
