Product code: 15P-698-3800F-14G-65H16V

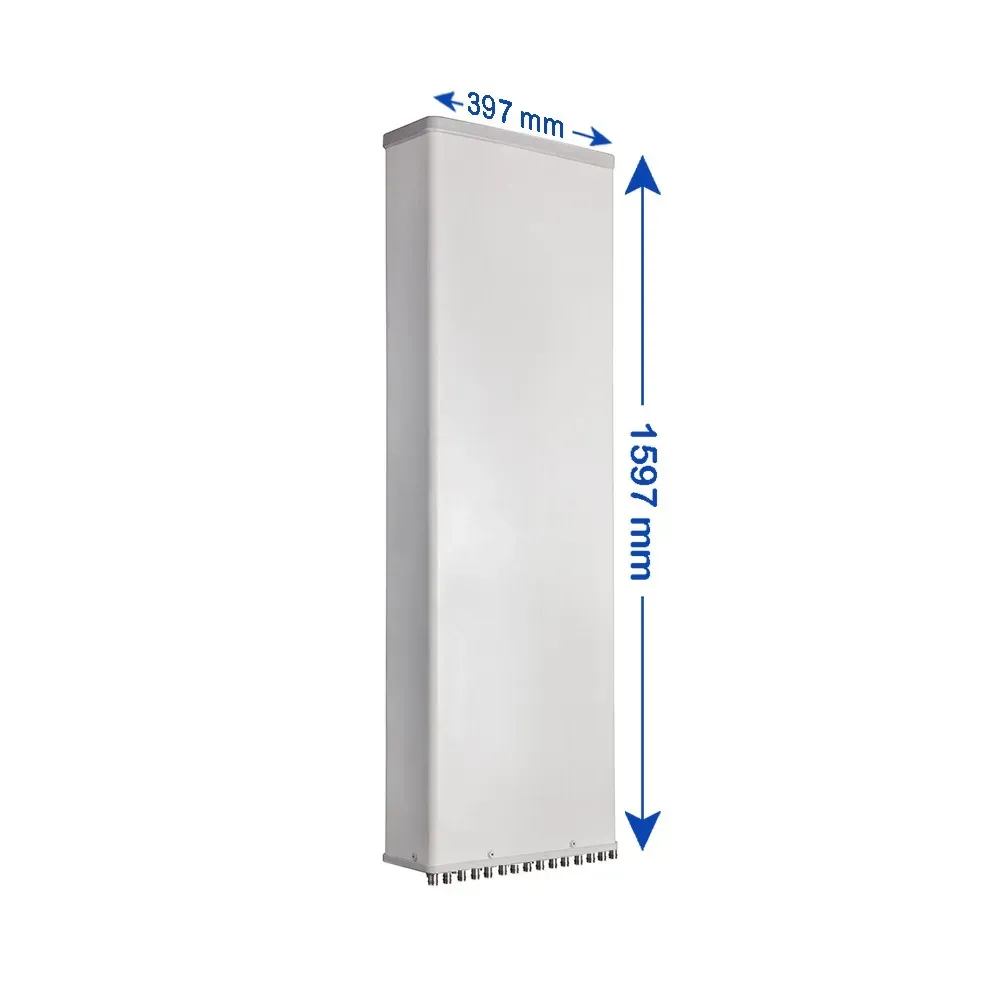

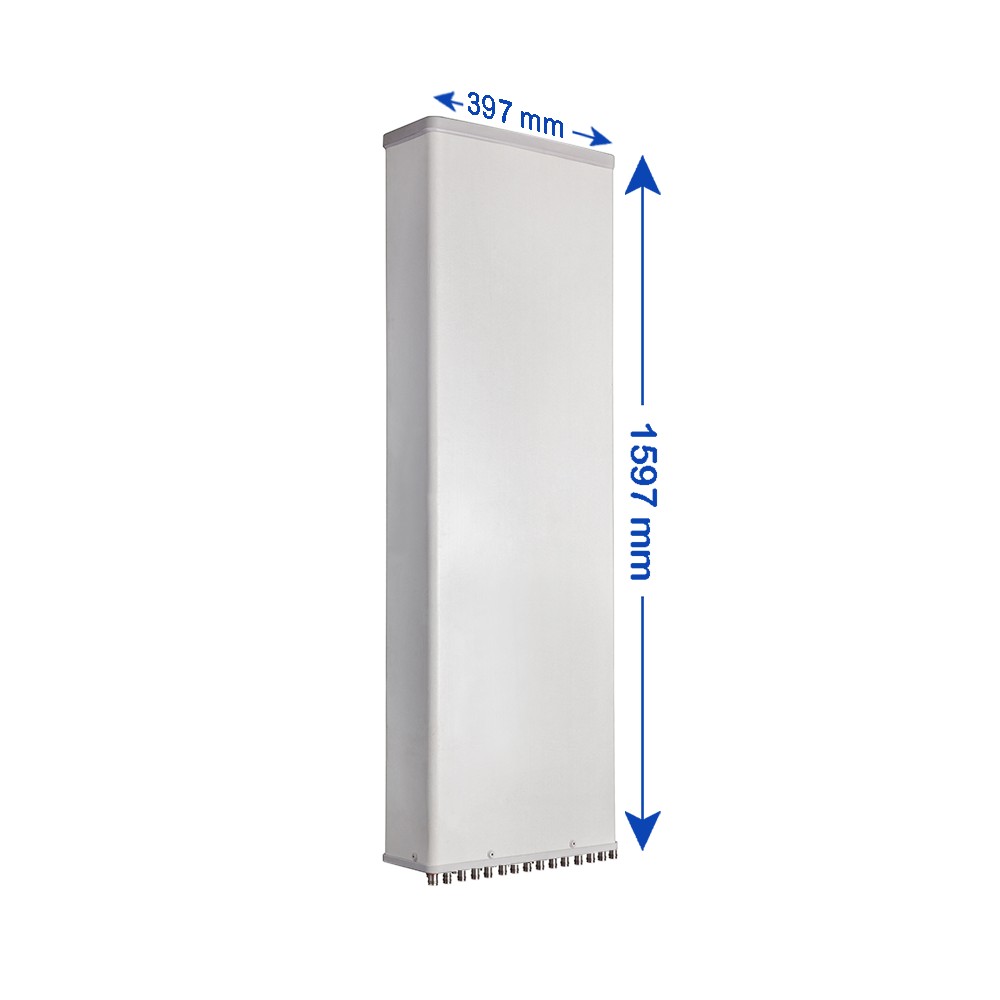

15-Port, TDD Hybrid Panel Antenna, 65° HBW, (1x) 698-960/(2x) 1710-2690/(1x) 3300-3800 MHz, 14.5/17.5/15/17 dBi, 2-16°/(3x)2-12°T, 1.597 m

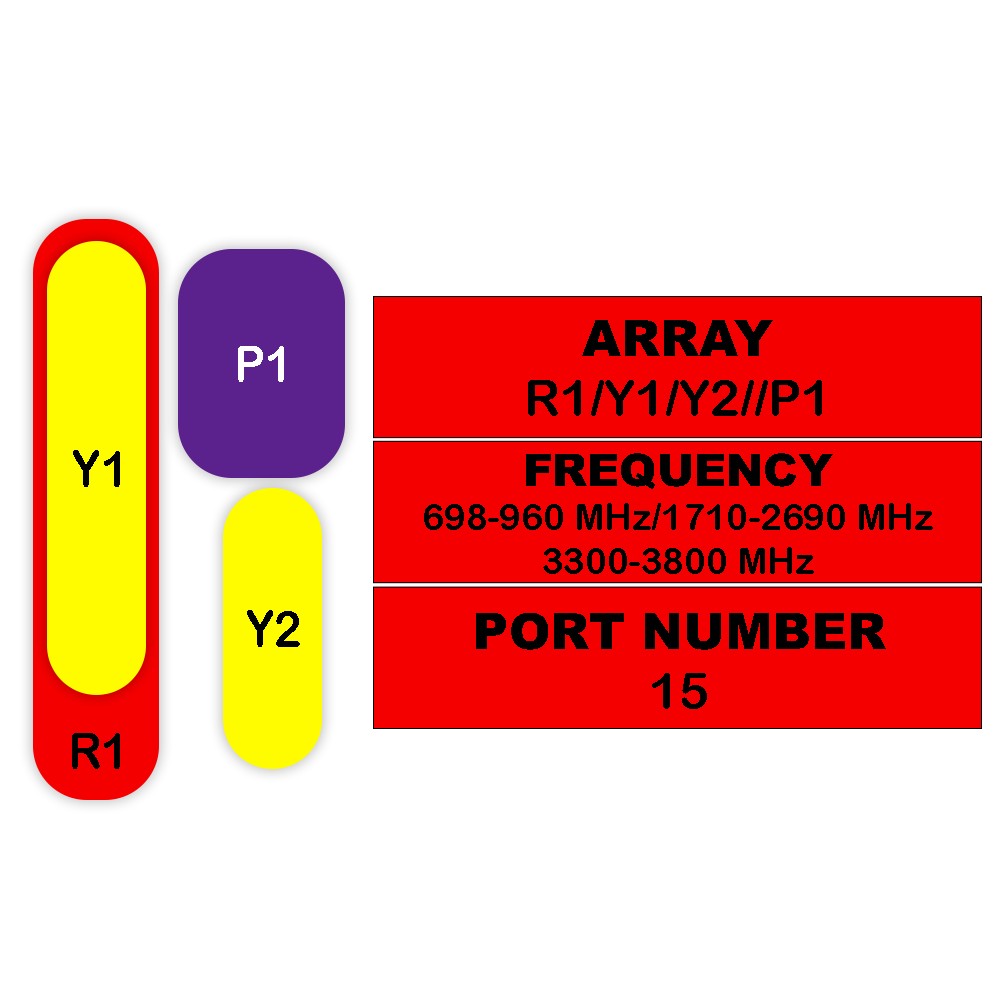

| 15-Port Antenna | R1 | Y1 | Y2 | P1 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 14.5 dBi | 17.5 dBi | 15 dBi | 17 dBi |
| Tilt | 2-16° | 2-12° | 2-12° | 2-12° |

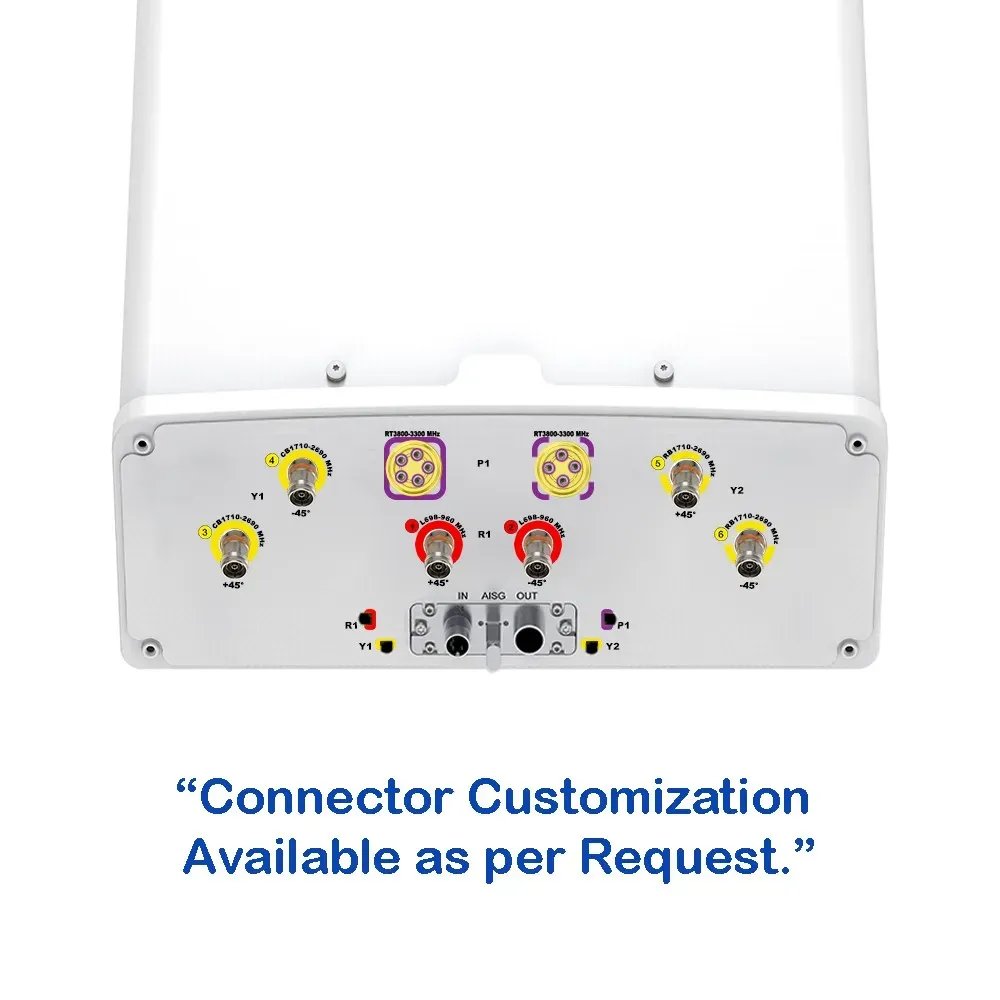

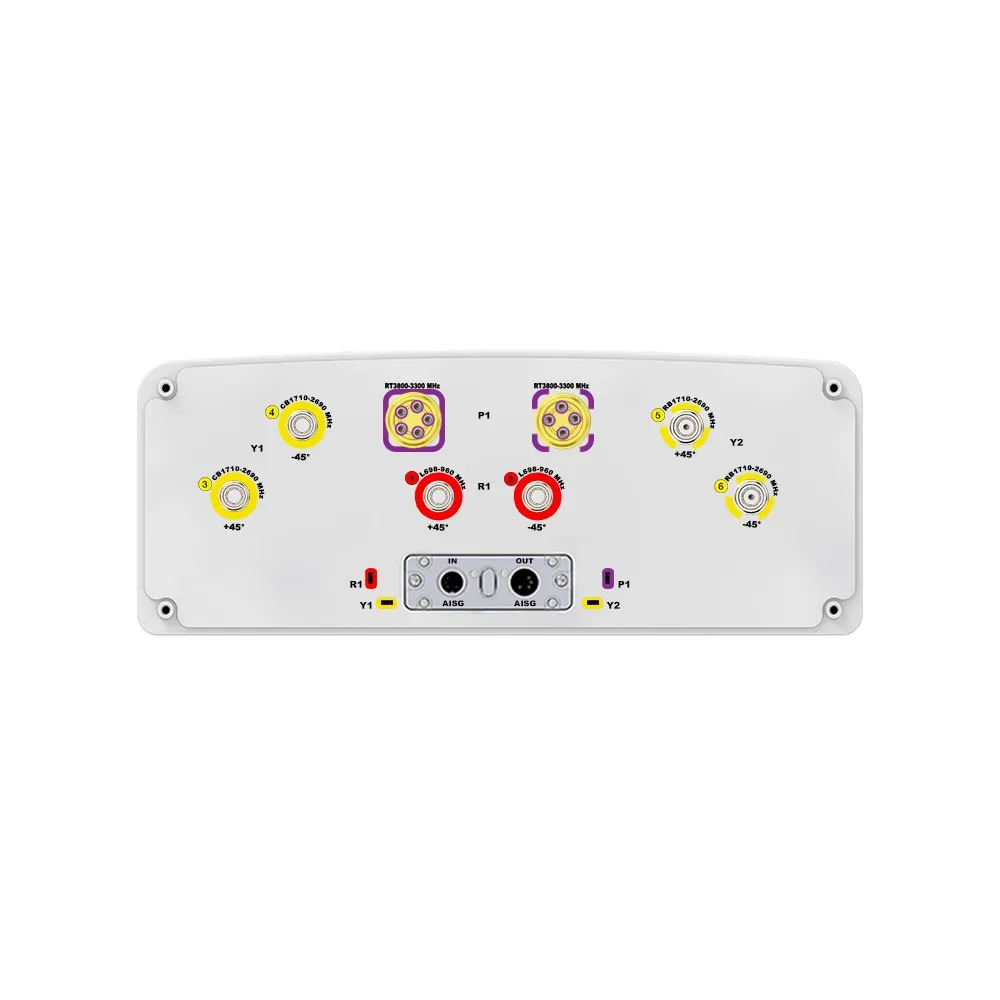

| Connectors
(other connectors by request) |
(2x) 4.3/10 Female | (2x) 4.3/10 Female | (2x) 4.3/10 Female | (1x) MQ5 Male
(4 RF + 1 Calibration) & (1x) MQ4 Male (4 RF) |
