Product code: 15P-698-3800F-13G-65H22V

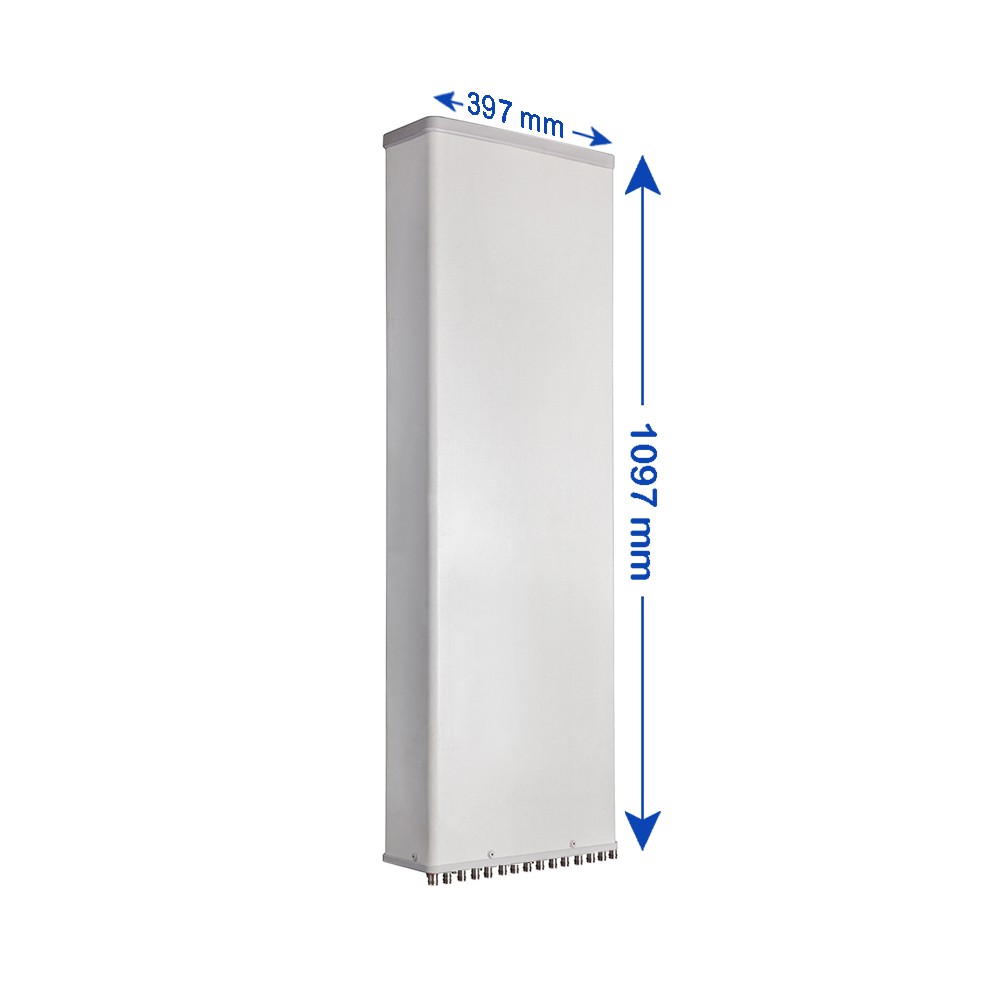

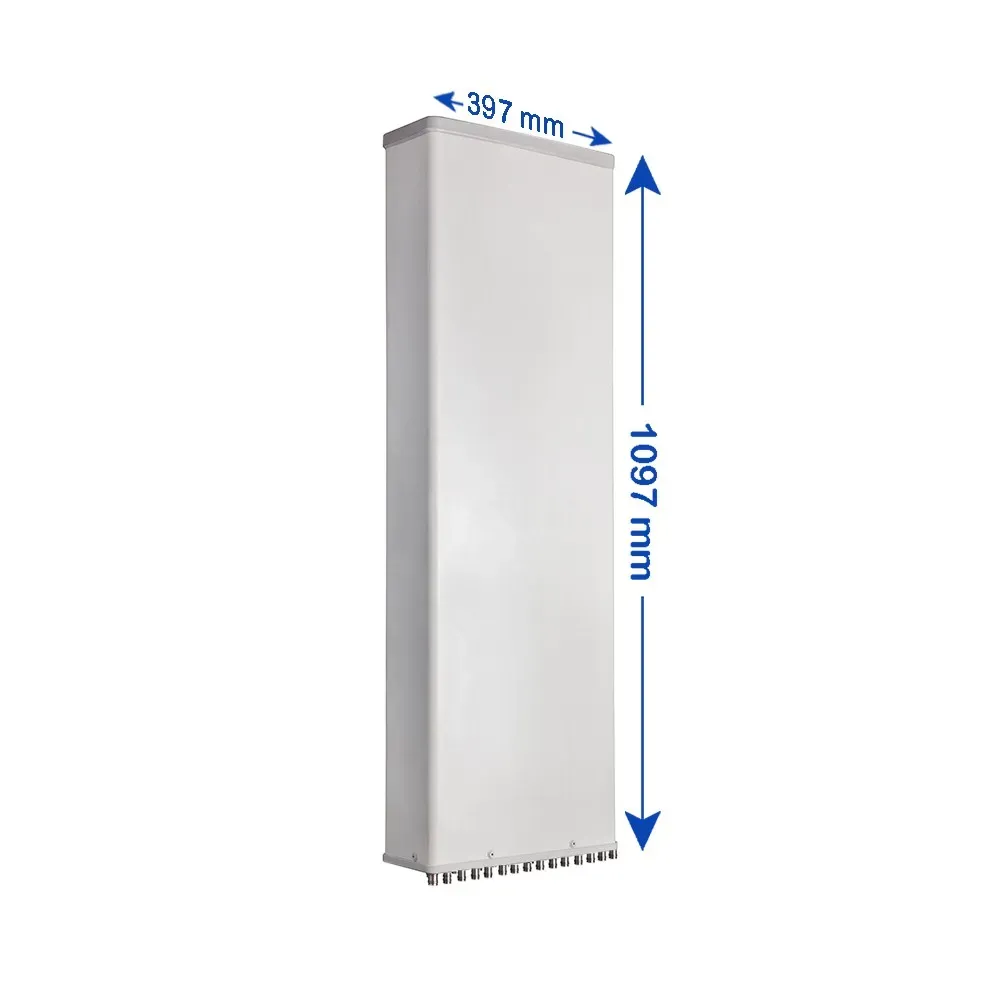

15-Port, TDD Hybrid Panel Antenna, 65° HBW, 698-896/(2x) 1710-2170/3300-3800 MHz, 13/13.5/13.5/17 dBi, 5-15°/(3x)2-12°T, 1.097 m

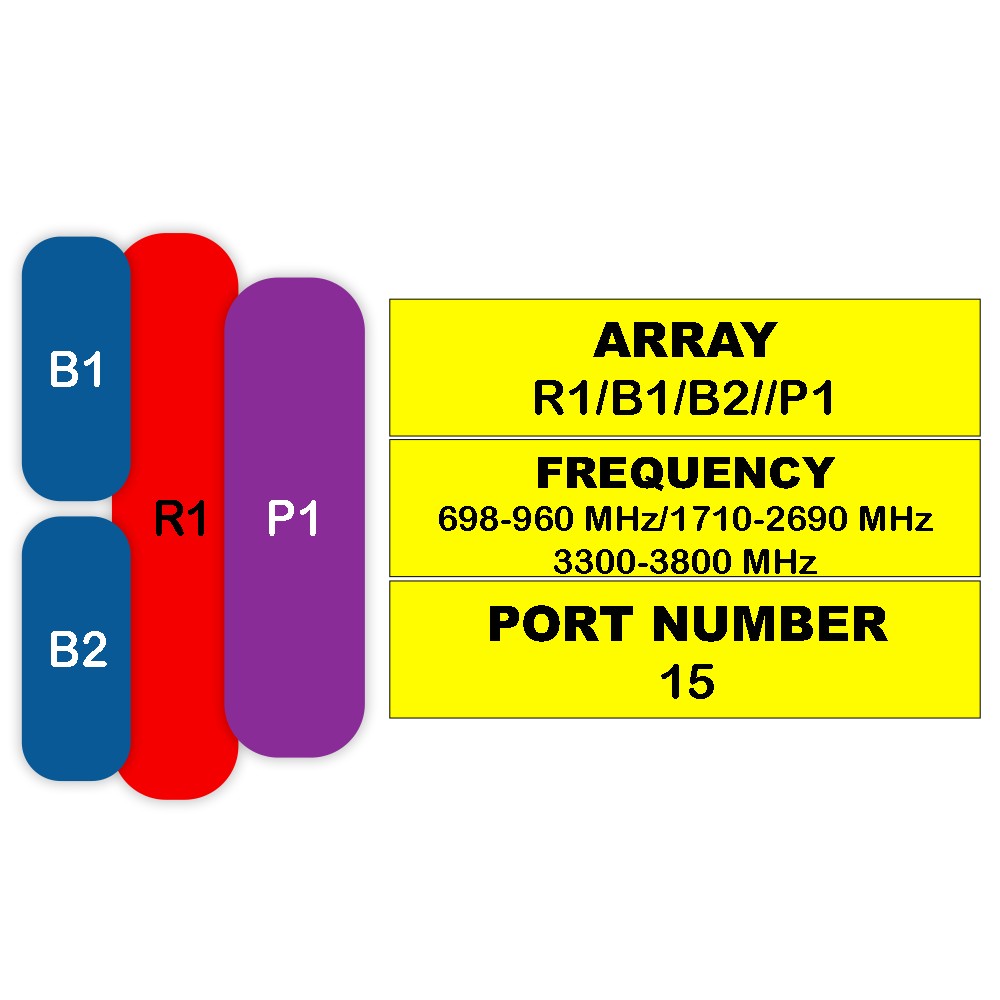

| 15-Port Antenna | R1 | B1 | B2 | P1 |
| Frequency Range (MHz) | 698-896 | 1710-2170 | 1710-2170 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 13 dBi | 13.5 dBi | 13.5 dBi | 17 dBi |
| Tilt | 5-15° | 2-12° | 2-12° | 2-12° |

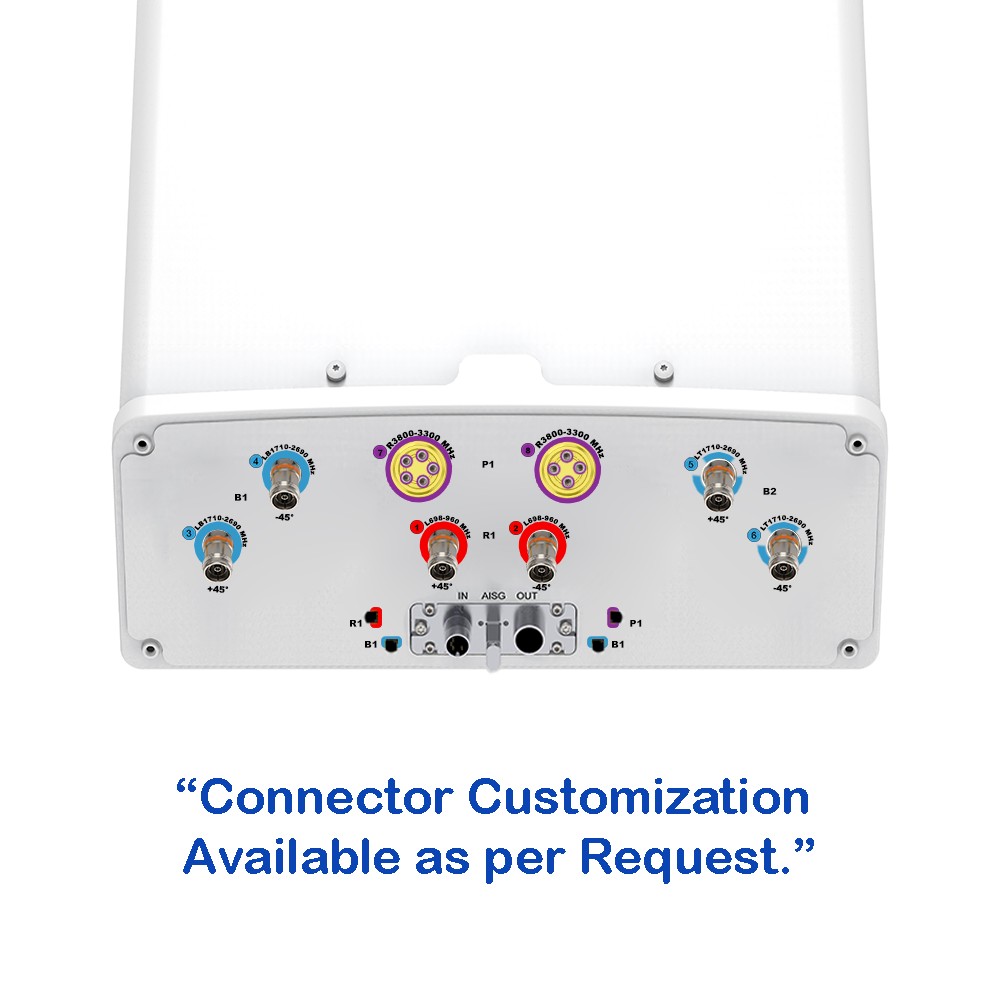

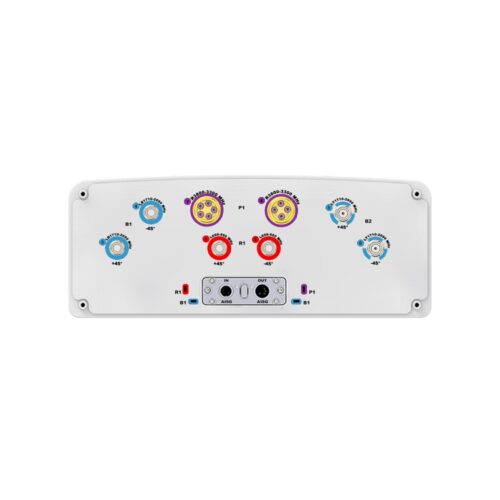

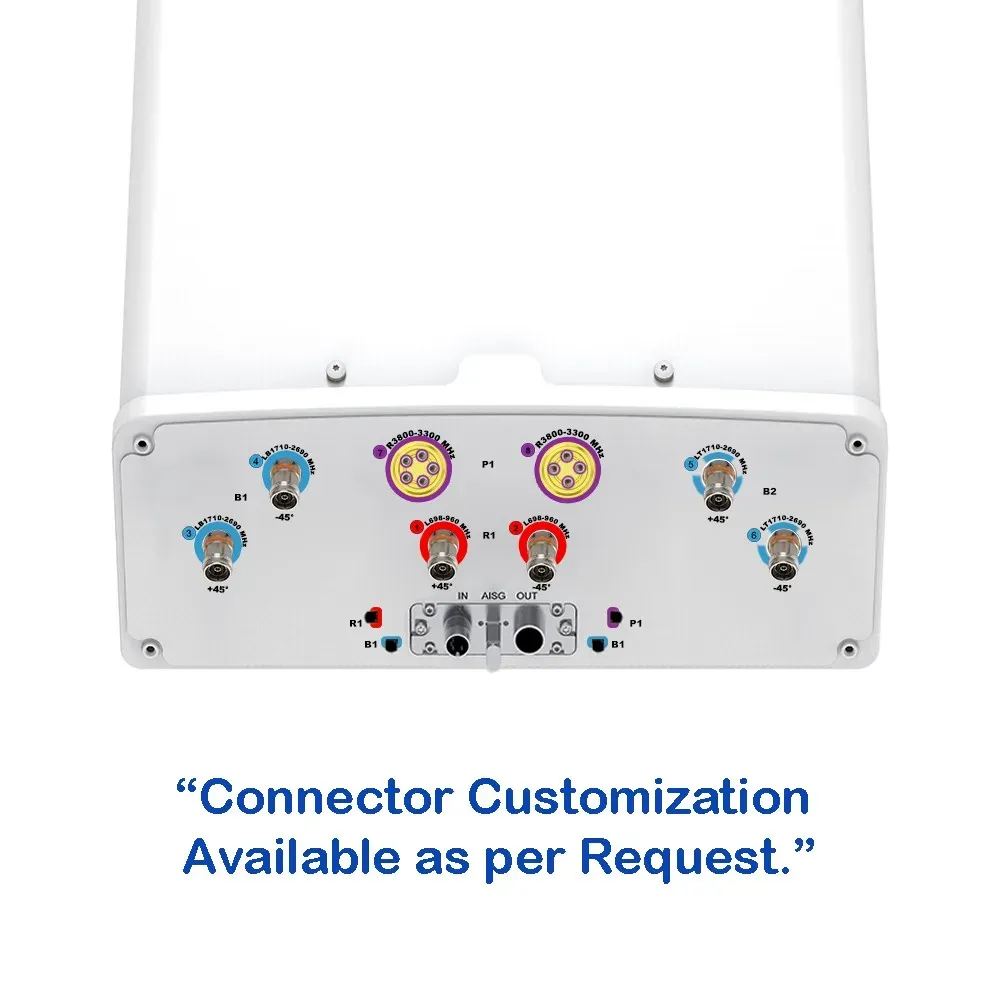

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ5 Male + (1x) MQ4 Male |
