Product code: 15P-698-3800F-17G-65H9V

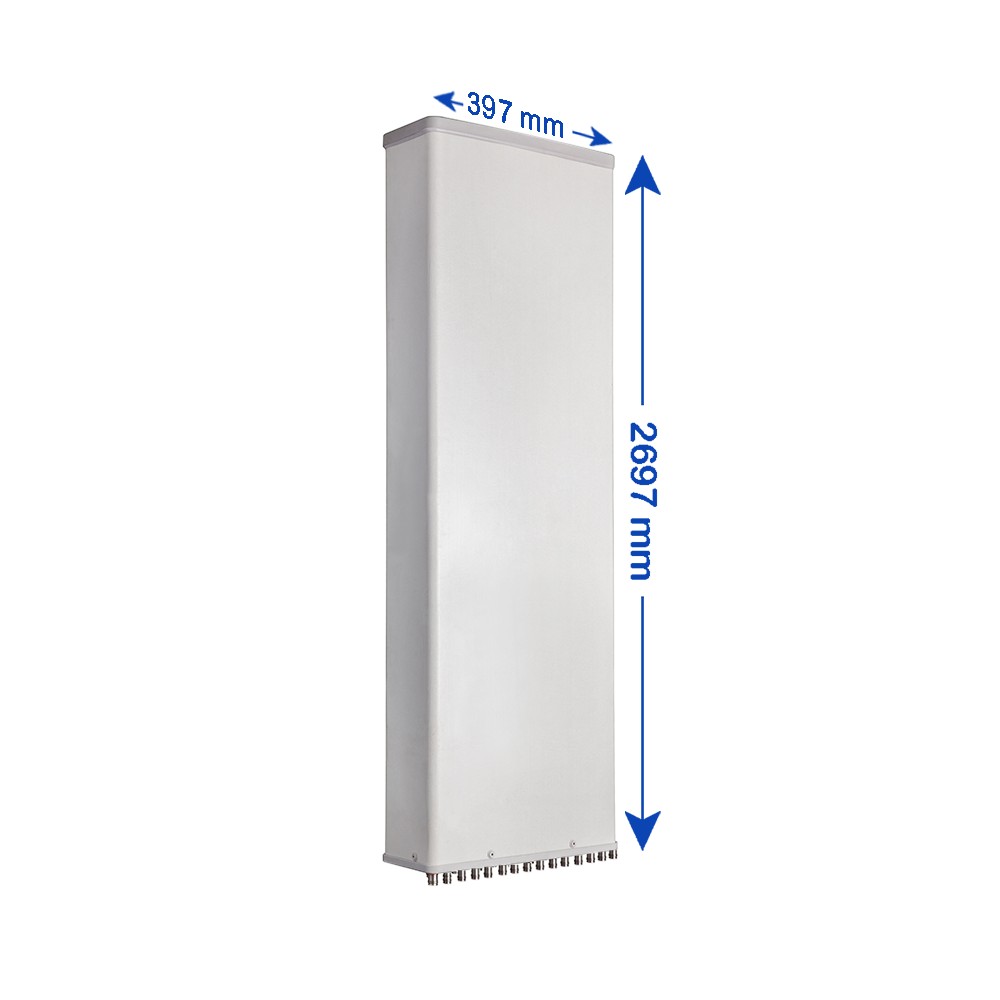

15-Port, TDD Hybrid Panel Antenna, 65° HBW, 698-960/(2x) 1695-2690/3300-3800 MHz, 17/17.5/17.5/17 dBi, 2-12°T, 2.697 m

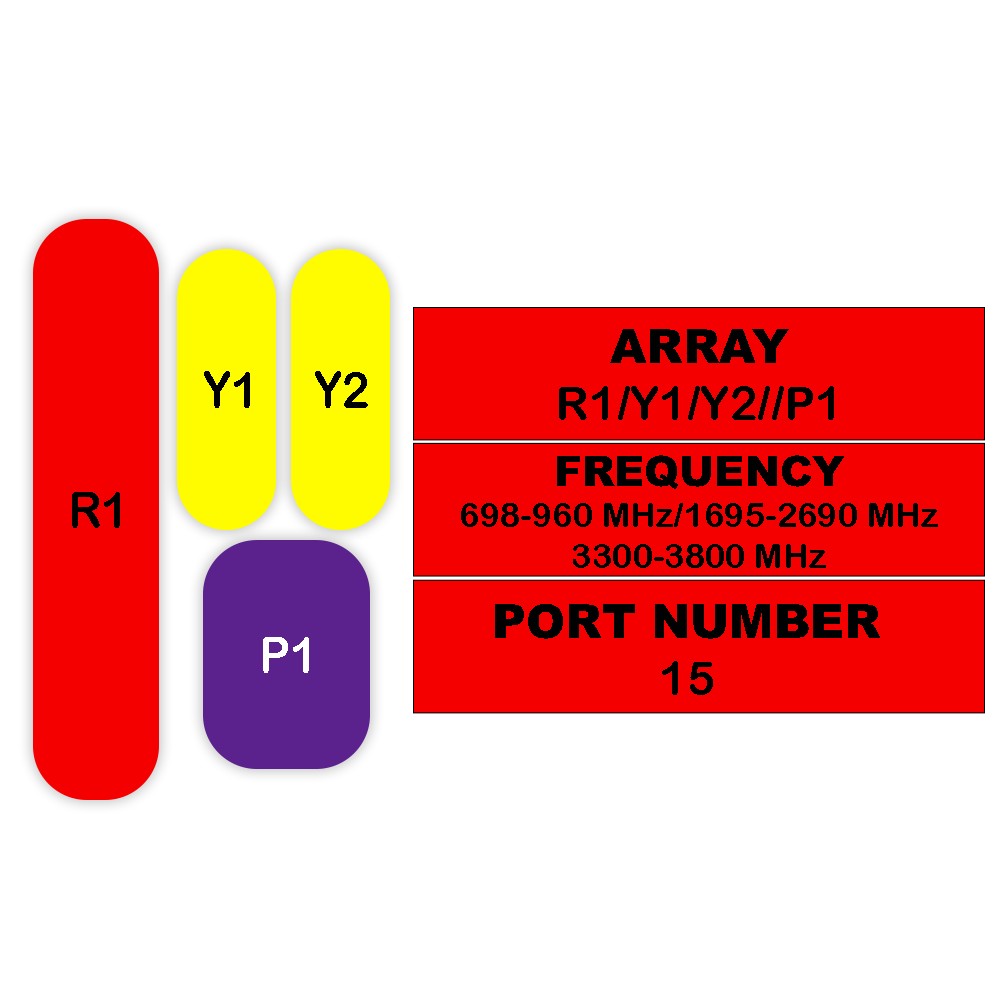

| 15-Port Antenna | R1 | Y1 | Y2 | P1 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 17 dBi | 17.5 dBi | 17.5 dBi | 17 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |

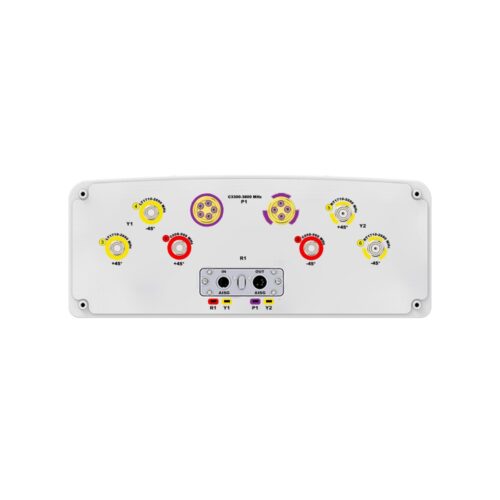

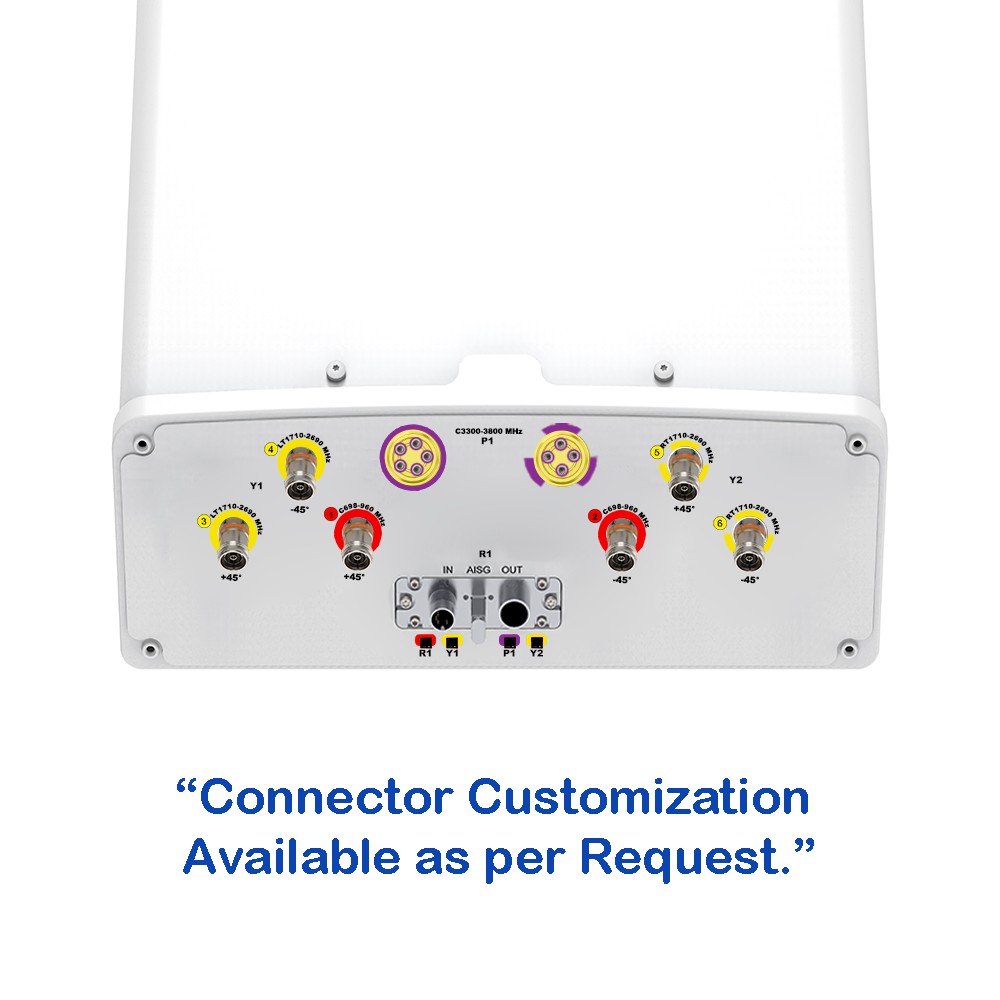

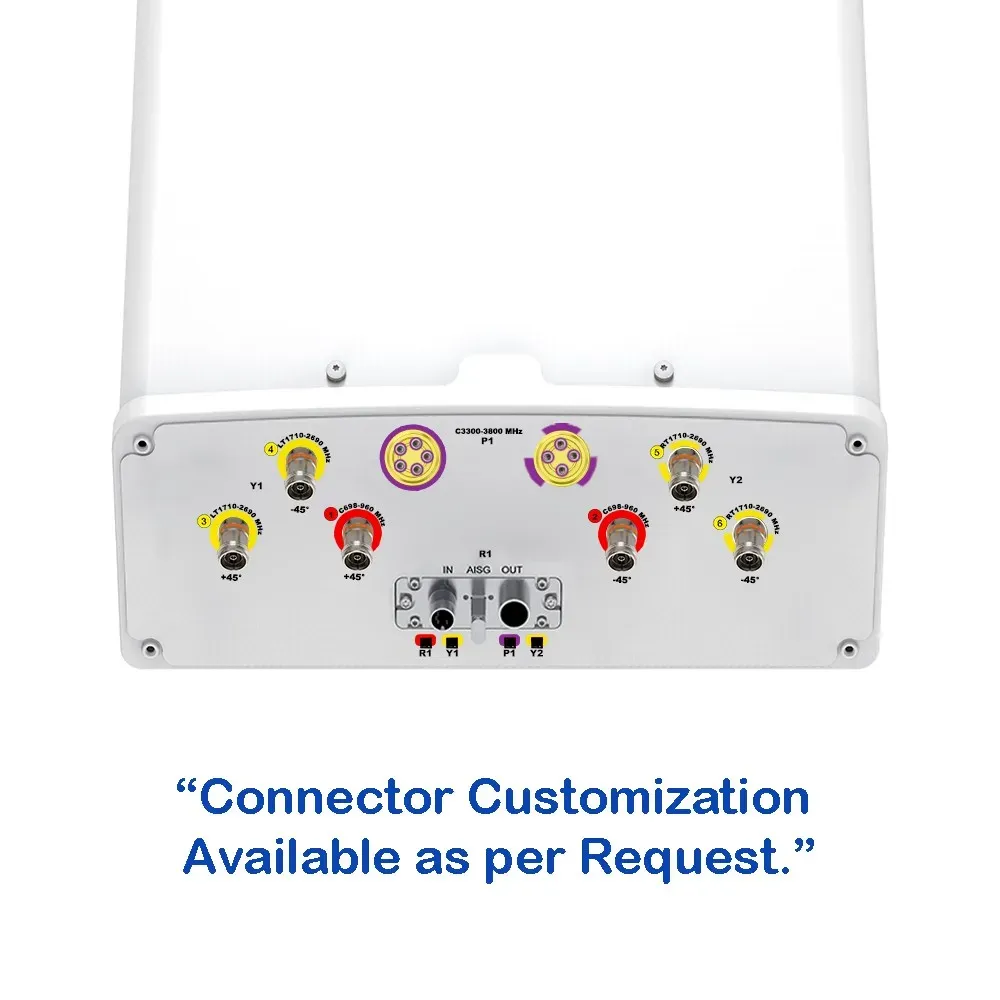

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ5 Male
+ (1x) MQ4 Male |
