Product code: MT-155M05-NF

152 MHz to 158 MHz 5dBi Omni Directional Antenna N-Female

Product Overview
Part Number MT-155M05-NF
Dimension 2800x70x50mm
Weight 3Kg
Connector N-Female
Beam-width Horz.360 deg Vert.38 deg
WhatsApp Chat
Skype
Product Part Number
MT-155M05-NF
Electrical & Mechanical Specification
Specification:
Electrical Specification
Frequency Range152 to 158MHz
V.S.W.R (MAX)2.0:1
158 to 162MHz 1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)5 dBi
PolarizationVertical
Maximum Power250 Watts
Vertical Beamwidth38 Deg
Horizontal Beamwidth360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female

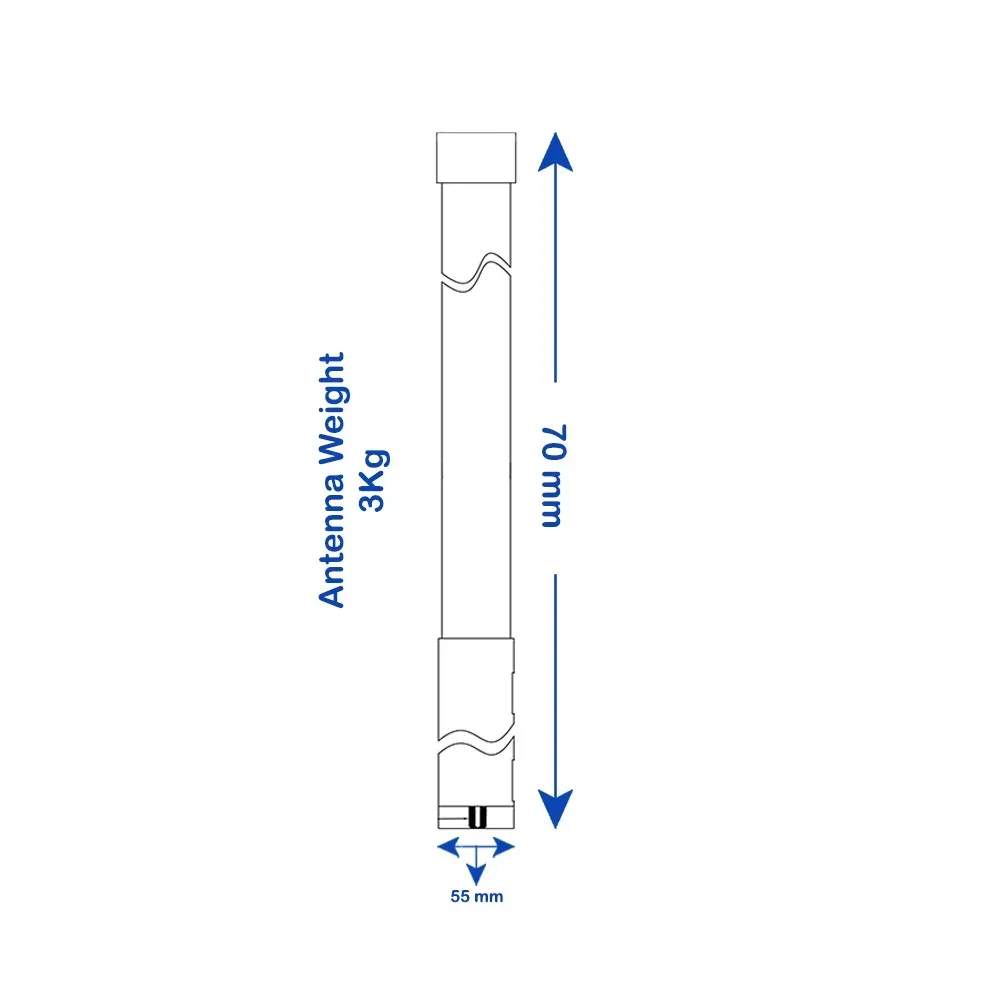

Mechanical specification:
Length2800mm
Diameter70 x 55mm
Antenna Weight3Kg
Accessories70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium

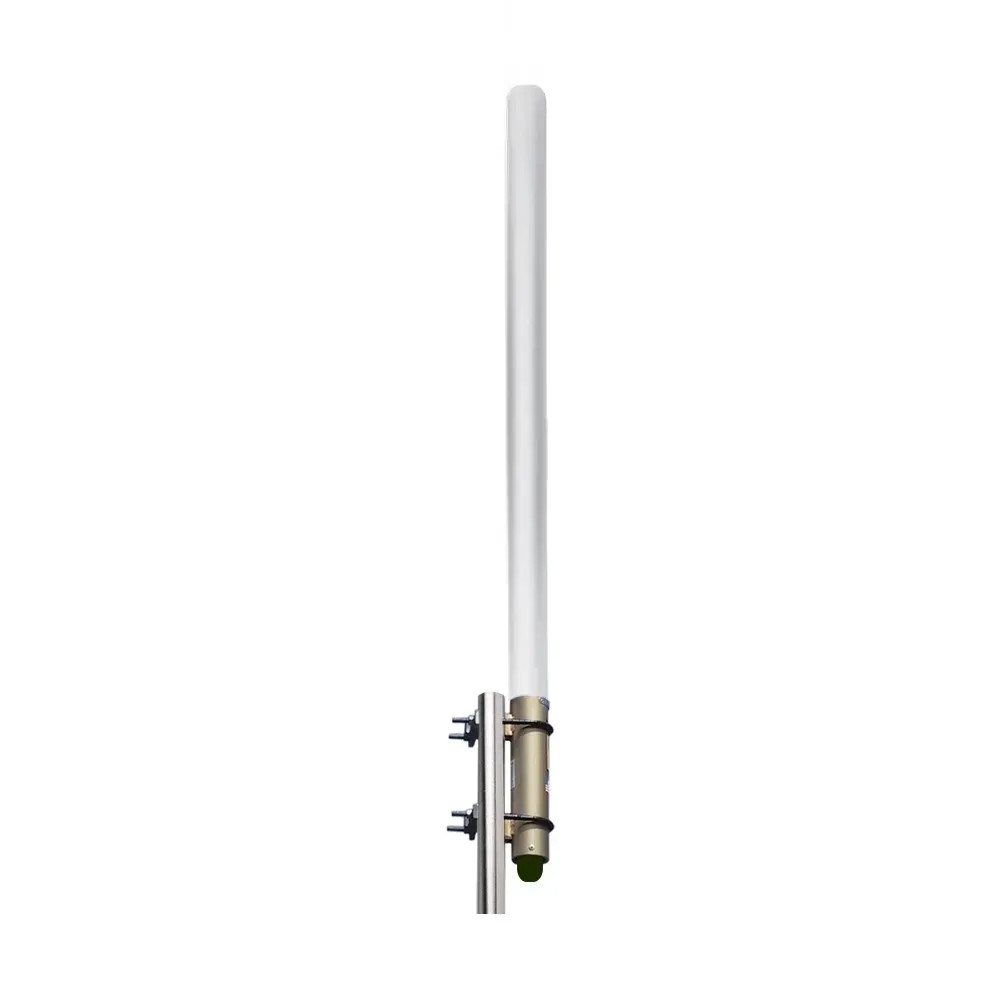

Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherRoHS
