Product code: MT-155165M03-NF

155 MHz to 165 MHz 3dBi Dipole Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-155165M03-NF
Dimension 1400x70x50mm
Weight 920g
Connector N-Female
Beam-width Horz.360 deg Vert.65 deg
WhatsApp Chat
Skype
Product Part Number
MT-155165M03-NF
Electrical & Mechanical Specification
Specification:
Electrical
Frequency Range155 to 165MHz
V.S.W.R (MAX)2.0:1
158 to 162MHz 1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)3 dBi
PolarizationVertical
Maximum Power250 Watts
Vertical Beam width65 Deg
Horizontal Beam width360 Deg
Impedance50 Ohm
Antenna Design1/4 Wavelength Dipole
Internal MaterialCopper
ConnectorN-Female
Mechanical

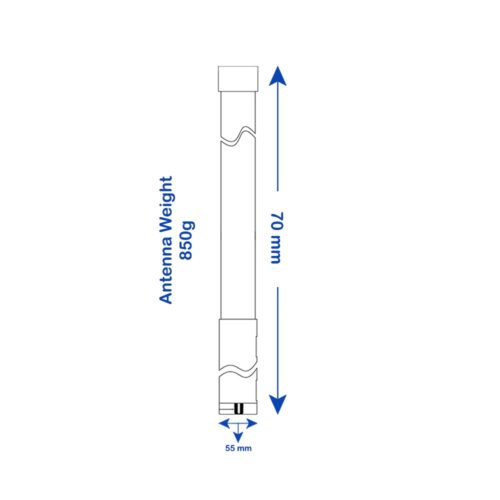

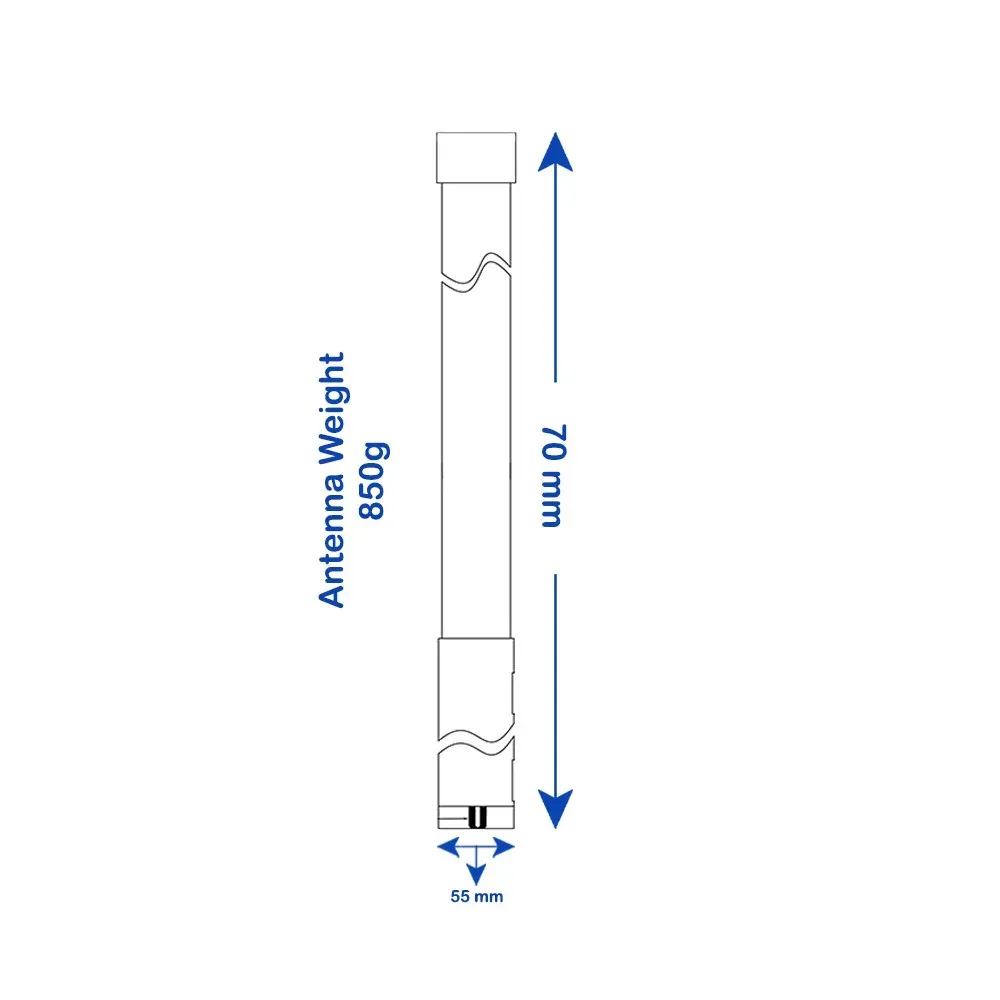

Length1400mm
Diameter70 x 55mm
Antenna Weight850 g
Accessories70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium

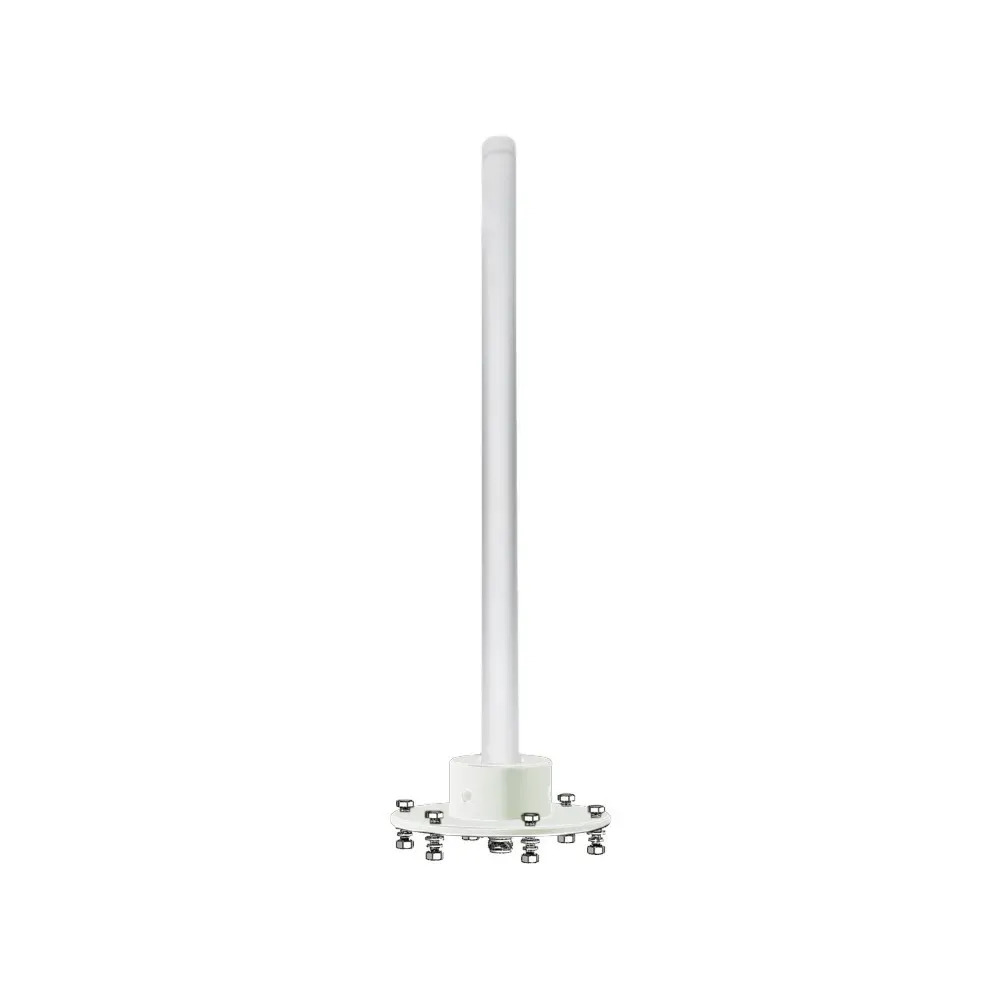

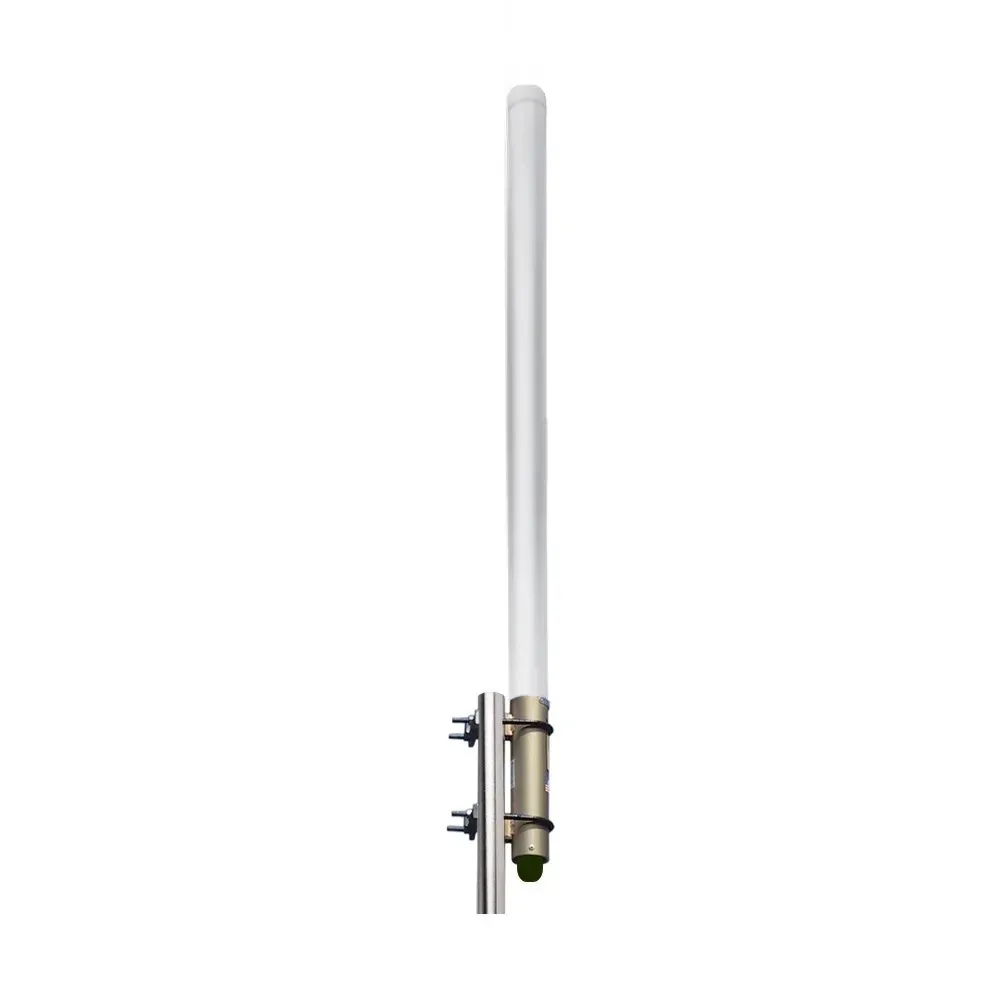

Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
