Product code: 16P-694-2690F-16G-65H12V

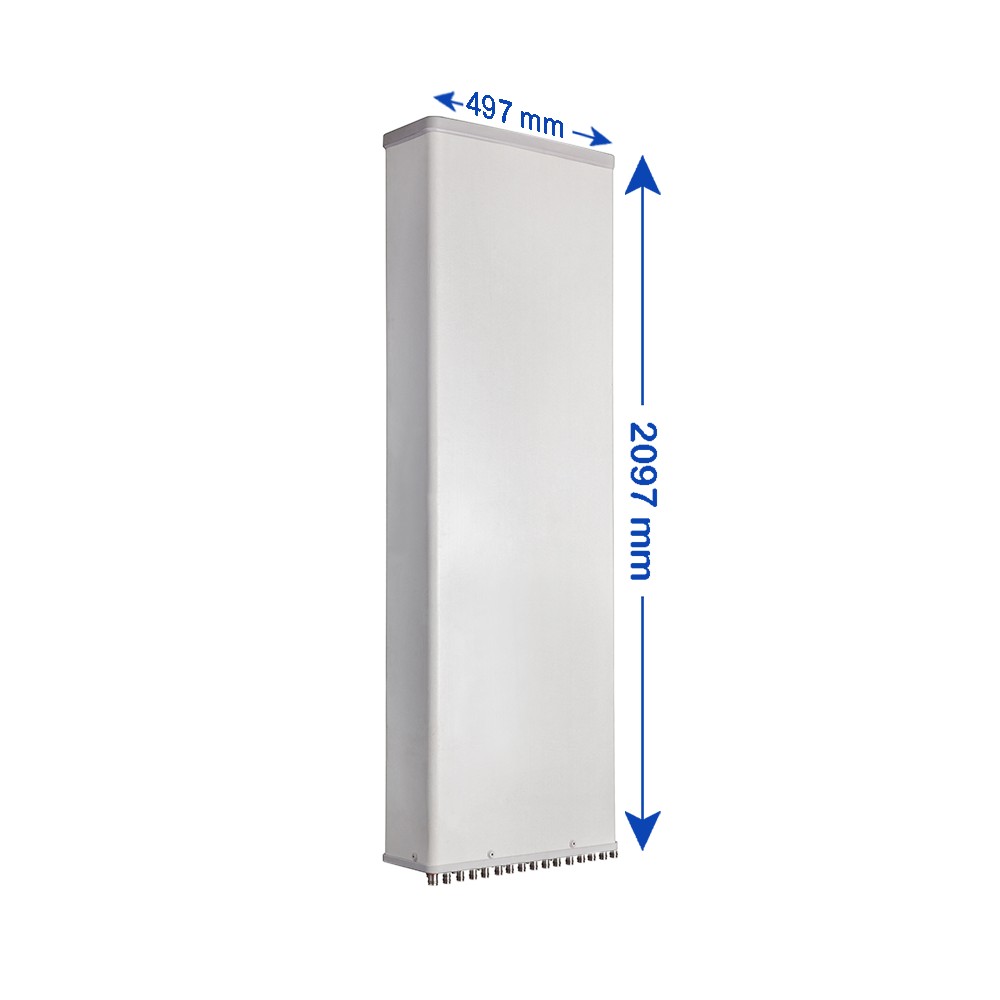

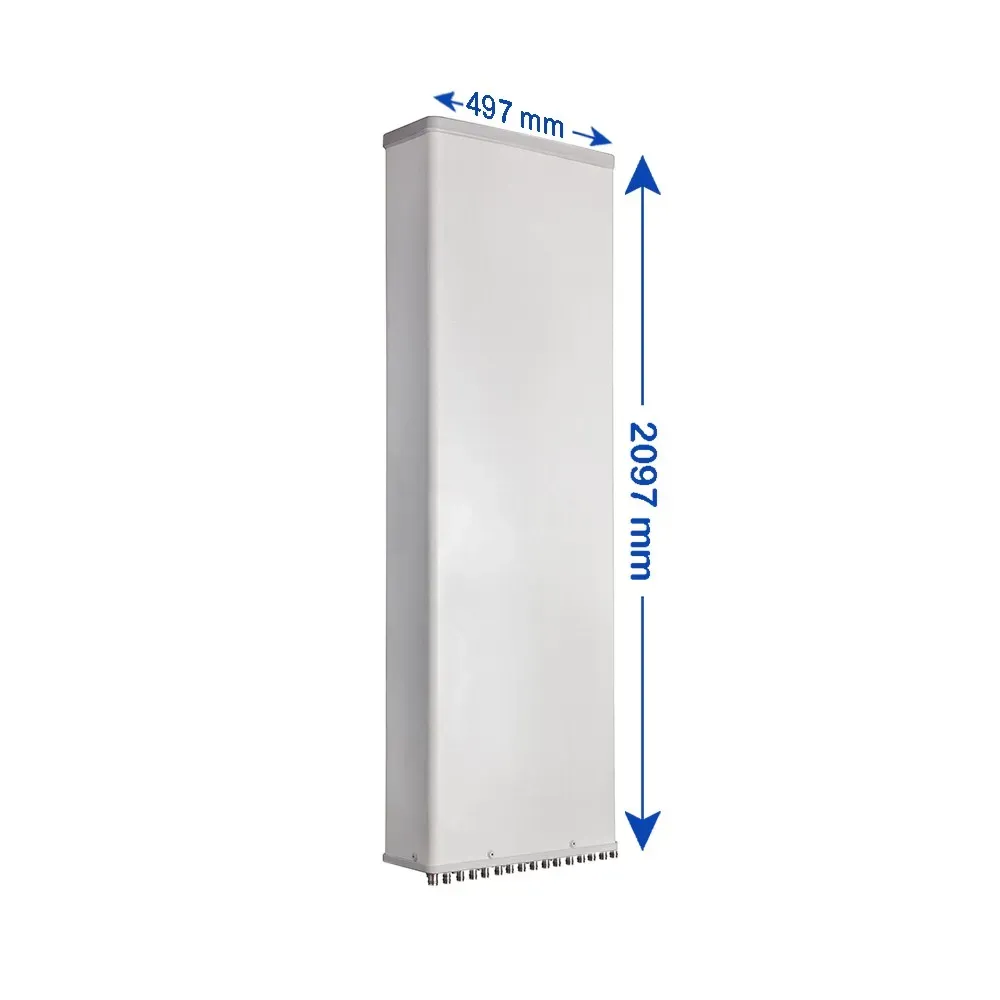

16-Port, Panel Sector Antenna, 65° HBW, (2x) 694-960 / (2x) 1695-2180 / (2x) 1427-2690 / (2x) 2490-2690 MHz, 16/16/17/17/17/18/18/17 dBi, 2-12°T, 2.097 m

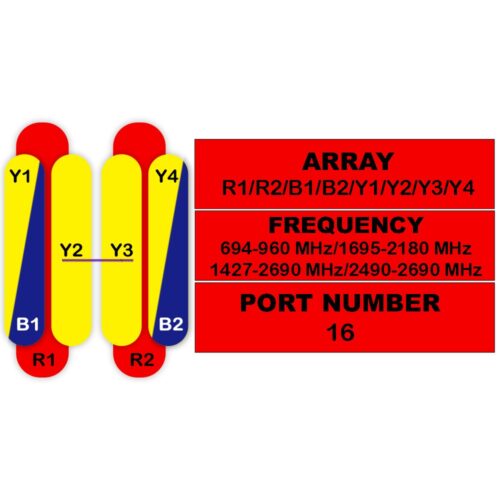

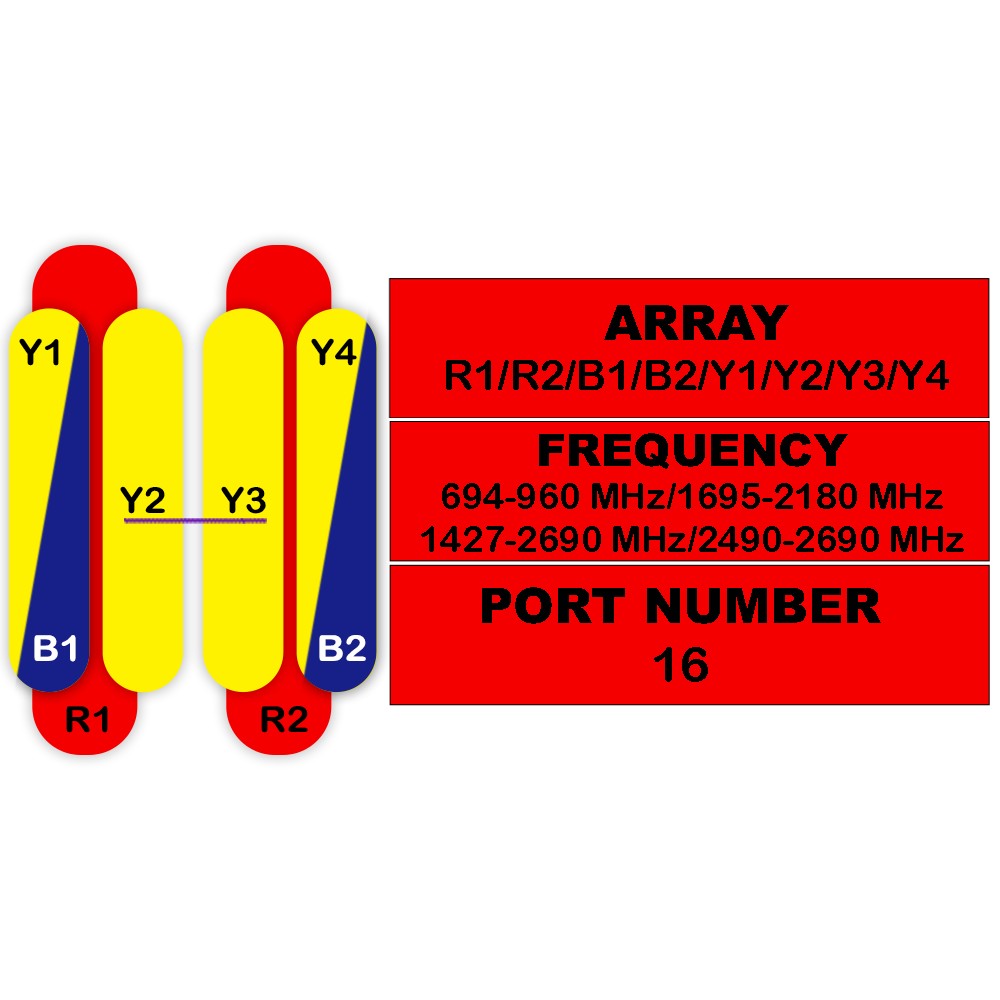

| 16-Port Antenna | R1 | R2 | B1 | B2 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 694-960 | 694-960 | 1695-2180 | 1695-2180 | 2490-2690 | 1427-2690 | 1427-2690 | 2490-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 16 dBi | 16 dBi | 17 dBi | 17 dBi | 17 dBi | 18 dBi | 18 dBi | 17 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

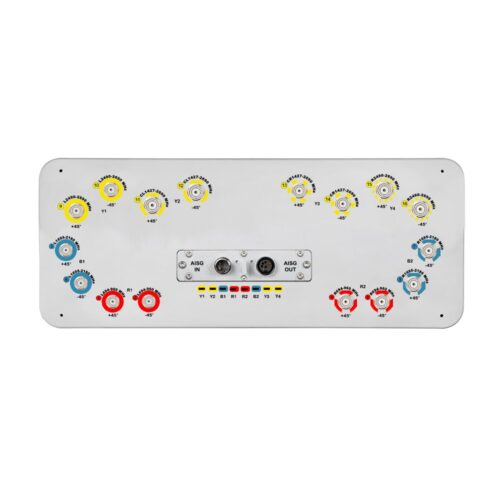

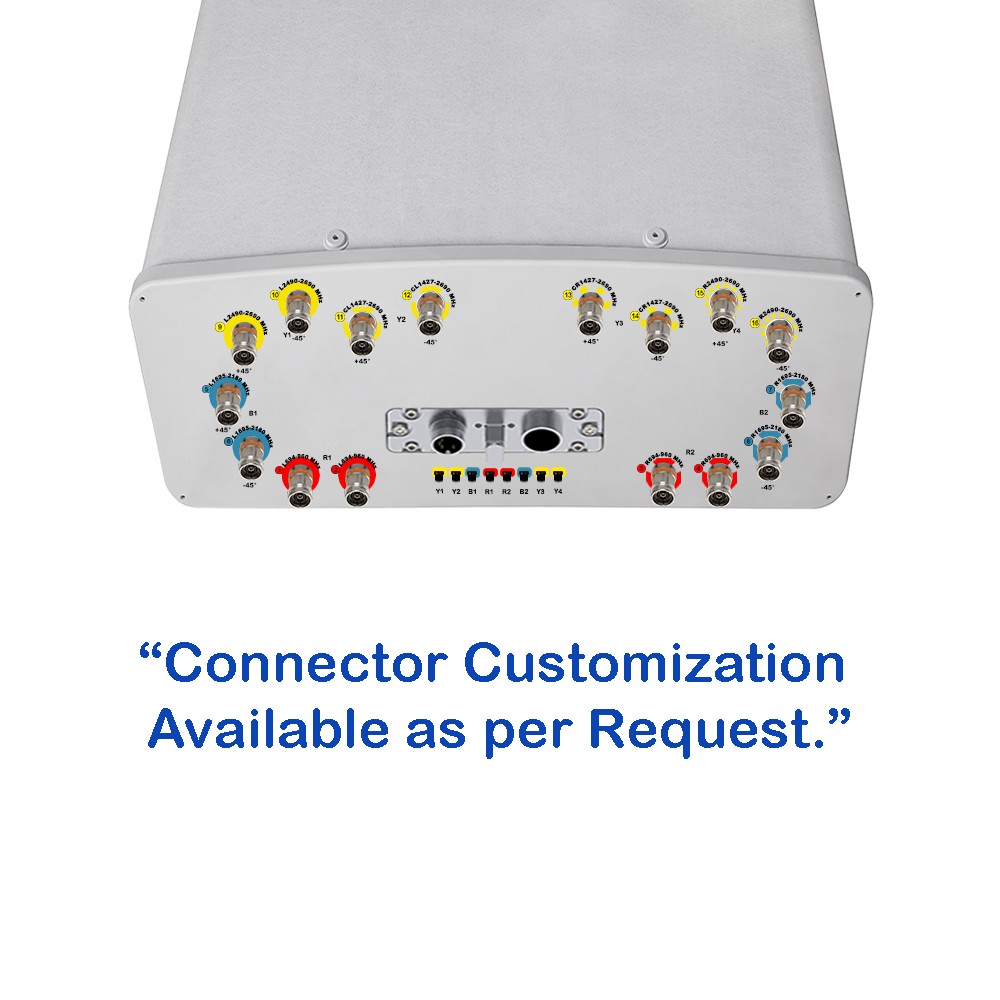

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
