Product code: 16P-694-2690F-14G-65H15V

16-Port, Panel Sector Antenna, 65° HBW, (2x) 694-960/(6x) 1710-2690 MHz, 14.5/14.5/15/14.5/15/14.5/15/14.5 dBi, 2-12°T, 1.497 m

16-Port Antenna R1 R2 Y1 Y2 Y3 Y4 Y5 Y6
Frequency Range (MHz) 694-960 694-960 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690
HBW 65° 65° 65° 65° 65° 65° 65° 65°
Gain 14.5 dBi 14.5 dBi 15 dBi 14.5 dBi 15 dBi 14.5 dBi 15 dBi 14.5 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female



WhatsApp Chat
Skype
Product Part Number
16P-694-2690F-14G-65H15V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2Y1 / Y3 / Y5Y2 / Y4 / Y6
Frequency RangeMHz694-9601710-26901710-2690
MHz694-824806-896880-9601710-18801850-19901920-21702300-24002500-26901710-18801850-19901920-21702300-24002500-2690
Polarization—±45°±45°±45°
Gainat Mid TiltdBi1414.314.61414.314.614.914.913.814.114.414.714.7
Over All TiltsdBi13.8±0.614.1±0.614.4±0.613.8±0.714.1±0.614.4±0.614.7±0.614.7±0.613.6±0.713.9±0.614.2±0.614.5±0.614.5±0.6
Horizontal Beamwidthdegree67 ± 5.564 ± 5.562 ± 5.569 ± 5.667 ± 5.265 ± 5.563 ± 5.462 ± 5.269 ± 5.667 ± 5.265 ± 5.563 ± 5.462 ± 5.2
Vertical Beamwidthdegree15.1±1.113.6±0.912.4±0.812.7±1.011.7±0.810.9±0.89.6 ± 0.98.7 ± 0.912.7±1.011.7±0.810.9±0.89.6 ± 0.98.7 ± 0.9
Electrical Downtilt, Continuously Adjustabledegree2-122-122-12
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side Lobe SuppressionFirst Upper LobedB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Peak to 20°dB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 22> 23> 24> 23> 23> 24> 25> 24> 23> 23> 24> 25> 24
Cross Polarat BoresightdB> 18> 18> 18> 16> 16> 17> 18> 18> 16> 16> 17> 18> 18
DiscriminationOver SectordB> 8.0> 7.0> 6.0> 6.0> 7.0> 7.0> 5.0> 3.0> 6.0> 7.0> 7.0> 5.0> 3.0
IsolationCross-PolardB> 25> 25> 25
Port-To-PortdB> 28 (R1,R2//Y1,Y2,Y3,Y4,Y5,Y6), > 25 (R1//R2)> 28> 28
ImpedanceOhm505050
VSWR—< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150< -150
Lightning Protection—DC GroundDC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250250250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

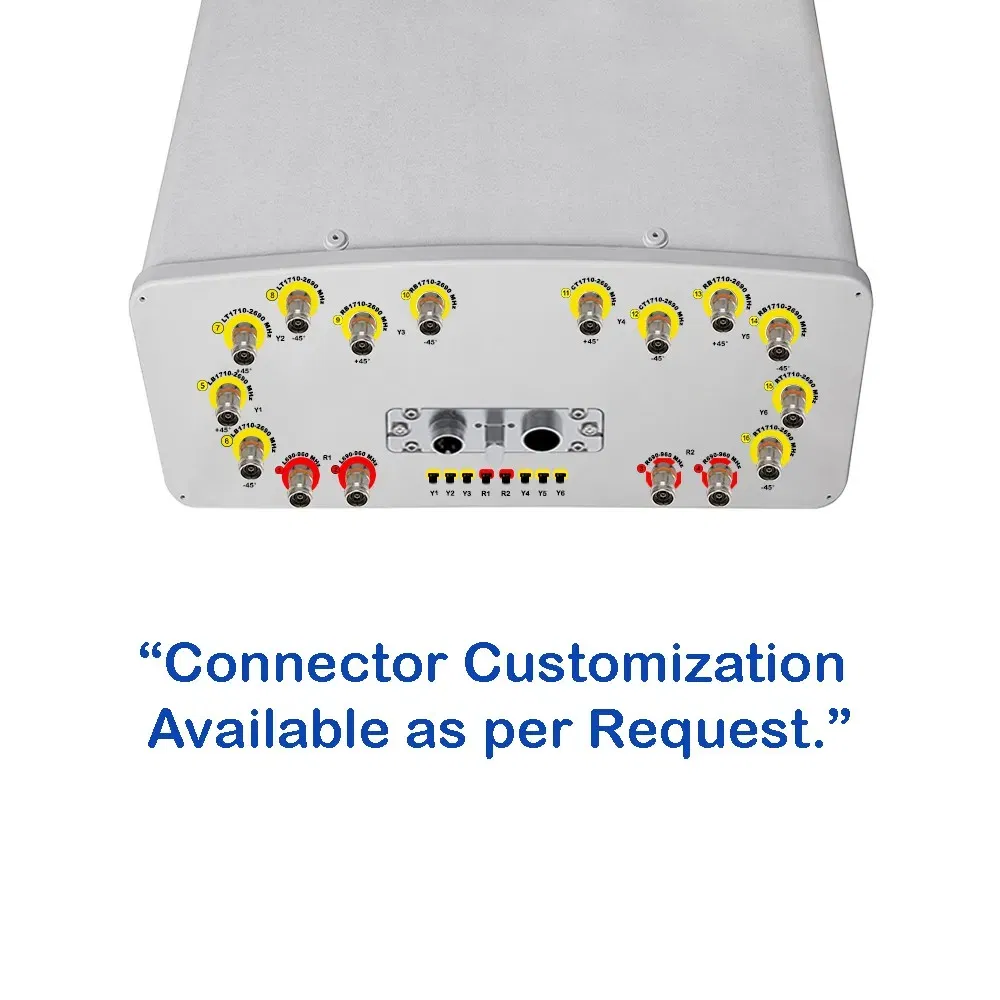

Connector Type—(16x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

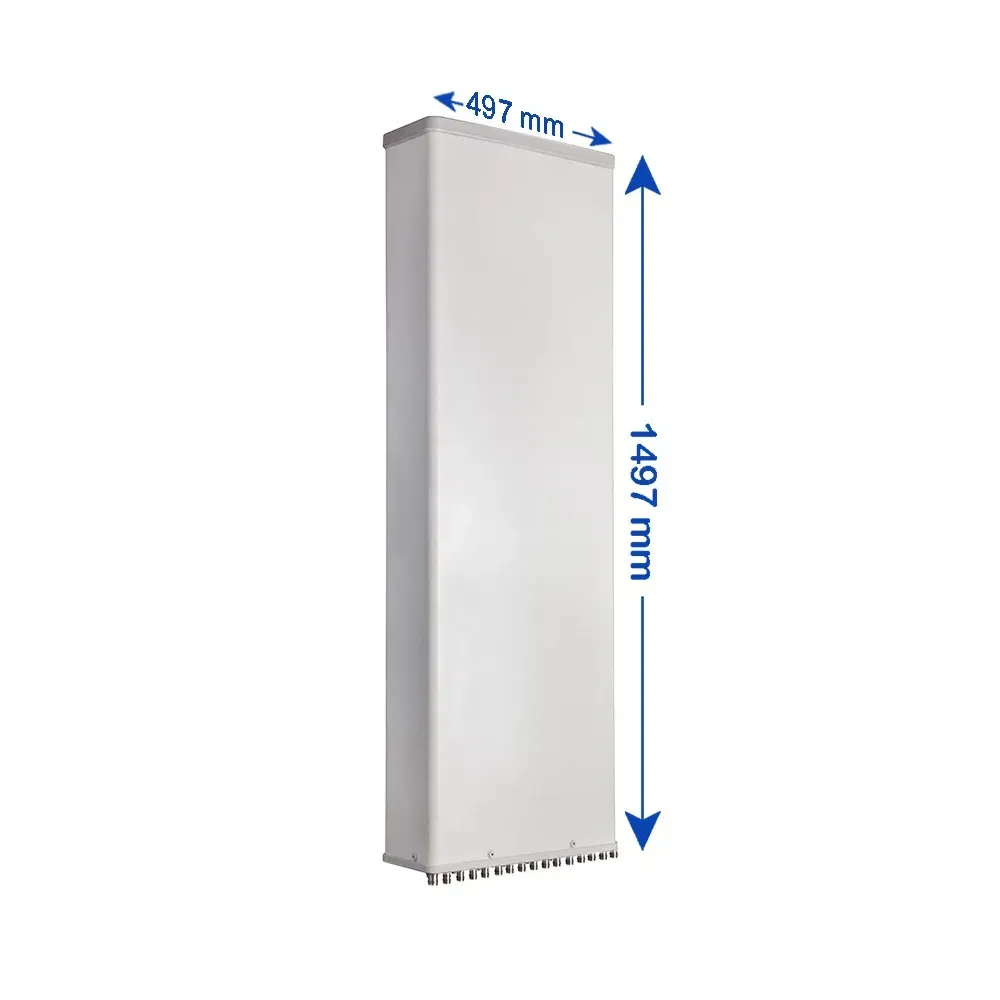

Antenna Dimensions (H x W x D)mm (in)1497 x 497 x 197 (58.9 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)27.5 (60.6)
with Clampskg (lbs)33 (72.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)690 (155.1)
at 150 km/hRearN (lbf)770 (173.1)
LateralN (lbf)290 (65.2)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
