Product code: 16P-694-2690F-16G-65H11V

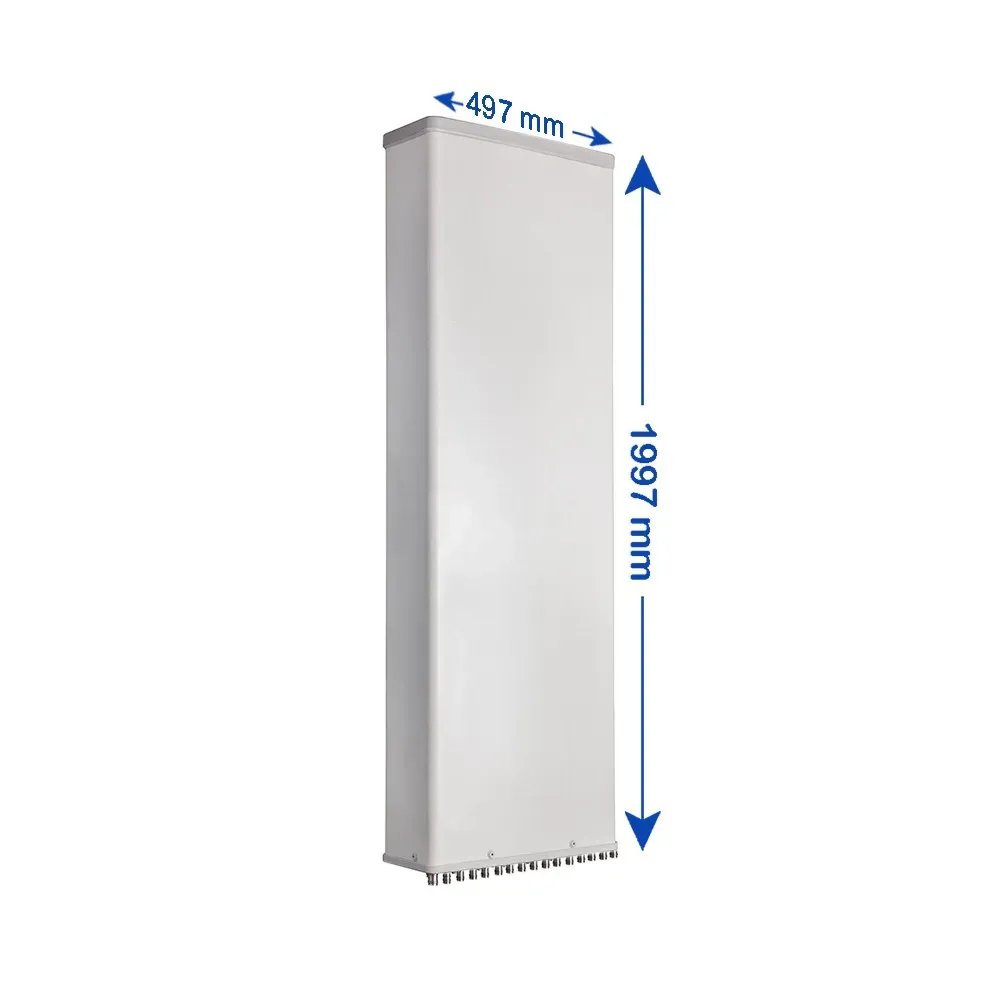

16-Port, Panel Sector Antenna, 65° HBW, (2x) 694-960/(6x) 1710-2690 MHz, 15.5/15.5/16.5/16/16.5/16/16.5/16 dBi, 2-12°T, 1.997 m

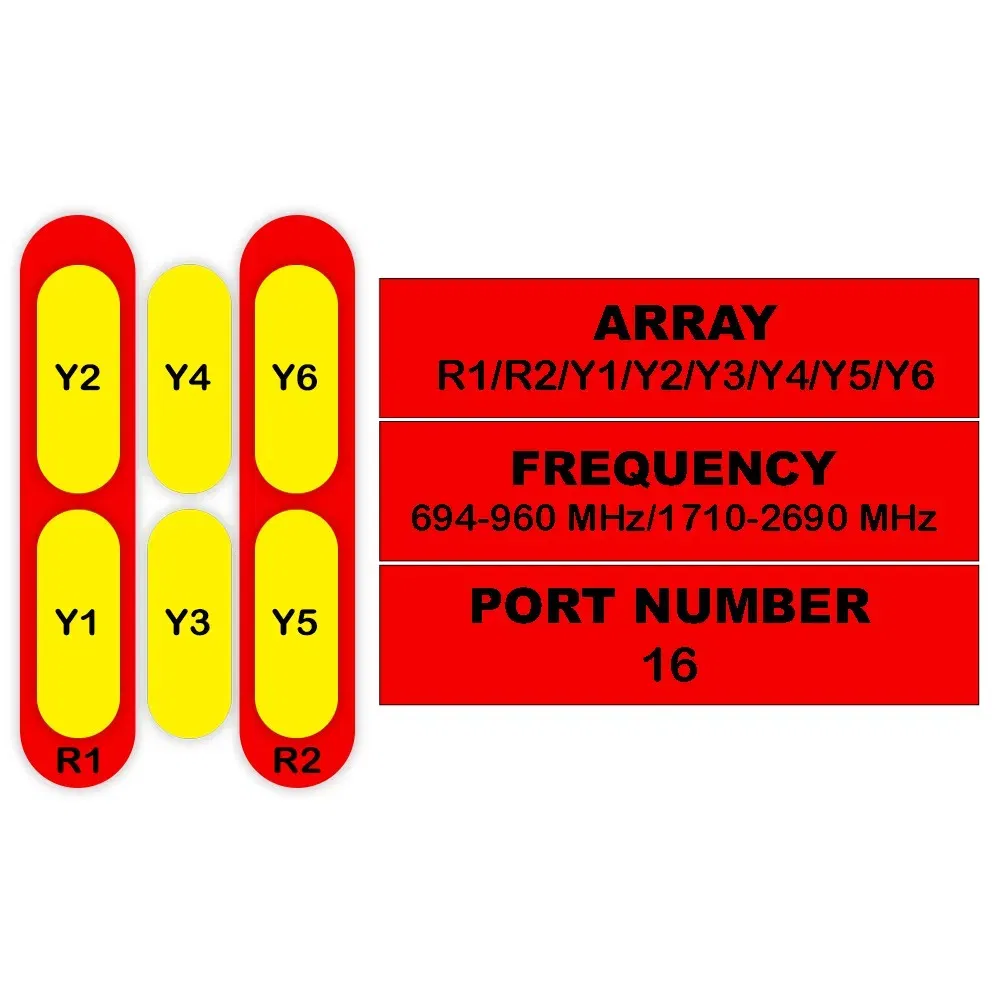

| 16-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 |
| Frequency Range (MHz) | 694-960 | 694-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 15.5 dBi | 16.5 dBi | 16 dBi | 16.5 dBi | 16 dBi | 16.5 dBi | 16 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

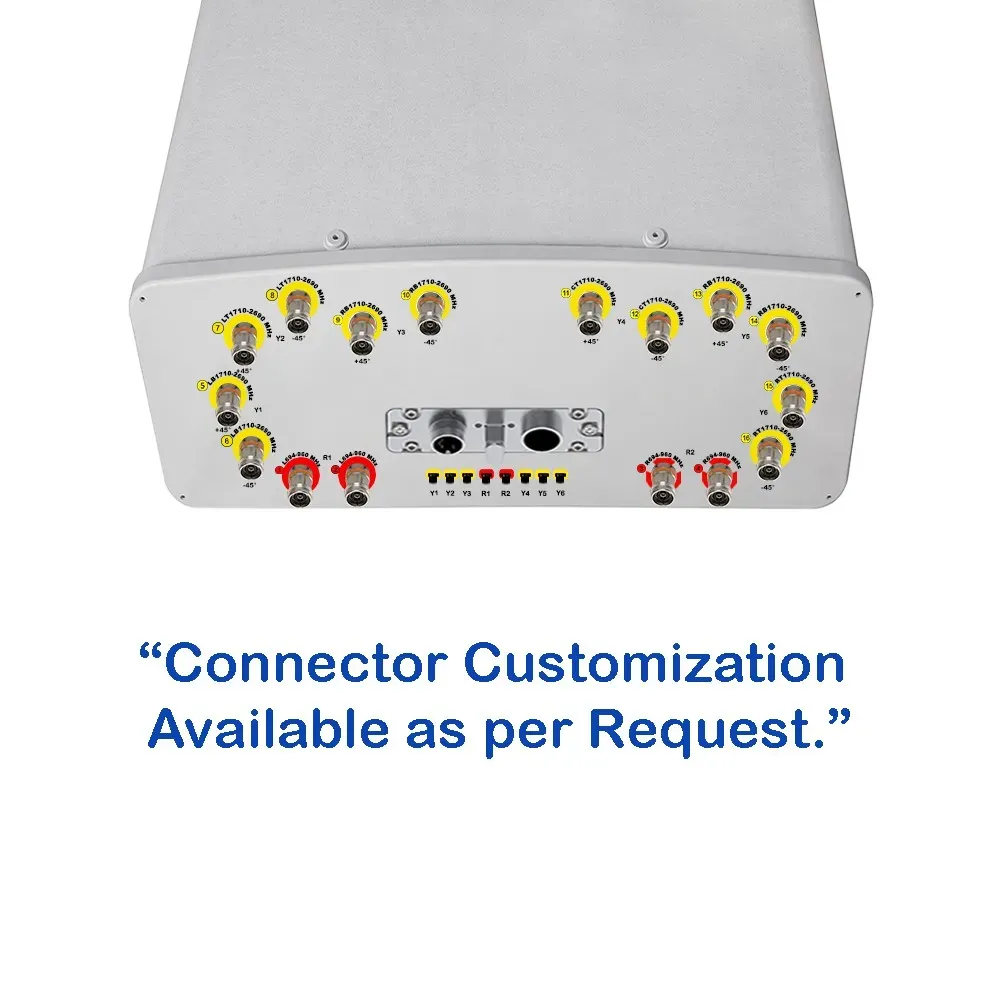

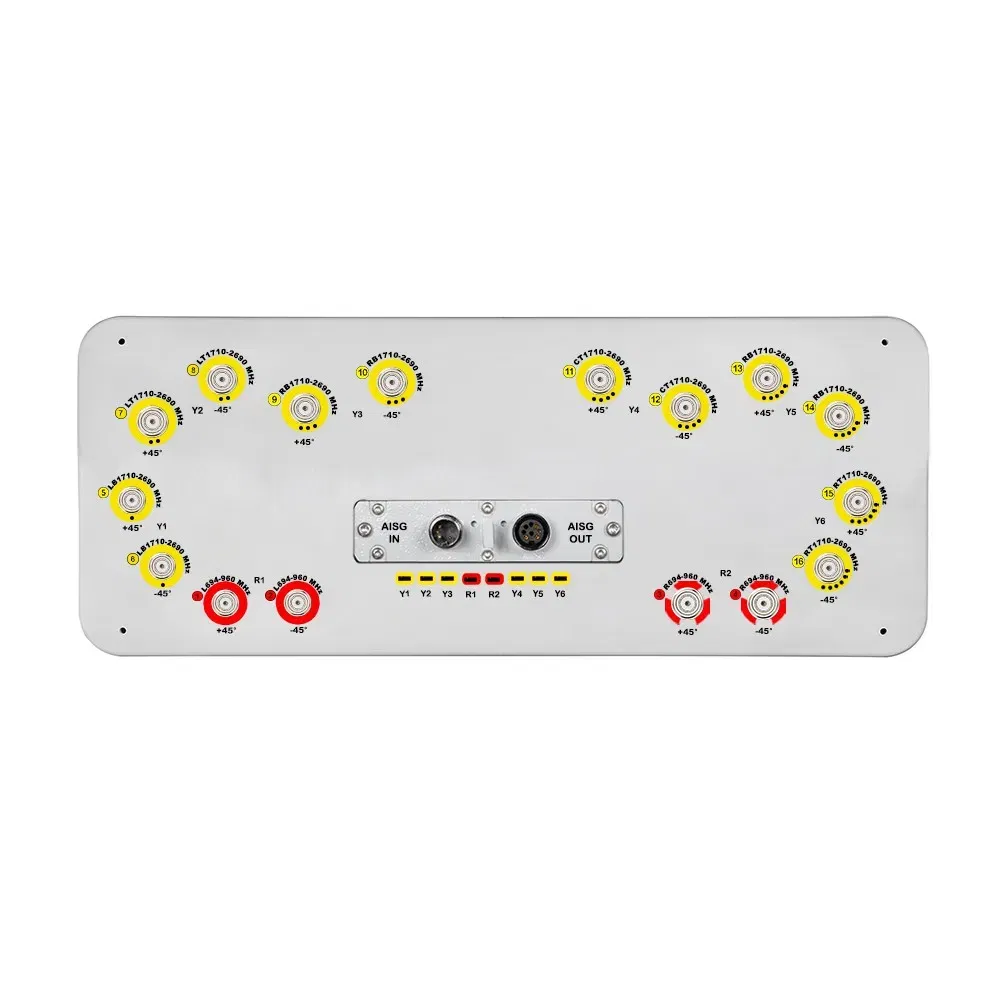

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
