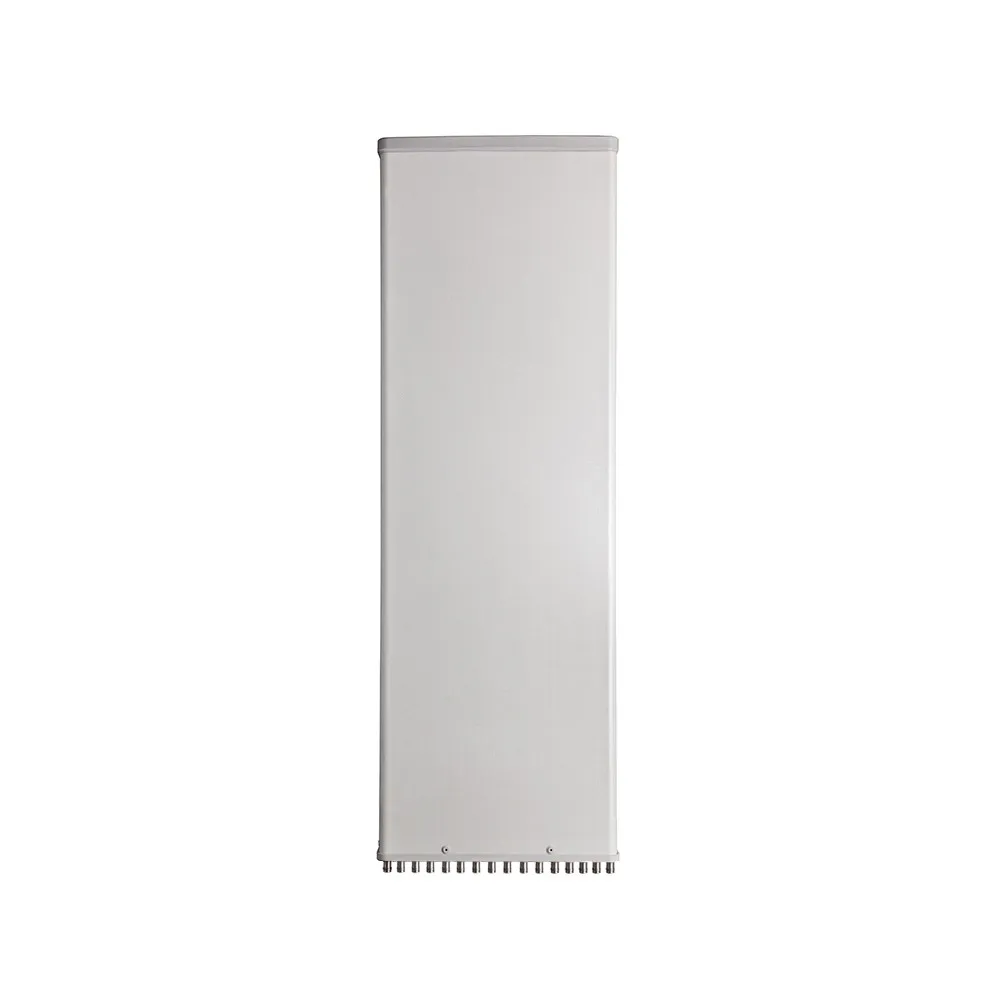

16-Port, Split-Beam Panel Sector Antenna, 33° HBW, (4x) 1710-1880 / (4x) 2300-2400 MHz, 17.5/17.5/17.5/17.5/18.5/18.5/18.5/18.5 dBi, 0-10°T, 2.197 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 16P-1710-2400F-17G-33H9V

16-Port, Split-Beam Panel Sector Antenna, 33° HBW, (4x) 1710-1880 / (4x) 2300-2400 MHz, 17.5/17.5/17.5/17.5/18.5/18.5/18.5/18.5 dBi, 0-10°T, 2.197 m

16-Port Antenna	B1	B2	B3	B4	Y1	Y2	Y3	Y4
Frequency Range (MHz)	1710-1880	1710-1880	1710-1880	1710-1880	2300-2400	2300-2400	2300-2400	2300-2400
HBW	33°	33°	33°	33°	33°	33°	33°	33°
Gain	17.5 dBi	17.5 dBi	17.5 dBi	17.5 dBi	18.5 dBi	18.5 dBi	18.5 dBi	18.5 dBi
Tilt	0-10°	0-10°	0-10°	0-10°	0-10°	0-10°	0-10°	0-10°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

16P-1710-2400F-17G-33H9V

Electrical & Mechanical Specification

Electrical Specifications
			B1/B2/B3/B4	Y1/Y2/Y3/Y4
Frequency Range		MHz	1710-1880	2300-2400
Polarization		—	±45°	±45°
Gain	at Mid Tilt	dBi	17.1	18.3
	Over All Tilts	dBi	17.0 ± 0.8	18.2 ± 0.8

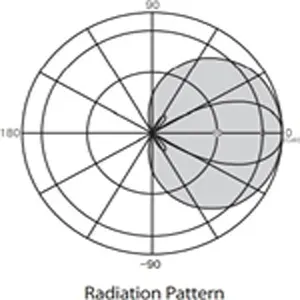

Horizontal Beamwidth		degree	35 ± 3	28 ± 3

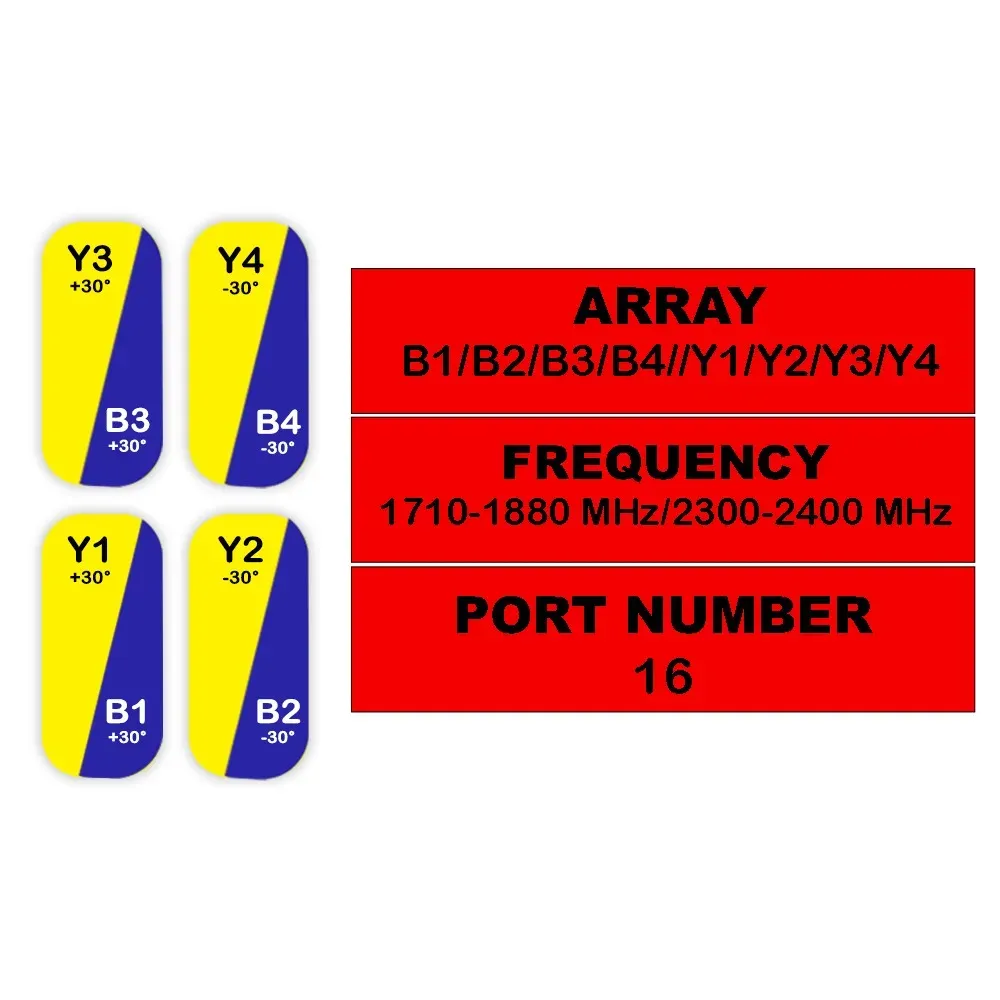

Azimuth Beam Centers		degree	B1/B3: +30	Y1/Y3: +30
Azimuth Beam Centers		degree	B2/B4: -30	Y2/Y4: -30
Vertical Beamwidth		degree	8.8 ± 1.0	7.1 ± 1.0
Electrical Downtilt, Continuously Adjustable		degree	0-10	0-10
First Upper Side Lobe Suppression		dB	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°		dB	> 30	> 30
Cross Polar Discrimination at Peak		dB	> 18	> 18
Cross Polar Discrimination at 10 dB		dB	> 8	> 8
Horizontal Sidelobe		dB	> 18	> 18
Isolation	Intraband, Same Beam	dB	≥ 25	≥ 25
	Beam-to-Beam	dB	≥ 15	≥ 15
	Interband	dB	≥ 25	≥ 25
Impedance		Ohm	50	50
VSWR		—	< 1.5	< 1.5
Return Loss		dB	> 14	> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150	< -150
Lightning Protection		—	DC Ground	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200	200
Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W

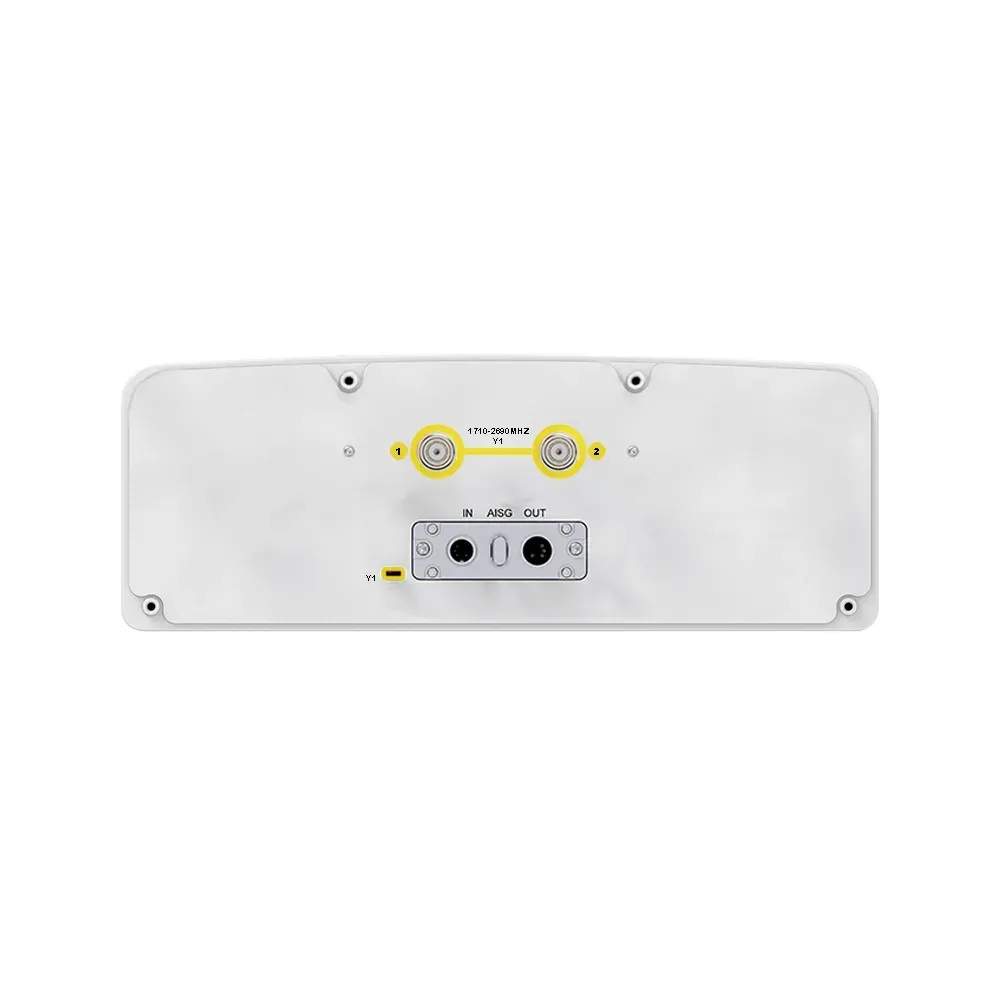

Connectors		2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
		Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications

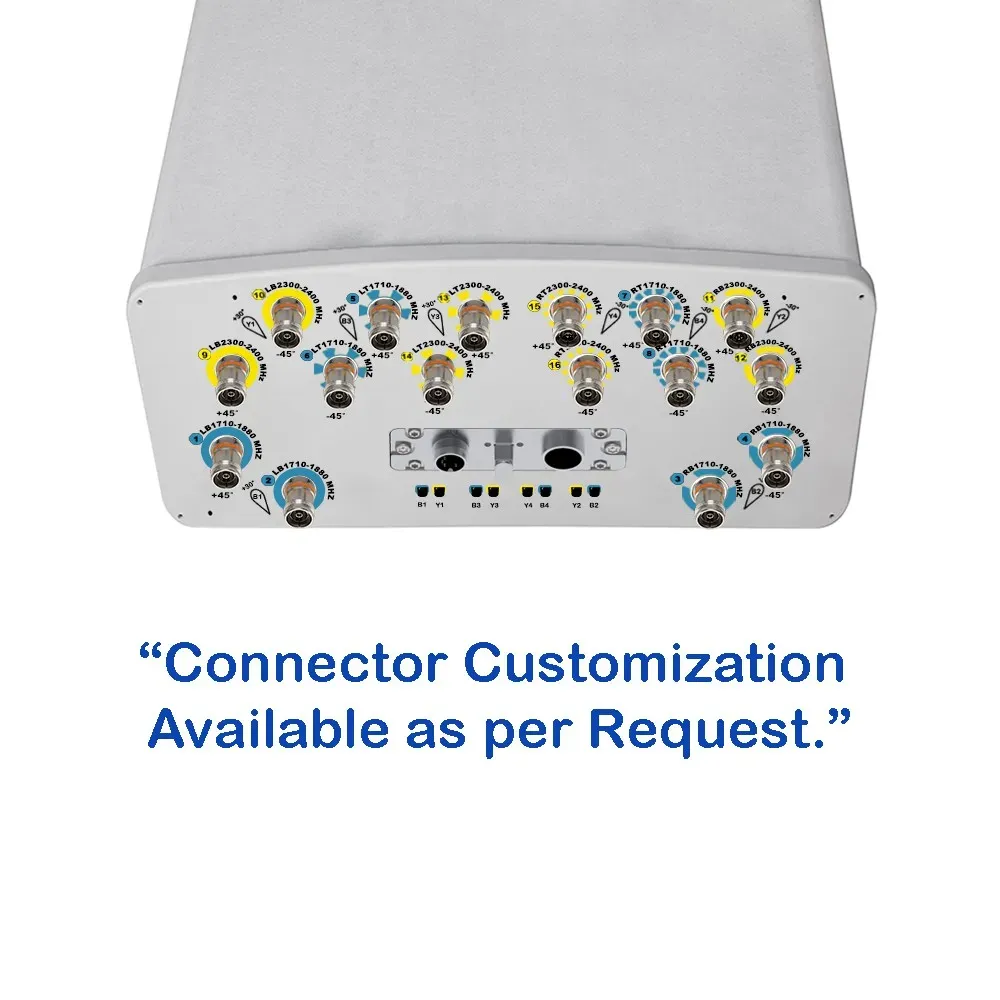

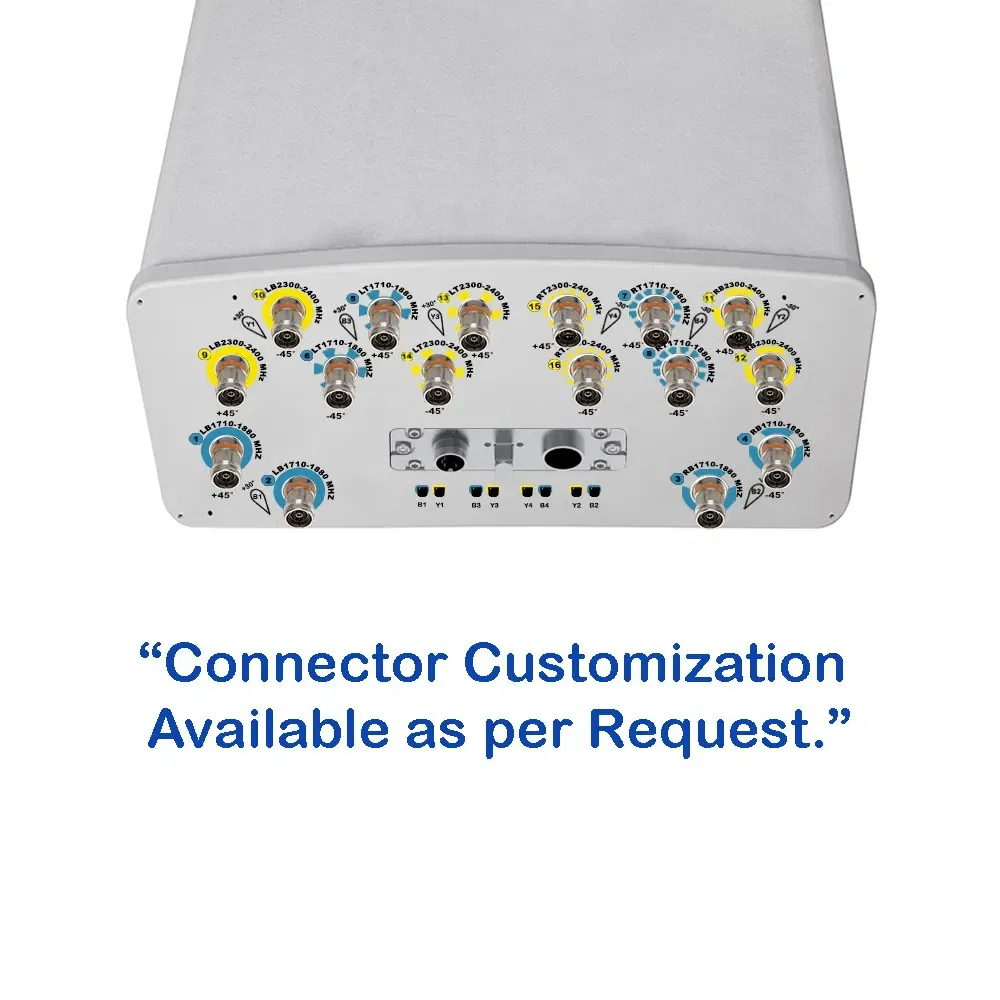

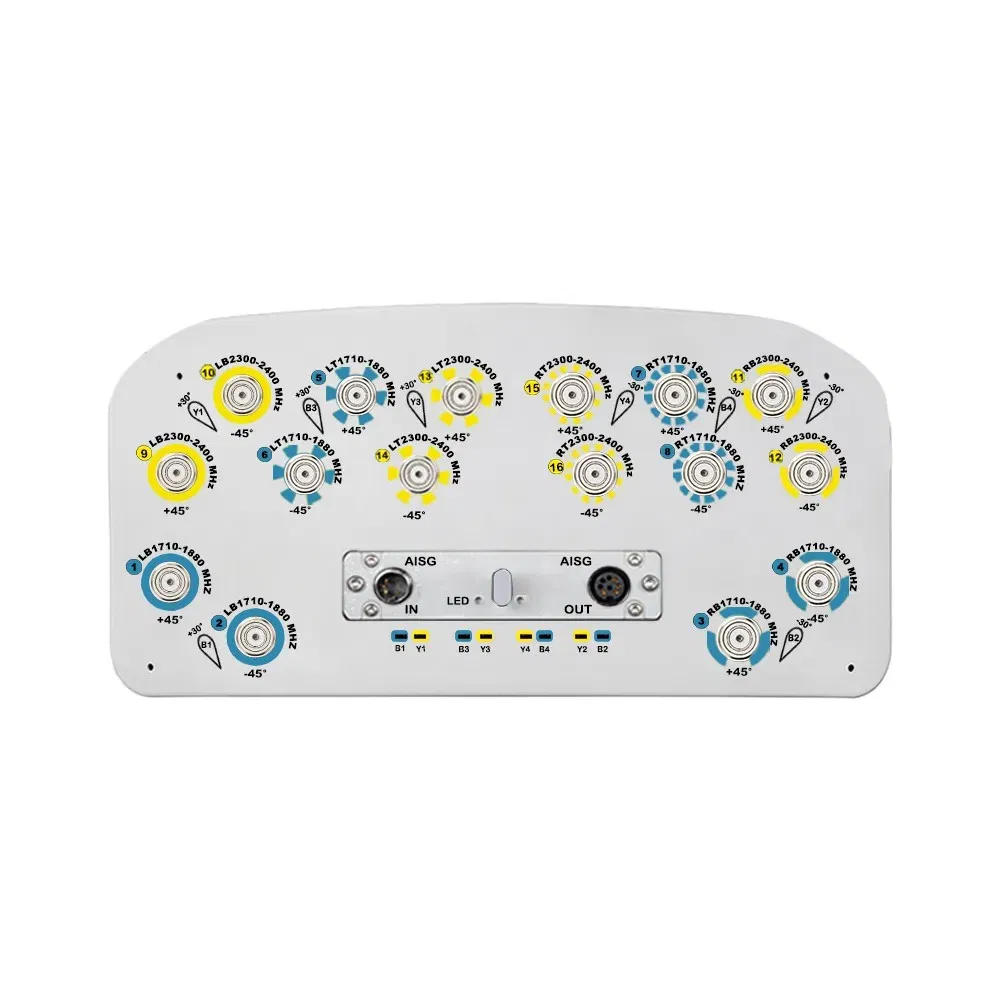

Connector Type		—	(16x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	UPVC

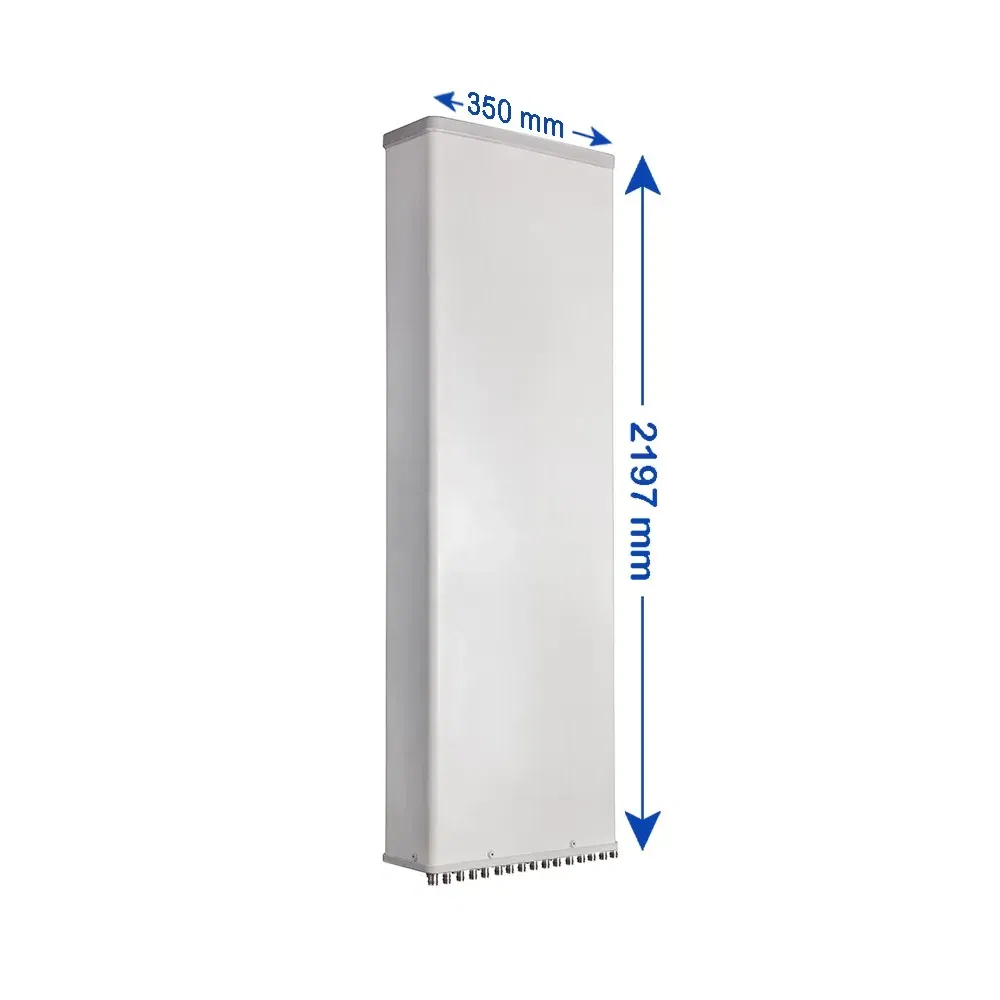

Antenna Dimensions (H x W x D)		mm (in)	2197 x 350 x 178 (86.5 x 13.8 x 7.0)
Antenna Weight	Antenna Only	kg (lbs)	32 (70.5)
	Antenna with Clamps	kg (lbs)	36 (79.4)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	710 (159.6)
At 150 Km/H	Rear	N (lbf)	795 (178.7)
	Lateral	N (lbf)	490 (110.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
