Product code: 16P-1710-2400F-18G-35H10V

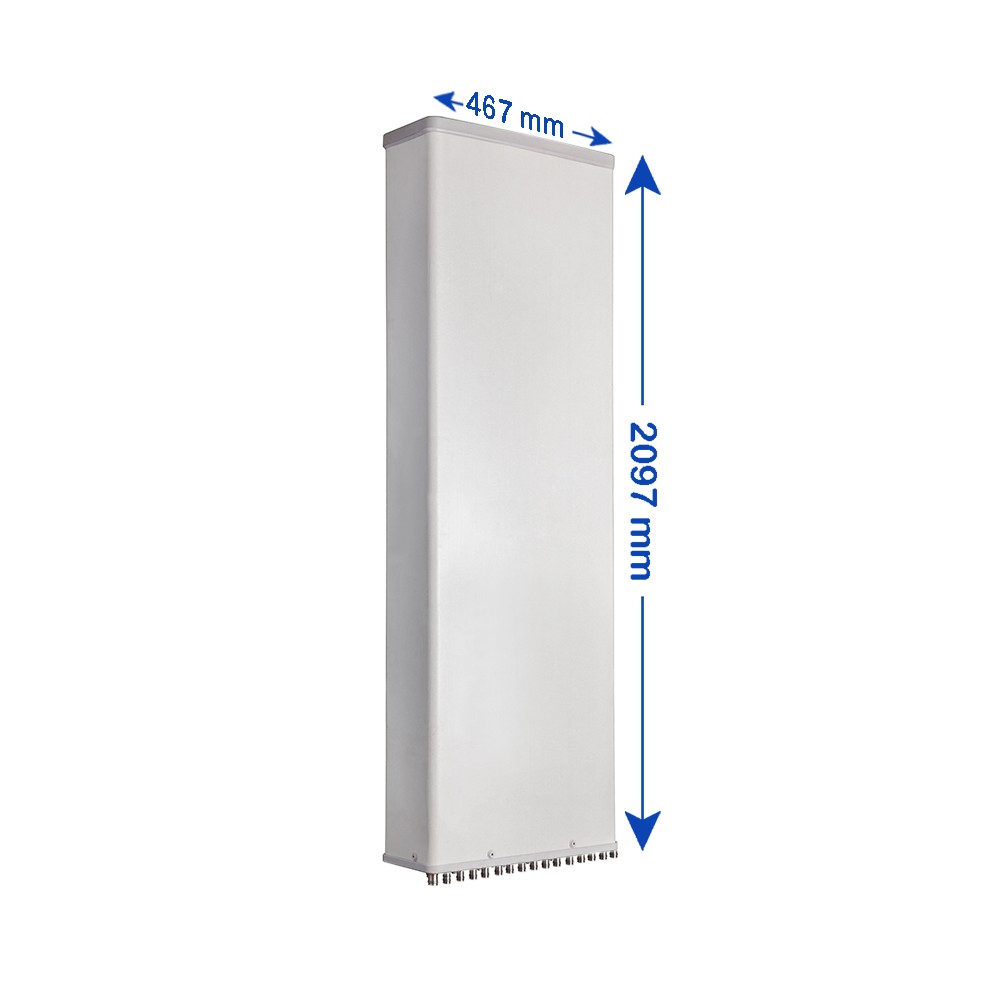

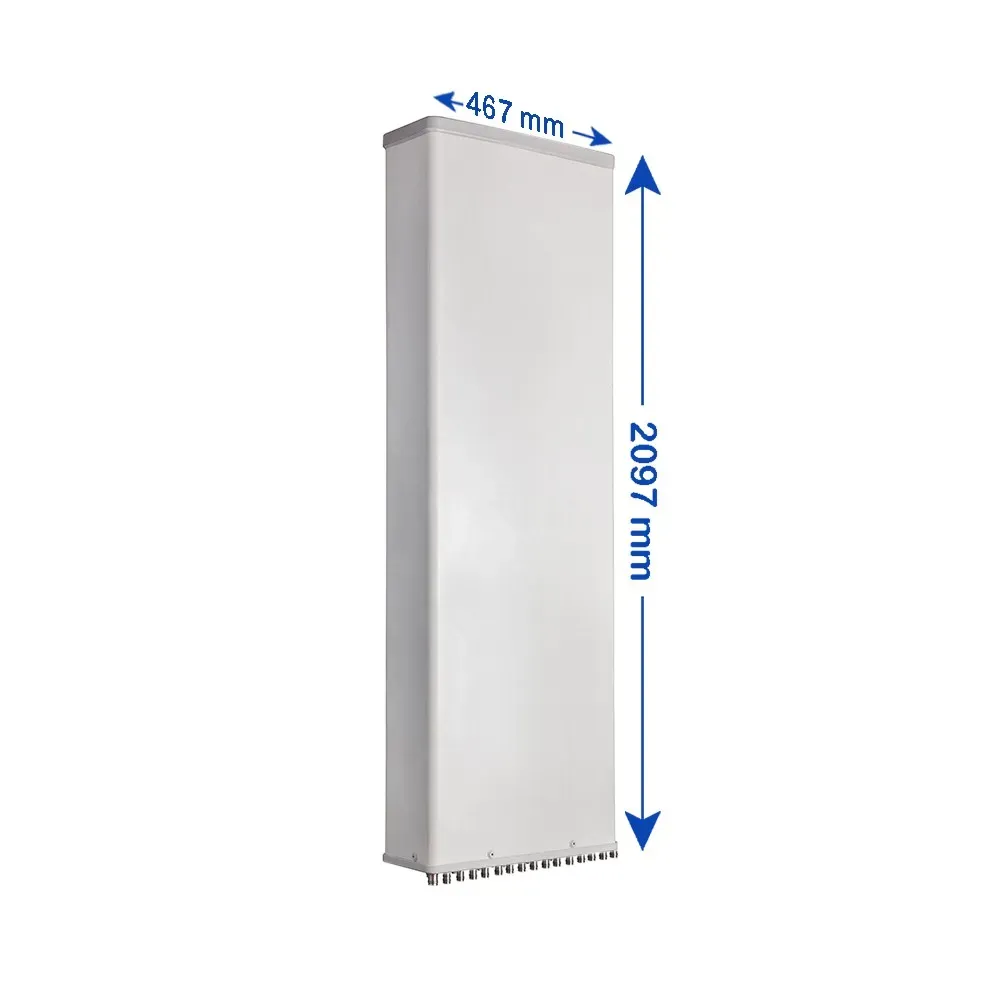

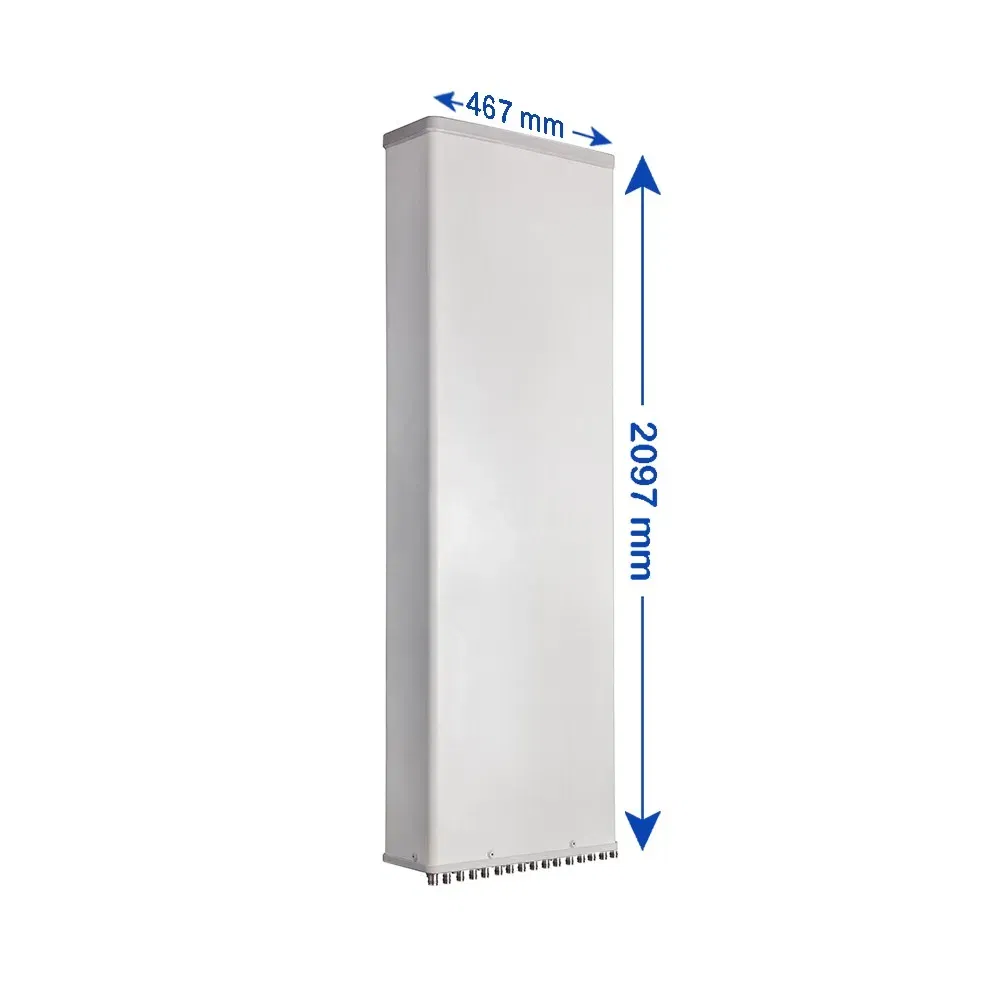

16-Port, Split-Beam Panel Sector Antenna, 35° HBW, (2x) 1710-1880 / (2x) 1920-2170 / (4x) 2300-2400 MHz, 17.5/17.5/17.5/17.5/18.5/18.5/18/18 dBi, 2-12°T, 2.097 m

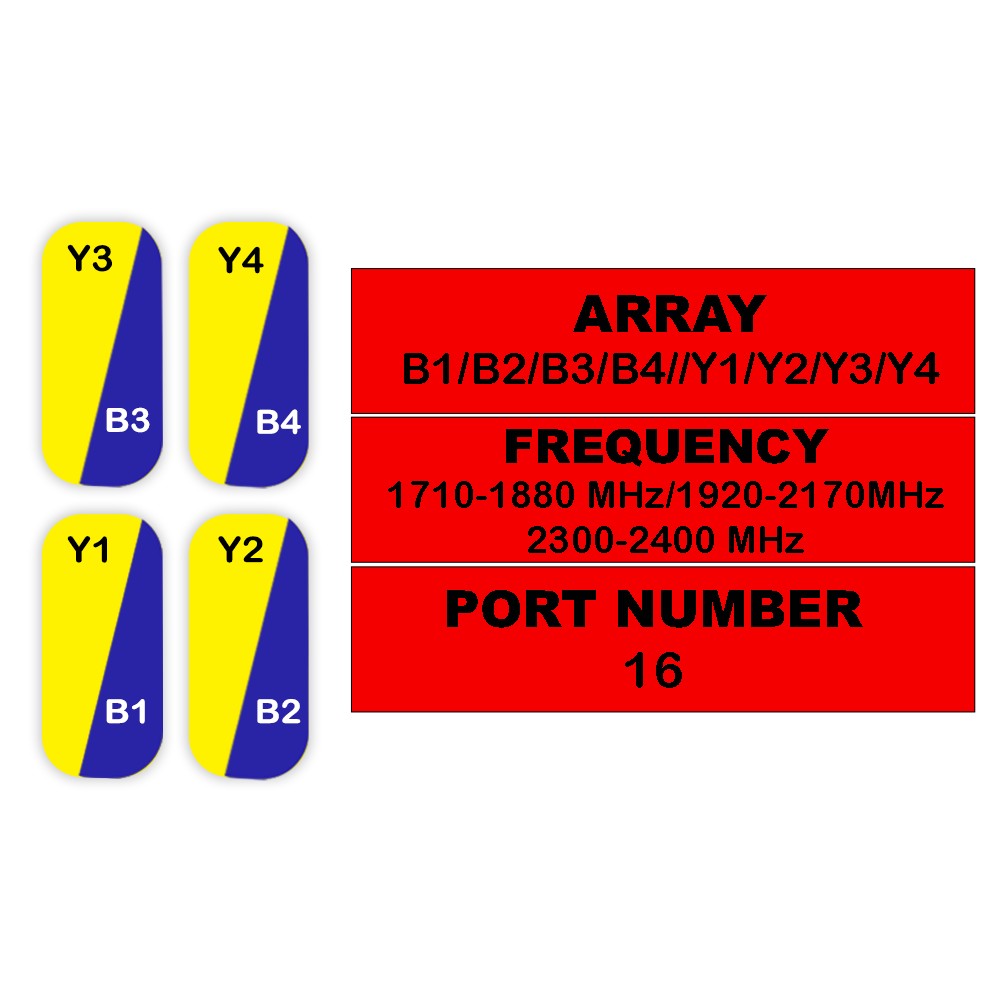

| 16-Port Antenna | B1 | B2 | B3 | B4 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 1710-1880 | 1710-1880 | 1920-2170 | 1920-2170 | 2300-2400 | 2300-2400 | 2300-2400 | 2300-2400 |
| HBW | 35° | 35° | 35° | 35° | 35° | 35° | 35° | 35° |
| Gain | 17.5 dBi | 17.5 dBi | 17.5 dBi | 17.5 dBi | 18.5 dBi | 18.5 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

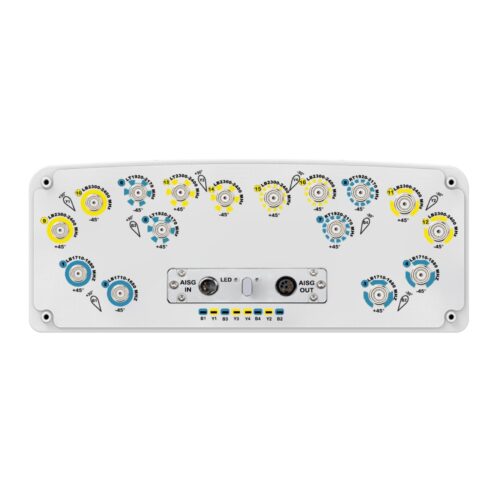

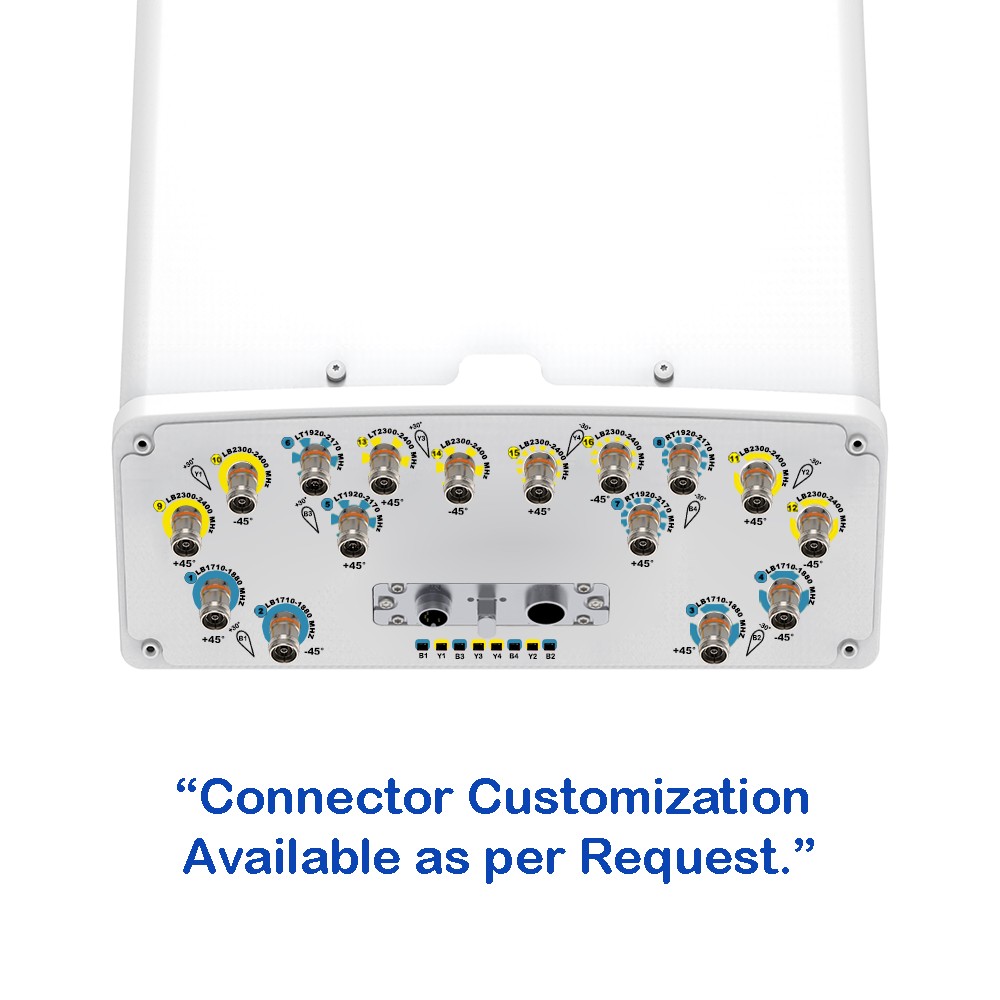

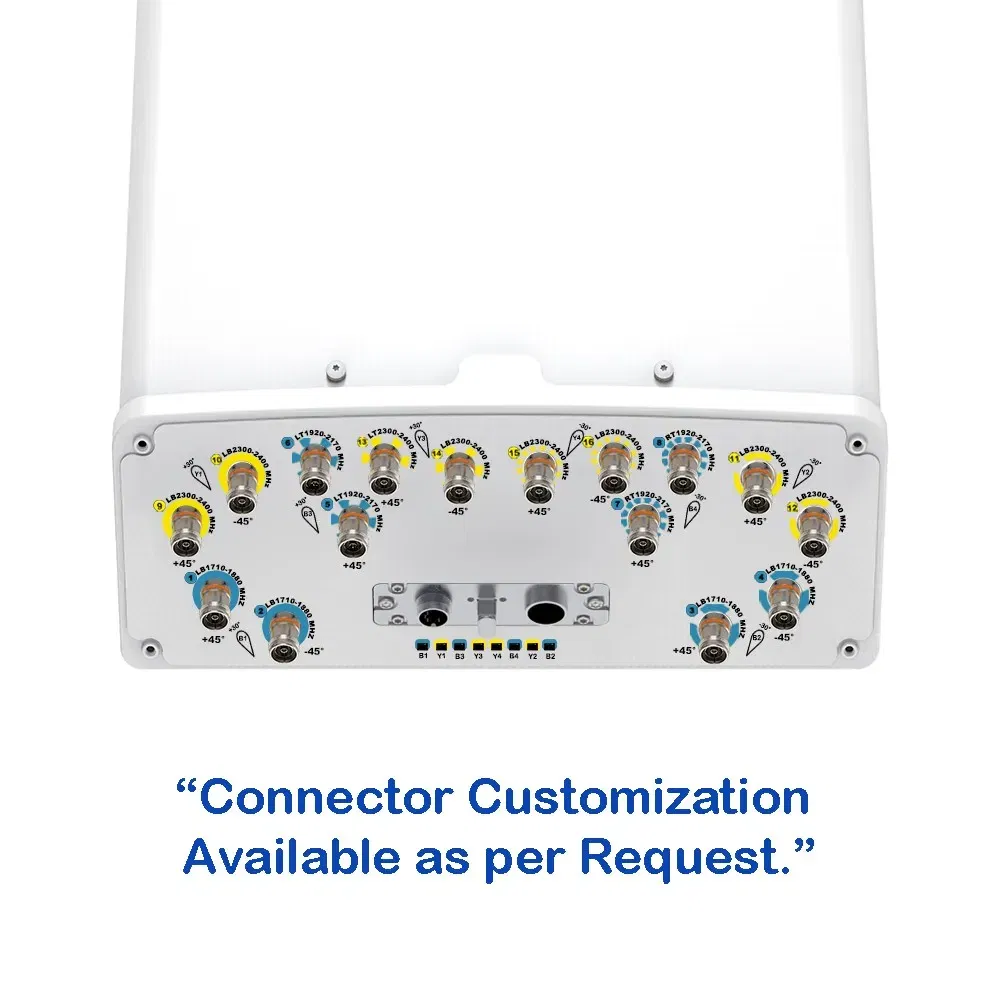

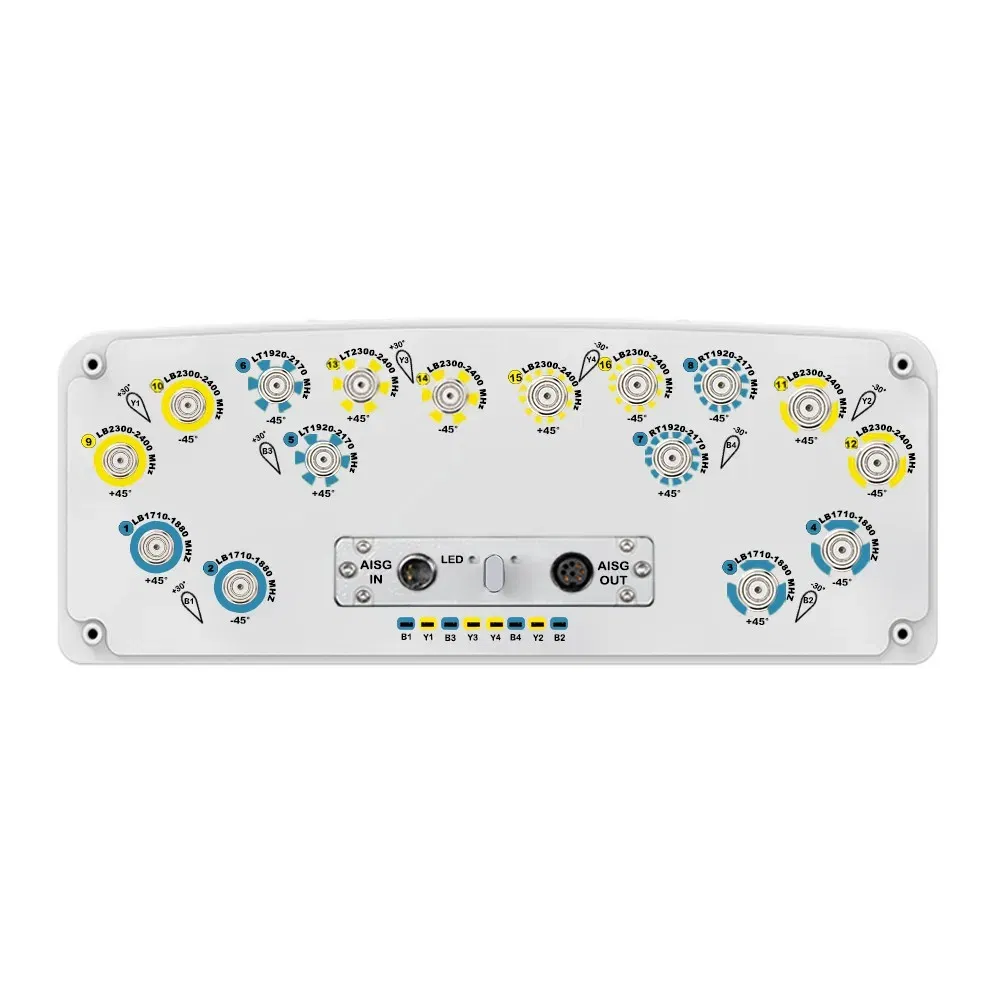

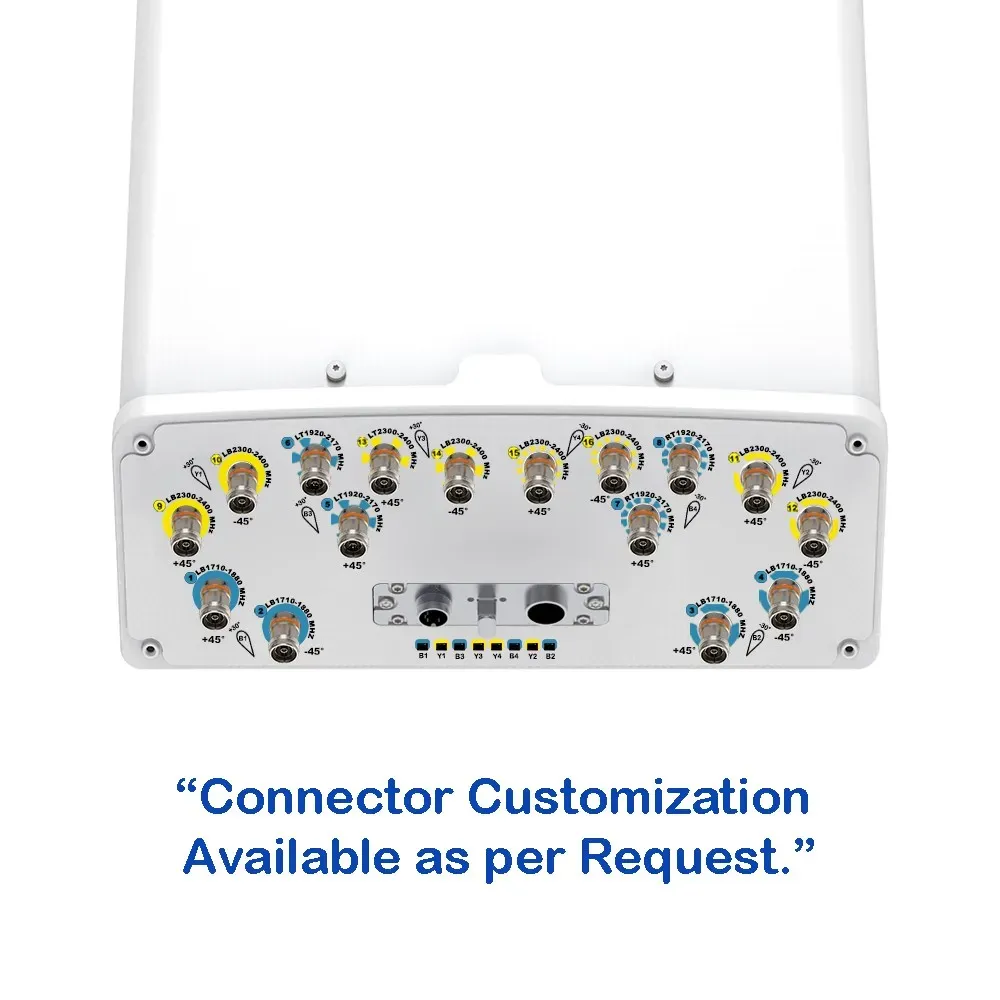

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
