16-Port, Split-Beam Panel Sector Antenna, 35° HBW, (4x) 1710-1880 / (4x) 2300-2400 MHz, 17.5/17.5/17.5/17.5/18.5/18.5/18/18 dBi, 2-12°T, 2.097 m

Product code: 16P-1710-2400F-17G-35H11V

16-Port, Split-Beam Panel Sector Antenna, 35° HBW, (4x) 1710-1880 / (4x) 2300-2400 MHz, 17.5/17.5/17.5/17.5/18.5/18.5/18/18 dBi, 2-12°T, 2.097 m

16-Port Antenna	B1	B2	B3	B4	Y1	Y2	Y3	Y4
Frequency Range (MHz)	1710-1880	1710-1880	1710-1880	1710-1880	2300-2400	2300-2400	2300-2400	2300-2400
HBW	35°	35°	35°	35°	35°	35°	35°	35°
Gain	17.5 dBi	17.5 dBi	17.5 dBi	17.5 dBi	18.5 dBi	18.5 dBi	18 dBi	18 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

16P-1710-2400F-17G-35H11V

Electrical & Mechanical Specification

Electrical Specifications
			B1/B2	B3/B4	Y1/Y2	Y3/Y4
Frequency Range		MHz	1710-1880	1710-1880	2300-2400	2300-2400
Polarization		—	±45°	±45°	±45°	±45°
Gain	at Mid Tilt	dBi	17.3	17	18.5	18
	Over All Tilts	dBi	17.2 ± 0.6	16.9 ± 0.6	18.4 ± 0.6	17.9 ± 0.6
Horizontal Beamwidth		degree	35 ± 3	35 ± 3	27 ± 3	27 ± 3

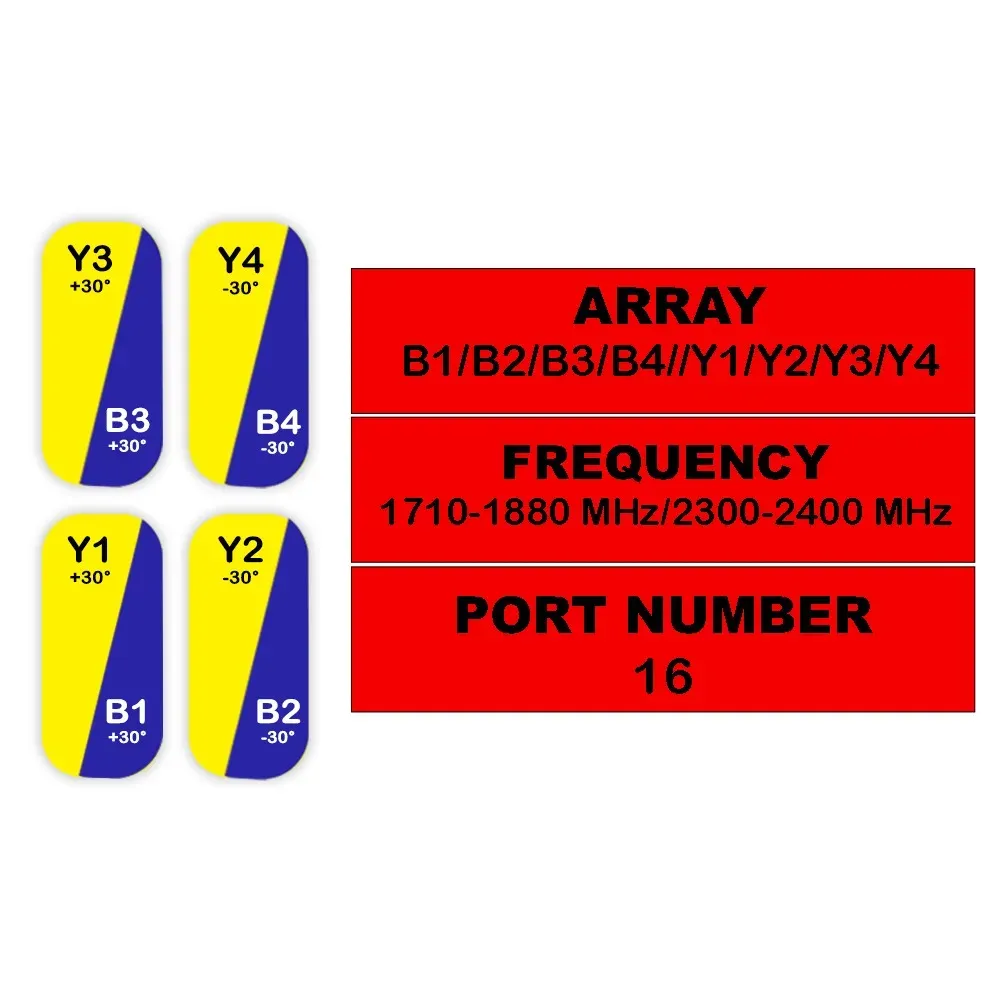

Azimuth Beam Centers		degree	B1: +30	B3: +30	Y1: +30	Y3: +30
			B2: -30	B4: -30	Y2: -30	Y4: -30
Vertical Beamwidth		degree	10.5 ± 1.1	10.5 ± 1.1	8.0 ± 0.8	8.0 ± 0.8
Electrical Downtilt, Continuously Adjustable		degree	2-12	2-12	2-12	2-12
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°		dB	> 23	> 24	> 25	> 25
Cross Polar Discrimination at Boresight		dB	> 15	> 15	> 15	> 15
Isolation	Intraband	dB	≥ 25	≥ 25	≥ 25	≥ 25
	Beam-to-Beam, Same Beam	dB	≥ 15	≥ 15	≥ 15	≥ 15
	Interband	dB	≥ 25	≥ 25	≥ 25	≥ 25
Impedance		Ohm	50	50	50	50
VSWR		—	< 1.5	< 1.5	< 1.5	< 1.5
Return Loss		dB	> 14	> 14	> 14	> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150	< -150	< -150	< -150
Lightning Protection		—	DC Ground	DC Ground	DC Ground	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200	200	200	200
Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
		Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g
Mechanical Specifications

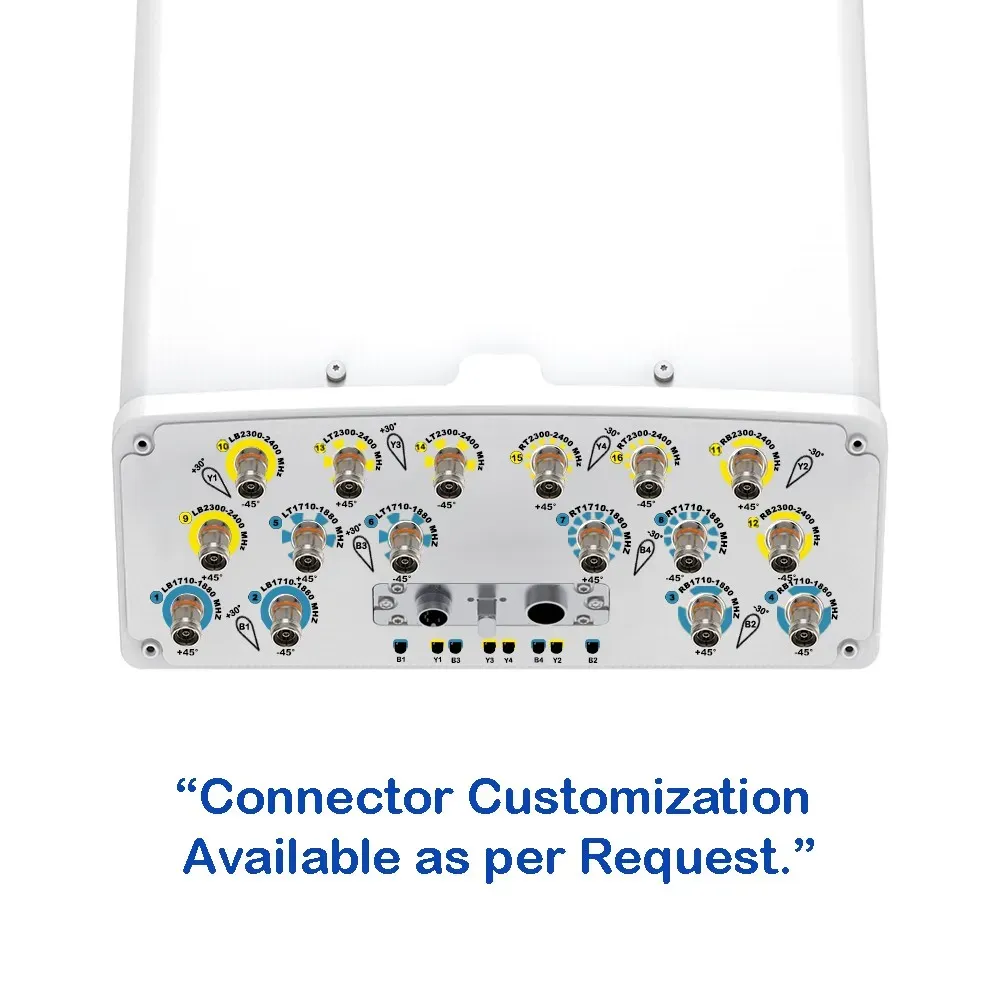

Connector Type		—	(16x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

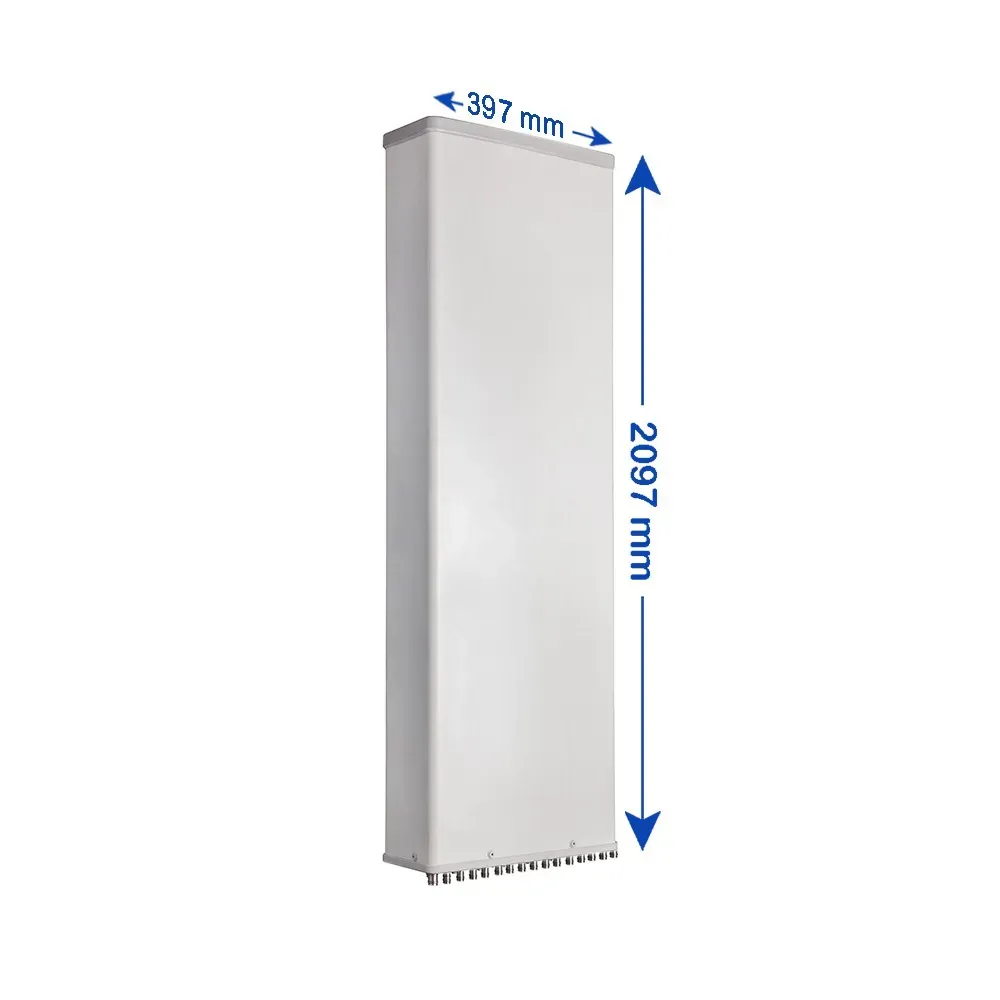

Antenna Dimensions (H x W x D)		mm (in)	2097 x 397 x 157 (82.6 x 15.6 x 6.2)
Antenna Weight	Antenna Only	kg (lbs)	31 (68.3)
	Antenna with Clamps	kg (lbs)	35 (77.2)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	770 (173.1)
At 150 Km/H	Rear	N (lbf)	860 (193.3)
	Lateral	N (lbf)	375 (84.3)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
