Product code: MT-DTA113

1610-1620MHz Cavity Band Pass Filter

  • P/N： MT-DTA113
  • Pass Band Frequency:1610～1620MHz
  • inhibition：≥30dB
  • Insertion loss：≤2.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA113
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)1615MHz
2Pass Band Bandwidth10MHz (1610～1620MHz)
3Pass Band Insertion Loss≤2.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Attenuation≥20dB @ F0±10MHz (1605MHz、1625MHz) ≥30dB @ F0±20MHz
(DC～1595MHz、1635～3000MHz)
6Impedance50 ohms
7Power Handling≤10W
8ConnectorsSMA-Female
9Surface FinishBlack Paint
10Net WeightTBD

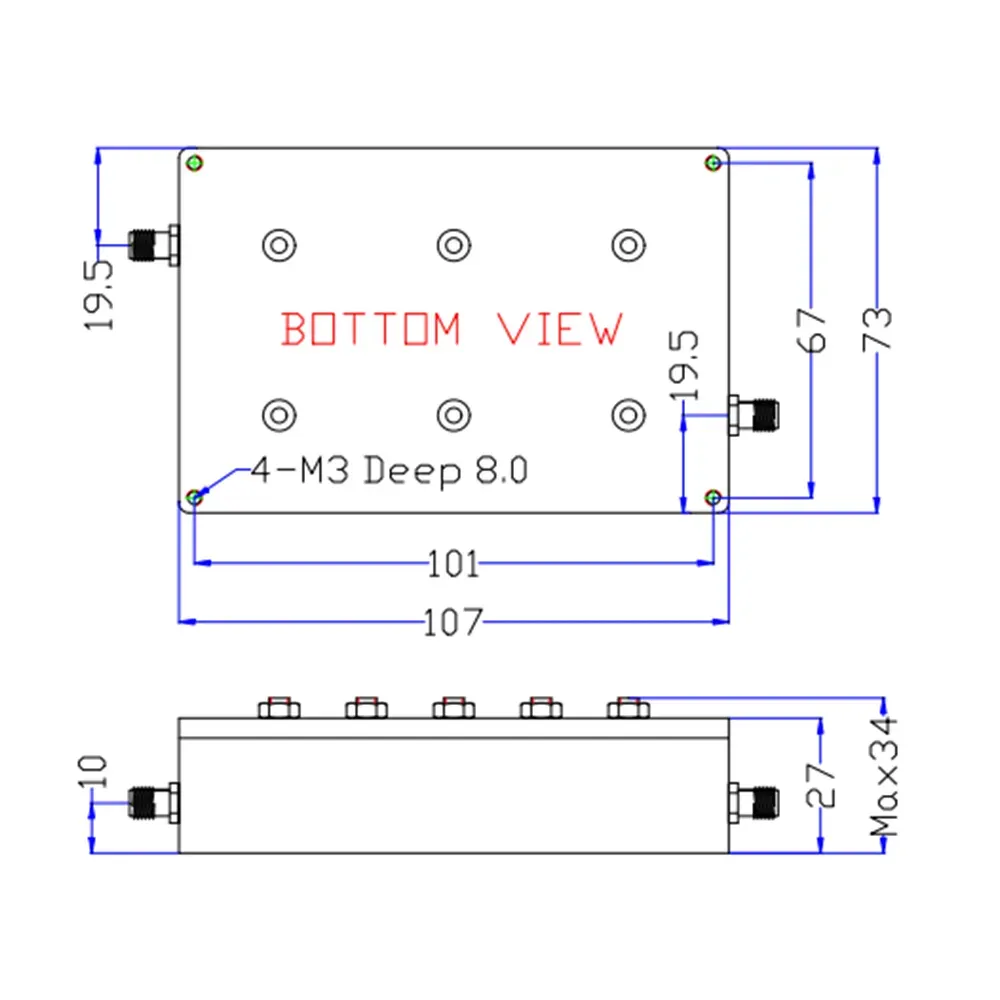

11ConfigurationAs Below (Size Unit: mm)
