Product code: MT-165180M03-NF

165 MHz to 180 MHz 3dbi Omni Directional Antenna N-Female

Product Overview
Part Number MT-165180M03-NF
Dimension 1350x70x50mm
Weight 900g
Connector N-Female
Beam-width Horz.360 deg Vert.65 deg



WhatsApp Chat
Skype
Product Part Number
MT-165180M03-NF
Electrical & Mechanical Specification
Specification:
Electrical
Frequency Range165 to 180MHz
V.S.W.R (MAX)2.7:1
168 to 174MHz 1.3:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)3 dBi
PolarizationVertical
Maximum Power250 Watts
Vertical Beam-width65 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna Design1/4 Wavelength Dipole
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length1350mm
Diameter70 x 55mm
Antenna Weight830 g
Accessories70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium

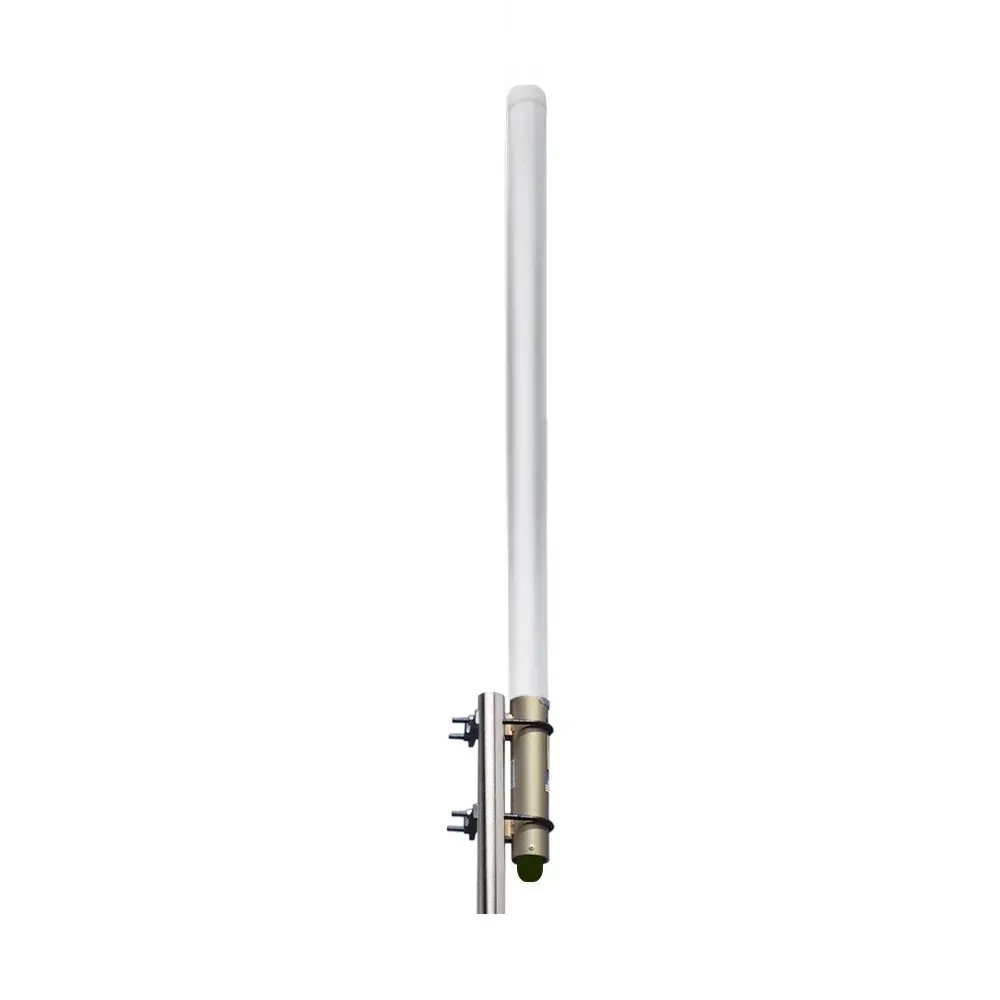

Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
