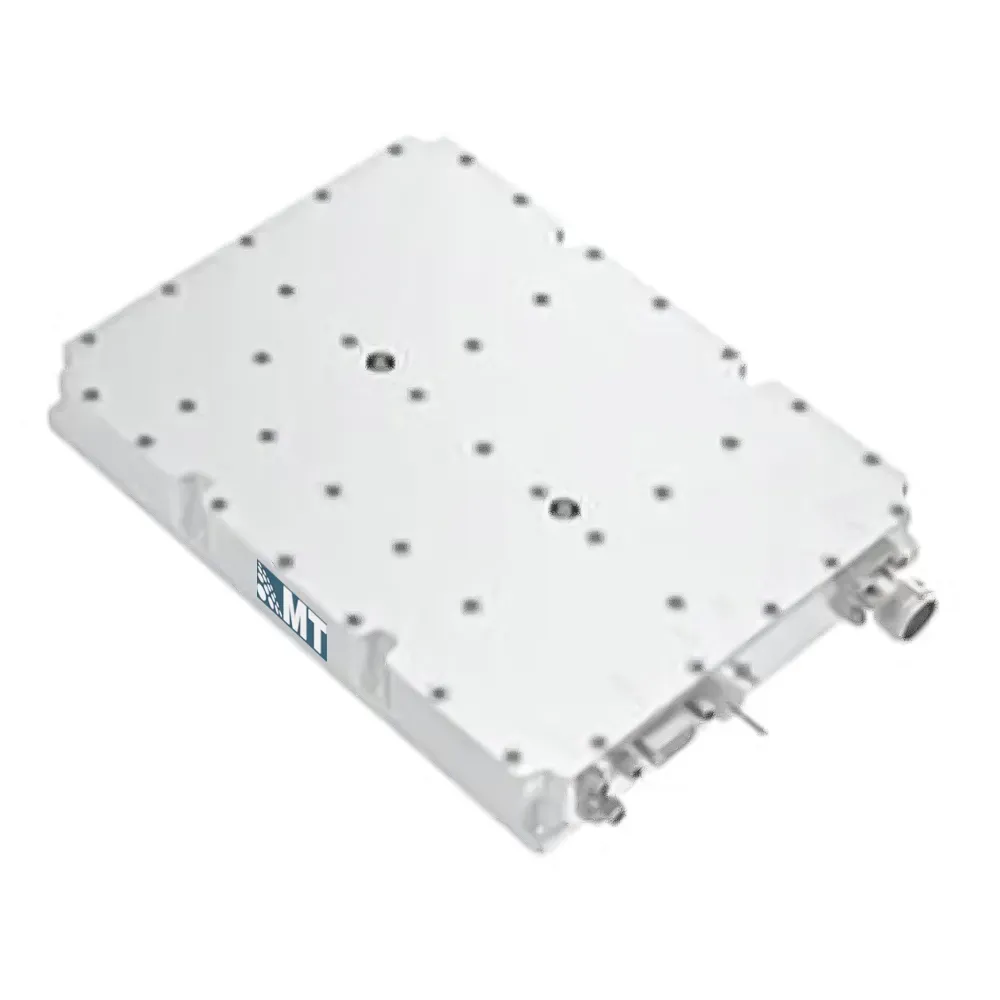

Product code: Model-MT 1-6GHz
1~6GHz 100W Band Power Amplifier
| Model-MT 1-6GHz |
| Broadband Continuous Wave Power Amplifier |
| Temperature Protection Function |
| Overcurrent Protection Function |
| High Reliability Circuit Design |
| Operating Temperature: -40℃~+65℃ |
| Storage Temperature: -50℃~+125℃ |
Product Part Number
Model-MT 1-6GHz
Electrical & Mechanical Specification
| Performance Specifications | ||
|---|---|---|
| Parameter | Specifications | Remark |
| Frequency | 1~6GHz | Continuous Wave |
| Input Power | 0~5dBm | |
| Saturated Output Power | 100W | With design capability exceeding 200W, supporting customization |
| Power Gain | ≥45dB | |
| Input VSWR | ≤1.5：1 | |
| Output VSWR | ≤2：1 | |
| Second Harmonic | ≤-60dBc | |
| Power Consumption | ≤500W | |
| Power Supply Requirements | +28V/18A | |
| Interface Definition | ||
| Parameter | Specifications | Remark |
| Size | 120mm*120mm*20mm | |
| RF Input | SMA-K | |
| RF Output | SMA-K | |
| Power Supply Port | Through-hole Capacitor/DC-15 | |
| Cooling | Forced air cooling | Liquid cooling solutions are available |
