Product code: Model-MT1-6GHz

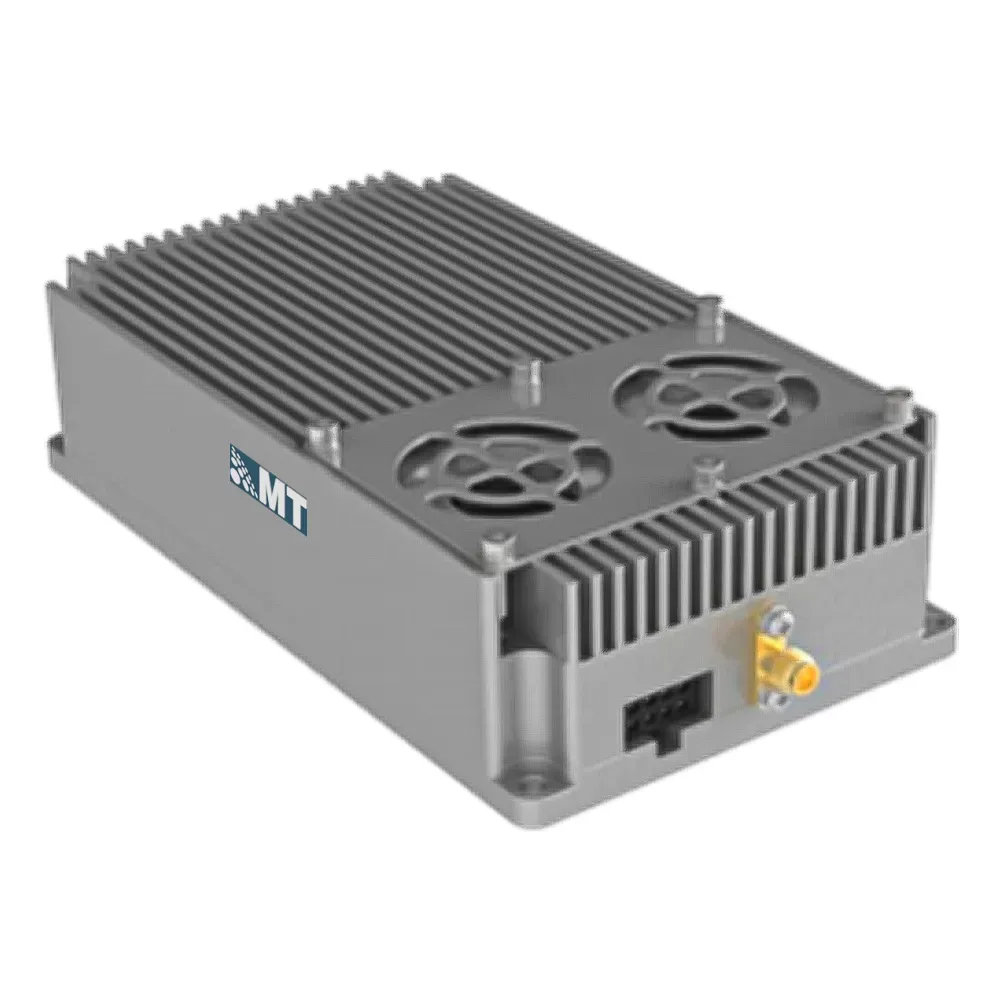

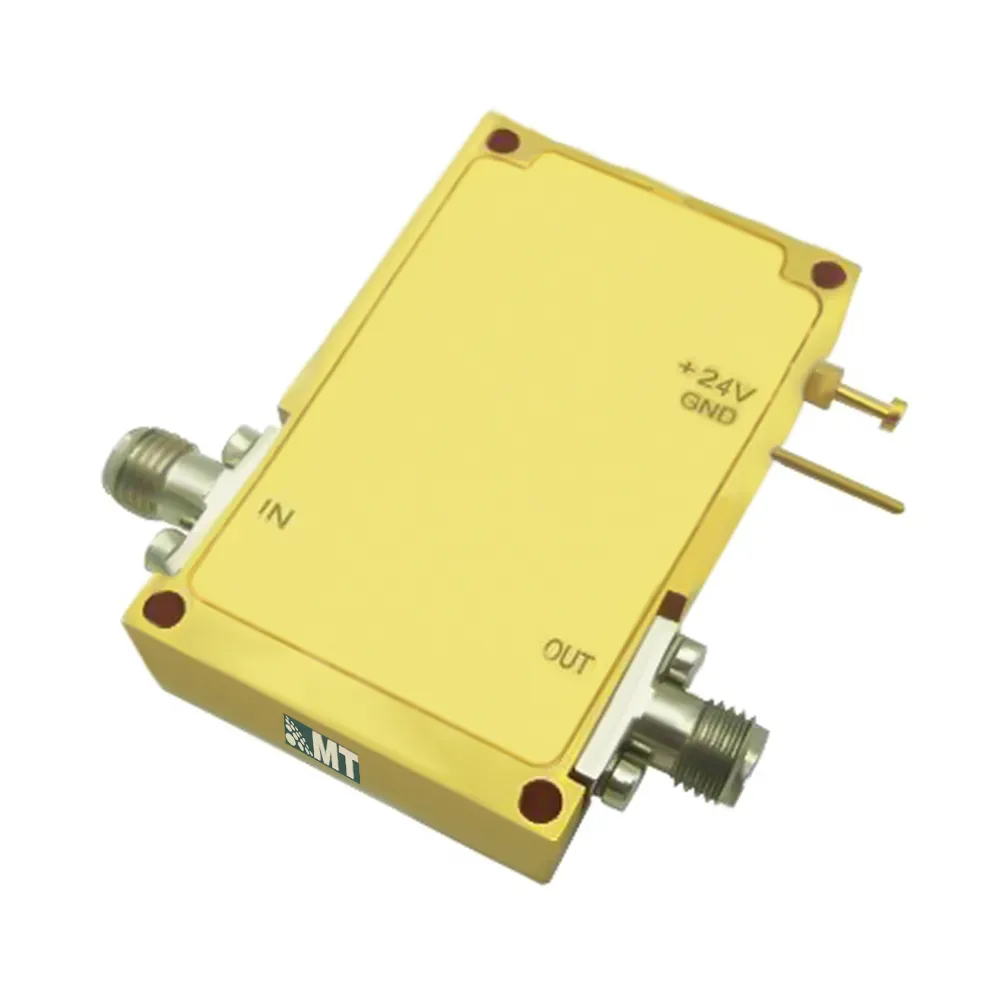

1~6GHz 20W Band Power Amplifier
| Model-MT1-6GHz |
| Ultra-wideband CW & Pulse Power Amplifier |
| Temperature Monitoring and Alarm Protection Function |
| Forward/Reverse Power Monitoring Function |
| High-reliability Circuit Design |
| Operating Temperature: -40℃~+65℃ |
| Storage Temperature: -50℃~+125℃ |
Product Part Number
Model-MT1-6GHz
Electrical & Mechanical Specification
| Performance Specifications | ||
|---|---|---|
| Parameter | Specifications | Remark |
| Frequency | 1~6GHz | Continuous Wave & Pulse |
| Input Power | 0~5dBm | |
| Saturated Output Power | 43dBm（typical value） | With design capability exceeding 200W, supporting customization |
| Power Gain | ≥50dB | |
| Input VSWR | ≤1.5：1 | |
| Output VSWR | ≤2：1 | |
| Second Harmonic | ≤-60dBc | |
| Power Consumption | 120W | Typical Value |
| Power Supply Requirements | +28V/4A | |
| Interface Definition | ||
| Parameter | Specifications | Remark |
| Size | 120mm*120mm*20mm | |
| RF Input | SMA-K | |
| RF Output | SMA-K | |
| Power Supply Port / Control Port | 3004-WR 2*4p | 3.0mm Spacing |
