Product code: MT-DTA166

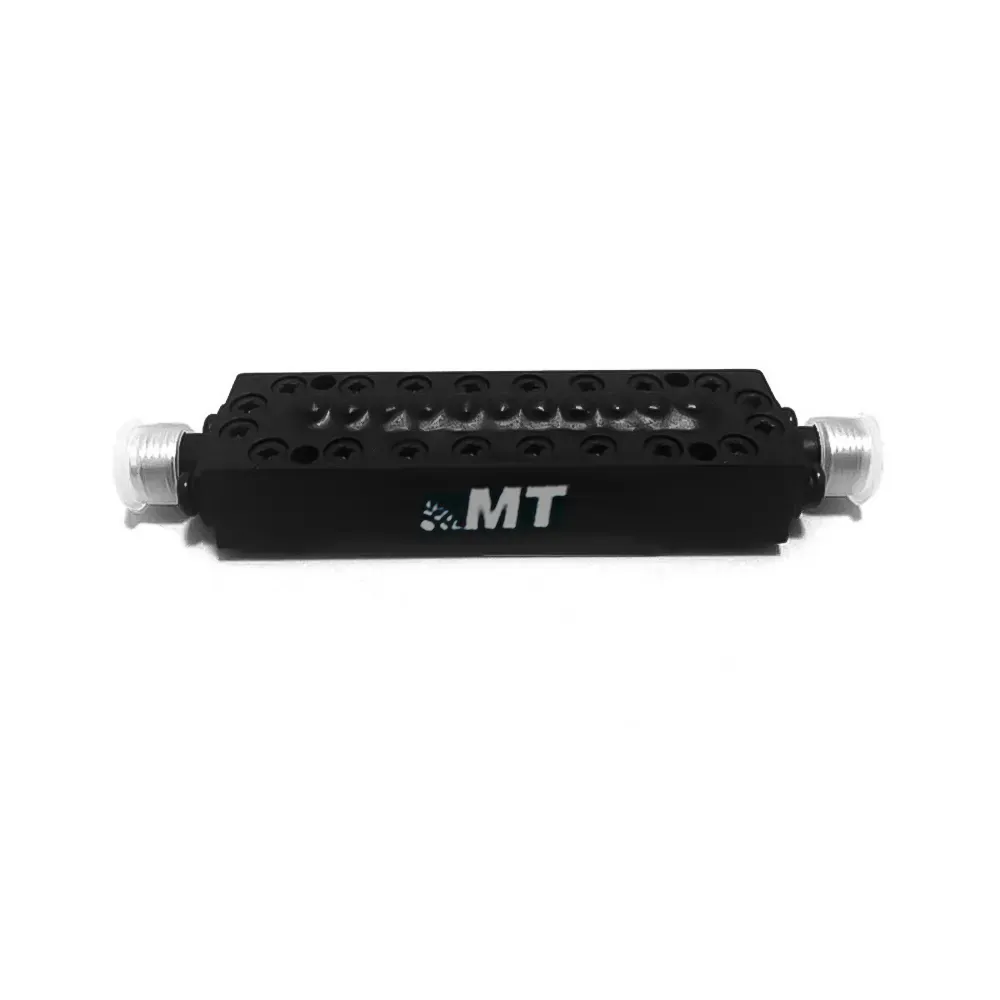

17.975-18.025GHz Cavity Band Pass Filter

  • P/N: MT-DTA166
  • frequency:17.975-18.025GHz
  • Stop Band Rejection：≥45dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA166
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)18GHz
2Pass Band Frequency17.975 ~ 18.025GHz
3Pass Band Insertion Loss≤2.5dB
4Pass Band VSWR≤1.3:1
5Stop Band Attenuation≥45dB @ Fc±200MHz (DC ~ 17.775GHz , 18.225 ~ 27GHz)
6Impedance50 Ohms
7Power Handling5W Max.
8ConnectorsSMA-Female
9Surface FinishPainted Black
10Temperature Range-20℃ ~ +60℃
11MaterialHousing: H62 Copper alloy
Cover: H62 Copper alloy
Tuning screw: H62 Copper alloy
Connectors: H59 Copper, Plated ternary alloy
Other screw: Stainless Steel
12Dimensions60*16*8.5mm
13Net weightTBD
