Product code: 17P-698-3800F-17G-65H9V
17-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 698-960/(2x) 1427-2690/3300-3800 MHz, 16.5/16.5/18/18/17 dBi, 2-12°T, 2.497 m

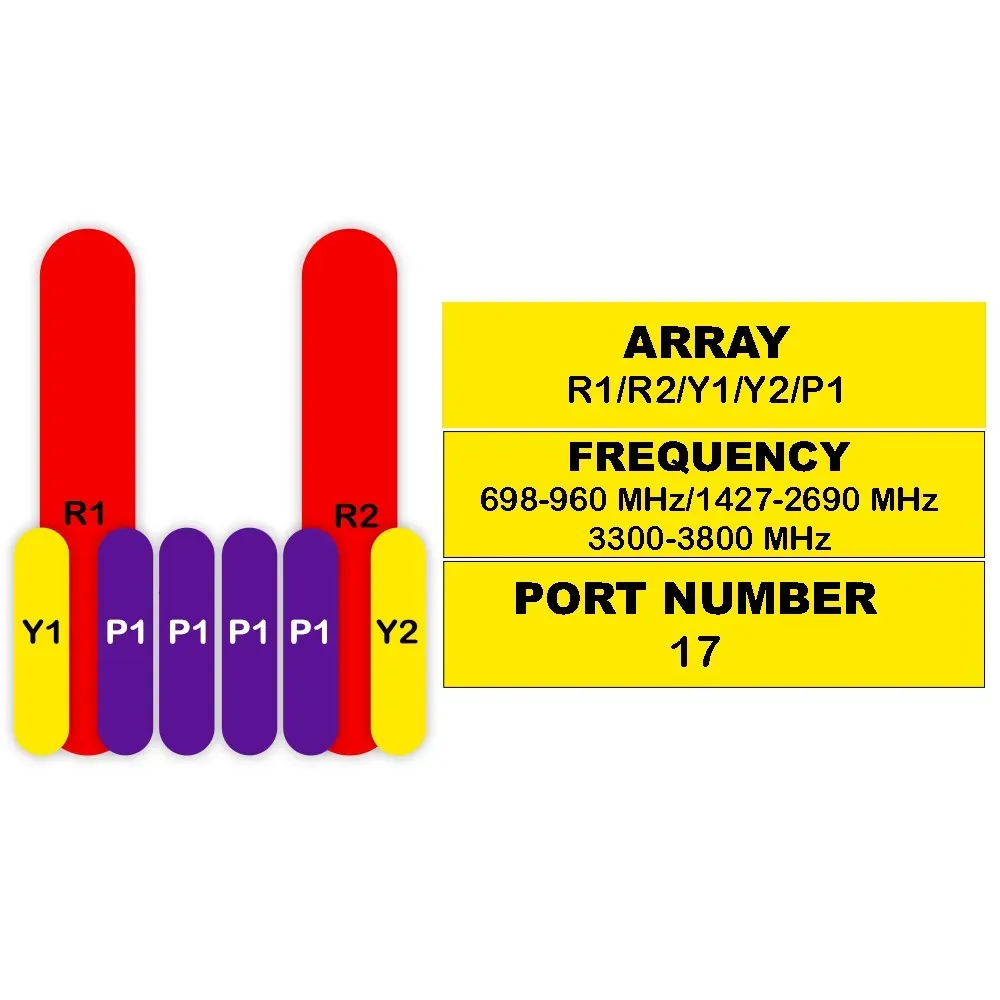

| 17-Port Antenna | R1 | R2 | Y1 | Y2 | P1 |
| Frequency Range (MHz) | 698-960 | 698-960 | 1427-2690 | 1427-2690 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 16.5 dBi | 16.5 dBi | 18 dBi | 18 dBi | 17 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

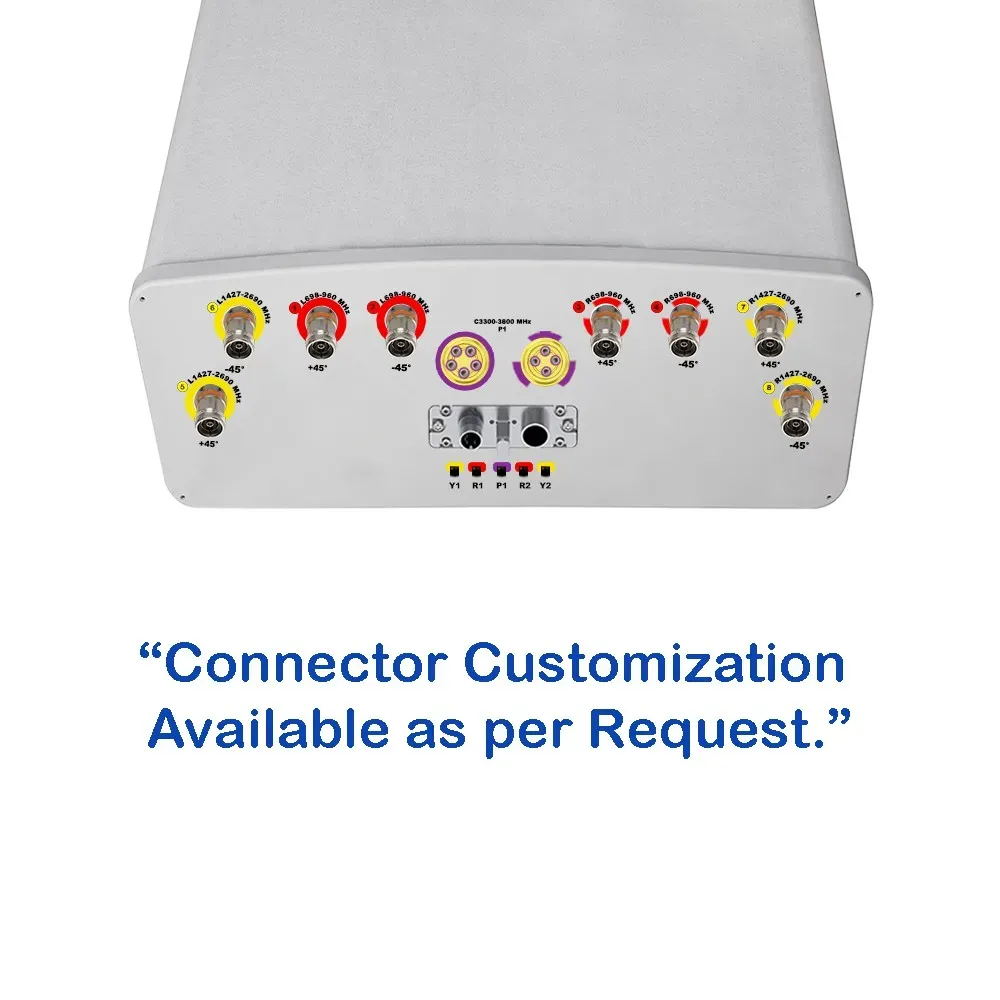

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ5 Male
(4 RF + 1 Calibration) & (1x) MQ4 Male (4 RF) |
Product Part Number
17P-698-3800F-17G-65H9V
Electrical & Mechanical Specification
| Electrical Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| R1 / R2 | Y1 / Y2 | |||||||||
| Frequency Range | MHz | 698-960 | 1427-2690 | |||||||
| MHz | 698-806 | 790-894 | 880-960 | 1427-1518 | 1695-1920 | 1920-2170 | 2300-2400 | 2490-2690 | ||
| Polarization | — | ±45° | ±45° | |||||||
| Gain | at Mid Tilt | dBi | 16.2 | 16.6 | 17 | 16 | 16.8 | 17.4 | 17.8 | 17.8 |
| Over All Tilts | dBi | 15.6 ± 0.6 | 16.0 ± 0.6 | 16.4 ± 0.6 | 15.8 ± 0.6 | 16.6 ± 0.5 | 17.2 ± 0.5 | 17.6 ± 0.5 | 17.6 ± 0.5 | |
| Horizontal Beamwidth | degree | 64 ± 4.5 | 62 ± 4.5 | 58 ± 4.1 | 70 ± 8.5 | 6.9 ± 8.5 | 61 ± 6.5 | 60 ± 5.5 | 56 ± 6.5 | |
| Vertical Beamwidth | degree | 8.8 ± 0.9 | 7.8 ± 0.7 | 7.2 ± 0.6 | 8.1 ± 0.6 | 6.4 ± 0.8 | 5.9 ± 0.6 | 5.2 ± 0.5 | 4.8 ± 0.6 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | |||||||
| Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
| Upper Side Lobe | First Upper Lobe | dB | > 16 | > 16 | > 16 | > 15 | > 15 | > 15 | > 15 | > 15 |
| Suppression | Peak to 20° | dB | > 15 | > 15 | > 15 | > 14 | > 14 | > 14 | > 14 | > 14 |
| Front-To-Back Ratio ±30° | dB | > 22 | > 24 | > 25 | > 23 | > 24 | > 25 | > 23 | > 22 | |
| Cross Polar Dis- crimination | AT Boresight | dB | ≥ 17 | ≥ 18 | ≥ 17 | > 17 | > 16 | > 16 | > 16 | > 17 |
| Over Sector | dB | > 7.0 | > 8.0 | > 8.0 | > 6 | > 7 | > 7 | > 4 | > 2 | |
| Isolation | Cross-Polar | dB | > 26 | > 26 | ||||||
| Port-To-Port | dB | > 25 (R1//R2); > 28 (R1//Y1,Y2,P1) | > 25 | |||||||
| Impedance | Ohm | 50 | 50 | |||||||
| VSWR | — | < 1.5 | < 1.5 | |||||||
| Return Loss | dB | > 14 | > 14 | |||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | |||||||
| Lightning Protection | — | DC Ground | DC Ground | |||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | |||||||
| P1 | ||||||||||
| Frequency Range | MHz | 3300-3800 | ||||||||
| MHz | 3300-3600 | 3600-3800 | ||||||||
| Polarization | — | ±45° | ||||||||
| Electrical Downtilt, Continuously Adjustable | degree | 2-12 | ||||||||
| Single Column Beam | Gain | dBi | 15.5 ± 1 | 15.7 ± 1 | ||||||
| Horizontal Beamwidth | degree | 75 ± 10 | 65 ± 10 | |||||||
| Vertical Beamwidth (3 dB) | degree | 5.8 ± 0.6 | 5.5 ± 0.6 | |||||||
| Cross-Polar Discrimination (0°) | dB | ≥ 15 | ≥ 15 | |||||||
| First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | |||||||
| Front-To-Back Ratio | dB | ≥ 25 | ≥ 25 | |||||||
| 65° | Gain (typical) | dBi | 17.0 ± 0.6 | 17.2 ± 0.6 | ||||||
| Broadcast Beam | Horizontal Beamwidth | degree | 65 | 65 | ||||||
| Vertical Beamwidth | degree | 5.8 ± 0.6 | 5.5 ± 0.6 | |||||||
| Cross-Polar Discrimination (0°) | dB | ≥ 15 | ≥ 15 | |||||||
| First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | |||||||
| Front-To-Back Ratio | dB | ≥ 27 | ≥ 27 | |||||||
| Service | Gain | dBi | 21 ± 0.5 | 21.2 ± 0.5 | ||||||
| Beam | 0° | 3dB Horizontal Beamwidth | degree | < 25 | < 25 | |||||
| Direct | Cross Polar Ratio | dB | ≥ 18 | ≥ 18 | ||||||
| Beam | Front-To-Back Ratio | dB | ≥ 30 | ≥ 30 | ||||||
| ±30° | Gain | dBi | 18 | 18.2 | ||||||
| Direct | ||||||||||
| Beam | 3dB Horizontal Beamwidth | degree | < 30 | < 30 | ||||||
| Calibration And Electrical Parameter | Coupling Factor Between Calibration And *Each Antenna Port | dB | -26 ± 2 | |||||||
| Maximum Amplitude Tolerance From Calibration Port To Antenna Port | dB | ≤ 0.7 | ||||||||
| Maximum Phase Tolerance From Calibration Port To Antenna Port | dB | ≤ 9 | ||||||||
| Average Power Per Port | W | 25 | ||||||||
| Isolation | Co-Polar Isolation Bewtween Ports | dB | ≥ 20 | |||||||
| Cross-Polar Isolation Between Ports | dB | ≥ 25 | ||||||||
| Impedance | Ohm | 50 | ||||||||
| VSWR | — | < 1.5 | ||||||||
| Return Loss | dB | > 14 | ||||||||
| PIM3 (2×43 dBm carrier) | dBc | < -143 | ||||||||
| Lightning Protection | — | DC Ground | ||||||||
| Integrated RET Specifications | ||||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | |||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||||||
| Power | Standby | < 2 W | ||||||||
| Consumption | In Motion | < 10 W | ||||||||
| Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female | |||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||||||
| Hardware Interfaces | RS485 and Power | |||||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | |||||||||
| Adjustment Cycles | > 20,000 | |||||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | |||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | ||||||||||
| Remote Control | Can manage from OMC, BTS/Node B | |||||||||
| Daisy Chaining Method | Ready for daisy-chaining | |||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||||||
| Housing Material / Color | Aluminum / Grey | |||||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | |||||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | |||||||||
| Humidity | Up to 95% | |||||||||
| IP Rating | IP65 | |||||||||
| Weight | ≤ 500 g | |||||||||
| Mechanical Specifications | ||||||||||
| Connector Type | — | (8x) 4.3/10 Female and (1x) MQ5 Male & (1x) MQ4 Male | ||||||||
| Connector Position | — | Bottom | ||||||||
| Electrical Tilt Control | — | Integrated RET | ||||||||
| Radome Material | — | Fiberglass | ||||||||

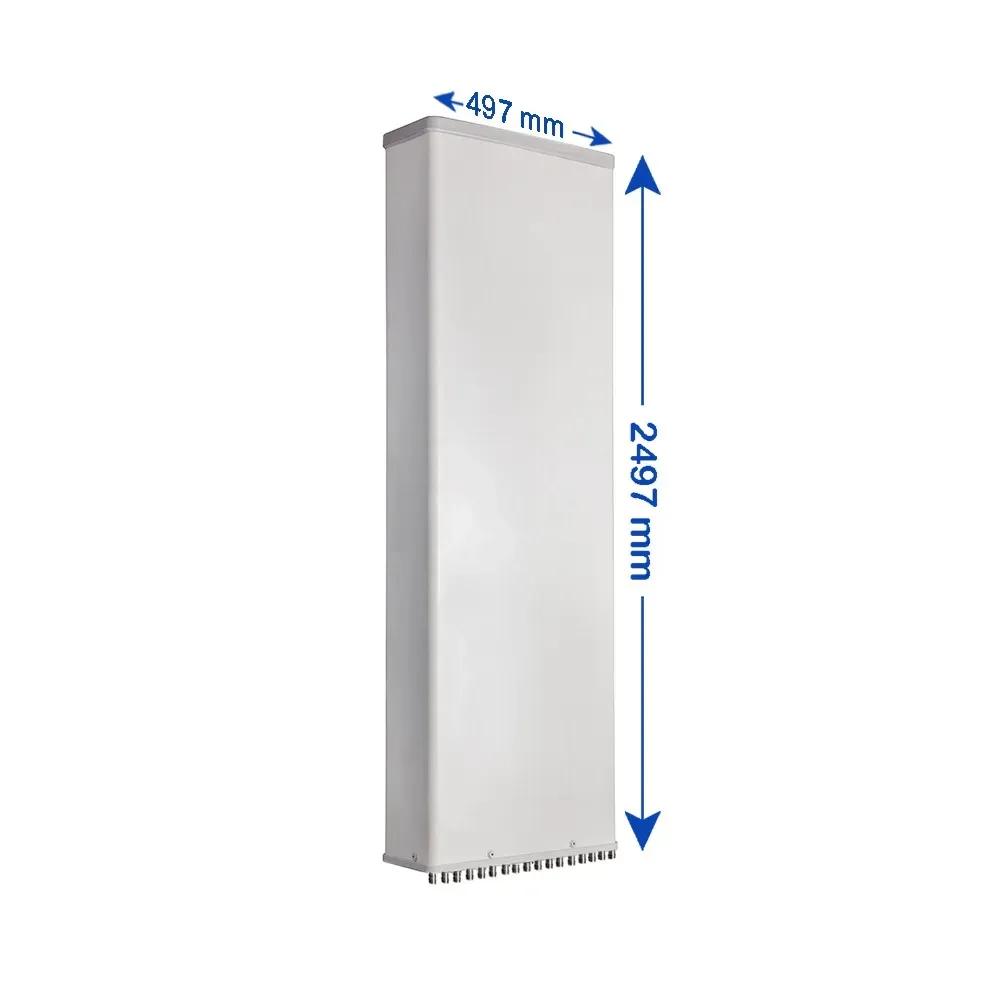

| Antenna Dimensions (H x W x D) | mm (in) | 2497 x 497 x 197 (98.3 x 19.6 x 7.8) | ||||||||
| Antenna Weight | Antenna Only | kg (lbs) | 50 (110.2) | |||||||
| with Clamps | kg (lbs) | 57.5 (126.8) | ||||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||||||
| Wind Load | Frontal | N (lbf) | 1145 (257.4) | |||||||
| at 150 km/h | Rear | N (lbf) | 1280 (287.8) | |||||||
| Lateral | N (lbf) | 560 (125.9) | ||||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to 140) | ||||||||
