Product code: MT-172112-NF

1710MHz to 2170MHz 12dBi Vertical Broadband Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-172112-NF
Gain 12 dBi
Dimension 1650x70x55mm
Weight 1450g
Connector N-Female
Beam-width Horz.360 deg Vert.7 deg



WhatsApp Chat
Skype
Product Part Number
MT-172112-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range1710 to 2170MHz
V.S.W.R (MAX)2.0:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)12 dBi
PolarizationVertical
Maximum Power200 Watts
Vertical Beam-width7 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array Dipole
Internal MaterialCopper
ConnectorN-Female

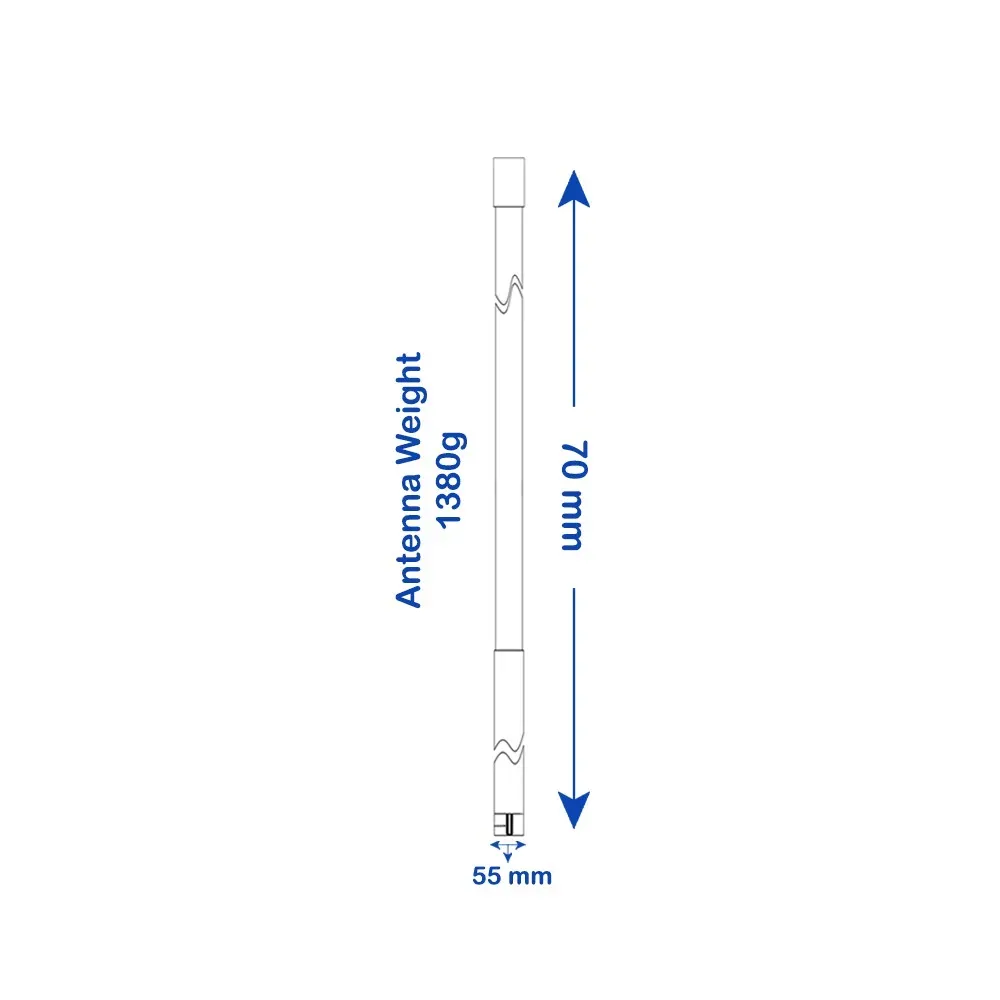

Mechanical
Length (MAX)1650 mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)1380 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Wall Mount
Pole Mounting32mm to 45mm
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
