Product code: 18P-698-2690F-15G-65H15V
18-Port, Panel Sector Antenna, 65° HBW, 698-960/(8x) 1710-2690 MHz, 14.5/15/14.5/15/14.5/15/14.5/15/14.5 dBi, 2-12°T, 1.397 m

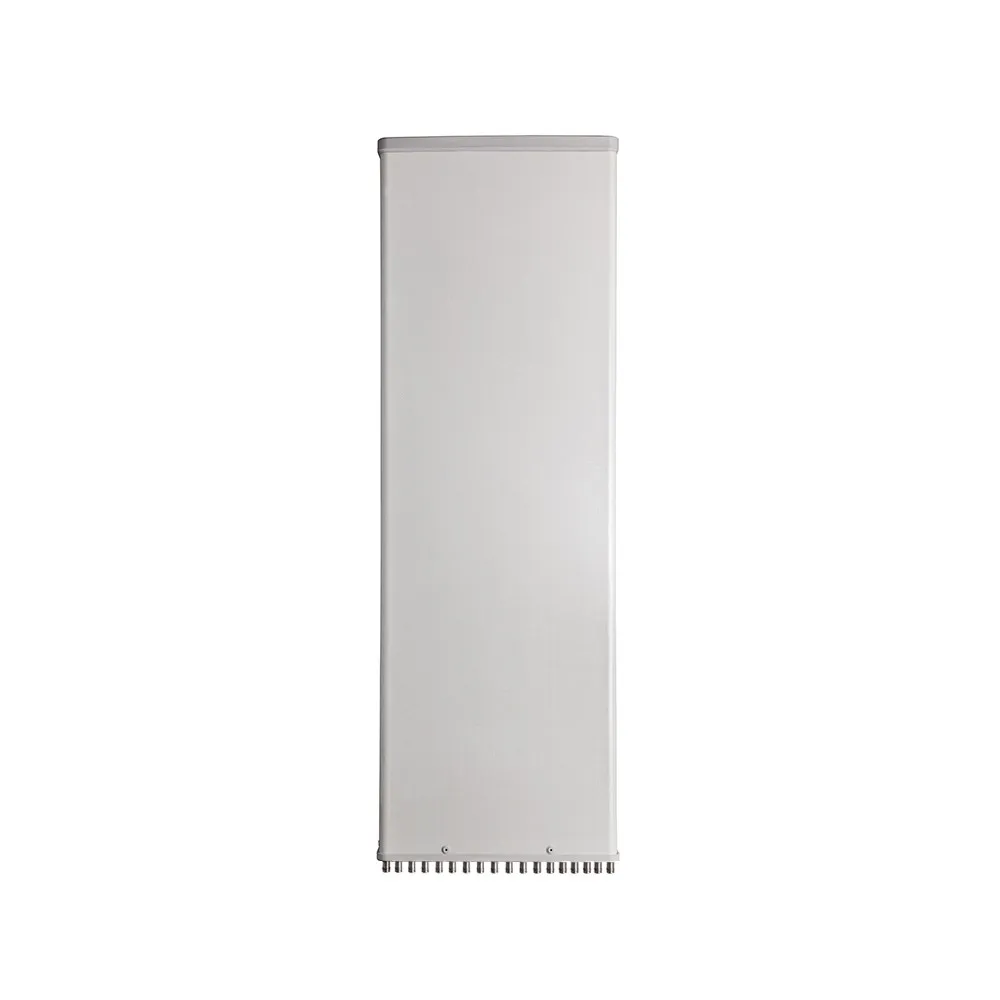

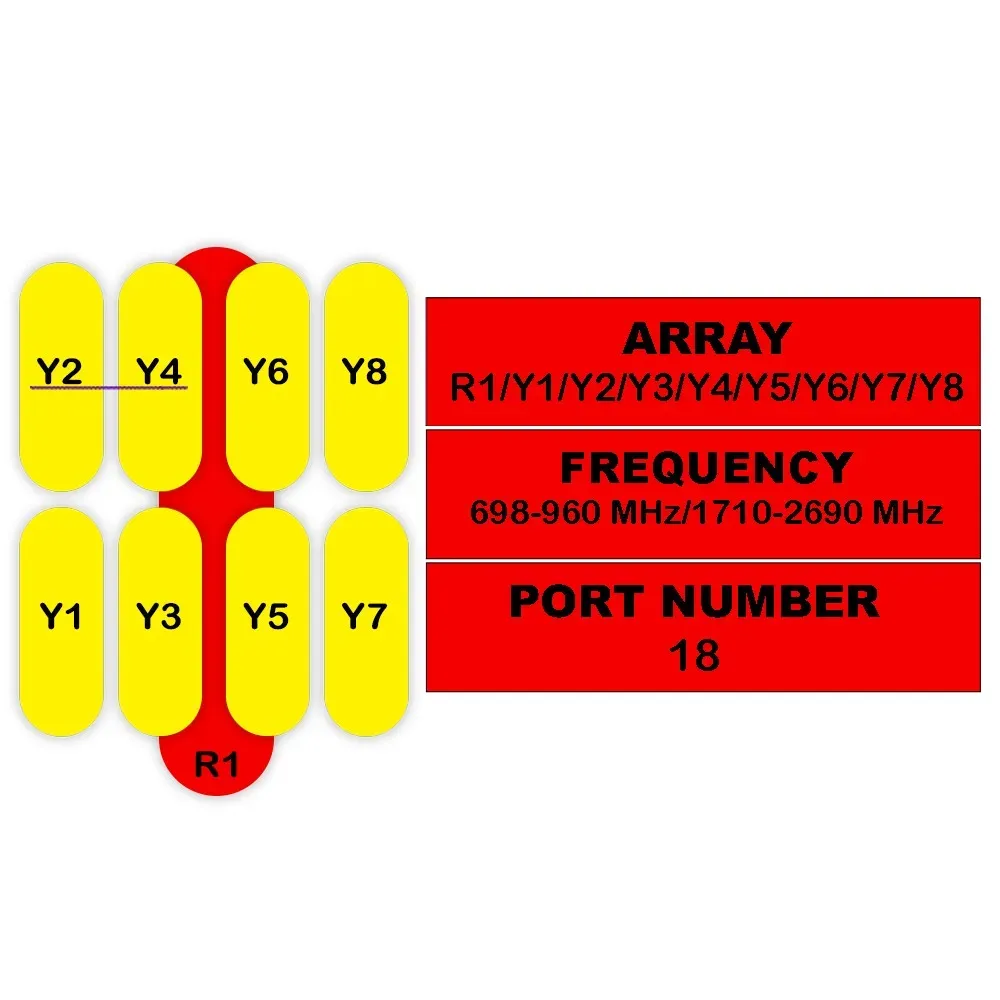

18-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 | Y7 | Y8 |
Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
Gain | 14.5 dBi | 15 dBi | 14.5 dBi | 15 dBi | 14.5 dBi | 15 dBi | 14.5 dBi | 15 dBi | 14.5 dBi |
Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

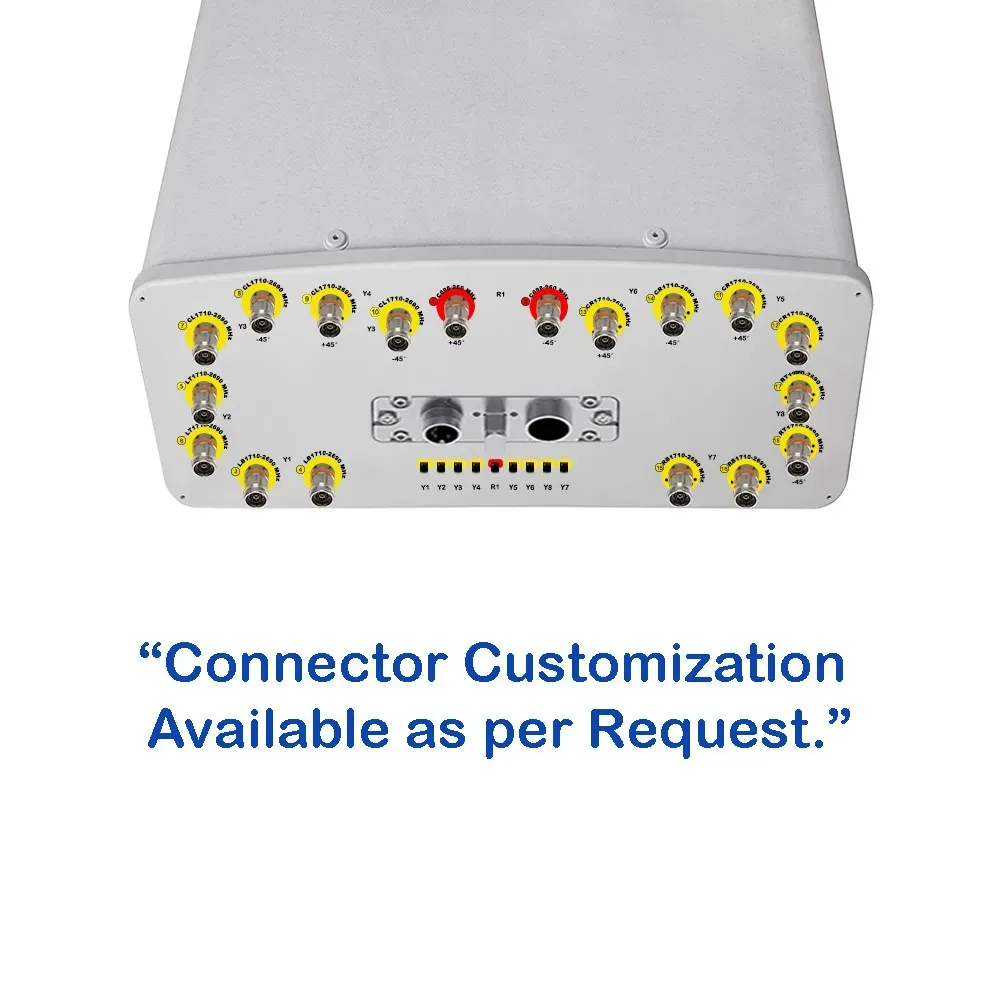

Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
18P-698-2690F-15G-65H15V
Electrical & Mechanical Specification
Electrical Specifications | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R1 | Y1 / Y3 / Y5 / Y7 | Y2 / Y4 / Y6 / Y8 | |||||||||||||
Frequency Range | MHz | 698-960 | 1710-2690 | 1710-2690 | |||||||||||
MHz | 698-806 | 790-894 | 880-960 | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | ||
Polarization | — | ±45° | ±45° | ±45° | |||||||||||
Gain | at Mid Tilt | dBi | 13.7 | 14 | 14.3 | 13.8 | 14.1 | 14.4 | 14.7 | 14.7 | 13.6 | 13.9 | 14.2 | 14.5 | 14.5 |
Over All Tilts | dBi | 13.5 ± 0.6 | 13.8 ± 0.4 | 14.1 ± 0.5 | 13.6 ± 0.6 | 13.9 ± 0.5 | 14.2 ± 0.6 | 14.5 ± 0.6 | 14.5 ± 0.6 | 13.4 ± 0.6 | 13.7 ± 0.5 | 14.0 ± 0.6 | 14.3 ± 0.6 | 14.3 ± 0.6 | |
Horizontal Beamwidth | degree | 68 ± 5.5 | 66 ± 5.5 | 64 ± 6.5 | 70 ± 6.1 | 68 ± 6.1 | 66 ± 6.5 | 64 ± 6.0 | 63 ± 6.5 | 70 ± 6.1 | 68 ± 6.1 | 66 ± 6.5 | 64 ± 6.0 | 63 ± 6.5 | |
Vertical Beamwidth | degree | 14.9 ± 1.1 | 13.2 ± 0.9 | 12.2 ± 0.9 | 14.9 ± 1.1 | 13.2 ± 0.9 | 12.2 ± 0.9 | 14.9 ± 1.1 | 13.2 ± 0.9 | 12.7 ± 0.6 | 11.7 ± 0.5 | 10.5 ± 0.5 | 9.6 ± 0.4 | 8.7 ± 0.6 | |
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | 2-12 | |||||||||||
Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
Upper Side Lobe | First Upper Lobe | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
Suppression | Peak to 20° | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
Front-To-Back Ratio ±30° | dB | > 22 | > 23 | > 24 | > 22 | > 22 | > 23 | > 24 | > 24 | > 22 | > 22 | > 23 | > 24 | > 24 | |
Cross Polar | at Boresight | dB | > 15 | > 15 | > 15 | > 16 | > 16 | > 16 | > 17 | > 17 | > 16 | > 16 | > 16 | > 17 | > 17 |
Discrimination | Over Sector | dB | > 7.0 | > 8.0 | > 6.5 | > 6.0 | > 7.0 | > 7.0 | > 4.0 | > 3.0 | > 6.0 | > 7.0 | > 7.0 | > 4.0 | > 3.0 |
Isolation | Cross-Polar | dB | > 25 | > 25 | > 25 | ||||||||||
Port-To-Port | dB | > 28 | > 28 | > 28 | |||||||||||
Interband | dB | > 28 | > 28 | > 28 | |||||||||||
Impedance | Ohm | 50 | 50 | 50 | |||||||||||
VSWR | — | < 1.5 | < 1.5 | < 1.5 | |||||||||||
Return Loss | dB | > 14 | > 14 | > 14 | |||||||||||
PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | < -150 | |||||||||||
Lightning Protection | — | DC Ground | DC Ground | DC Ground | |||||||||||
Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | 200 | |||||||||||
Integrated RET Specifications | |||||||||||||||
Protocols | Compliant to AISG v2.0 and 3GPP | ||||||||||||||
Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||||||||||
Power | Standby | < 2 W | |||||||||||||
Consumption | In Motion | < 10 W | |||||||||||||
Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female | ||||||||||||||
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||||||||||||
Female Connector: 8 PINs; Male Connector: 4 PINs | |||||||||||||||
Hardware Interfaces | RS485 and Power | ||||||||||||||
Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||||||||||||
Adjustment Cycles | > 20,000 | ||||||||||||||
Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||||||||||||
Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||||||||||||
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | |||||||||||||||
Remote Control | Can manage from OMC, BTS/Node B | ||||||||||||||
Daisy Chaining Method | Ready for daisy-chaining | ||||||||||||||
Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||||||||||
Housing Material / Color | Aluminum / Grey | ||||||||||||||
Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||||||||||||
Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||||||||||||
Humidity | Up to 95% | ||||||||||||||
IP Rating | IP65 | ||||||||||||||
Weight | ≤ 500 g | ||||||||||||||
Mechanical Specifications | |||||||||||||||
Connector Type | — | (18x) 4.3/10 Female | |||||||||||||
Connector Position | — | Bottom | |||||||||||||
Electrical Tilt Control | — | Integrated RET | |||||||||||||
Radome Material | — | Fiberglass | |||||||||||||

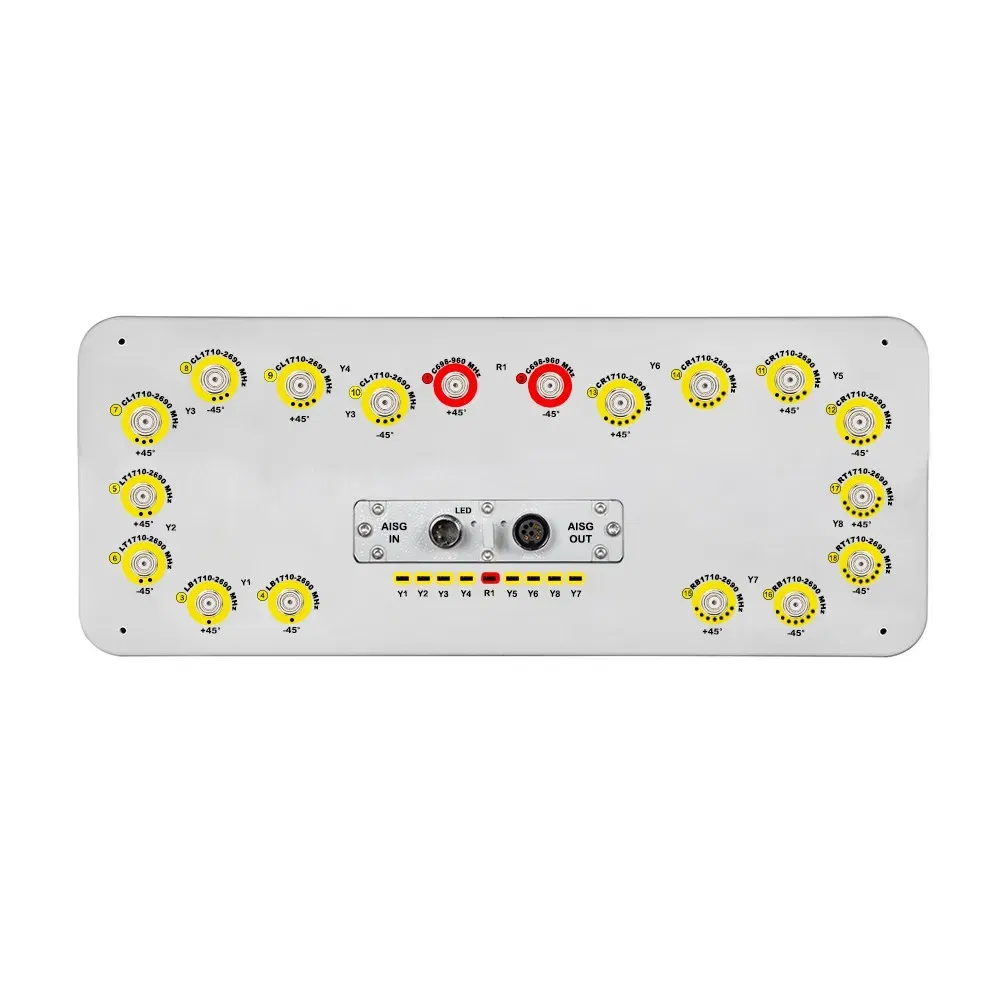

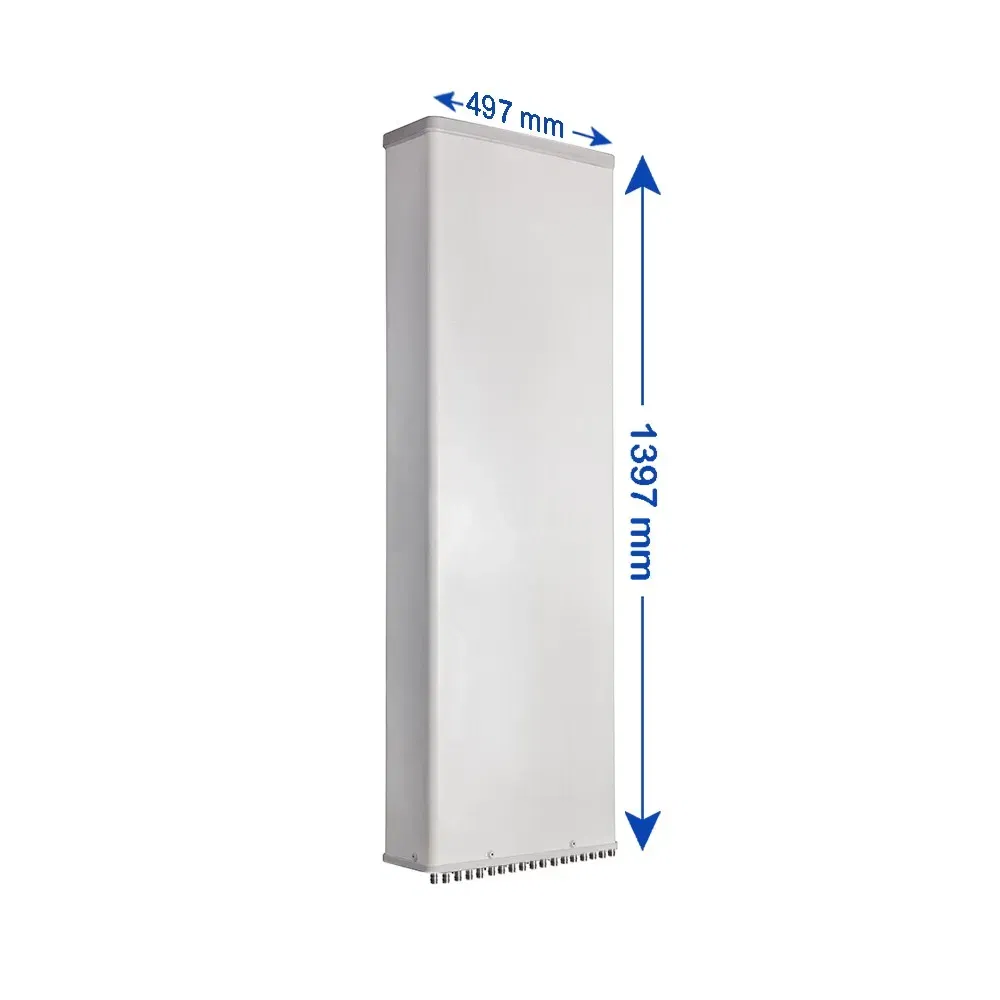

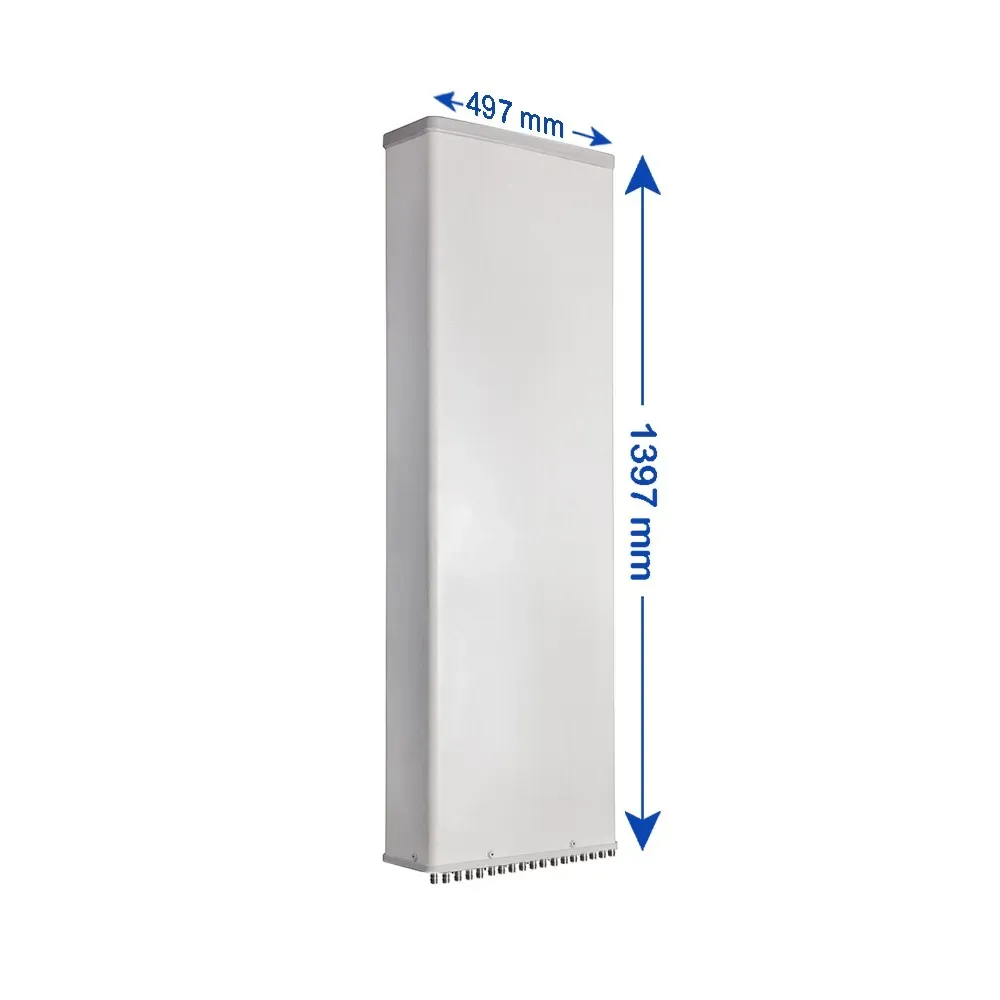

Antenna Dimensions (H x W x D) | mm (in) | 1397 x 497 x 197 (55.0 x 19.6 x 7.8) | |||||||||||||
Antenna Weight | Antenna Only | kg (lbs) | 31.5 (69.4) | ||||||||||||
with Clamps | kg (lbs) | 35.5 (78.3) | |||||||||||||
Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||||||||||
Wind Load | Frontal | N (lbf) | 640 (143.9) | ||||||||||||
at 150 km/h | Rear | N (lbf) | 715 (160.7) | ||||||||||||
Lateral | N (lbf) | 315 (70.8) | |||||||||||||
Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) |
