Product code: 19P-690-3800F-13G-65H24V

19-Port, TDD Hybrid Panel Antenna, 65° HBW, (1x) 690-960/(4x) 1695-2690/(1x) 3300-3800 MHz, 13/13/13/13/13/14 dBi, 2-16°/(5x)2-12°T, 1.097 m

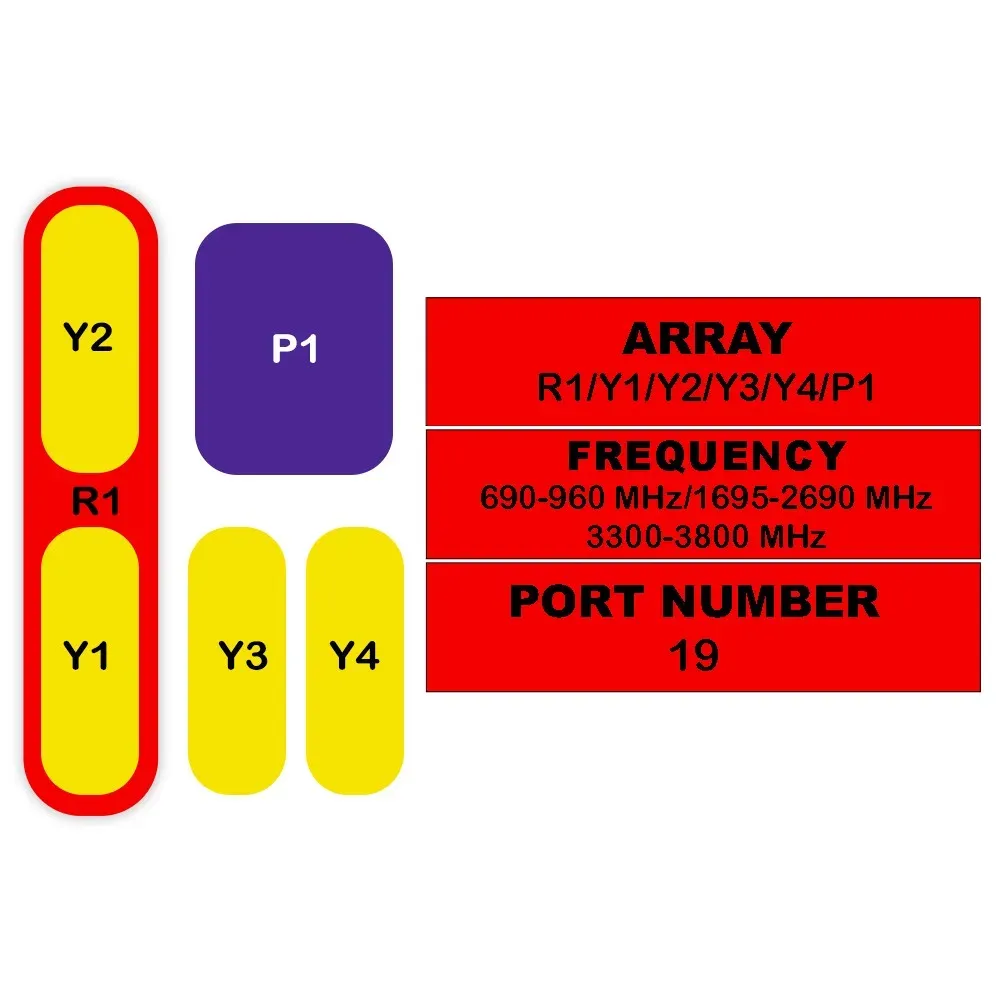

19-Port Antenna R1 Y1 Y2 Y3 Y4 P1
Frequency Range (MHz) 690-960 1695-2690 1695-2690 1695-2690 1695-2690 3300-3800
HBW 65° 65° 65° 65° 65° 65°
Gain 13 dBi 13 dBi 13 dBi 13 dBi 13 dBi 14 dBi
Tilt 2-16° 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

(other connectors by request)

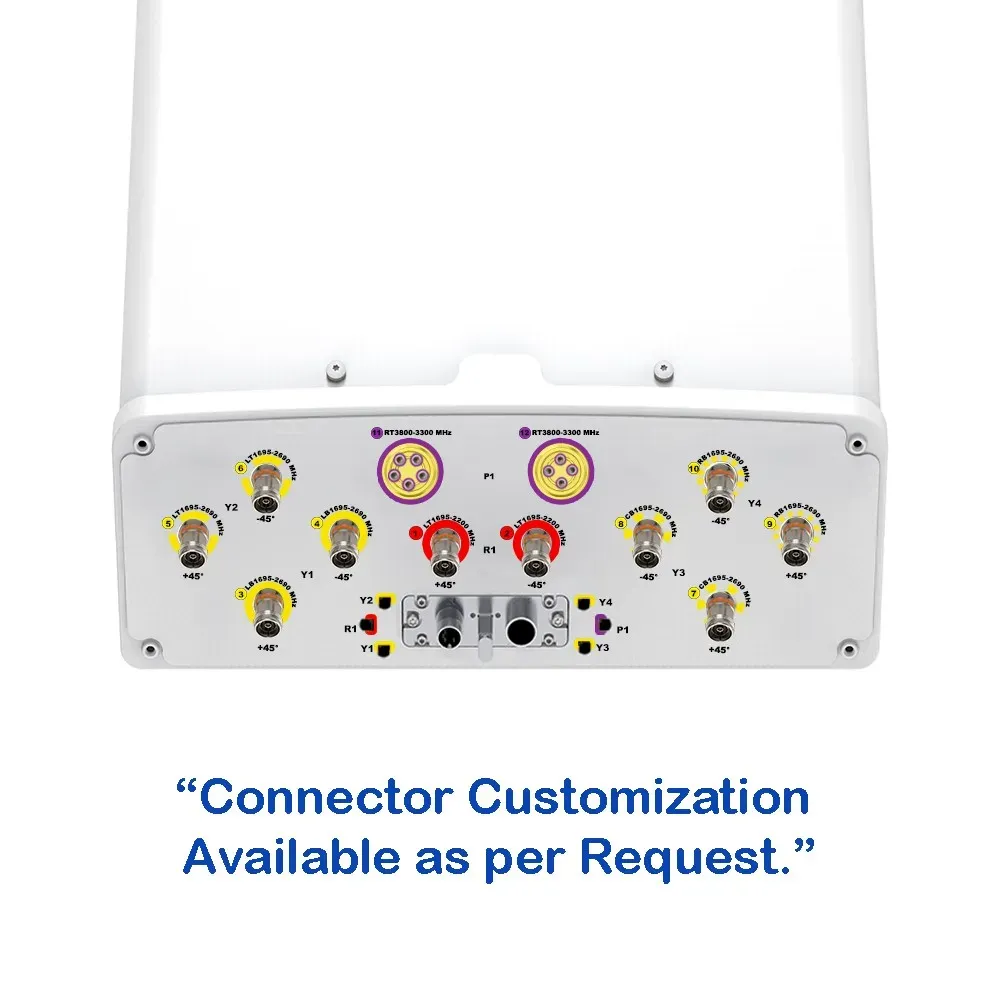

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(1x) MQ5 Male

+ 1 MQ4 Male



Product Part Number
19P-690-3800F-13G-65H24V
Electrical & Mechanical Specification
Electrical Specifications
R1Y1 / Y2
Frequency RangeMHz690-9601695-2690
MHz690-806790-894880-9601695-18801850-19901920-21702300-24002490-2690
Polarization±45°±45°
Gainat Mid TiltdBi12.212.713.21212.412.813.213.2
Over All TiltsdBi12 ± 0.612.5 ± 0.613 ± 0.611.8 ± 0.612.2 ± 0.512.6 ± 0.513 ± 0.513 ± 0.6
Horizontal Beamwidthdegree72 ± 4.869 ± 3.967 ± 4.168 ± 4.967 ± 4.764 ± 5.162 ± 5.560 ± 5.2
Vertical Beamwidthdegree24 ± 221 ± 219 ± 220 ± 1.518 ± 1.516 ± 1.515 ± 1.513 ± 1.5
Electrical Downtilt, Continuously Adjustabledegree2-162-12
First Upper Side Lobe Suppression (typical)dB> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 22> 23> 25≥ 23≥ 23> 24≥ 25≥ 25
IsolationCross-PolardB> 25> 25
Interband (typical)dB> 35> 28 (Y1, Y2//Y3, Y4); > 35 (Y1, Y2//R1)
ImpedanceOhm5050
VSWR< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -153< -153
Lightning ProtectionDC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Y3 / Y4P1
Frequency RangeMHz1695-2690Frequency RangeMHz3300-3800
MHz1695-18801850-19901920-21702300-24002490-2690Polarization±45°
Polarization±45°Electrical Downtilt, Continuously Adjustabledegree2-12
Gainat Mid TiltdBi12.212.61313.413.4Single Column BeamGaindBi12.5
Over All TiltsdBi12 ± 0.612.4±0.512.8±0.513.2±0.513.2±0.6Horizontal Beamwidthdegree78
Horizontal Beamwidthdegree67 ± 4.965 ± 4.763 ± 5.159 ± 5.559 ± 5.2Vertical Beamwidth (3 dB)degree10.6
Vertical Beamwidthdegree20 ± 1.518 ± 1.516 ± 1.515 ± 1.513 ± 1.5Cross-Polar Ratio at BoresightdB≥ 16
Electrical Downtilt, Continuously Adjustabledegree2-12First Upper Side Lobe Suppression (typical)dB≥ 15
First Upper Side Lobe Suppression (typical)dB> 15> 15> 15> 15> 15Front-To-Back RatiodB≥ 22
Front-To-Back Ratio ±30°dB≥ 23≥ 23> 24≥ 25≥ 2565°GaindB14
IsolationCross-PolardB> 25Broadcast BeamHorizontal Beamwidthdegree65
InterbanddB> 28 (Y3, Y4//Y1, Y2); > 35 (Y3, Y4//R1)Vertical Beamwidth (3 dB)degree10.6
(typical)Cross-Polar Ratio at BoresightdB≥ 16
ImpedanceOhm50First Upper Side Lobe Suppression (typical)dB≥ 15
VSWR< 1.5Front-To-Back Ratio ±30°dB≥ 22
Return LossdB> 14Service Beam (0°)GaindBi18
PIM3 (2×43 dBm Carrier)dBc< -153Horizontal Beamwidthdegree22
Lightning ProtectionDC GroundVertical Beamwidthdegree10.6
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200Cross Polar Ratio at BoresightdB≥ 16
Azimuth Sidelobe Suppression (typical)dB≥ 12
Front-To-Back Ratio ±30°dB≥ 23
Calibration and Electrical ParameterCoupling Factor Between Calibration anddB-26 ± 2
Each Antenna Port
Maximum Amplitude / Phase DeviationdB1 dB/8°
Ports VSWR1.5
Average Power CapacityW40
IsolationCo-Polar Isolation Bewtween PortsdB20
Cross-Polar Isolation Between PortsdB20
ImpedanceOhm50
VSWR< 1.5
Return LossdB> 14
PIM3 (2×43 dBm carrier)dBc< - 143
Lightning ProtectionDC Ground
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type(10x) 4.3/10 Female + (1x) MQ5 + 1 MQ4
Male
Connector PositionBottom
Electrical Tilt ControlIntegrated RET
Radome MaterialFiberglass

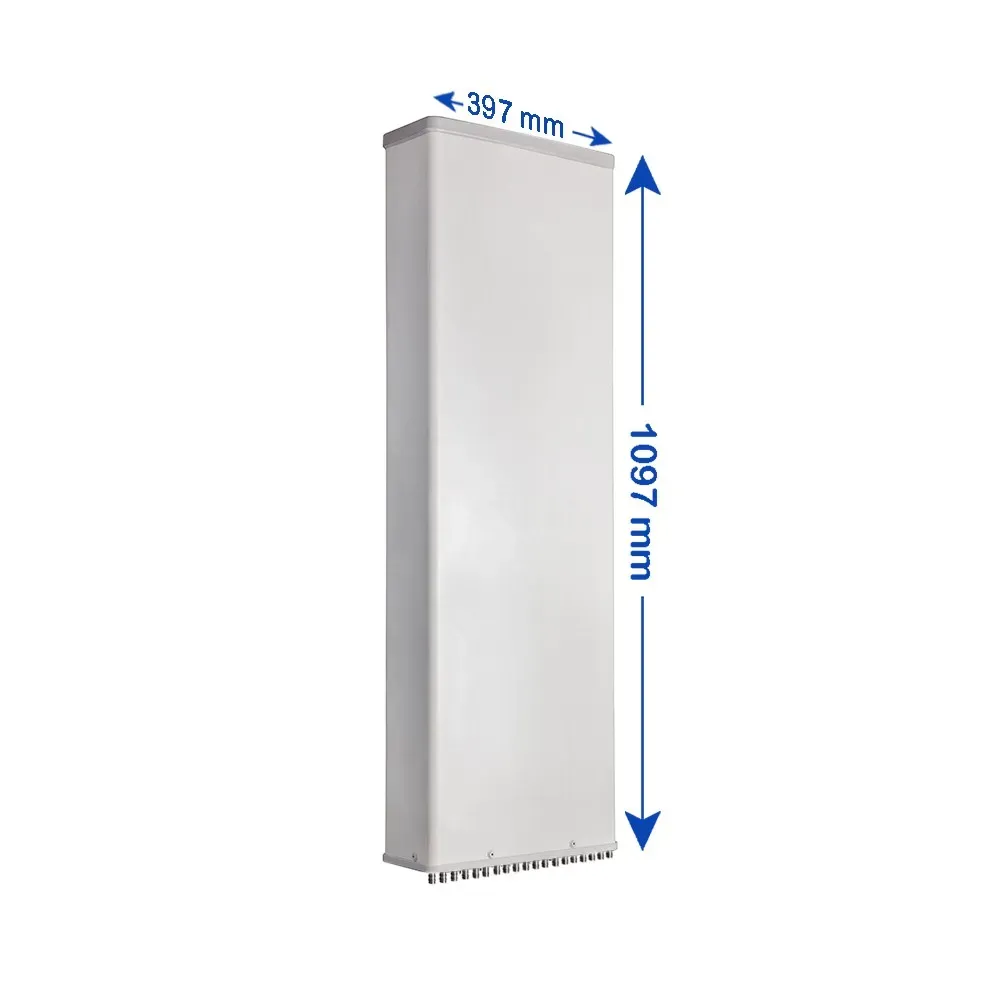

Antenna Dimensions (H x W x D)mm (in)1097 x 397 x 157 (43.2 x 15.6 x 6.2)
Antenna WeightAntenna Onlykg (lbs)20 (44.1)
with Clampskg (lbs)24 (52.9)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)400 (89.9)
at 150 km/hRearN (lbf)450 (101.2)
LateralN (lbf)200 (45.0)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
