Product code: 19P-690-3800F-16G-65H9V
19-Port, TDD Hybrid Panel Antenna, 65° HBW, (1x) 690-960/(4x) 1695-2690/(1x) 3300-3800 MHz, 17/18/18/18/18/17 dBi, 2-12°T, 2.750 m

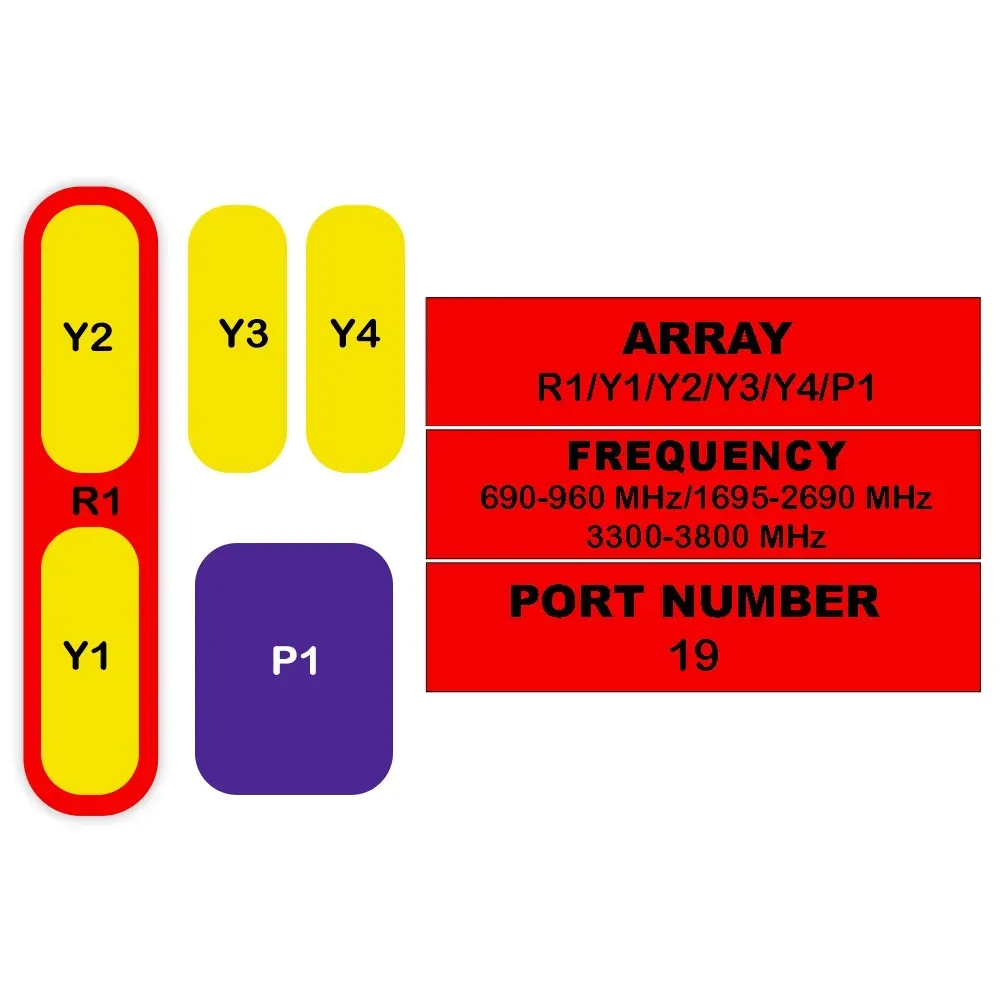

| 19-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 | P1 |
| Frequency Range (MHz) | 690-960 | 1695-2690 | 1695-2690 | 1695-2690 | 1695-2690 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 16 dBi | 16 dBi | 16 dBi | 16 dBi | 16 dBi | 17 dBi |
| Tilt | 2-16° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

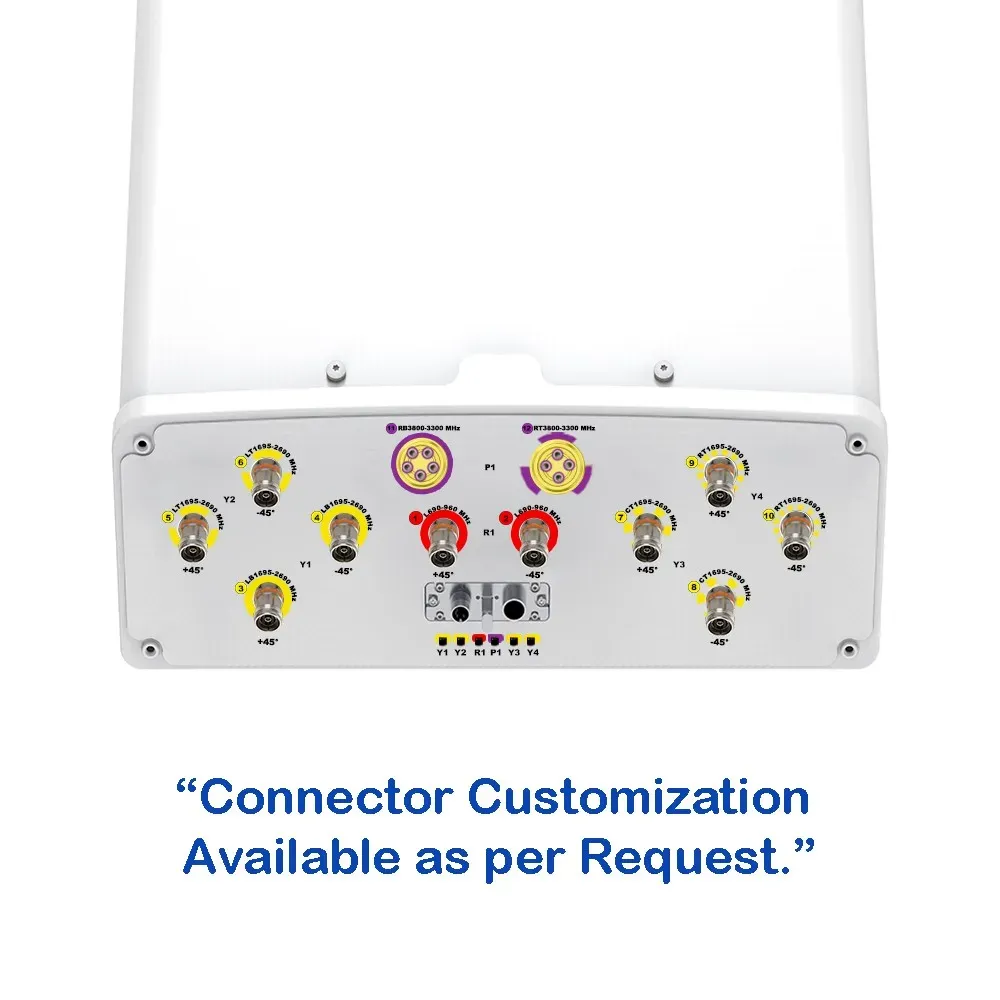

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ5 Male
+ 1 MQ4 Male |
