Product code: 19P-698-3800F-16G-65H10V

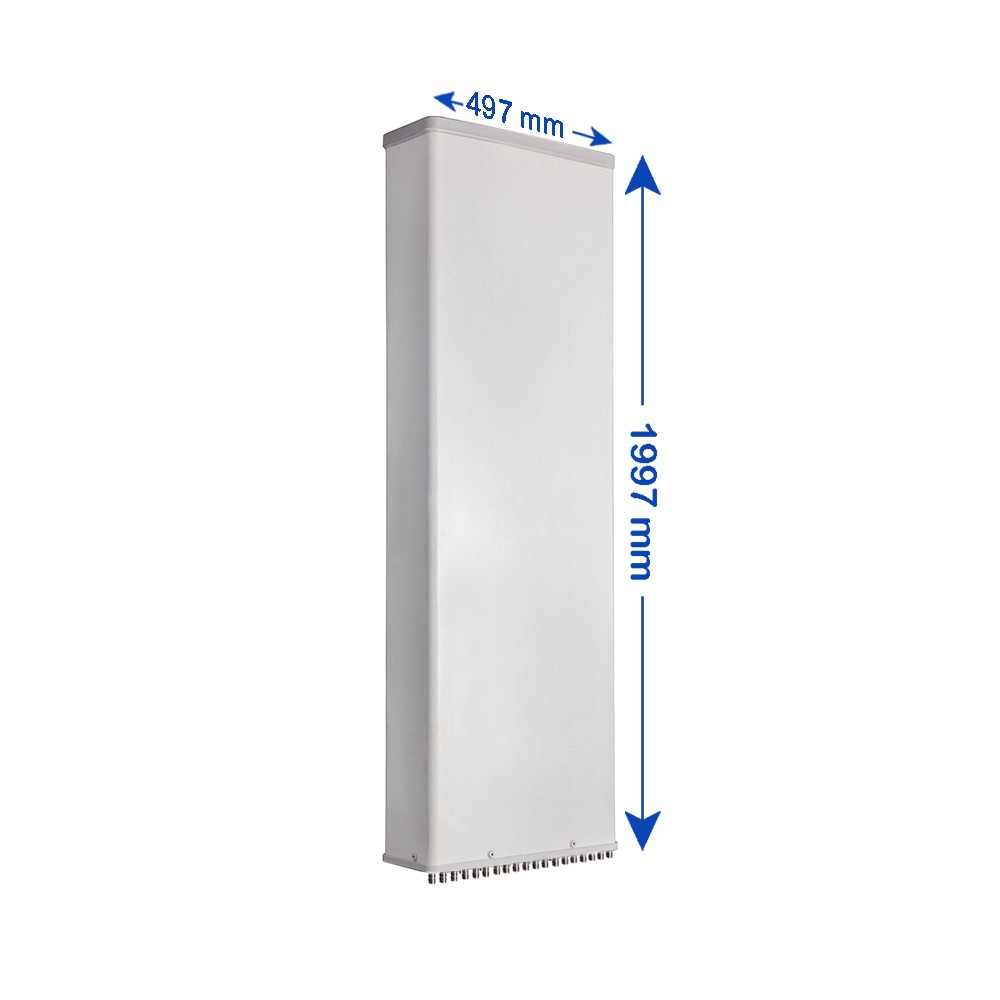

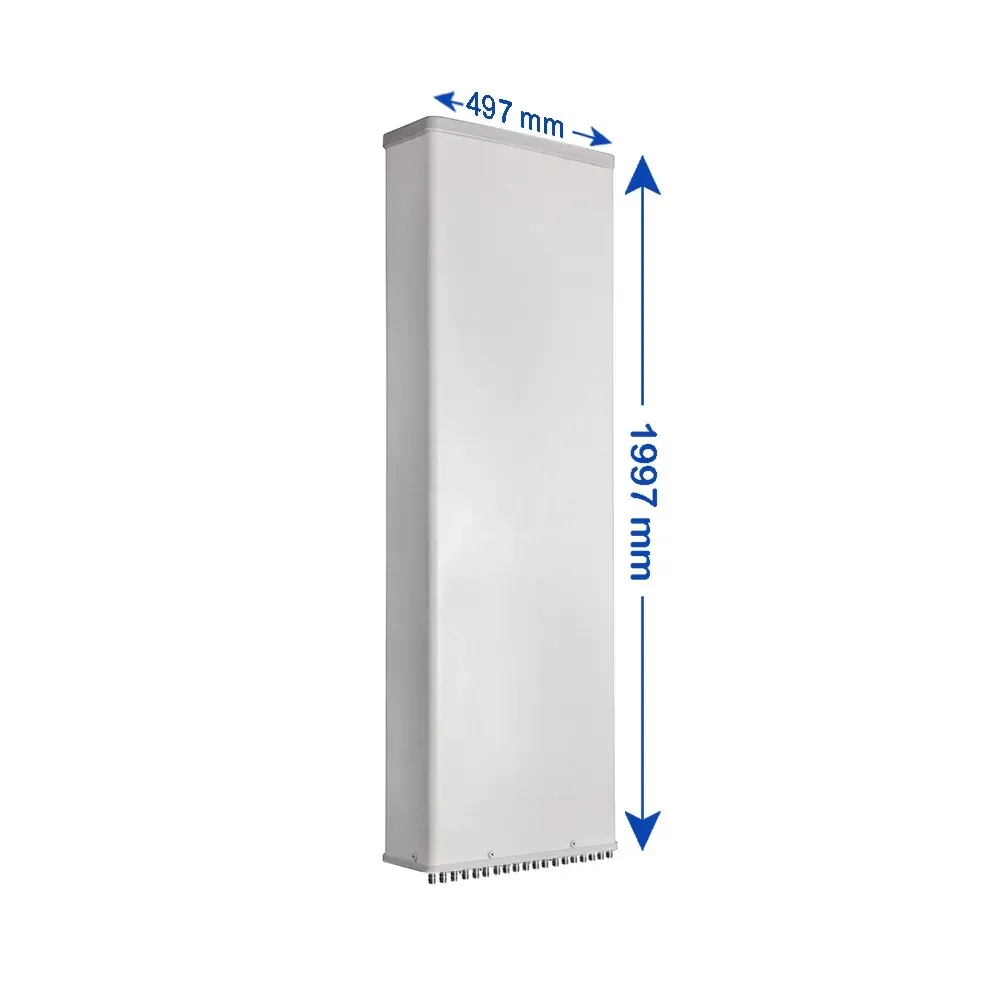

19-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 698-960/(3x) 1710-2690/(1x) 2300-3800 MHz, 16/16/16/16/16/16 dBi, 2-16°/2-12°T, 1.997 m

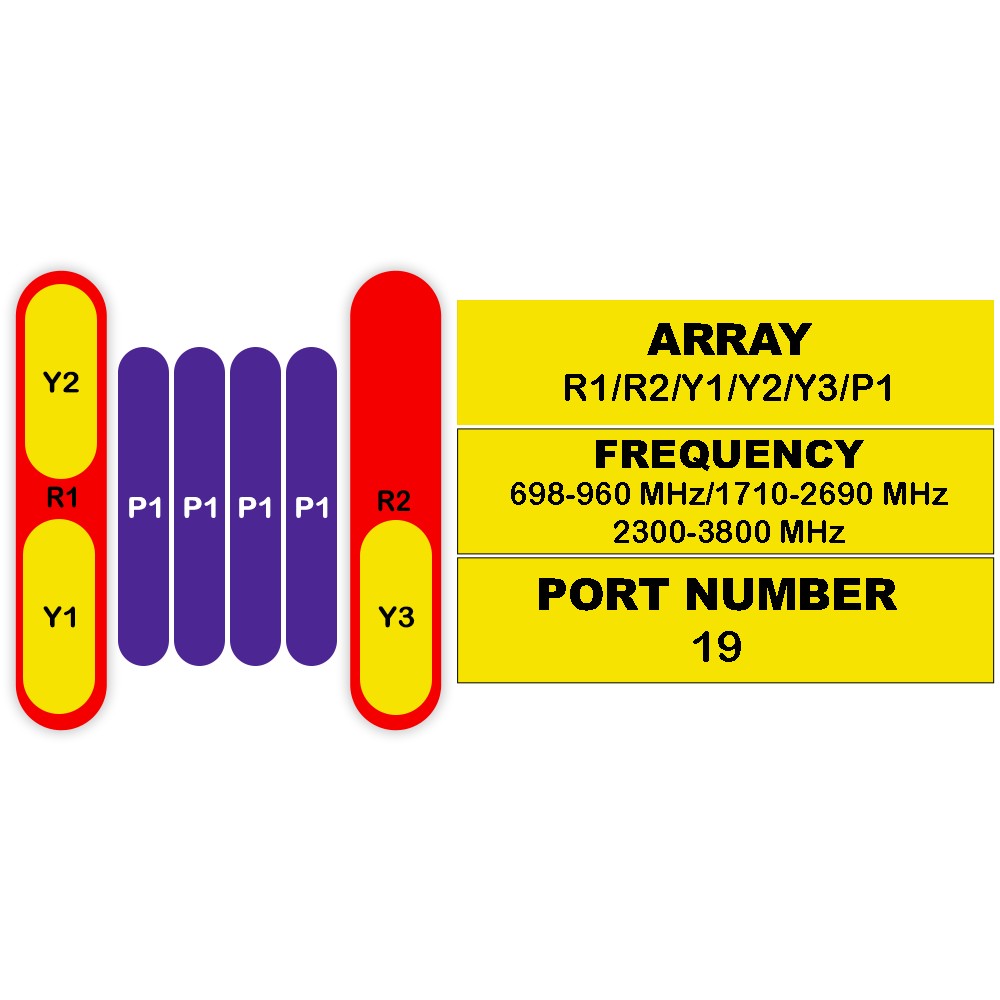

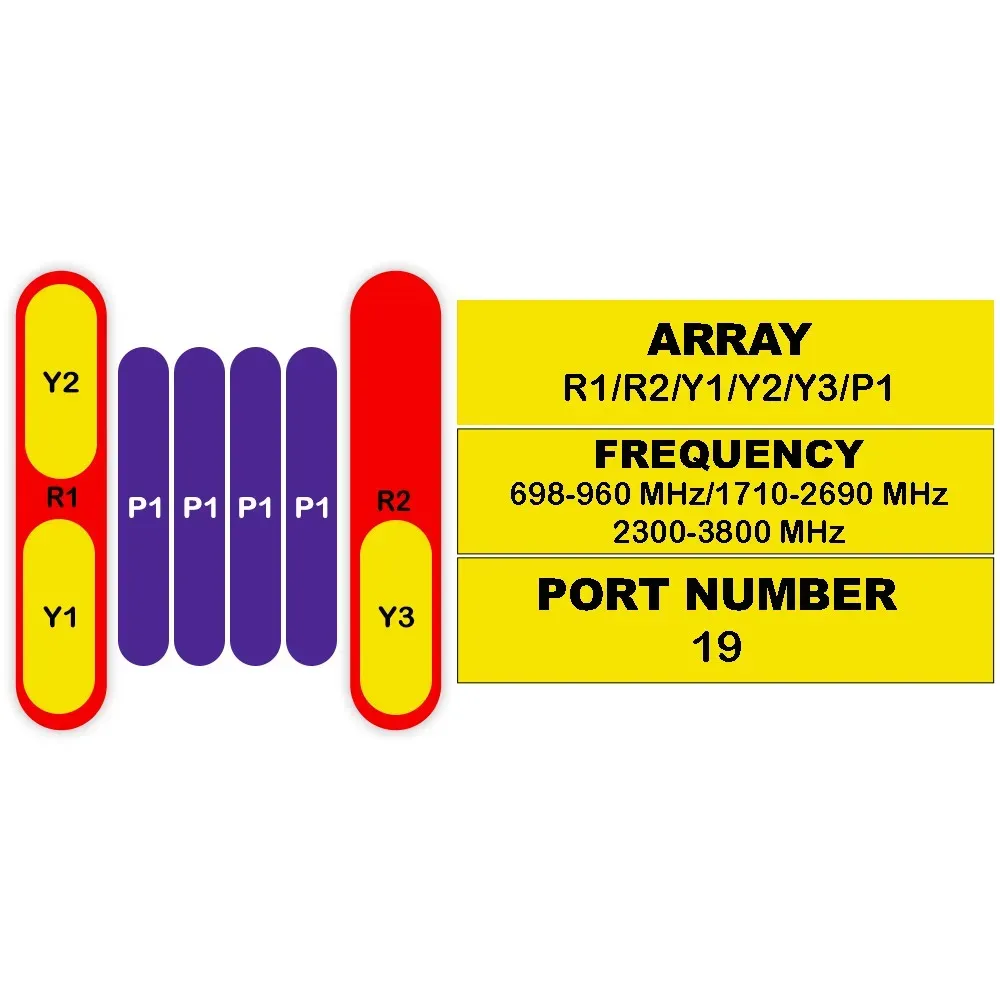

| 19-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | P1 |
| Frequency Range (MHz) | 698-960 | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 2300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 16 dBi | 16 dBi | 16 dBi | 16 dBi | 16 dBi | 16 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

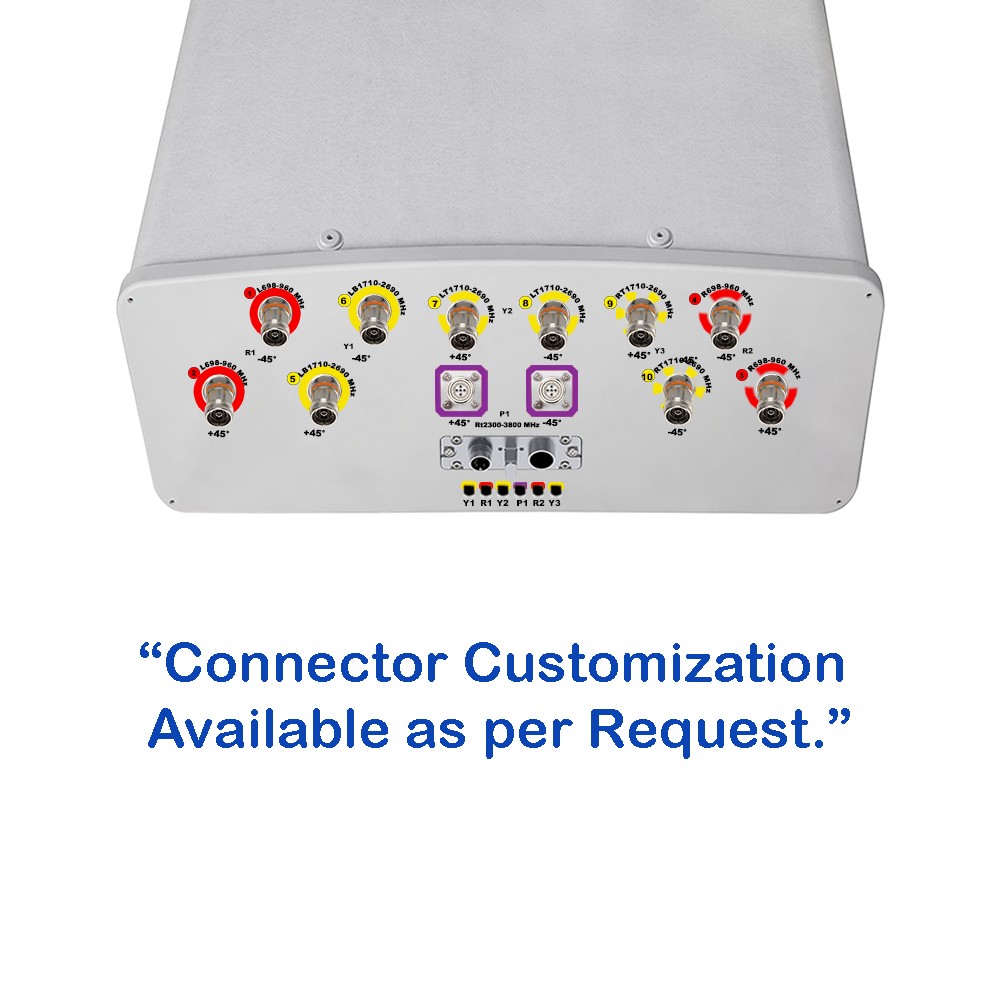

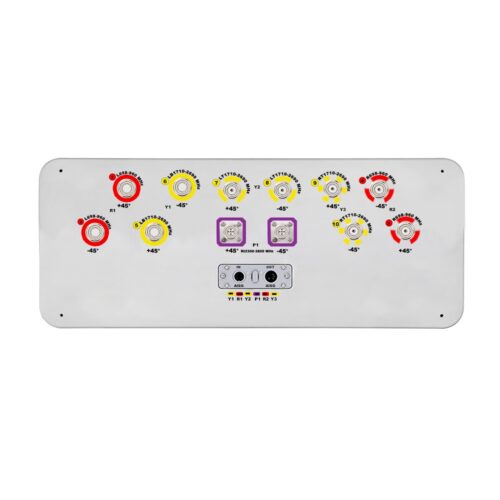

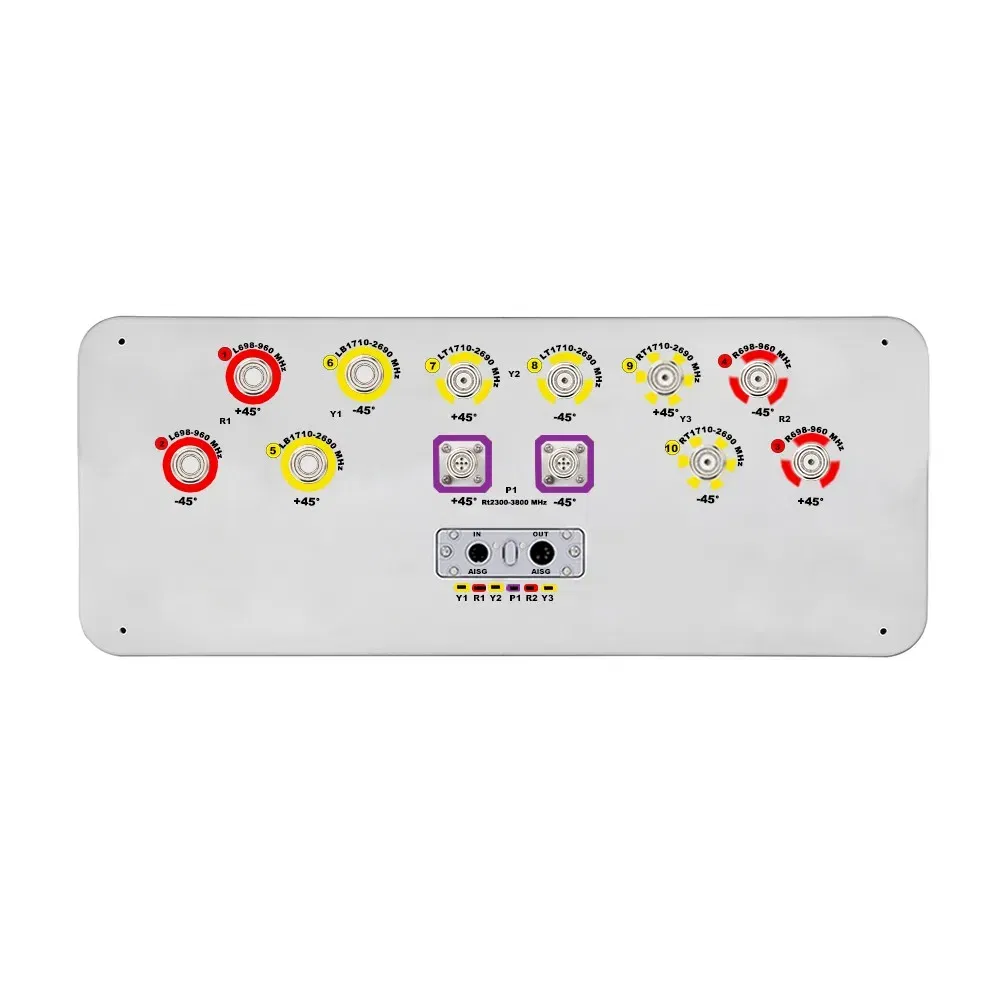

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) Cluster |
