Product code: 19P-694-2690F-16G-65H9V

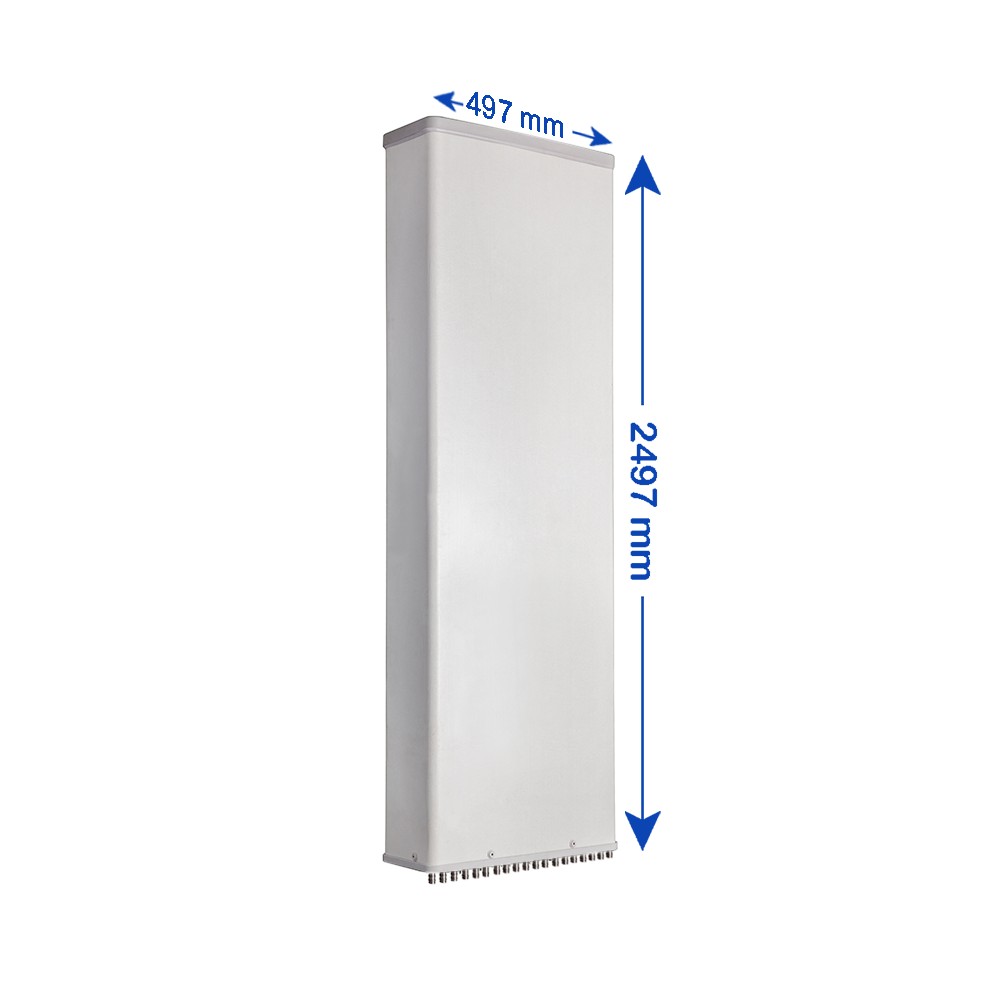

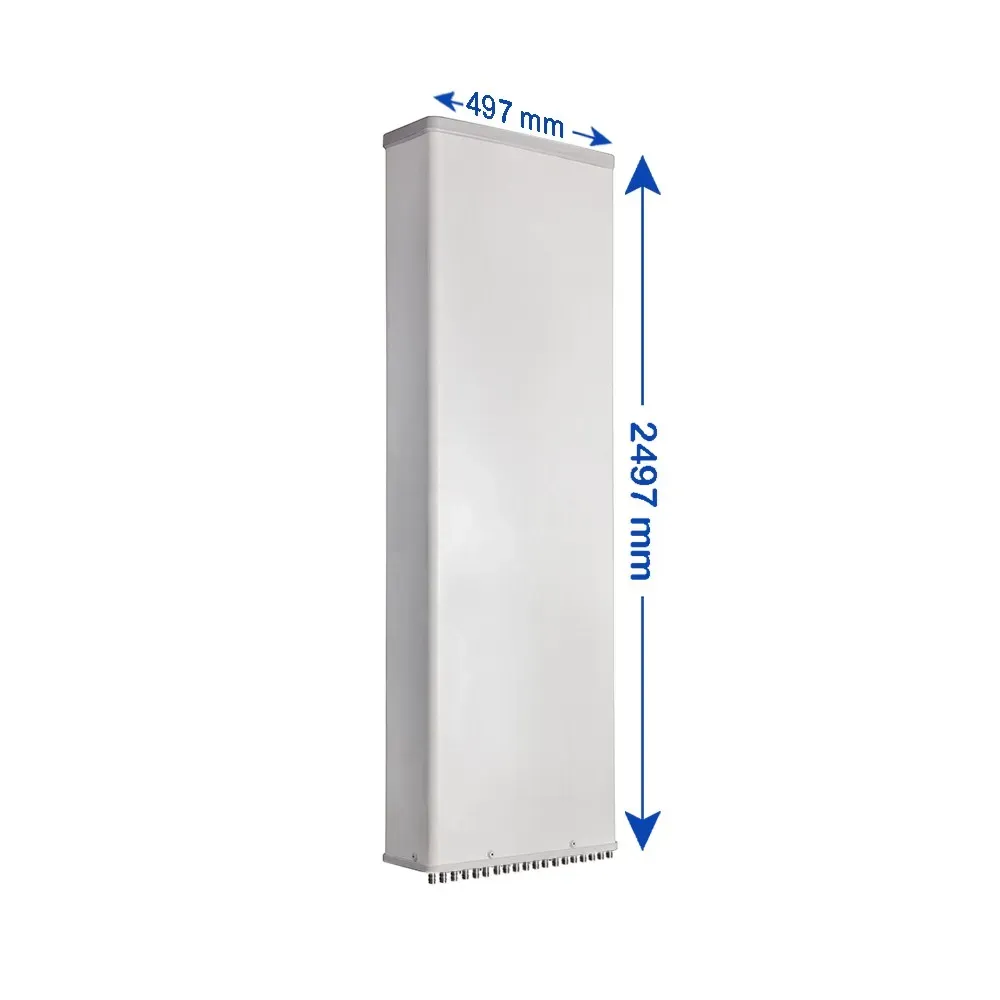

19-Port, TDD Hybrid Panel Antenna, 65° HBW, 694-862/880-960/694-960/(2x) 1427-2690/2300-2690 MHz, 15.5/16/16.5/18/18/17.5 dBi, 2-12°T, 2.497 m

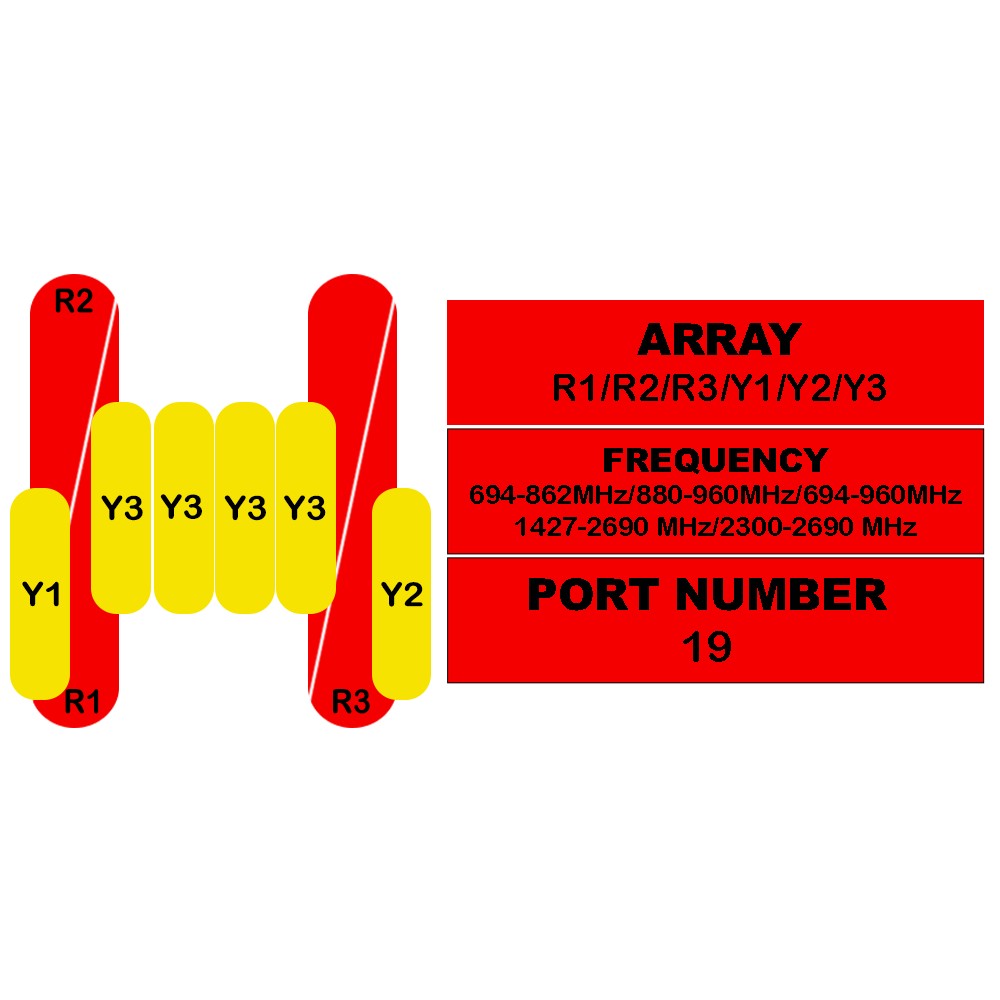

| 19-Port Antenna | R1 | R2 | R3 | Y1 | Y2 | Y3 |
| Frequency Range (MHz) | 694-862 | 880-960 | 694-960 | 1427-2690 | 1427-2690 | 2300-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 16 dBi | 16.5 dBi | 18 dBi | 18 dBi | 17.5 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

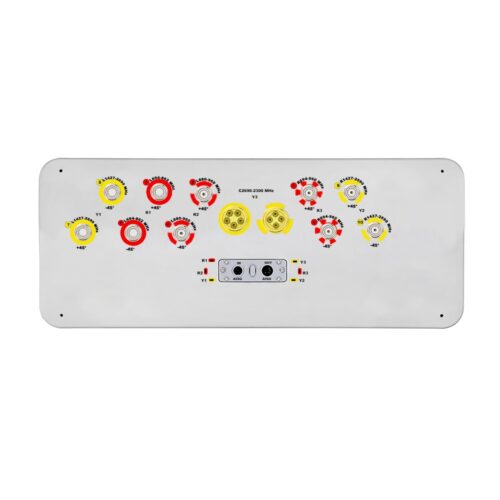

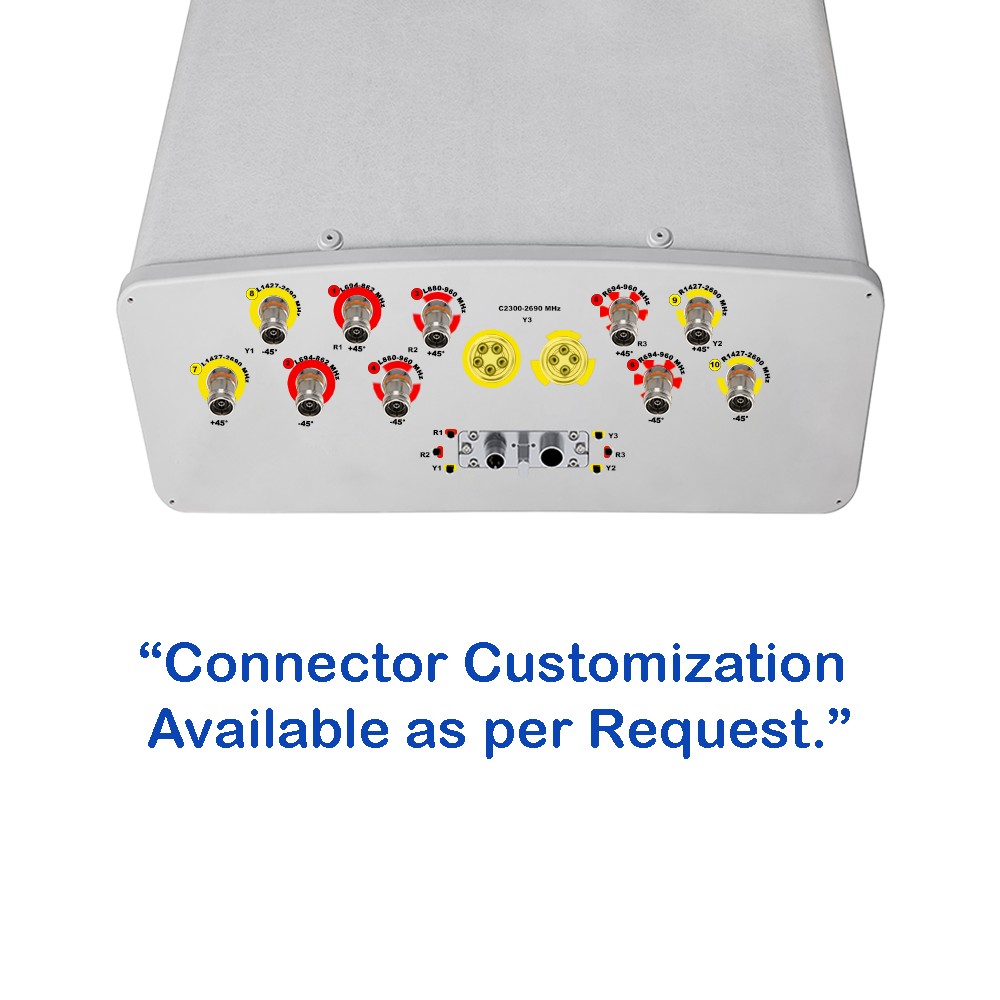

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ5 Male
(4 RF + 1 Calibration) & (1x) MQ4 Male (4 RF) |
