Product code: 19P-698-3800F-16G-65H11V

19-Port, TDD Hybrid Panel Antenna, 65° HBW, 698-960/(4x) 1710-2690/(1x) 2300-3800 MHz, 16/16/16/16/16/16 dBi, 2-16°/2-12°T, 1.997 m

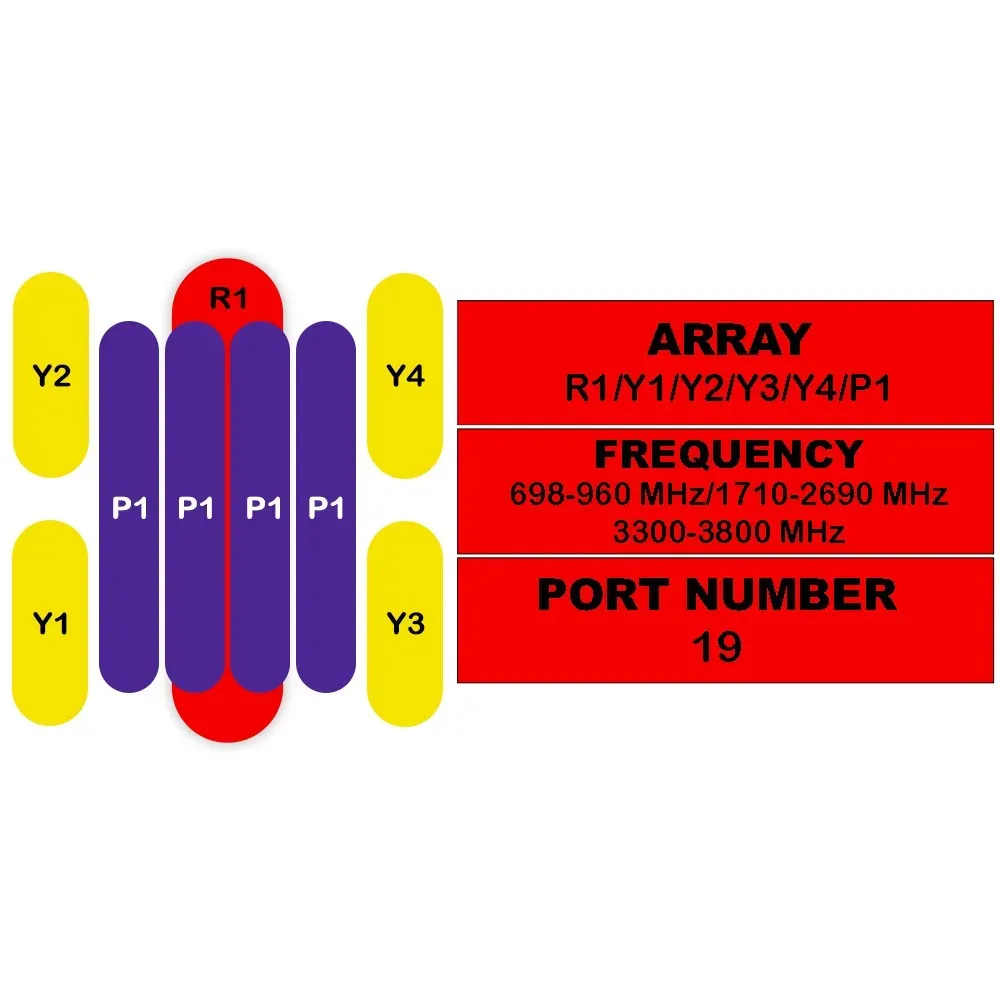

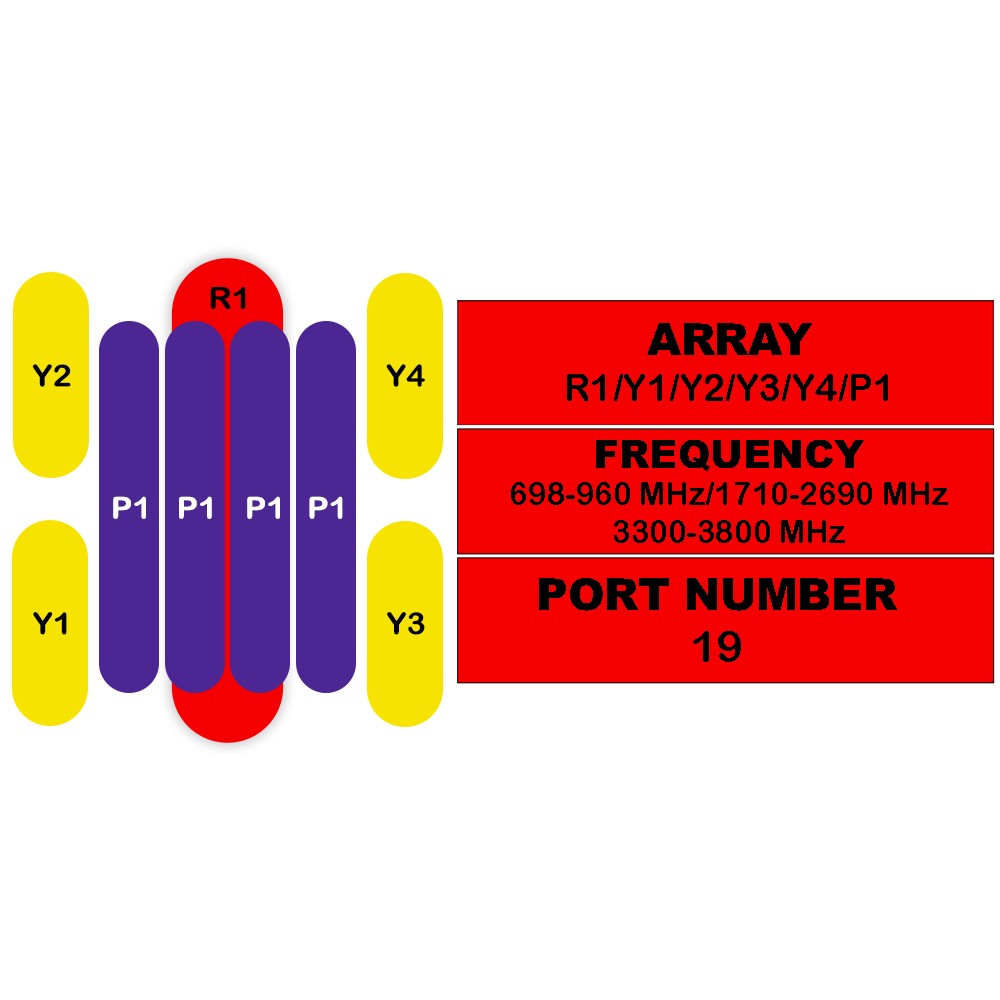

19-Port Antenna R1 Y1 Y2 Y3 Y4 P1
Frequency Range (MHz) 698-960 1710-2690 1710-2690 1710-2690 1710-2690 2300-3800
HBW 65° 65° 65° 65° 65° 65°
Gain 16 dBi 16 dBi 16 dBi 16 dBi 16 dBi 16 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

(other connectors by request)

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(2x) 4.3/10

Female

(2x) Cluster



Product Part Number
19P-698-3800F-16G-65H11V
Electrical & Mechanical Specification
Electrical Specifications
R1Y1/Y2/Y3/Y4
Frequency RangeMHz698-9601710-2690
MHz698-806790-894880-9601710-18801850-19901920-21702300-25002500-2690
Polarization±45°±45°
Gainat Mid TiltdBi14.915.415.815.215.615.816.116.1
Over All TiltsdBi14.8 ± 0.615.3 ± 0.615.7 ± 0.615.1 ± 0.615.5 ± 0.615.7 ± 0.616.0 ± 0.615.9 ± 0.6
Horizontal Beamwidthdegree68 ± 565 ± 562 ± 567 ± 565 ± 564 ± 562 ± 560 ± 5
Vertical Beamwidthdegree10.5 ± 1.09.6 ± 1.09.0 ± 0.99.7 ± 1.09.1 ± 0.98.5 ± 0.97.1 ± 0.76.6 ± 0.7
Electrical Downtilt, Continuously Adjustabledegree2-122-12
First Upper Side Lobe SuppressiondB> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 23> 24> 25> 25> 25> 25> 25> 25
Cross Polarat BoresightdB> 17> 17> 17> 18> 18> 18> 18> 18
DiscriminationOver SectordB> 8> 8> 8> 8> 8> 8> 8> 8
Squintdegree3.53.53.53.53.53.53.53.5
TrackingdB33333333
IsolationCross-PolardB≥ 25≥ 25
Port-to-PortdB≥ 25≥ 25
ImpedanceOhm5050
VSWR< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -153< -153
Lightning ProtectionDC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
TDD LTEP1
Frequency RangeMHz2300-3800
MHz2300-26903300-3800
Polarization±45°
Electrical Downtilt, Continuously Adjustabledegree2-12
Single Column BeamGaindBi15.516.5
Horizontal Beamwidthdegree9070
Vertical Beamwidth (3 dB)degree8.3 ± 0.86.2 ± 0.6
Cross-Polar Ratio at BoresightdB≥ 16≥ 16
Cross-Polar Ratio Over SectordB1010
First Upper Side LobedB≥ 15≥ 15
Suppression
Front-To-Back RatiodB≥ 25≥ 25
65° Broadcast BeamGaindB16.517.3
Horizontal Beamwidth (3 dB)degree6565
Vertical Beamwidth (3 dB)degree8.3 ± 0.86.2 ± 0.6
Gain Roll-Off At Sector EdgedB1212
Cross-Polar Ratio at BoresightdB≥ 16≥ 16
Cross-Polar Ratio Over SectordB1010
First Upper Side LobedB≥ 15≥ 15
Suppression
Front-To-Back RatiodB≥ 25≥ 25
Service Beam(0°) Direct Beam GaindBi2020.5
(0°) Direct Beam 3 dB Horizontal Beamwidthdegree2520
Horizontal Sidelobesdegree-12-12
(0°) Direct Beam Cross Polar Ratio at Beam-Peakdegree≥ 18≥ 18
Cross Polar Discrimination over 10 dBdB1111
(0°) Direct Beam Front-To-Back RatiodB≥ 30≥ 30
(±30°) Direct Beam GaindB18.519
Soft Split Multi- BeamGaindBi19
Horizontal Beamwidth (3 dB)degree31
Vertical Beamwidth (3 dB)degree8.3 ± 0.8
First Upper Sidelobe SuppressiondB18
Front-To-Back RatiodB≥ 30
Cross Polar Ratio at Beam-PeakdB≥ 18
Cross Polar Ratio Over 10 dBdB11
Calibra- tion and Electrical Param- eterCoupling Factor Between Calibration and Each Antenna PortdB-26 ± 2
Max. Amplitude Tolerance From Calibration Port To Input PortsdB1
Max. Phase Tolerance From Calibration Port To Input Portsdegree9
Ports VSWR1.5
Average Power CapacityW75
IsolationIntrabanddB≥ 25
InterbanddB≥ 20
ImpedanceOhm50
Lightning ProtectionDC Ground
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications

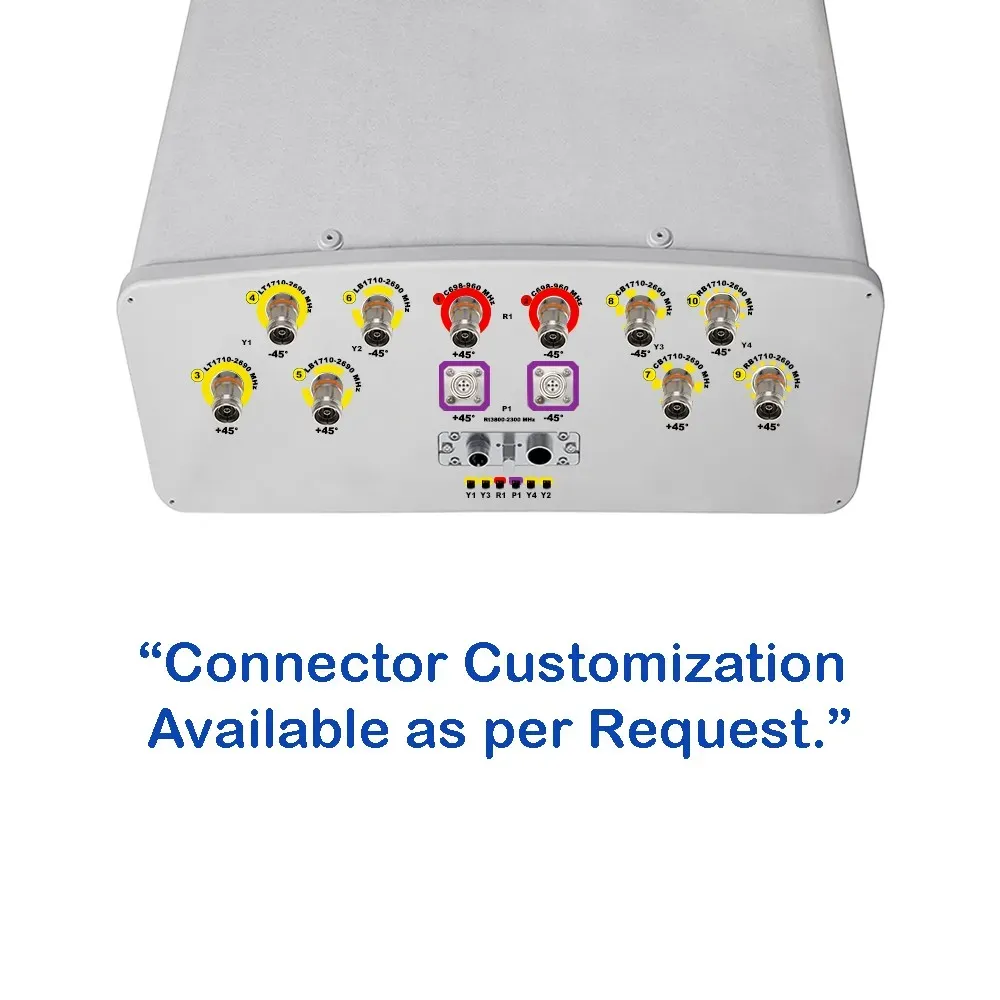

Connector Type(10x) 4.3/10 Female + (2x) Cluster
Connector PositionBottom
Electrical Tilt ControlFDD: Integrated RET, Each Band Individually Adjustable TDD: Integrated RET, Single internal RET control for all four antenna arrays
Radome MaterialFiberglass

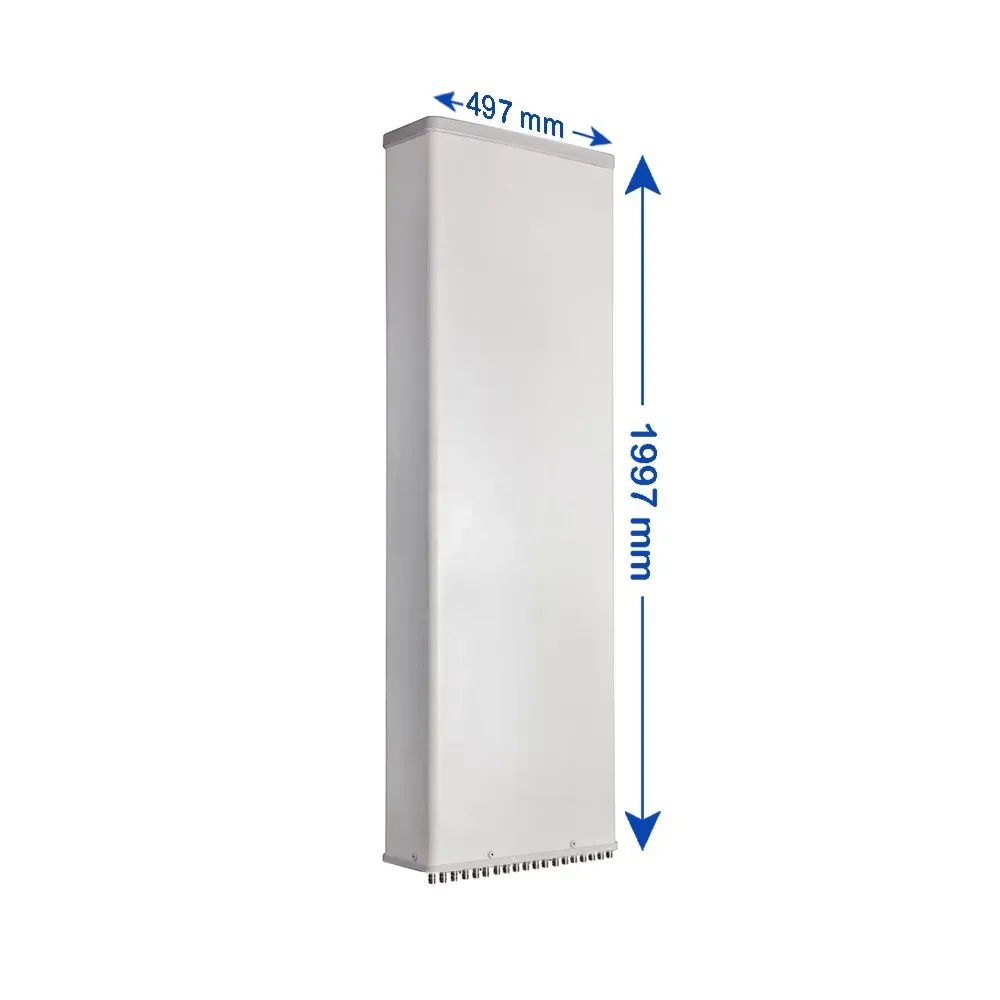

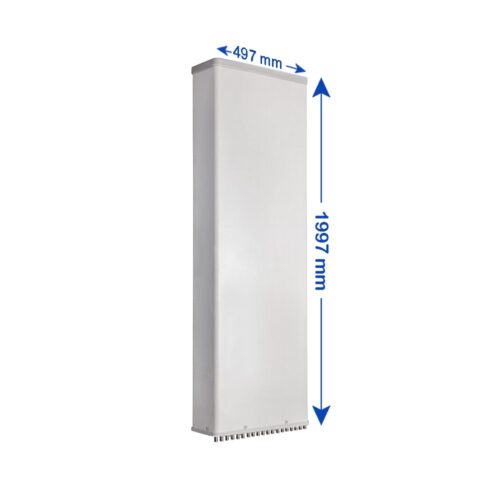

Antenna Dimensions (H x W x D)mm (in)1997 x 497 x 197 (78.6 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)37.5 (82.7)
with Clampskg (lbs)43 (94.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)915 (205.7)
at 150 km/hRearN (lbf)1025 (230.4)
LateralN (lbf)450 (101.2)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
