Product code: MT-192102-NM

1920MHz to 2170MHz 2dBi Mini Omni Directional Outdoor Antenna (N-Male)

Product Overview
Part Number MT-192102-NM

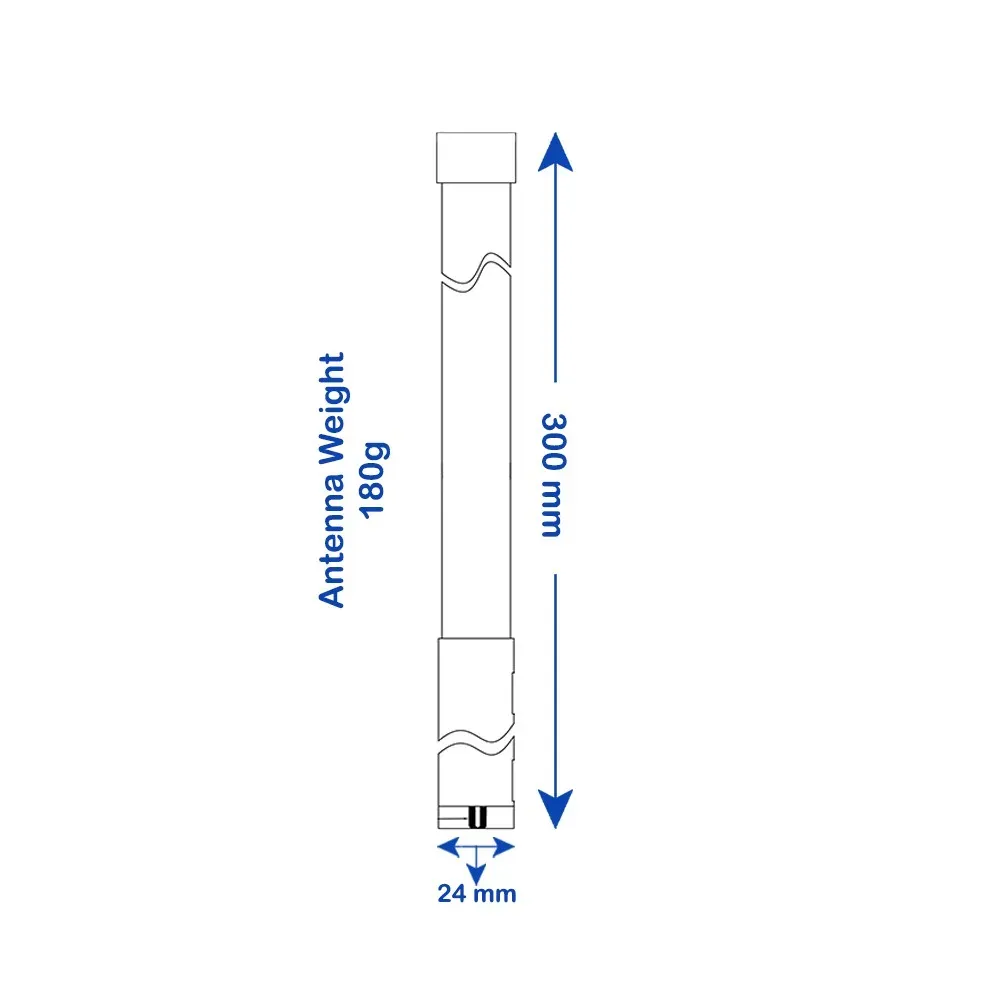

Dimension 300x24mm
Weight 180g
Connector N-Female
Beam-width Horz.360 deg Vert.72 deg



WhatsApp Chat
Skype
Product Part Number
MT-192102-NM
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range1920 to 2170MHz
V.S.W.R (MAX) 2.0:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)2 dBi
PolarizationVertical
Maximum Power150 Watts
Vertical Beam-width72 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna Design Dipole Array
Internal MaterialCopper
ConnectorN-Male
Mechanical
Length (MAX)300mm
Diameter (MAX)24mm
Antenna Weight (G.W)180 g
Accessories (G.W)3 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Well Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
