Product code: MT-DTA757

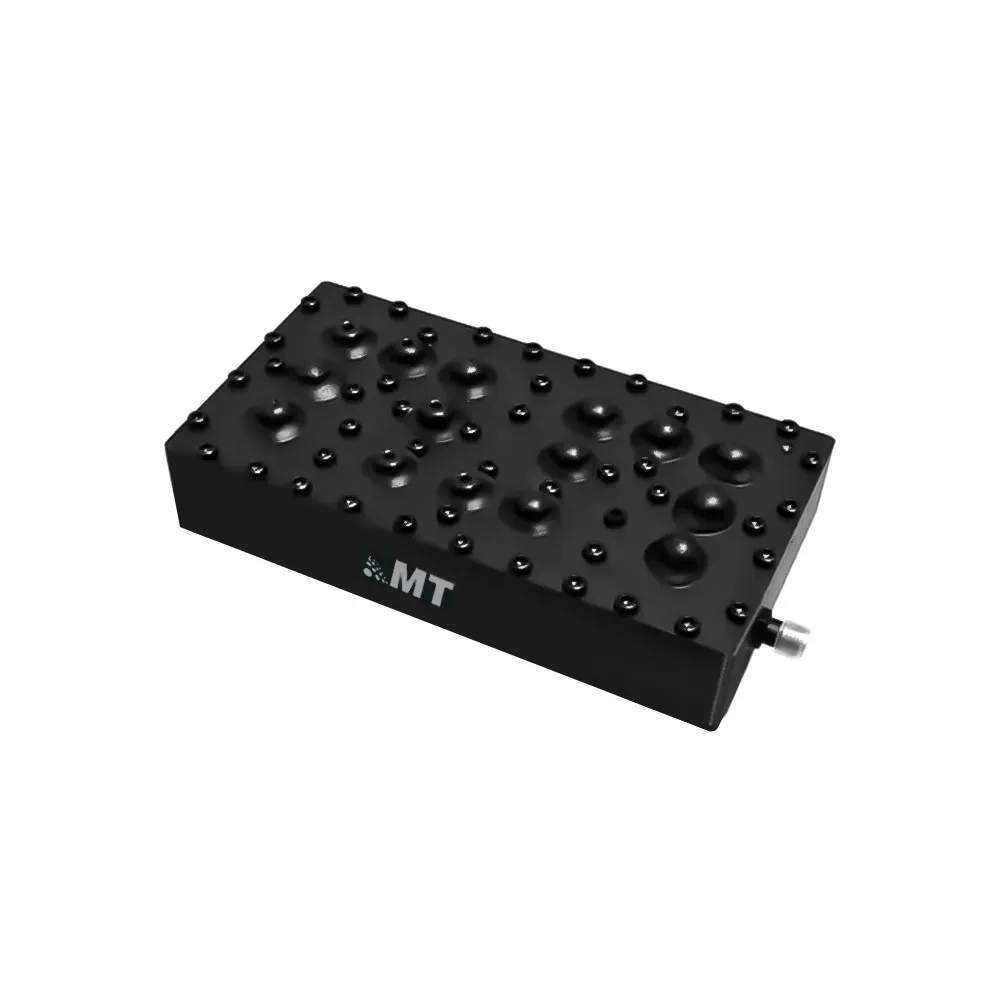

1952-1962MHz Cavity Band Pass Filter

  • P/N：MT-DTA757
  • Pass Band Frequency：1952-1962MHz
  • Stop Band Attenuation：≥50dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA757
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)1957MHz
2Pass Band Frequency1952 ~ 1962MHz
3Pass Band Insertion Loss≤2.0dB
4Pass Band Ripple≤0.6dB
5Pass Band Return Loss≥20dB
6Stop Band Rejection≥50dB @ DC ~ 1940MHz 1974 ~ 6000MHz
7Impedance50 Ohms
8Power Handling20W Max.
9ConnectorsSMA-Female
