Product code: MT-DTA128

1990-2010MHz Cavity Band Pass Filter

  • P/N：MT-DTA128
  • Pass Band Frequency:1990～2010MHz
  • inhibition：≥80dB
  • Insertion loss：≤1.5dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA128
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)2000MHz
2Pass Band Frequency1990～2010MHz
3Pass Band Insertion Loss≤1.5dB
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥80dB @ DC～1910MHz ≥80dB @ 2090～5000MHz
6Impedance50 ohms
7Power Handling≤10W
8ConnectorsSMA-Female
9Temperature Range-10℃～+60℃
10Surface FinishBlack Paint
11Net WeightTBD

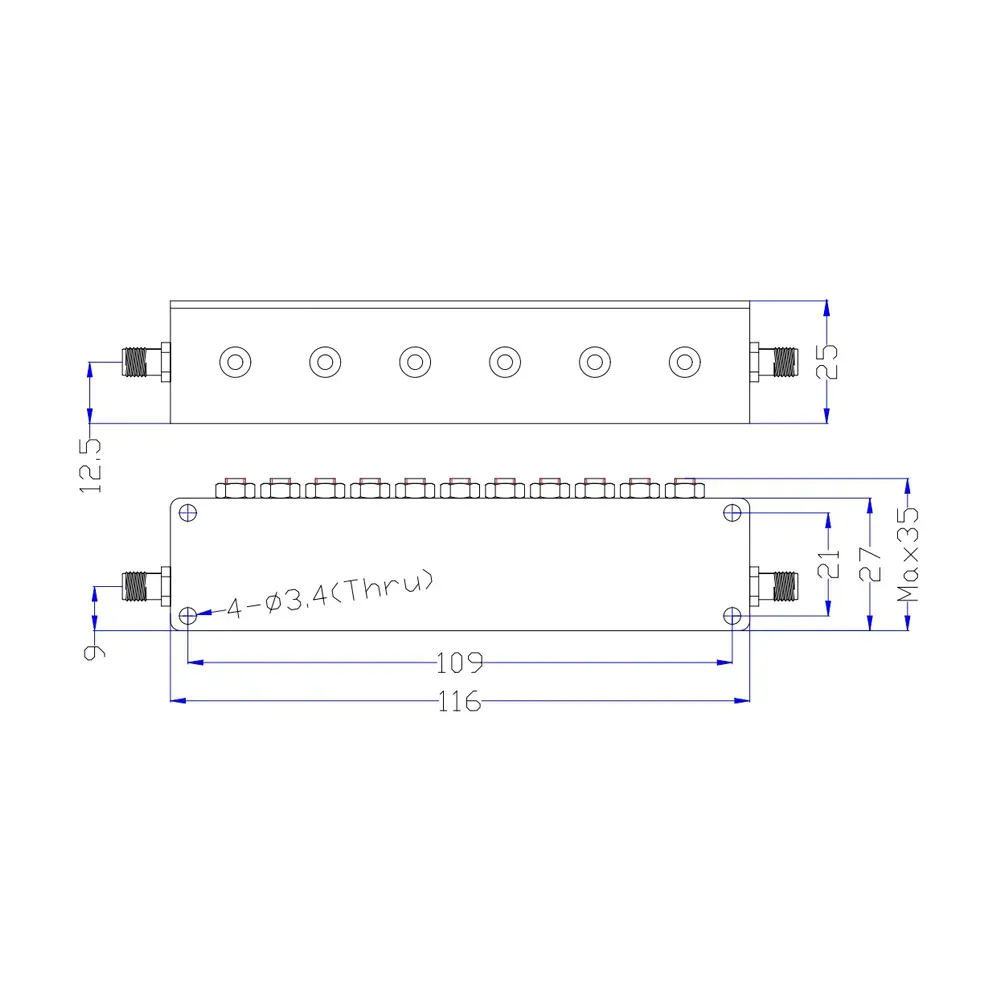

12ConfigurationAs Below (Size Unit: mm)
