Product code: MT-222303-NF

2.2GHz to 2.3GHz 3dBi Outdoor OMNI Directional Antenna

Product Overview
Part Number MT-222303-NF
Dimension 220x70x50mm
Weight 280g
Connector N-Female
Beam-width Horz.360 deg Vert.72 deg



WhatsApp Chat
Skype
Product Part Number
MT-222303-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range2200 to 2300MHz
V.S.W.R (MAX)1.3:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)3 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width72 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna Design1/4 Wavelength Dipole
Internal MaterialCopper
ConnectorN-Female

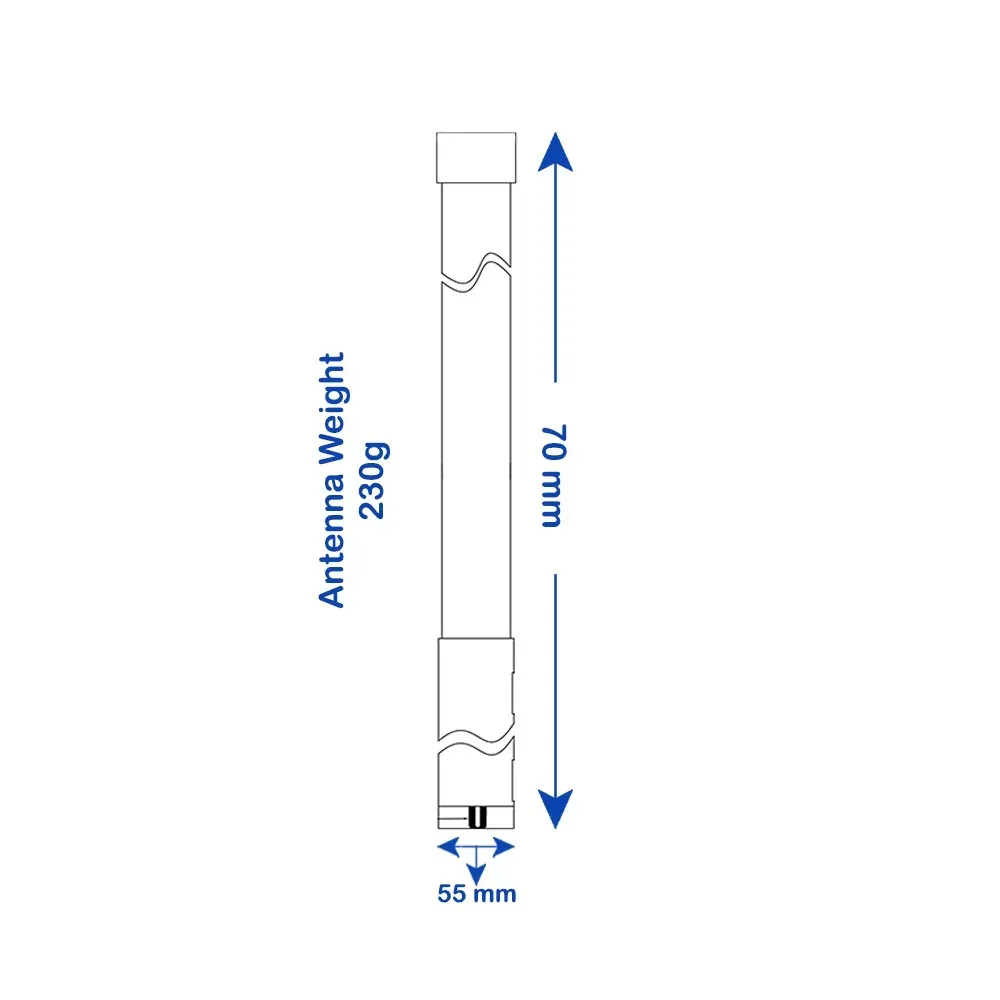

Mechanical
Length (MAX)220mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)230 g
Accessories (G.W)50 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Well Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
