Product code: MT-232712-NF

2.3GHz to 2.7GHz 12dBi Outdoor Base Station OMNI Directional Antenna

Product Overview
Part Number MT-232712-NF

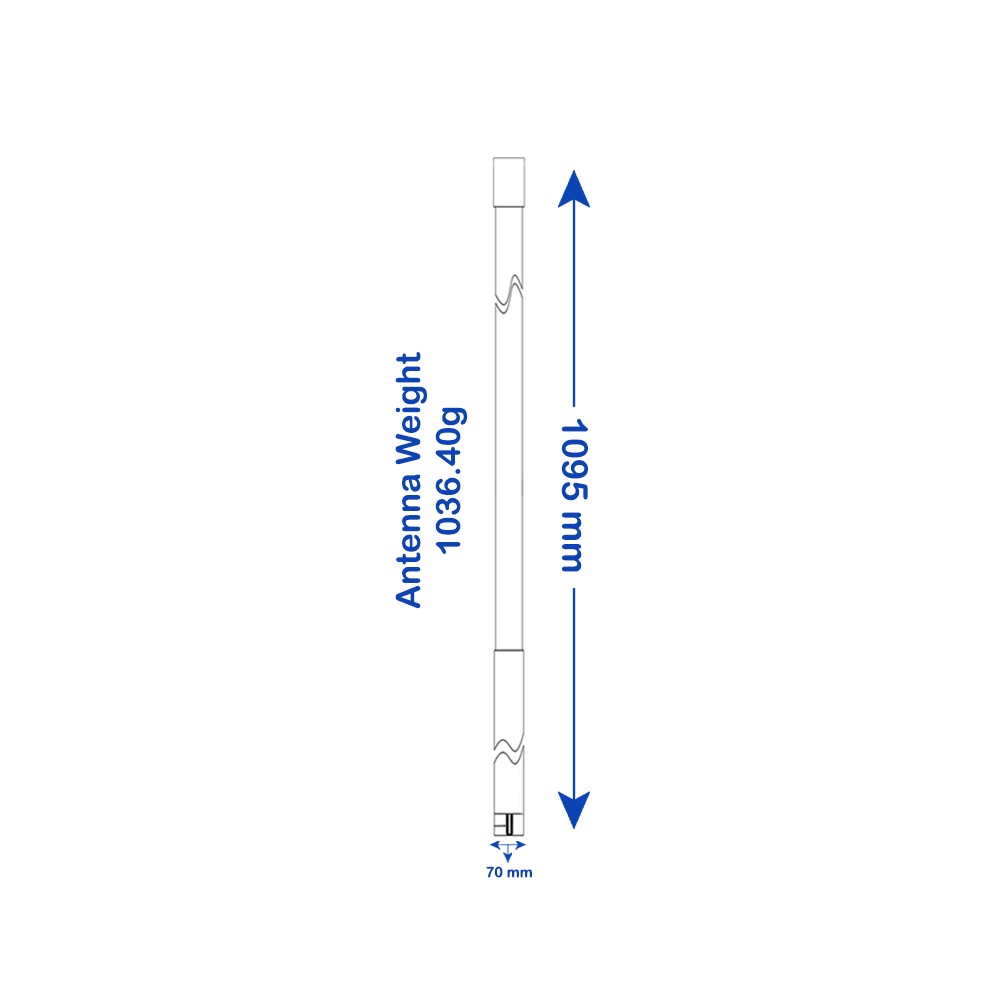

Dimension 1094.25x70mm
Weight 1036.40g
Connector N-Female
Beam-width Horz.360 deg Vert.6 deg



WhatsApp Chat
Skype
Product Part Number
MT-232712-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range2300 to 2700MHz
V.S.W.R (MAX)1.3:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)12 dBi
PolarizationVertical
Maximum Power200 Watts
Vertical Beam-width6 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length (MAX)1350 mm
Diameter (MAX)1095 x 70mm
Antenna Weight (N.W)1036.40 g
Accessories (G.W)89.27 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount Style42 to 78mm Pole Mount 8mm Well Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherRoHS
