Product code: MT-DTA23

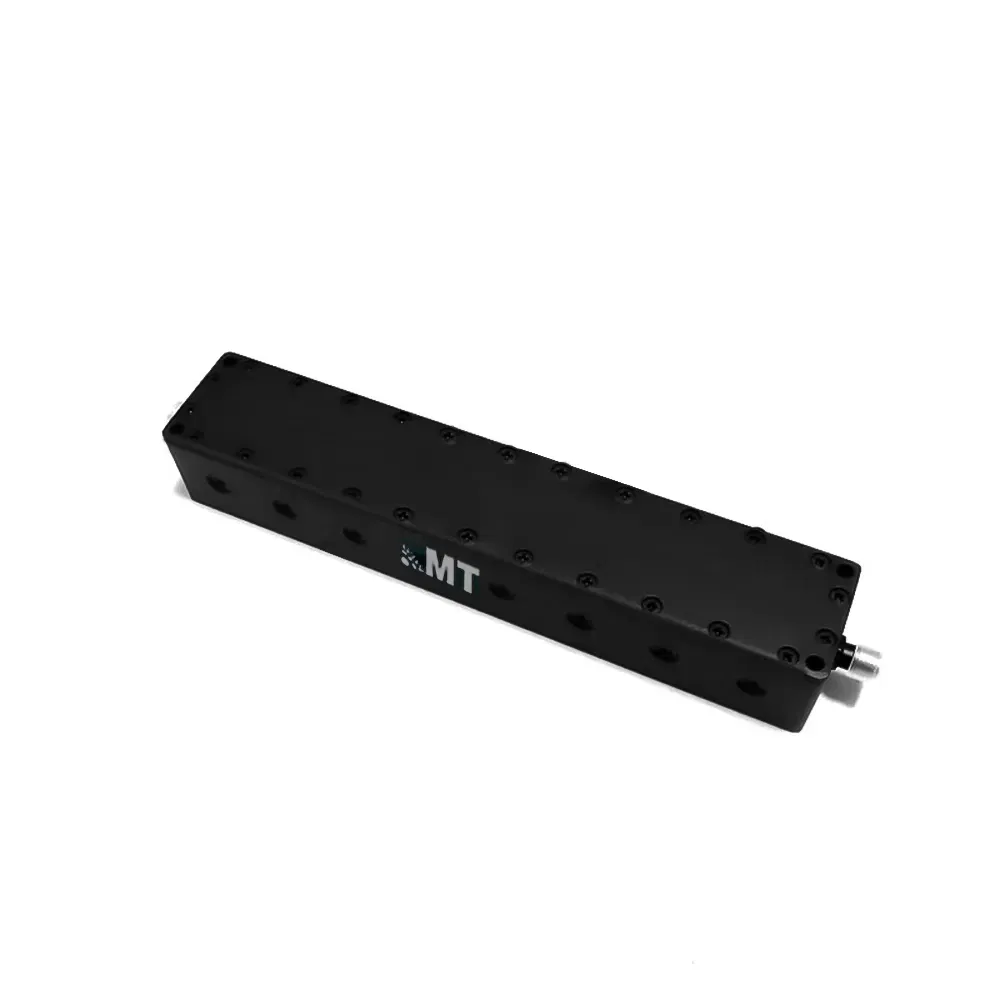

2.4-2.5GHz Cavity Band Pass Filter

  • P/N：MT-DTA23
  • Pass Band Frequency:2.4-2.5GHz
  • inhibition：≥40dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA23

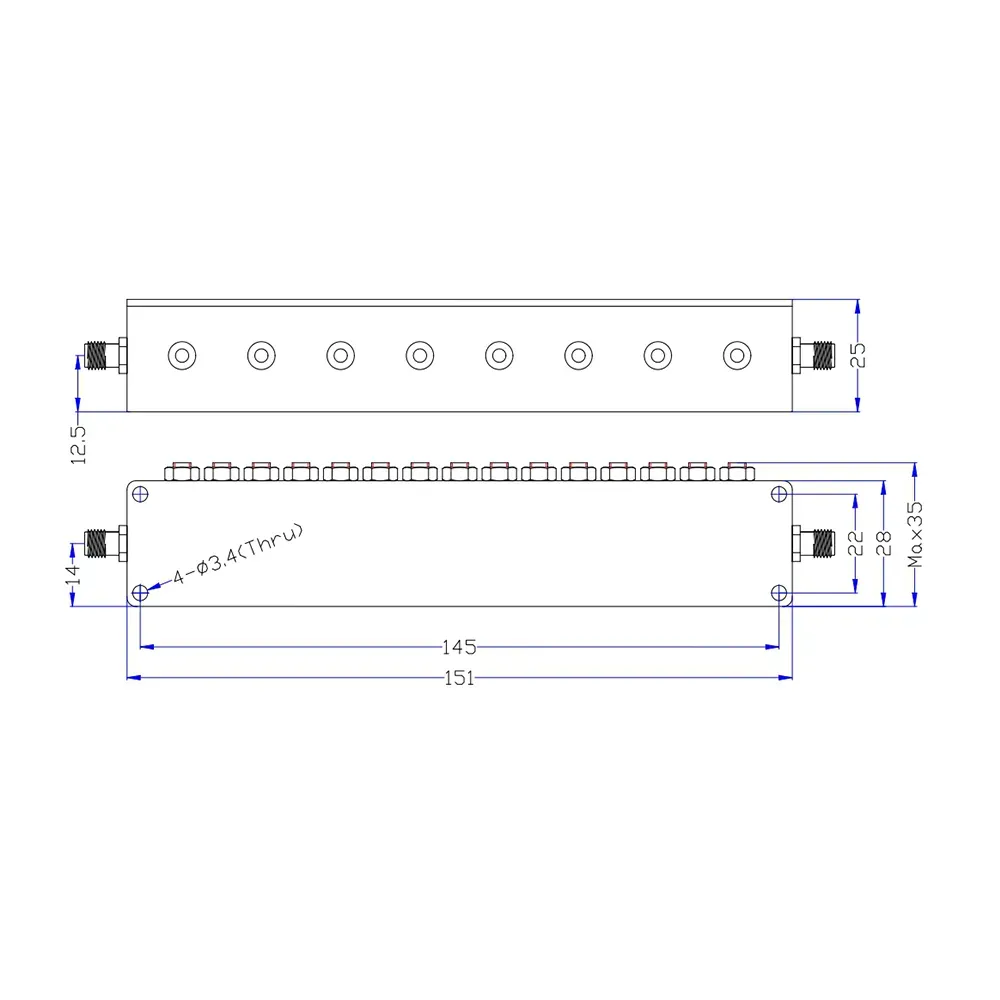

Electrical & Mechanical Specification
S/NParameters
1Center Frequency (F0)2450MHz
2Pass Band Frequency2400～2500MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥20dB @ 2370MHz*≥40dB @ DC～2320MHz*≥30dB @ 2555～5000MHz
6Impedance50 ohms
7Power Handling≤20W
8ConnectorsSMA-Female
