Product code: MT-242505-NF
2.4GHz to 2.5GHz 5dBi Super Mini OMNI Directional Outdoor Antenna (N-Female)
| Product Overview | |
| Part Number | MT-242505-NF |

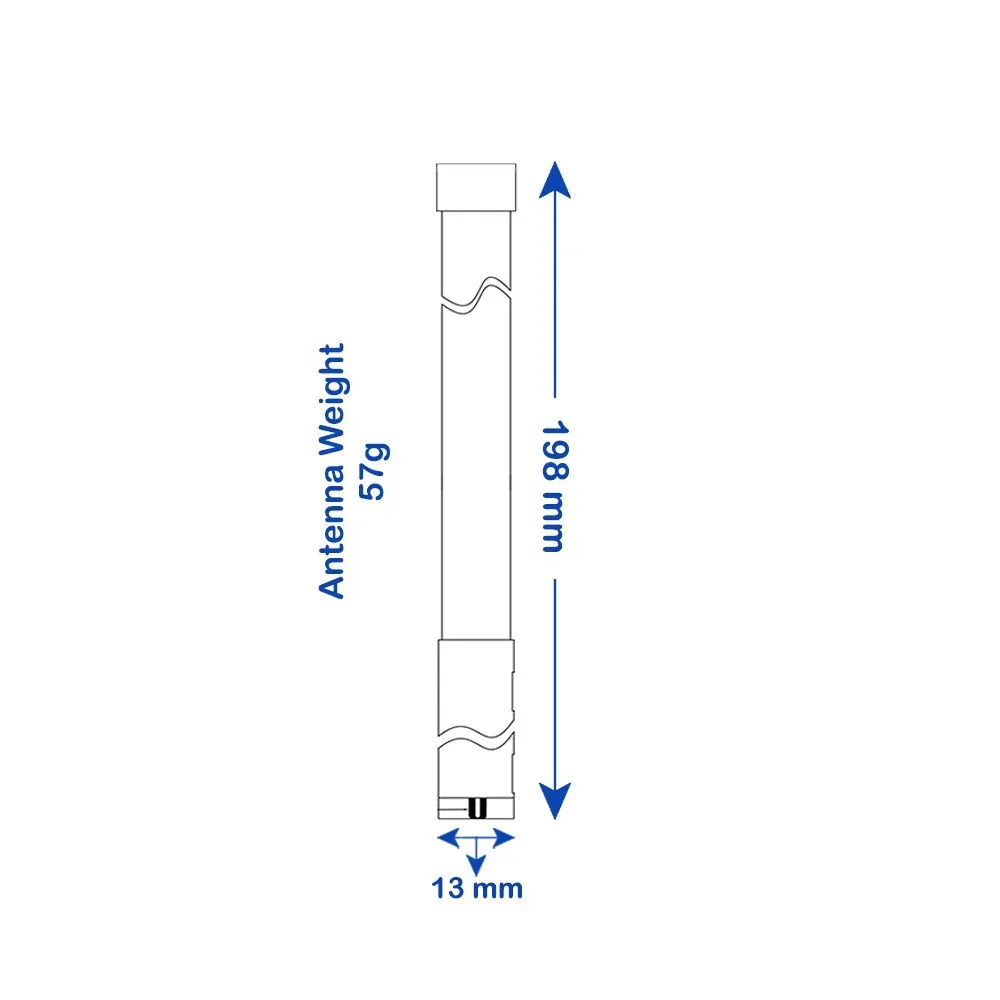

| Dimension | 198x13mm |
| Weight | 57g |
| Connector | N-Female |
| Beam-width | Horz.360 Deg Vert.36 Deg |
Product Part Number
MT-242505-NF
Electrical & Mechanical Specification
| Specification | |
|---|---|
| Electrical | |
| Frequency Range | 2400 to 2500MHz |
| V.S.W.R (MAX) | 1.5:1 |
| Antenna Type | Collinear |
| Radiation | Omni Directional |
| Gain (MAX) | 5 dBi |
| Polarization | Vertical |
| Input Power | 0.5 Watts |
| Vertical Beam-width | 36 Deg |
| Horizontal Beam-width | 360 Deg |
| Impedance | 50 Ohm |
| Antenna Design | Dipole Array |
| Internal Material | PCB+Spring |
| Connector | N-Female |
| Mechanical | |
| Length (MAX) | 198 mm |
| Diameter (MAX) | 13 mm |
| Antenna Weight (G.W) | 57 g |
| Application | Outdoor / Indoor |
| Radome Material | White Fiberglass |
| Storage Temperature | -40 to +80 |
| Operating Temperature | -40 to +60 |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Safety, Emissions and other | RoHS |
