Product code: MT-242508-UT7-NM

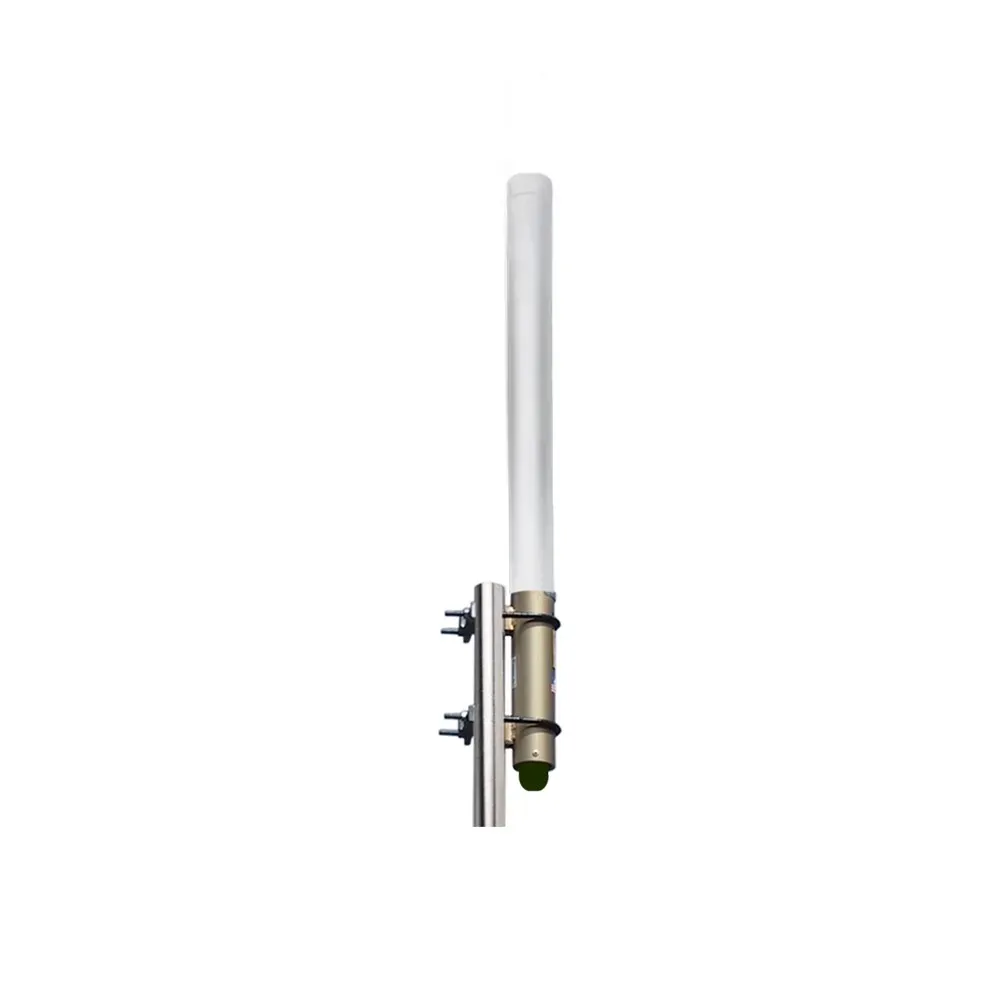

2.4GHz to 2.5GHz 8dBi Outdoor Mini OMNI Directional Down tilt 7 Deg Antenna (N-Male)

Product Overview
Part Number MT-242508-UT7-NM
Dimension 495x20x20mm
Weight 230g
Connector N-Male
Beam-width Horz.360 deg Vert.12deg



WhatsApp Chat
Skype
Product Part Number
MT-242508-UT7-NM
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range2400 to 2500MHz
V.S.W.R (MAX)1.3:1
Return Loss (LOW)15db
Antenna TypeCollinear
Gain (MAX)8 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width12 Deg
Horizontal Beam-width360 Deg
Downtilt7 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Male
Mechanical
Length (MAX)495mm
Diameter (MAX)20 x 20 mm
Antenna Weight (G.W)230 g
Accessories (G.W)5 g
Wind SurvivalGreater than 150MPH
Operating Temperature-40 to +80
Radom MaterialWhite Fiberglass
Parts MaterialAluminium
MountingStainless Steel
