2-Port, Panel Sector Antenna, 120° HBW, 880-960 MHz, 13.5 dBi,


Electrical Specifications

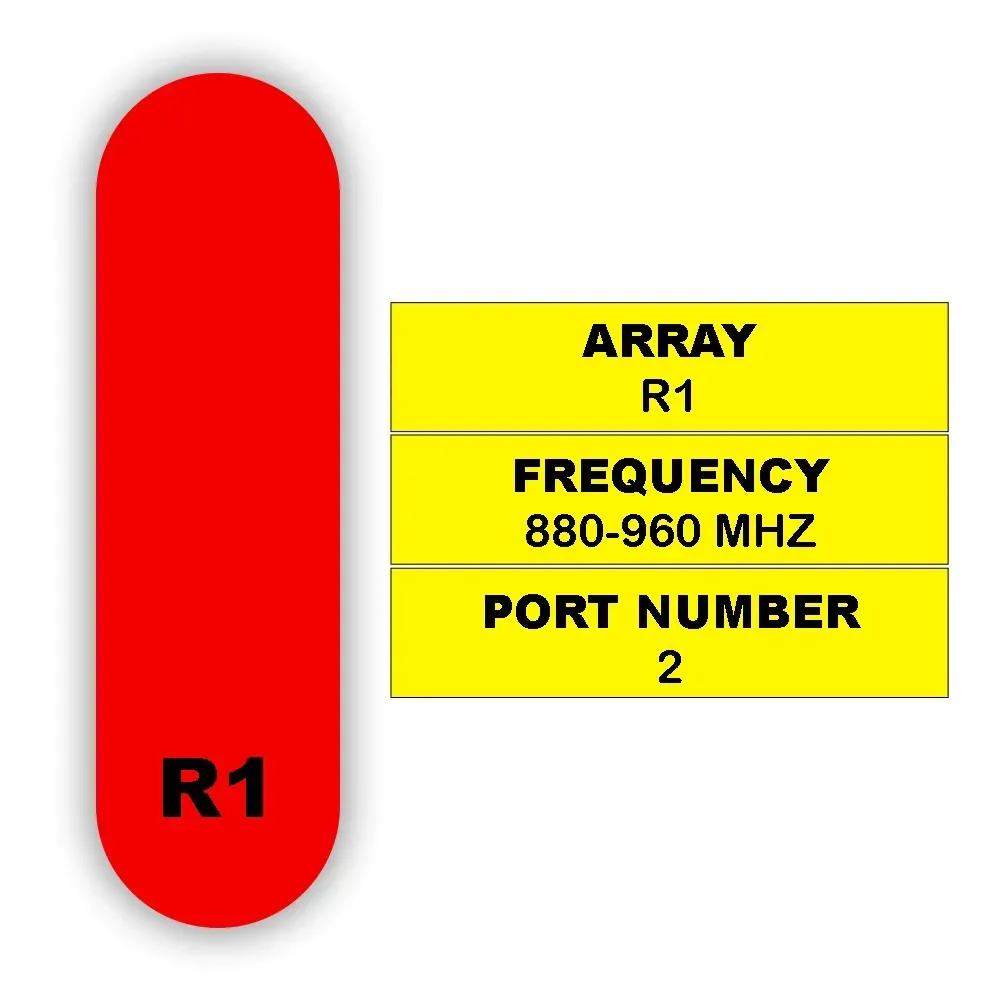

	R1
Frequency Range	MHz	880-960
Polarization	—	±45°
Gain	dBi	13.5 ± 0.5
Horizontal Beamwidth	degree	110 ± 10
Vertical Beamwidth	degree	10
Electrical Downtilt, Continuously Adjustable	degree	45628
First Upper Side Lobe Suppression	dB	≥ 15
Front-To-Back Ratio ±30°	dB	≥ 21
Cross Polar Discrimination at Boresight	dB	≥ 15
Intraband Isolation	dB	≥ 28
Impedance	Ohm	50
VSWR	—	< 1.5
Return Loss	dB	> 14
PIM3 (2×43 dBm Carrier)	dBc	< -153
Lightning Protection	—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	500

Mechanical Specifications

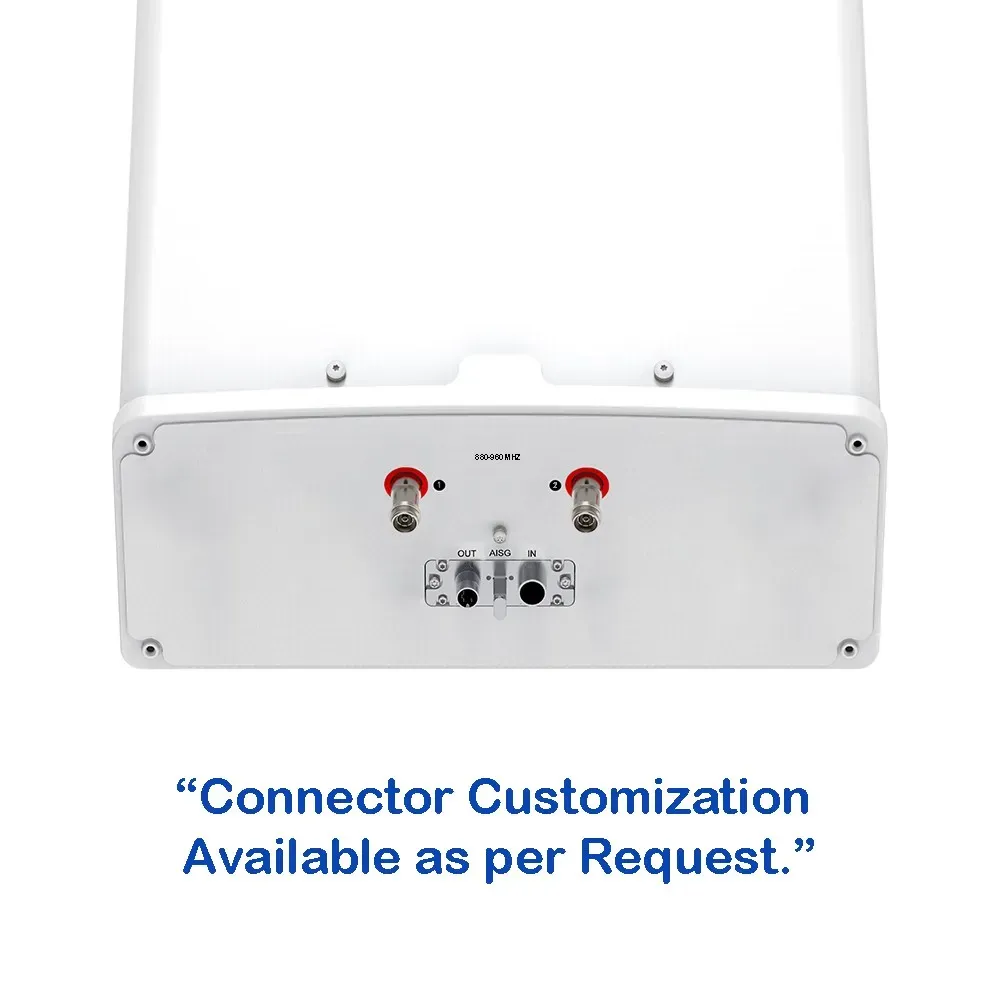

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	Fiberglass

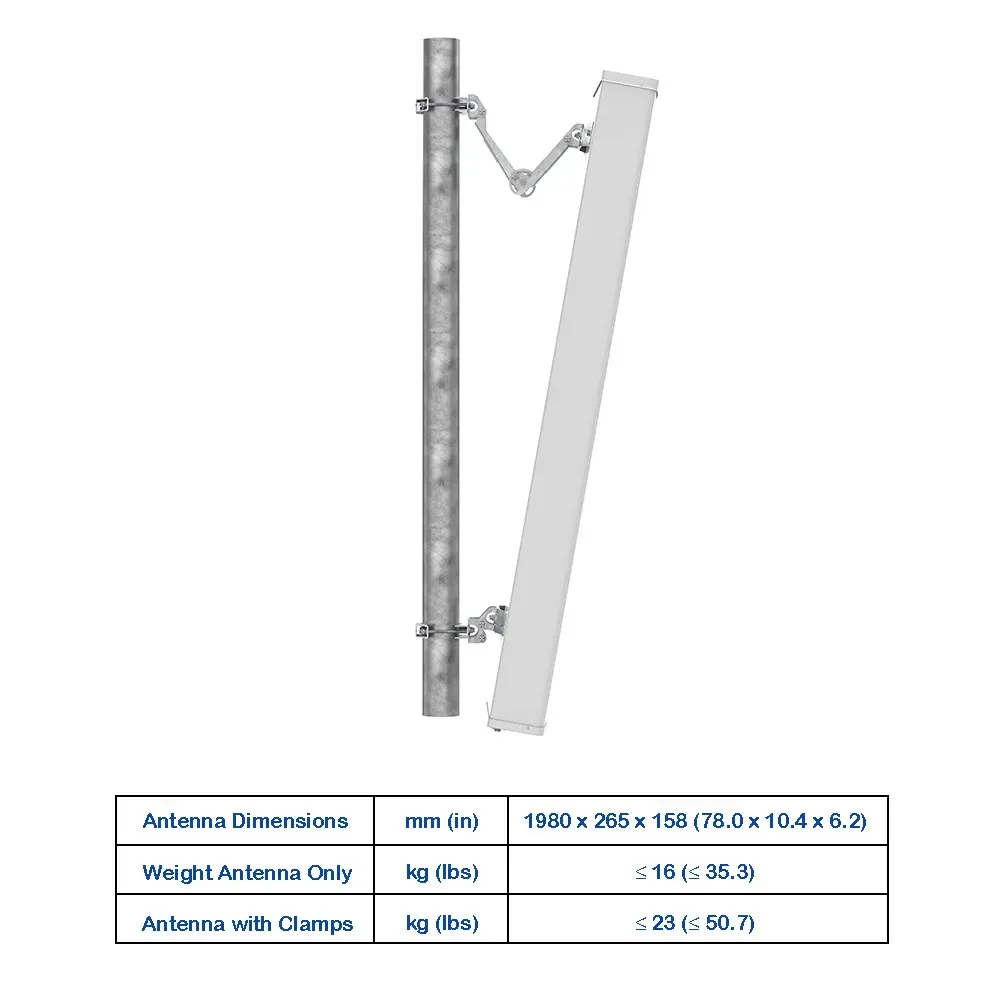

Antenna Dimensions (H x W x D)	mm (in)	1980 x 265 x 158 (78.0 x 10.4 x 6.2)
Antenna Weight	Antenna Only	kg (lbs)	≤ 16 (≤ 35.3)
with Clamps	kg (lbs)	≤ 23 (≤ 50.7)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Operating Temperature	°C (°F)	-55 to +60 (-67 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces	RS485 and Power
Adjustment Time	≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles	> 20,000
Torque Maximum	≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote Control	Can manage from OMC, BTS/Node B
Daisy Chaining Method	Ready for daisy-chaining
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color	Aluminum / Grey
Operating Temperature	-40° to +70° C (-40° to +158° F)
Storage Temperature	-55° to +75° C (-67° to +167° F)
Humidity	Up to 95%
IP Rating	IP65
Weight	≤ 500 g

Electrical Specifications

Frequency Range

MHz

880-960

Polarization

—

±45°

Gain

dBi

13.5 ± 0.5

Horizontal Beamwidth

degree

110 ± 10

Vertical Beamwidth

degree

Electrical Downtilt, Continuously Adjustable

degree

45628

First Upper Side Lobe Suppression

≥ 15

Front-To-Back Ratio ±30°

≥ 21

Cross Polar Discrimination at Boresight

≥ 15

Intraband Isolation

≥ 28

Impedance

Ohm

VSWR

—

< 1.5

Return Loss

> 14

PIM3 (2×43 dBm Carrier)

dBc

< -153

Lightning Protection

—

DC Ground

Maximum Average Input Power per Port, at 50° C Ambient Temperature

Watts

500

Mechanical Specifications

Connector Type

—

(2x) 4.3/10 Female

Connector Position

—

Bottom

Electrical Tilt Control

—

Integrated RET

Radome Material

—

Fiberglass

Antenna Dimensions (H x W x D)

mm (in)

1980 x 265 x 158 (78.0 x 10.4 x 6.2)

Antenna Weight

Antenna Only

kg (lbs)

≤ 16 (≤ 35.3)

with Clamps

kg (lbs)

≤ 23 (≤ 50.7)

Maximum Wind Speed

km/h (mph)

200 (124.3)

Operating Temperature

°C (°F)

-55 to +60 (-67 to +140)

Integrated RET Specifications

Protocols

Compliant to AISG v2.0 and 3GPP

Supply Voltage Range

10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0

Power

Standby

< 2 W

Consumption

In Motion

< 10 W

Connectors

2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG
Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs

Hardware Interfaces

RS485 and Power

Adjustment Time

≤ 90 sec (typical, depending on antenna type)

Adjustment Cycles

> 20,000

Torque Maximum

≥ 160 mN·m (@ 30RPM)

Lightning Protection Rating

IEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions
Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Remote Control

Can manage from OMC, BTS/Node B
