Product code: 2P-790-960F-21G-33H9V

2-Port, Panel Sector Antenna, 30° HBW, 790-960 MHz, 20.5 dBi Gain

Frequency Range 790-960 MHz
HBW 30°
Gain 21 dBi
Tilt 2-10°
Connectors (other connectors by request) (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
2P-790-960F-21G-33H9V
Electrical & Mechanical Specification
Electrical Specifications

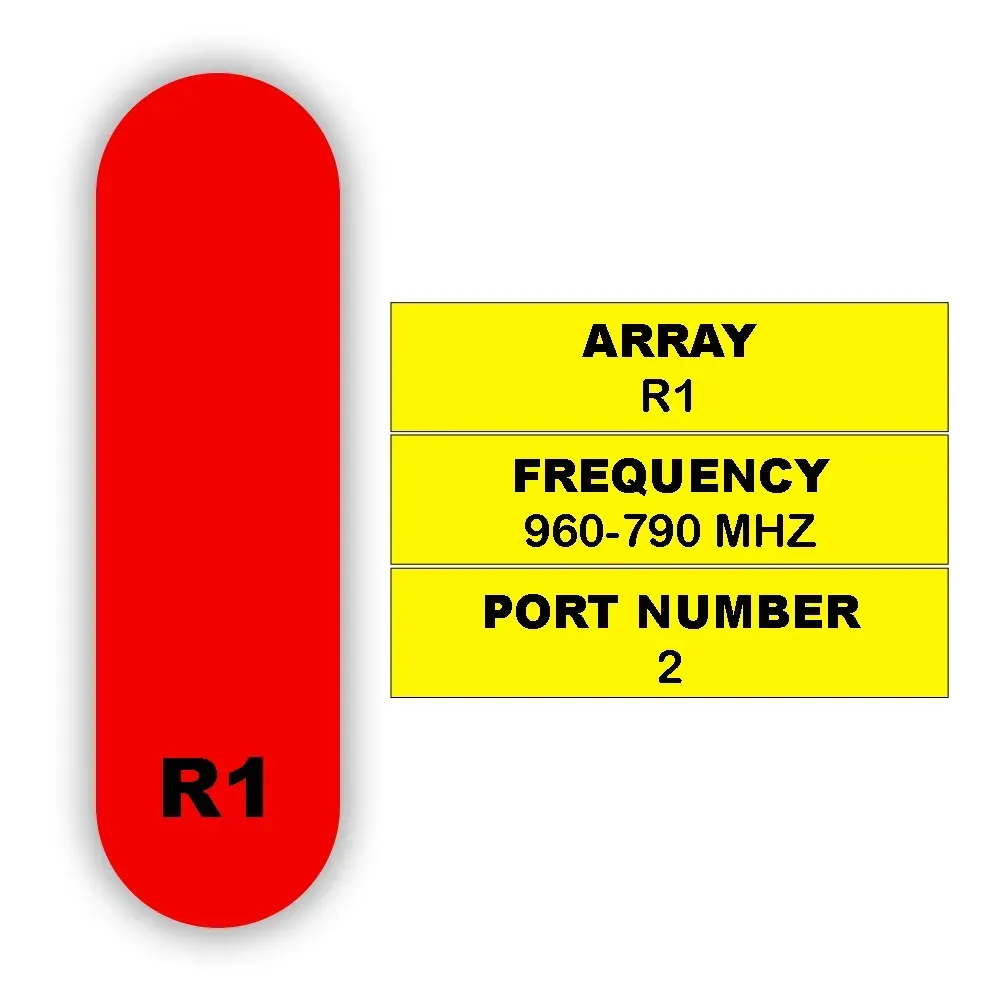

R1
Frequency RangeMHz790-960
MHz790-894880-960
Polarization—±45°
Gainat Mid TiltdBi20.120.5
Over All TiltsdBi20.0 ± 0.520.4 ± 0.5
Horizontal Beamwidthdegree33 ± 330 ± 3
Vertical Beamwidthdegree9.0 ± 0.98.3 ± 0.8
Electrical Downtilt, Continuously Adjustabledegree0-10
First Upper Side Lobe SuppressiondB> 15> 15
Front-To-Back Ratio Co-Pol, ±30°dB> 28> 28
Cross Polar Discrimination at BoresightdB> 20> 20
Squintdegree±2±2
Tracking, averagedB2.52.5
Cross-Polar IsolationdB> 30
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

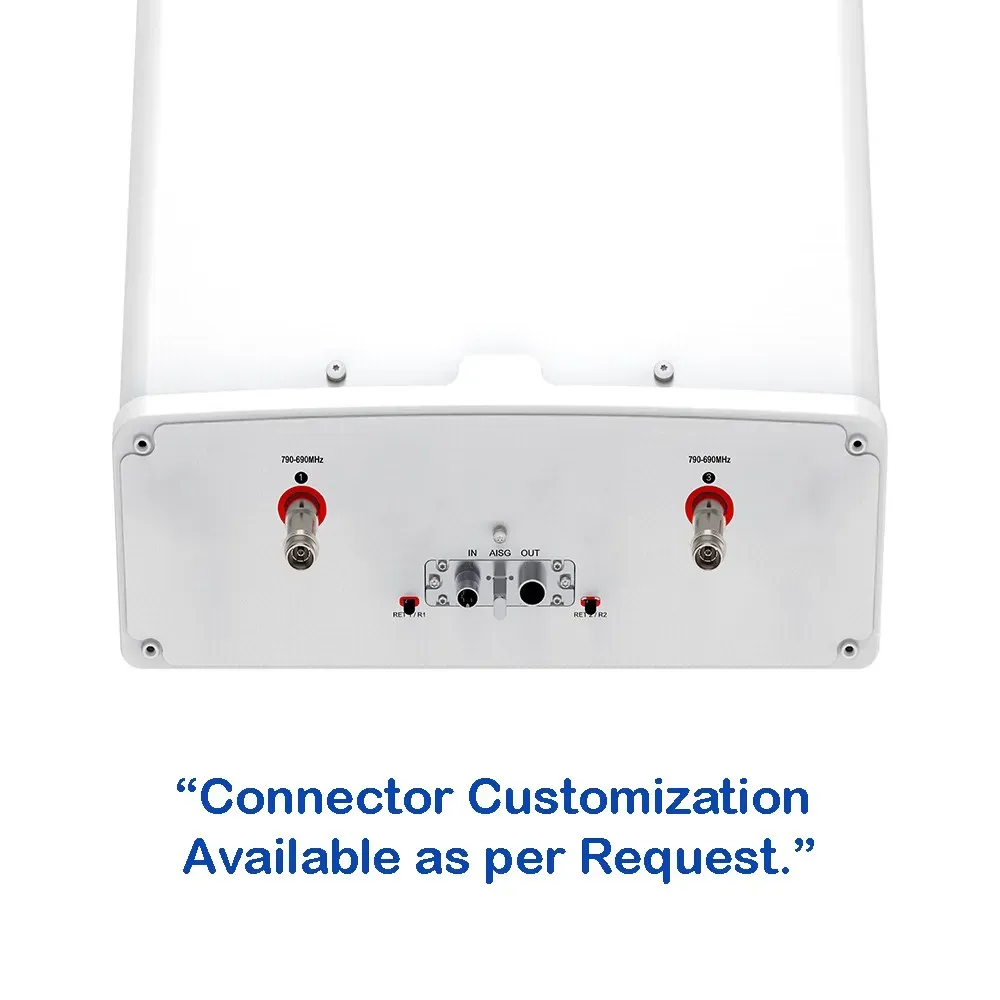

Connector Type—(2x) 7/16-DIN Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

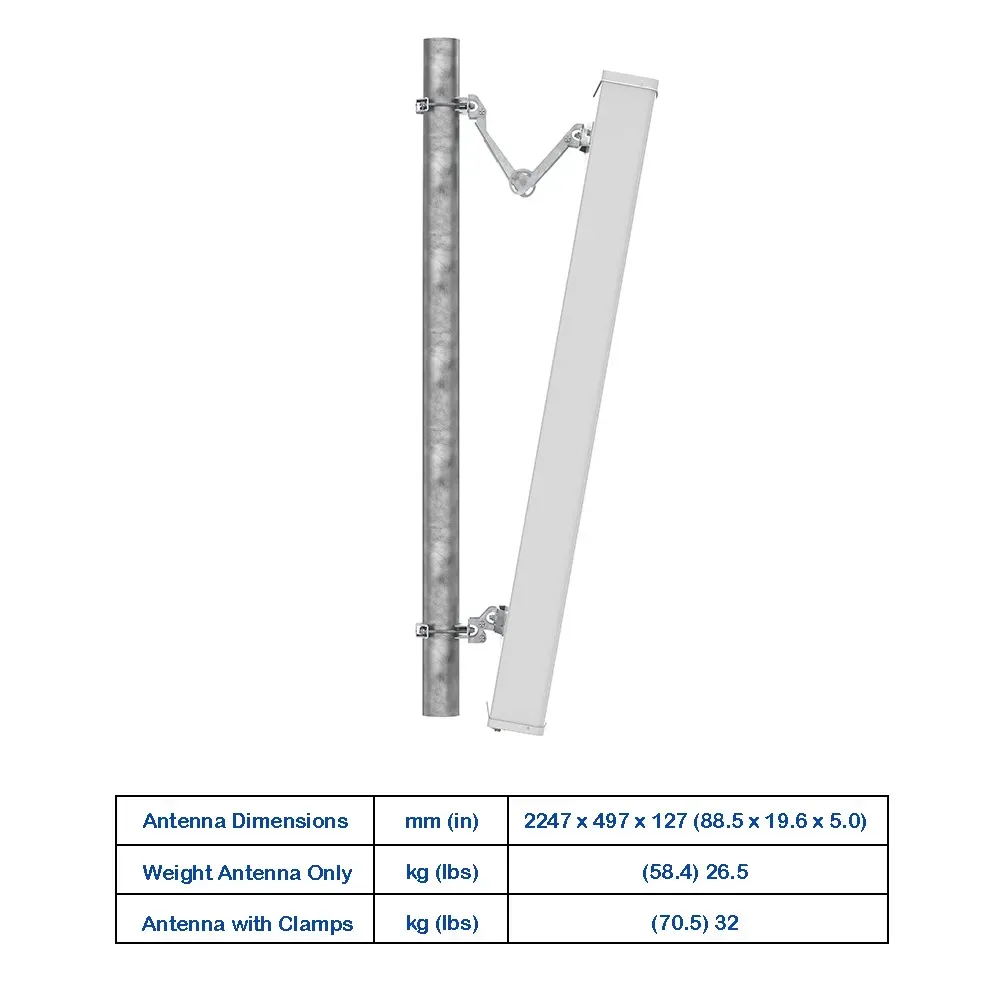

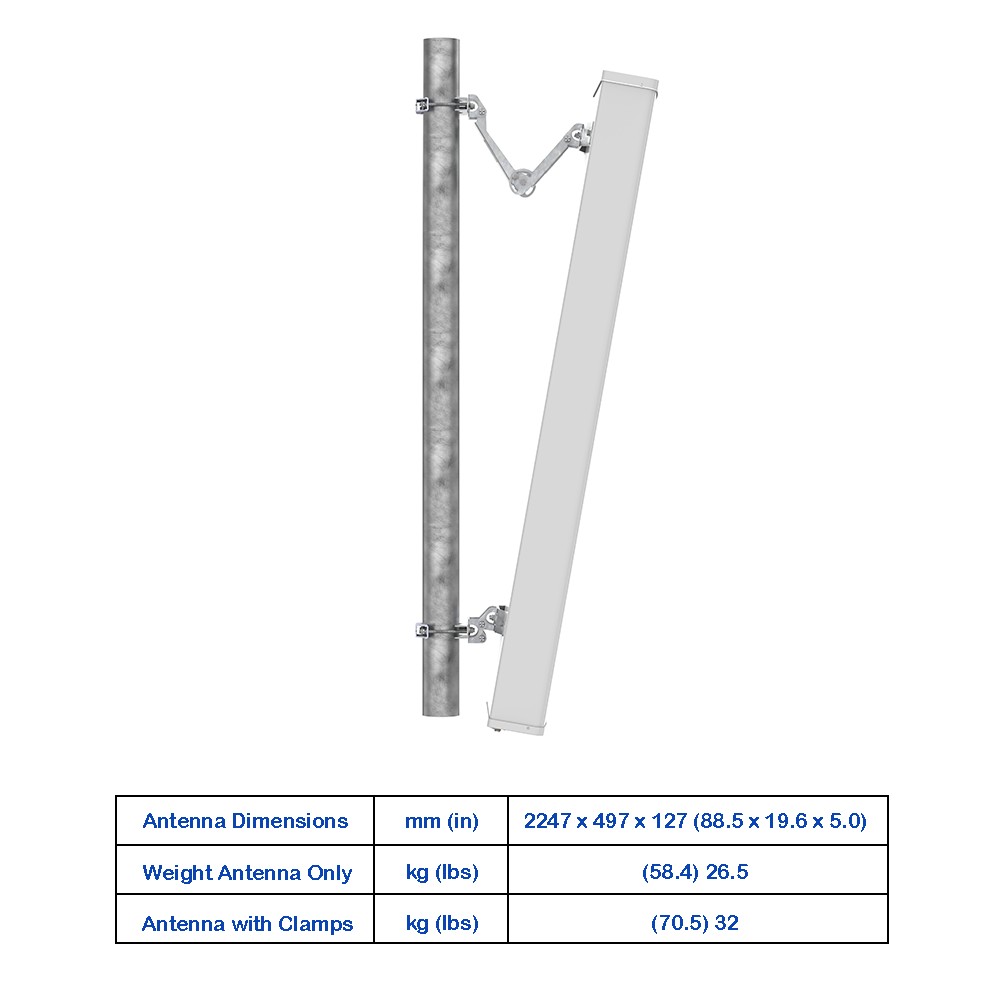

Antenna Dimensions (H x W x D)mm (in)2247 x 497 x 127 (88.5 x 19.6 x 5.0)
Antenna WeightAntenna Onlykg (lbs)26.5 (58.4)
Antenna with Clampskg (lbs)32 (70.5)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)1030 (231.6)
RearN (lbf)1155 (259.7)
LateralN (lbf)325 (73.1)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
