Product code: 2P-1710-2690F-21G-36H7V

2-Port, Panel Sector Antenna, 33° HBW, 1710-2690 MHz, 21 dBi,

Frequency Range 1710-2690 MHz
HBW 33°
Gain 21 dBi
Tilt 0-10°
Connectors (other connectors by request) (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
2P-1710-2690F-21G-36H7V
Electrical & Mechanical Specification
Electrical Specifications

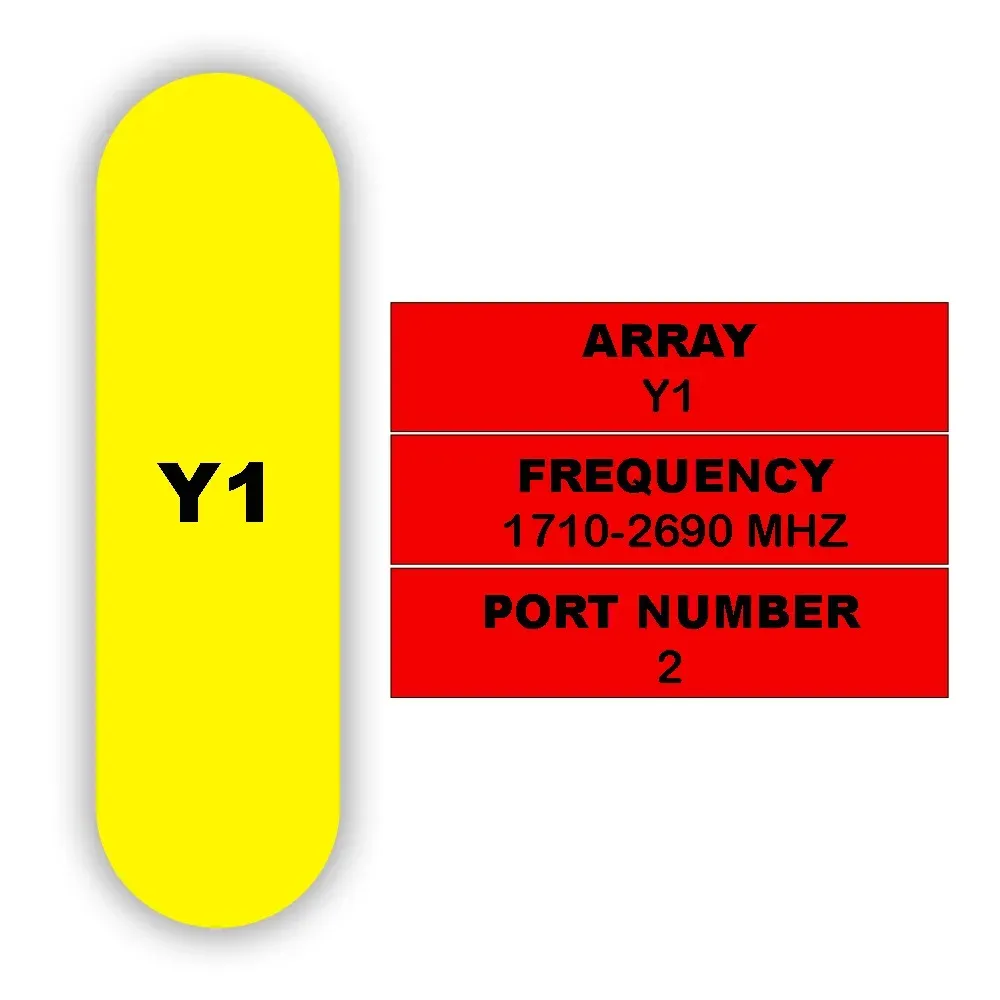

Y1
Frequency RangeMHz1710-2690
MHz1710-18801850-19901920-21702300-24002490-2690
Polarization—±45°
Gainat Mid TiltdBi19.519.72020.620.5
Over All TiltsdBi19.4 ± 0.619.6 ± 0.619.9 ± 0.620.5 ± 0.620.4 ± 0.6
Horizontal Beamwidthdegree36 ± 334 ± 332 ± 330 ± 328 ± 3
Vertical Beamwidthdegree7.0 ± 0.56.6 ± 0.56.2 ± 0.55.4 ± 0.55.0 ± 0.5
Electrical Downtilt, Continuously Adjustabledegree0-10
First Upper Sidelobe SuppressiondB> 16> 16> 16> 16> 16
Front-To-Back Ratio Co-Pol, ±30°dB> 28> 28> 28> 28> 28
Cross Polar Discrimination at BoresightdB> 20> 20> 20> 20> 20
IsolationCross-PolardB> 28
InterbanddB> 28
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -153
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(2x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—UPVC

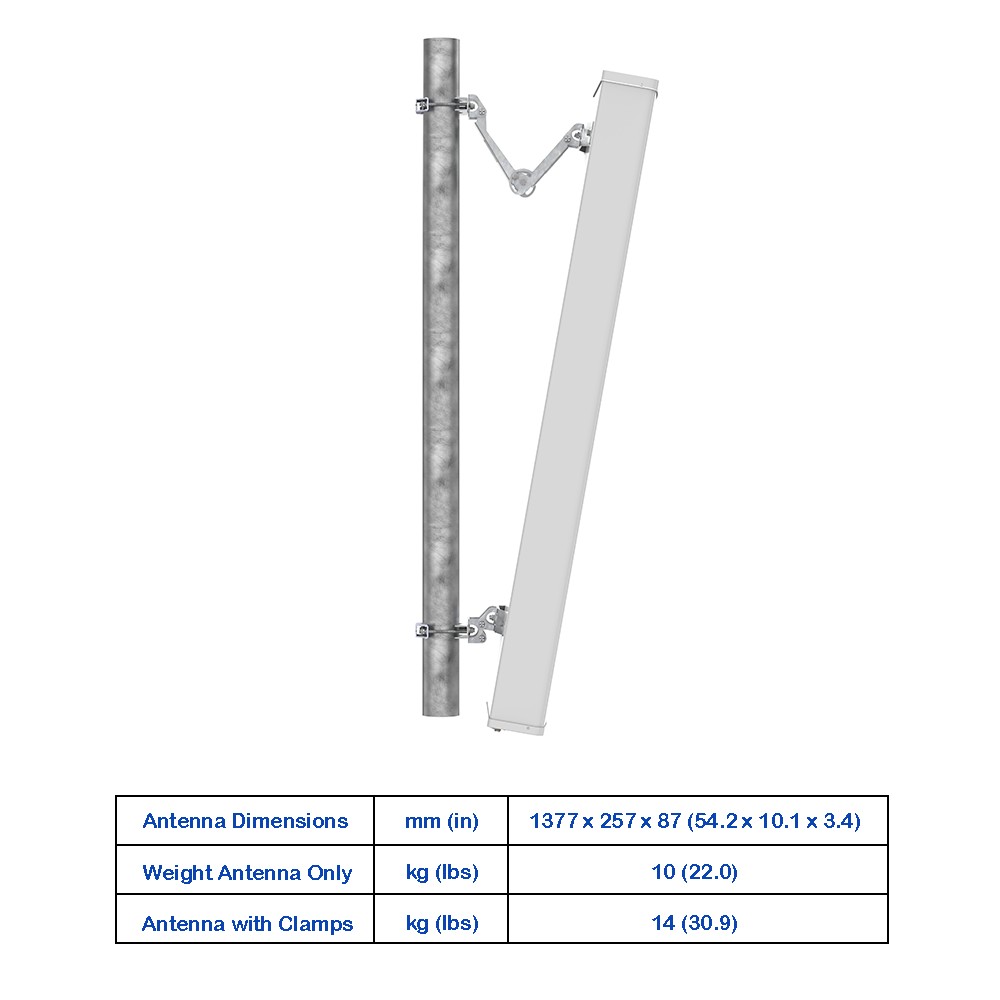

Antenna Dimensions (H x W x D)mm (in)1377 x 257 x 87 (54.2 x 10.1 x 3.4)
Antenna WeightAntenna Onlykg (lbs)10 (22.0)
with Clampskg (lbs)14 (30.9)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)325 (73.1)
RearN (lbf)365 (82.1)
LateralN (lbf)125 (28.1)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
