Product code: 2P-698-960F-18G-36H15V

2-Port, Panel Sector Antenna, 33° HBW, 698-960 MHz, 18 dBi Gain

Frequency Range 698-960 MHz
HBW 33°
Gain 18 dBi
Tilt 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
2P-698-960F-18G-36H15V
Electrical & Mechanical Specification
Electrical Specifications

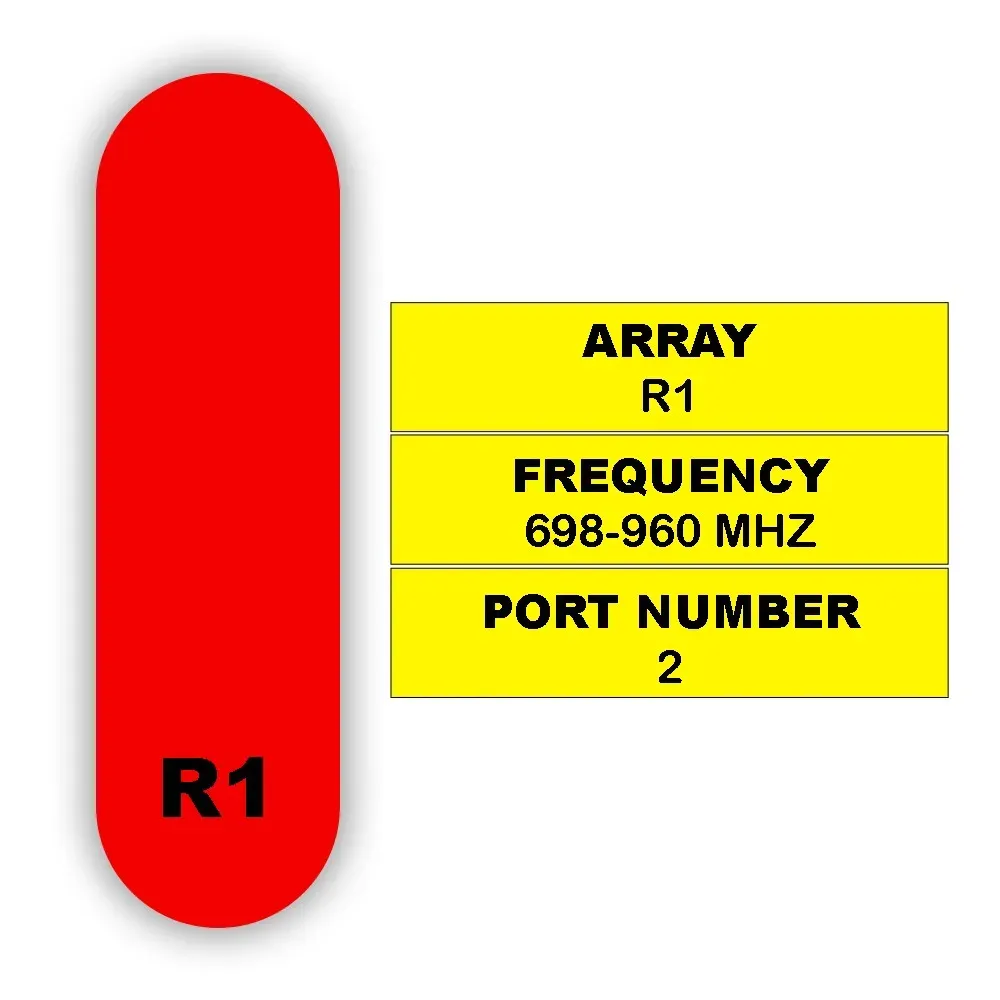

R1
MHz698-960
Frequency RangeMHz698-806790-894880-960
Polarization—±45°
at Mid TiltdBi16.817.317.7
GainOver All TiltsdBi16.7 ± 0.617.2 ± 0.617.6 ± 0.6
Horizontal Beamwidthdegree36 ± 333 ± 330 ± 3
Vertical Beamwidthdegree15.2 ± 1.513.6 ± 1.412.5 ± 1.3
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 15> 15> 15
Front-To-Back Ratio ±30°dB> 25> 25> 25
Cross Polar Discrimination at BoresightdB> 17> 17> 17
Intraband IsolationdB> 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

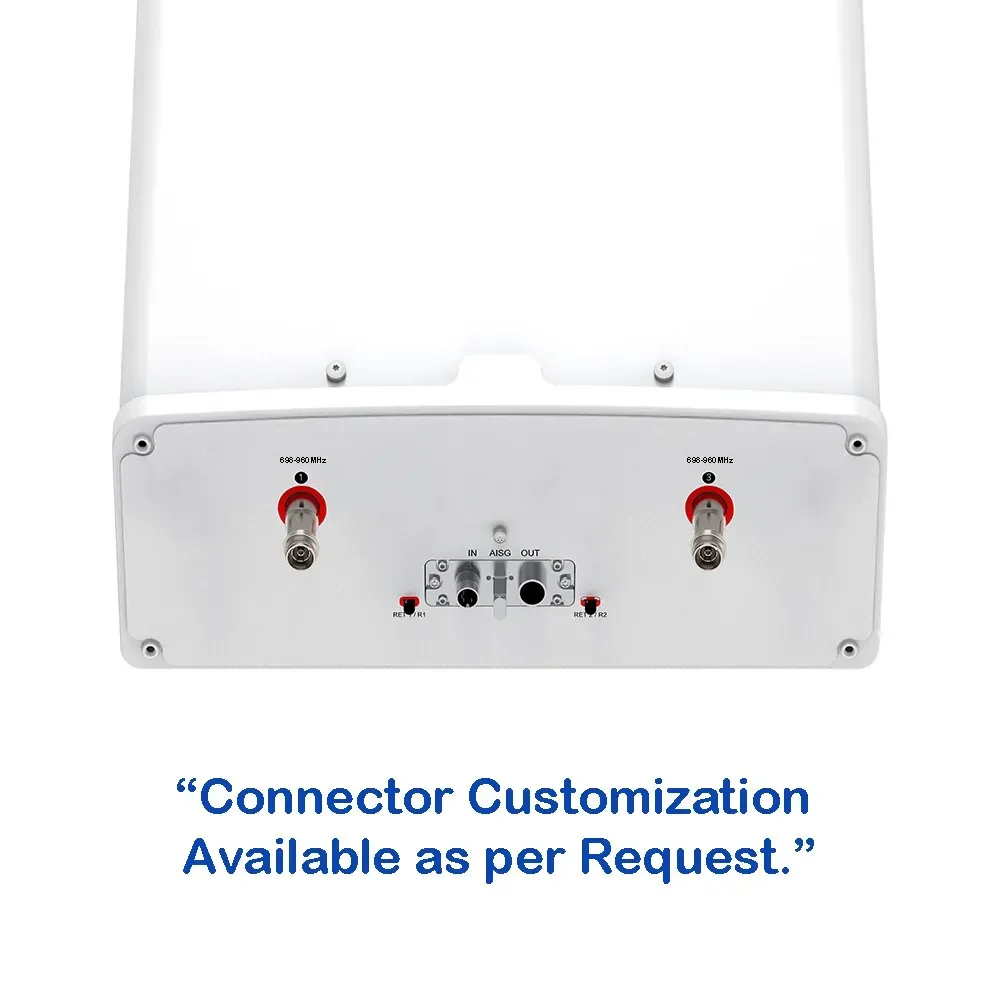

Connector Type—(2x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

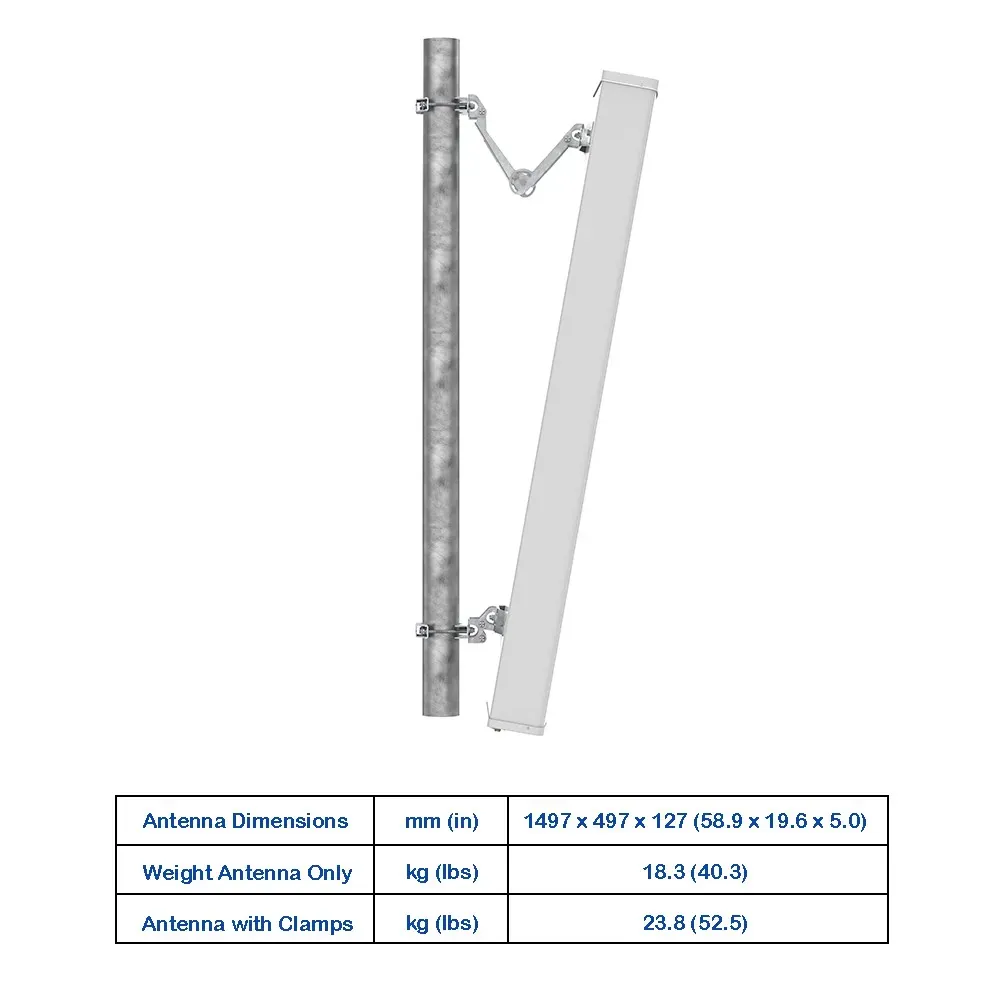

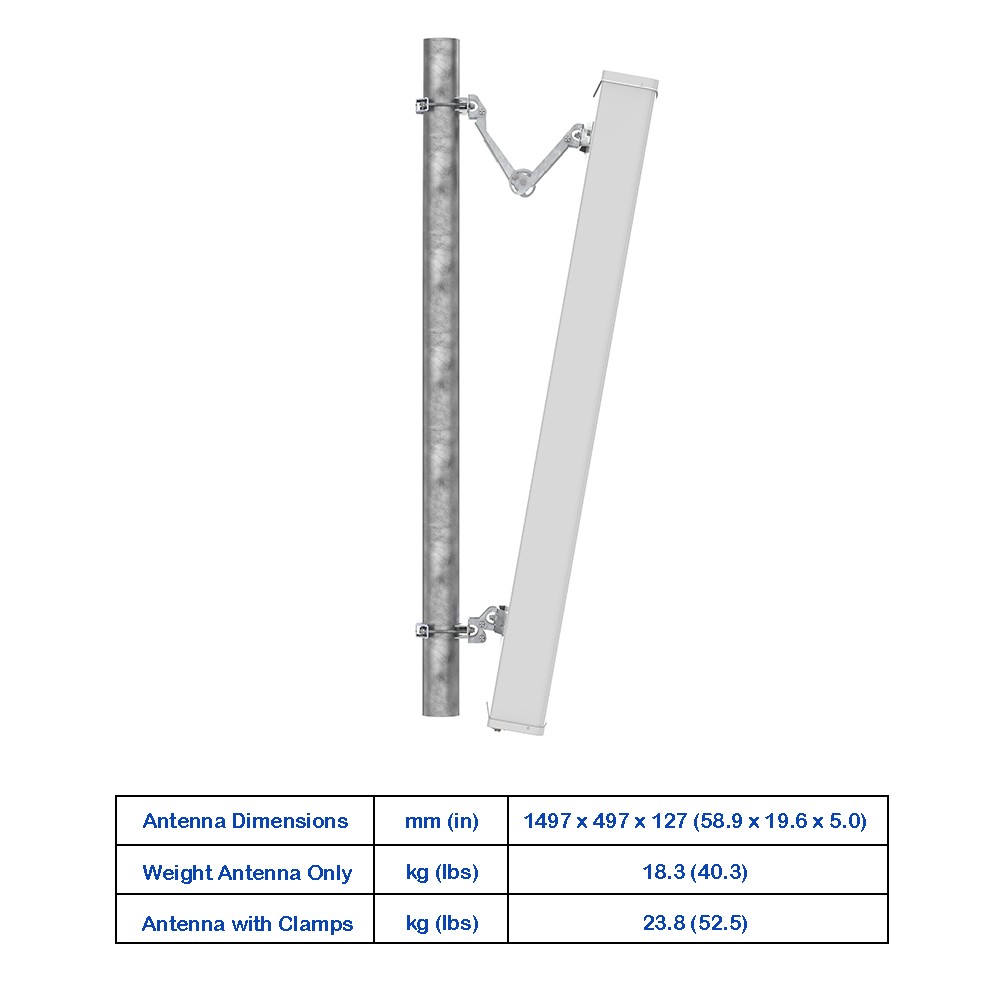

Antenna Dimensions (H x W x D)mm (in)1497 x 497 x 127 (58.9 x 19.6 x 5.0)
Antenna WeightAntenna Onlykg (lbs)18.3 (40.3)
w/Clampskg (lbs)23.8 (52.5)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)690 (155.1)
RearN (lbf)770 (173.1)
LateralN (lbf)215 (48.3)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
Mounting Specifications
Mounting Brackets Are Included UnlessOtherwise Specified
Brackets Attach to Pole Diametermm (in)50-125 (2.0-4.9)
Mechanical Tilt Rangedegree0-16
Shipping Specifications
Packing Sizemm (in)1697 x 592 x 247 (66.8 x 23.3 x 9.7)
