Product code: 2P-1710-2690F-19G-45H7V

2-Port, Panel Sector Antenna, 45° HBW, 1710-2690 MHz, 19 dBi,

Frequency Range 1710-2690 MHz
HBW 45°
Gain 19 dBi
Tilt 2-12°

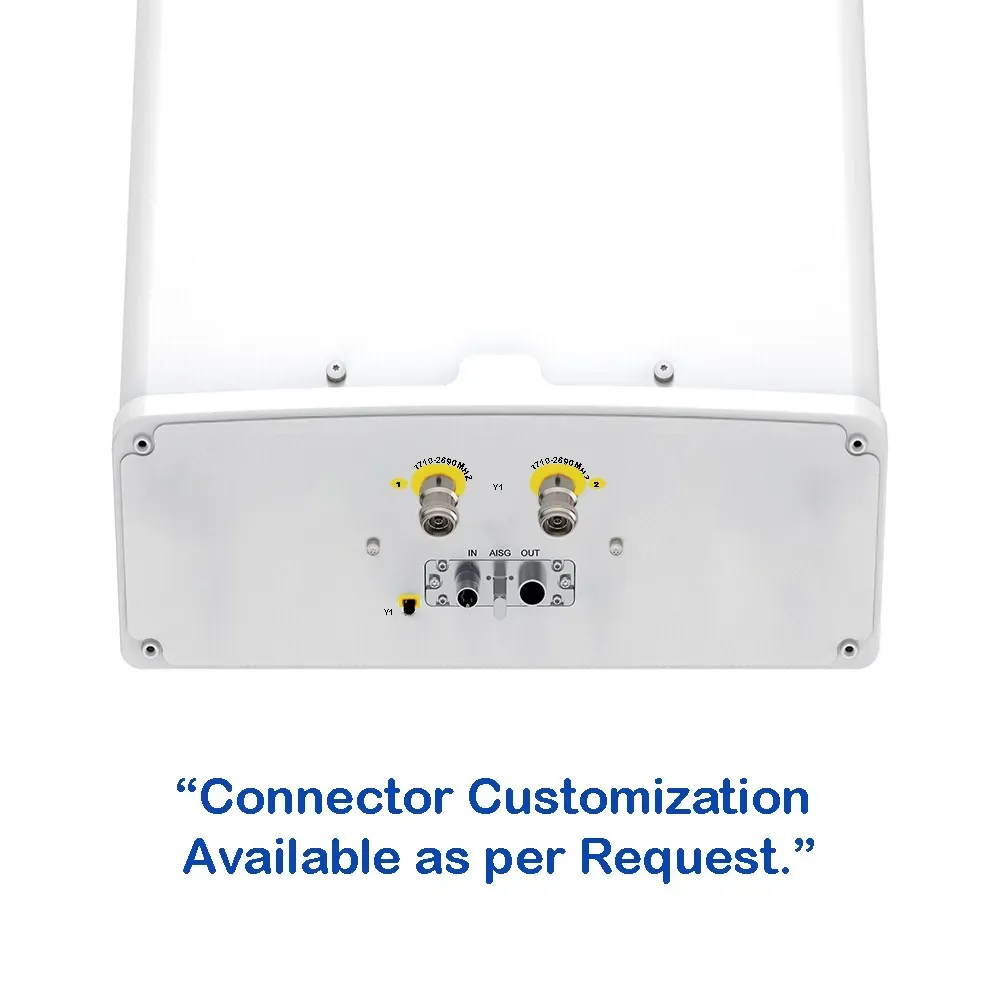

Connectors (other connectors by request) (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
2P-1710-2690F-19G-45H7V
Electrical & Mechanical Specification
Electrical Specifications
Y1
Frequency RangeMHz1710-2690
MHz1710-19901920-21802300-2690
Polarization—±45°
Gainat Mid TiltdBi18.118.518.9
Over All TiltsdBi18.0 ± 0.618.4 ± 0.618.8 ± 0.6
Horizontal Beamwidthdegree45 ± 441 ± 335 ± 3
Vertical Beamwidthdegree7.3 ± 0.76.7 ± 0.75.7 ± 0.7
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Sidelobe SuppressiondB> 16> 16> 16
Front-To-Back Ratio Co-Pol, ±30°dB> 26> 26> 26
Cross Polar Discrimination at BoresightdB> 20> 20> 20
IsolationCross-PolardB≥ 28
InterbanddB≥ 28
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc≤ -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200
Mechanical Specifications
Connector Type—(2x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass
Antenna Dimensions (H x W x D)mm (in)1397 x 277 x 167 (55.0 x 10.9 x 6.6)
Antenna WeightAntenna Onlykg (lbs)11.5 (25.4)
with Clampskg (lbs)15.5 (34.2)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)360 (80.9)
RearN (lbf)400 (89.9)
LateralN (lbf)265 (59.6)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 6 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 5 kA ≥ ±5 Repititions
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
