Product code: 2P-698-960F-18G-46H11V

2-Port, Panel Sector Antenna, 45° HBW, 698-960 MHz, 17.5 dBi

Frequency Range 698-960 MHz
HBW 45°
Gain 17.5 dBi
Tilt 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
2P-698-960F-18G-46H11V
Electrical & Mechanical Specification
Electrical Specifications

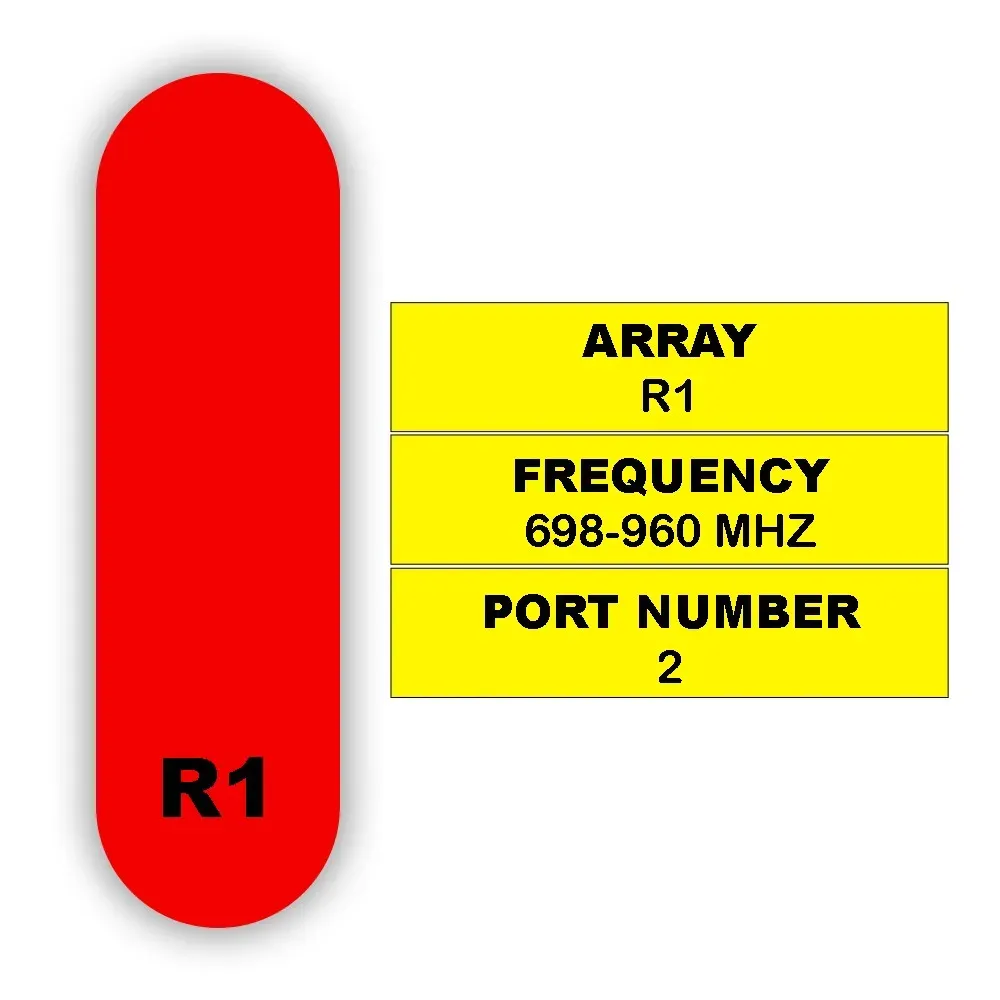

R1
Frequency RangeMHz698-960
MHz698-806790-894880-960
Polarization—±45°
Gainat Mid TiltdBi16.61717.3
Over All TiltsdBi16.5 ± 0.616.9 ± 0.617.2 ± 0.6
Horizontal Beamwidthdegree46 ± 343 ± 340 ± 3
Vertical Beamwidthdegree10.8 ± 1.09.8 ± 1.09.0 ± 0.9
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 16> 16> 16
Front-To-Back Ratio Co-Pol, ±30°dB> 24> 25> 25
Cross Polar Discrimination at BoresightdB> 18> 18> 18
Cross-Polar IsolationdB≥ 28
Intra Band IsolationdB≥ 28
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250
Mechanical Specifications

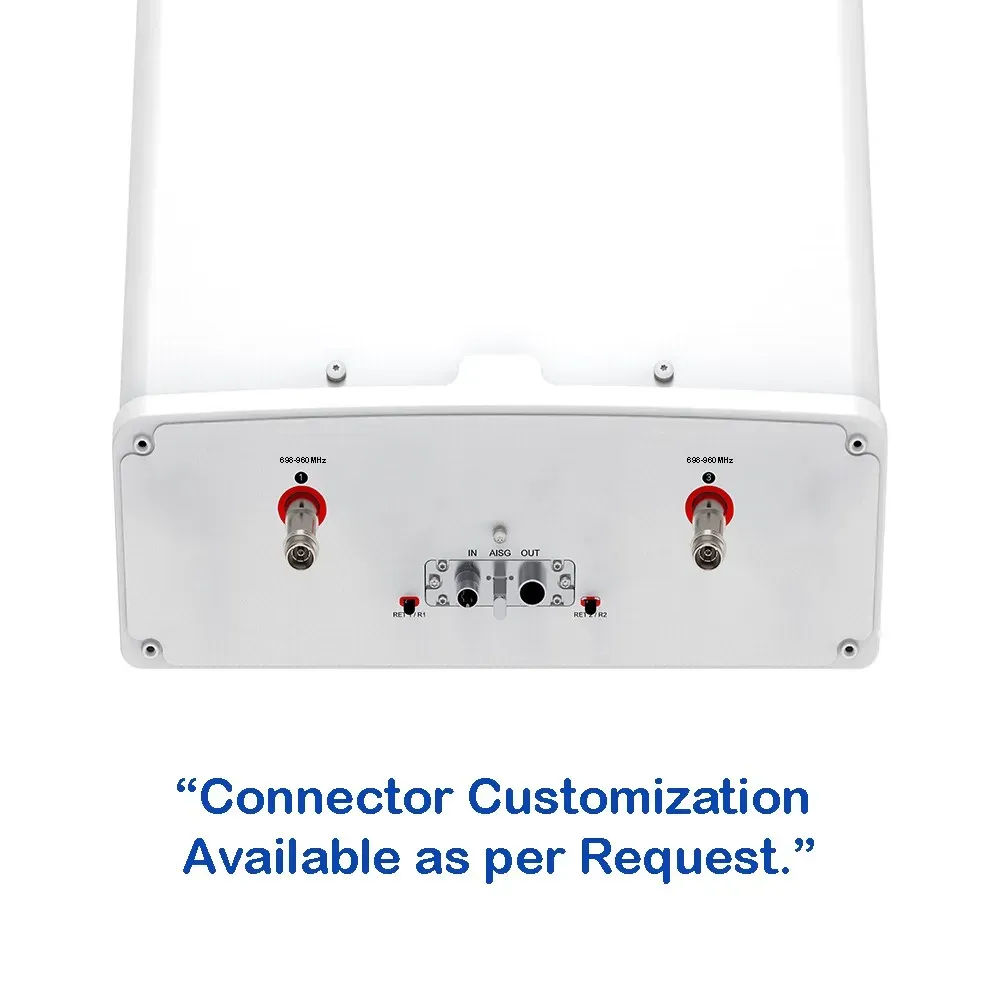

Connector Type—(2x) 4.3-10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass
Antenna Dimensions (H x W x D)mm (in)1997 x 427 x 157 (78.6 x 16.8 x 6.2)
Antenna WeightAntenna Onlykg (lbs)22 (48.5)
with Clampskg (lbs)26 (57.3)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)790 (177.6)
RearN (lbf)880 (197.8)
LateralN (lbf)550 (123.6)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 6 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 5 kA ≥ ±5 Repititions
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
