2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 15 dBi,


Electrical Specifications
	Y1
Frequency Range	MHz	1710-2690
MHz	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization	—	±45°
Gain	at Mid Tilt	dBi	14.3	14.6	14.9	15.3	15.4
Over All Tilts	dBi	14.3 ± 0.6	14.6 ± 0.6	14.9 ± 0.6	15.3 ± 0.6	15.4 ± 0.6
Horizontal Beamwidth	degree	68 ± 5.0	66 ± 5.0	64 ± 5.0	61 ± 5.0	59 ± 5.0
Vertical Beamwidth	degree	13.5 ± 1.0	12.5 ± 1.0	11.8 ± 1.0	10.5 ± 1.0	9.5 ± 1.0
Electrical Downtilt, Continuously Adjustable	degree	2-Dec
First Upper Sidelobe Suppression	dB	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°	dB	> 25	> 25	> 25	> 25	> 25
Cross Polar	at Boresight	dB	> 20	> 20	> 20	> 20	> 20
Discrimination	Over Sector	dB	> 10	> 10	> 10	> 9	> 8
Isolation	Cross-Polar	dB	> 25
Interband	dB	> 25
Impedance	Ohm	50
VSWR	—	< 1.5
Return Loss	dB	> 14
PIM3 (2×43 dBm Carrier)	dBc	< -150
Lightning Protection	—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	200

Mechanical Specifications

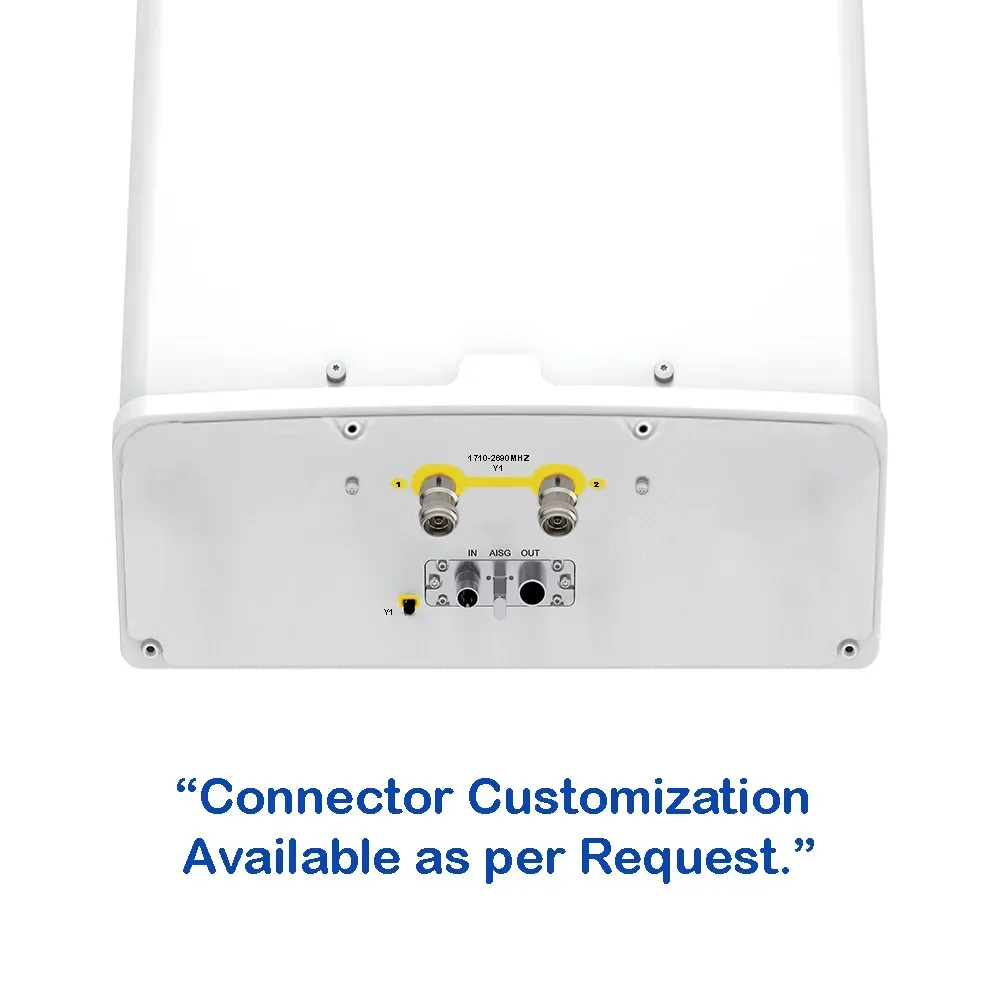

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	UPVC

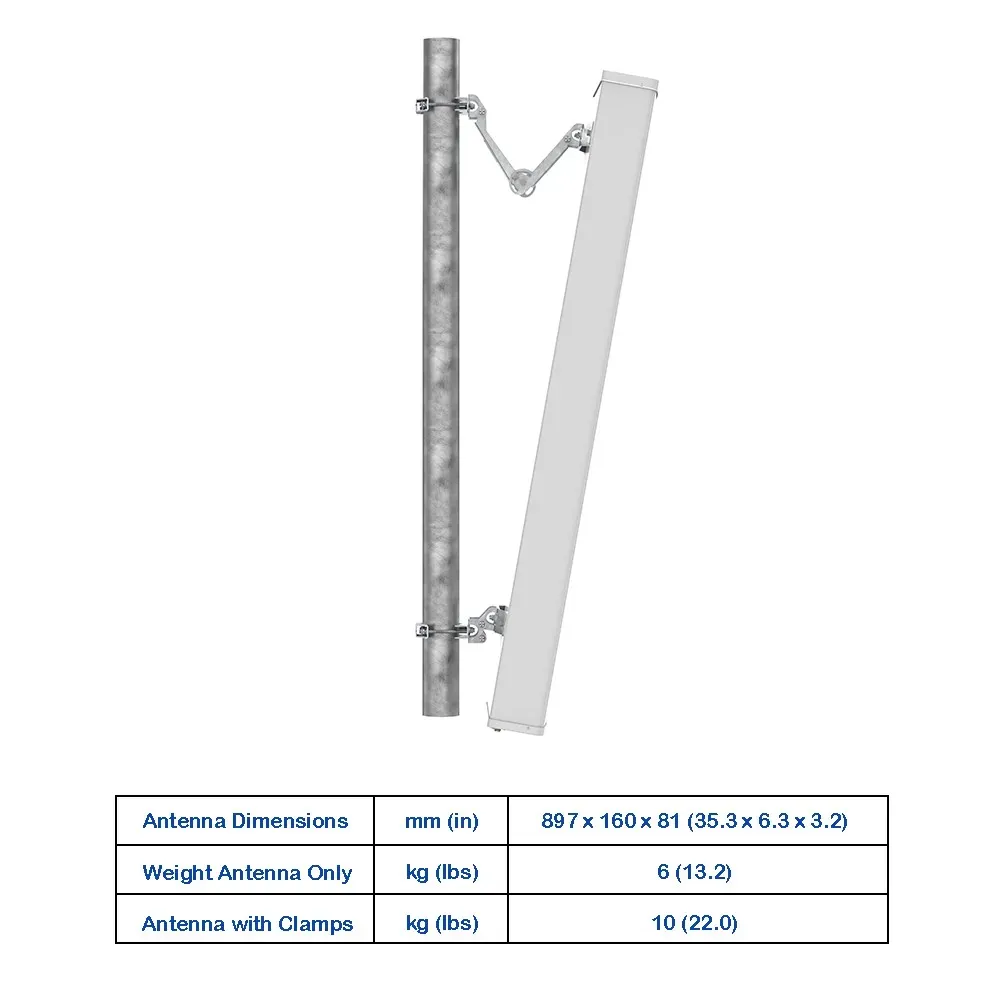

Antenna Dimensions (H x W x D)	mm (in)	897 x 160 x 81 (35.3 x 6.3 x 3.2)
Antenna Weight	Antenna Only	kg (lbs)	6 (13.2)
with Clamps	kg (lbs)	10 (22.0)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	135 (30.3)
Rear	N (lbf)	150 (33.7)
Lateral	N (lbf)	85 (19.1)
Operating Temperature	°C (°F)	-40 to +60 (-40 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces	RS485 and Power
Adjustment Time	≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles	> 20,000
Torque Maximum	≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote Control	Can manage from OMC, BTS/Node B
Daisy Chaining Method	Ready for daisy-chaining
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color	Aluminum / Grey
Operating Temperature	-40° to +70° C (-40° to +158° F)
Storage Temperature	-55° to +75° C (-67° to +167° F)
Humidity	Up to 95%
IP Rating	IP65
Weight	≤ 500 g

Electrical Specifications

Frequency Range

MHz

1710-2690

MHz

1710-1880

1850-1990

1920-2170

2300-2400

2490-2690

Polarization

—

±45°

Gain

at Mid Tilt

dBi

14.3

14.6

14.9

15.3

15.4

Over All Tilts

dBi

14.3 ± 0.6

14.6 ± 0.6

14.9 ± 0.6

15.3 ± 0.6

15.4 ± 0.6

Horizontal Beamwidth

degree

68 ± 5.0

66 ± 5.0

64 ± 5.0

61 ± 5.0

59 ± 5.0

Vertical Beamwidth

degree

13.5 ± 1.0

12.5 ± 1.0

11.8 ± 1.0

10.5 ± 1.0

9.5 ± 1.0

Electrical Downtilt, Continuously Adjustable

degree

2-Dec

First Upper Sidelobe Suppression

> 15

Front-To-Back Ratio Co-Pol, ±30°

> 25

Cross Polar

at Boresight

> 20

Discrimination

Over Sector

> 10

> 9

> 8

Isolation

Cross-Polar

> 25

Interband

> 25

Impedance

Ohm

VSWR

—

< 1.5

Return Loss

> 14

PIM3 (2×43 dBm Carrier)

dBc

< -150

Lightning Protection

—

DC Ground

Maximum Average Input Power per Port, at 50° C Ambient Temperature

Watts

200

Mechanical Specifications

Connector Type

—

(2x) 4.3/10 Female

Connector Position

—

Bottom

Electrical Tilt Control

—

Integrated RET

Radome Material

—

UPVC

Antenna Dimensions (H x W x D)

mm (in)

897 x 160 x 81 (35.3 x 6.3 x 3.2)

Antenna Weight

Antenna Only

kg (lbs)

6 (13.2)

with Clamps

kg (lbs)

10 (22.0)

Maximum Wind Speed

km/h (mph)

200 (124.3)

Wind Load at 150 km/h

Frontal

N (lbf)

135 (30.3)

Rear

N (lbf)

150 (33.7)

Lateral

N (lbf)

85 (19.1)

Operating Temperature

°C (°F)

-40 to +60 (-40 to +140)

Integrated RET Specifications

Protocols

Compliant to AISG v2.0 and 3GPP

Supply Voltage Range

10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0

Power

Standby

< 2 W

Consumption

In Motion

< 10 W

Connectors

2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs

Hardware Interfaces

RS485 and Power

Adjustment Time

≤ 90 sec (typical, depending on antenna type)

Adjustment Cycles

> 20,000

Torque Maximum

≥ 160 mN·m (@ 30RPM)

Lightning Protection Rating

IEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Remote Control

Can manage from OMC, BTS/Node B
