2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 16 dBi,


Electrical Specifications

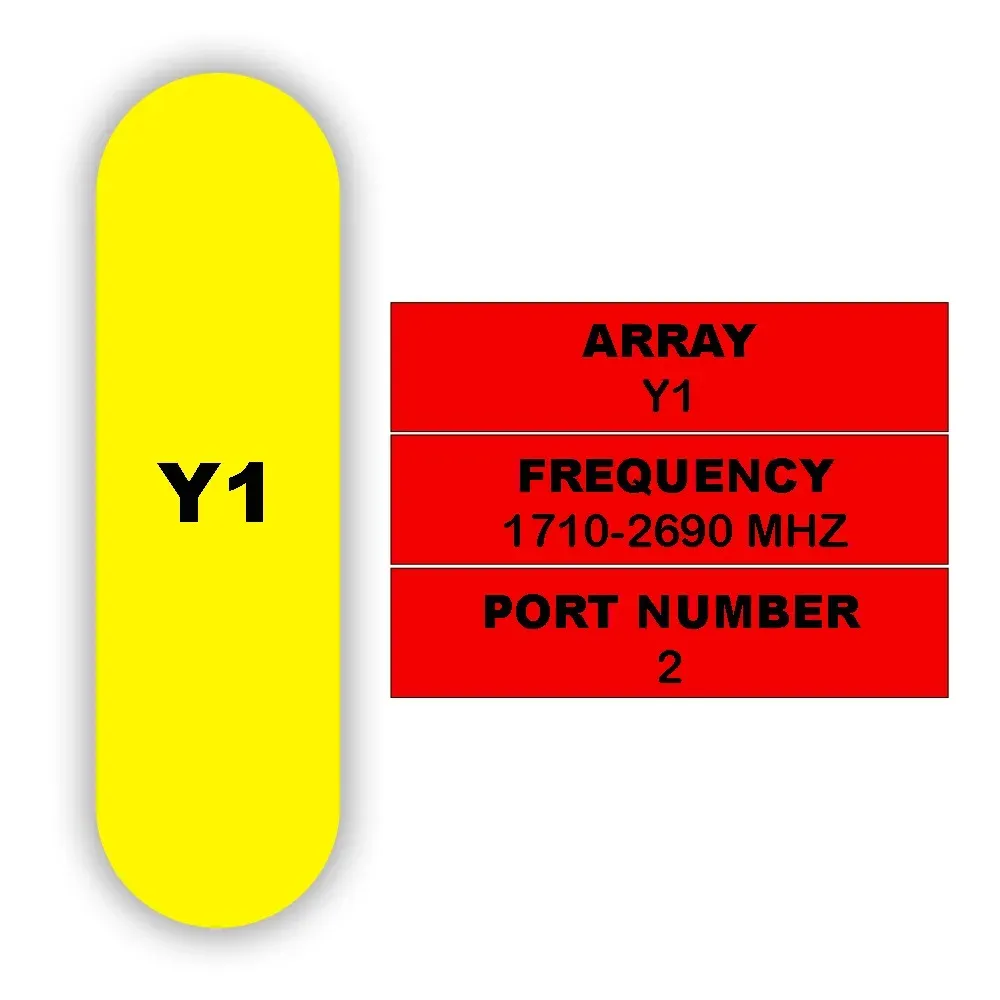

	Y1
Frequency Range	MHz	1710-2690
MHz	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization	—	±45°
Gain	at Mid Tilt	dBi	15.1	15.3	15.6	16.1	16
Over All Tilts	dBi	15.0 ± 0.6	15.2 ± 0.6	15.5 ± 0.6	16.0 ± 0.6	15.9 ± 0.6
Horizontal Beamwidth	degree	68 ± 5.0	66 ± 5.0	64 ± 5.0	61 ± 5.0	59 ± 5.0
Vertical Beamwidth	degree	11 ± 1.1	10.5 ± 1.1	9.8 ± 1.0	8.5 ± 0.9	7.8 ± 0.8
Electrical Downtilt, Continuously Adjustable	degree	2-Dec
First Upper Sidelobe Suppression	dB	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°	dB	> 25	> 25	> 25	> 25	> 25
Cross Polar	at Boresight	dB	> 20	> 20	> 20	> 20	> 20
Discrimination	Over Sector	dB	> 10	> 10	> 10	> 9	> 8
Isolation	Cross-Polar	dB	> 25
Interband	dB	> 25
Impedance	Ohm	50
VSWR	—	< 1.5
Return Loss	dB	> 14
PIM3 (2×43 dBm Carrier)	dBc	< -150
Lightning Protection	—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	200

Mechanical Specifications

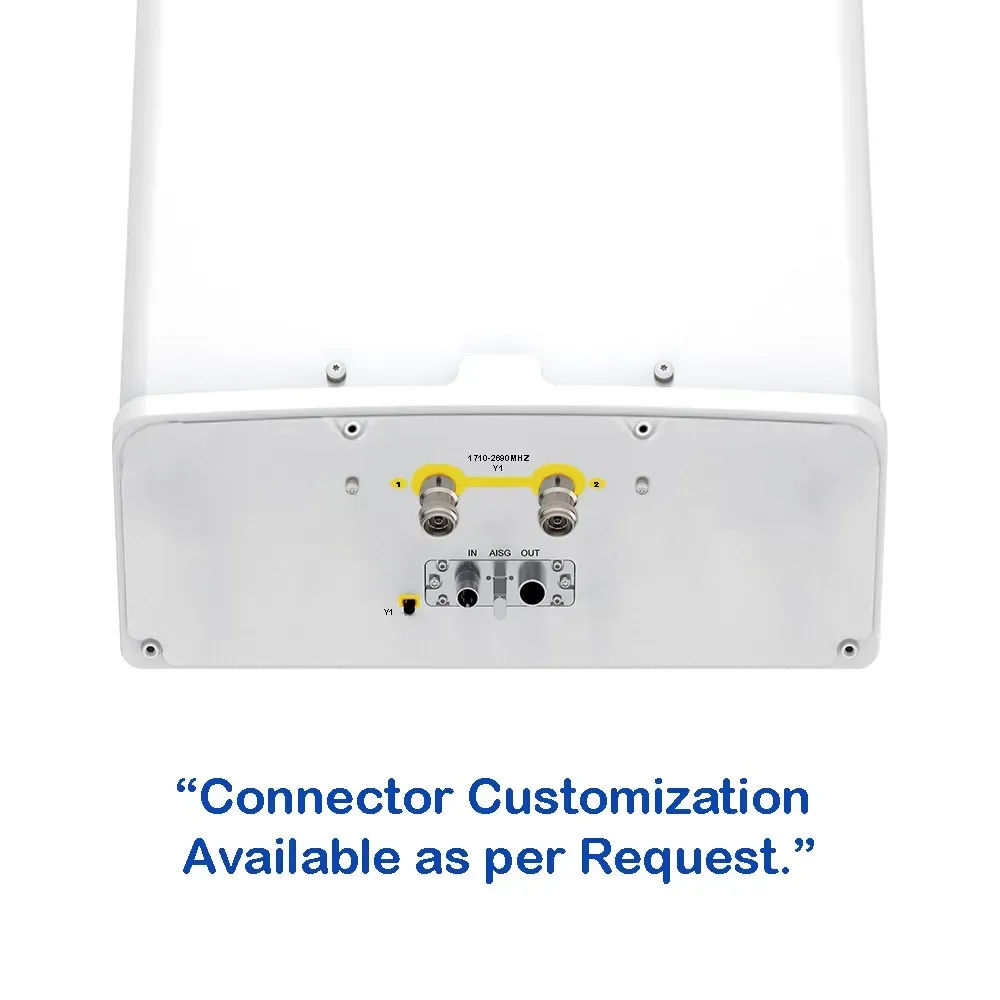

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	UPVC

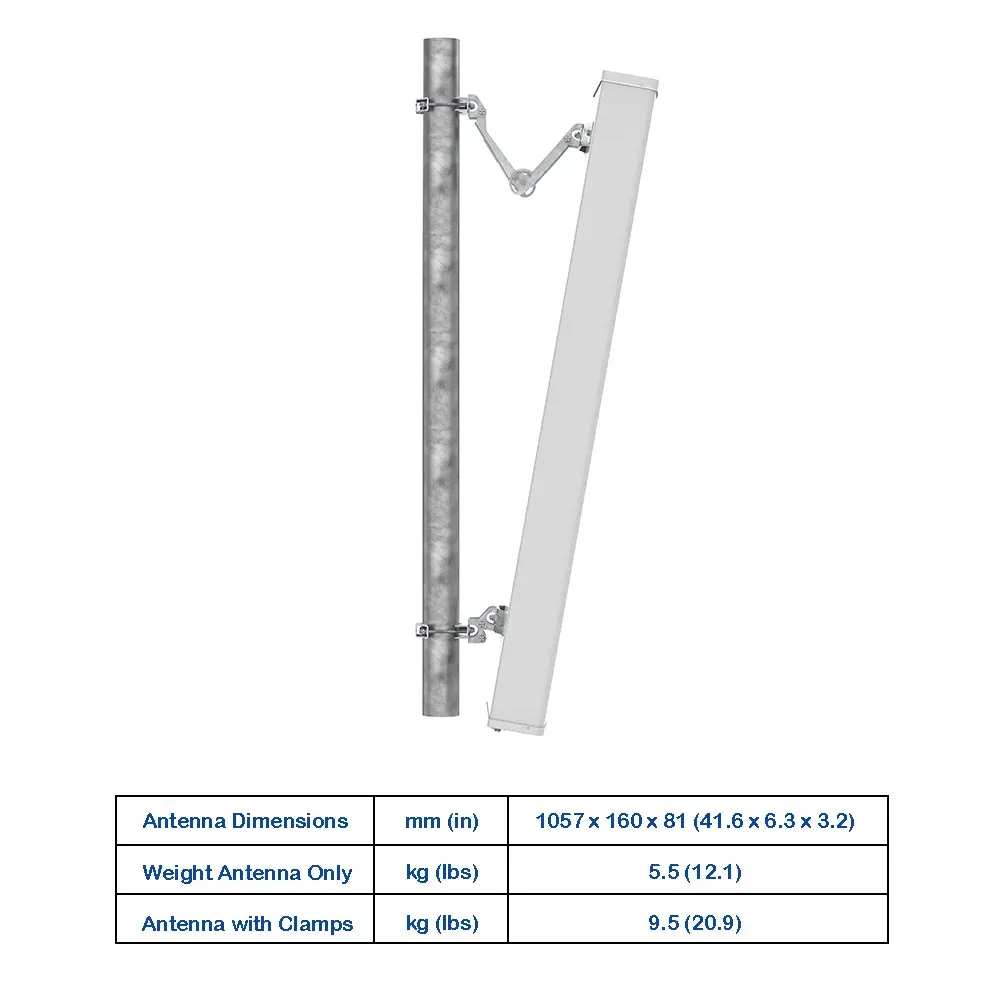

Antenna Dimensions (H x W x D)	mm (in)	1057 x 160 x 81 (41.6 x 6.3 x 3.2)
Antenna Weight	Antenna Only	kg (lbs)	5.5 (12.1)
with Clamps	kg (lbs)	9.5 (20.9)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	160 (36.0)
Rear	N (lbf)	180 (40.5)
Lateral	N (lbf)	100 (22.5)
Operating Temperature	°C (°F)	-40 to +60 (-40 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces	RS485 and Power
Adjustment Time	≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles	> 20,000
Torque Maximum	≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote Control	Can manage from OMC, BTS/Node B
Daisy Chaining Method	Ready for daisy-chaining
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color	Aluminum / Grey
Operating Temperature	-40° to +70° C (-40° to +158° F)
Storage Temperature	-55° to +75° C (-67° to +167° F)
Humidity	Up to 95%
IP Rating	IP65
Weight	≤ 500 g

Electrical Specifications

Frequency Range

MHz

1710-2690

MHz

1710-1880

1850-1990

1920-2170

2300-2400

2490-2690

Polarization

—

±45°

Gain

at Mid Tilt

dBi

15.1

15.3

15.6

16.1

Over All Tilts

dBi

15.0 ± 0.6

15.2 ± 0.6

15.5 ± 0.6

16.0 ± 0.6

15.9 ± 0.6

Horizontal Beamwidth

degree

68 ± 5.0

66 ± 5.0

64 ± 5.0

61 ± 5.0

59 ± 5.0

Vertical Beamwidth

degree

11 ± 1.1

10.5 ± 1.1

9.8 ± 1.0

8.5 ± 0.9

7.8 ± 0.8

Electrical Downtilt, Continuously Adjustable

degree

2-Dec

First Upper Sidelobe Suppression

> 15

Front-To-Back Ratio Co-Pol, ±30°

> 25

Cross Polar

at Boresight

> 20

Discrimination

Over Sector

> 10

> 9

> 8

Isolation

Cross-Polar

> 25

Interband

> 25

Impedance

Ohm

VSWR

—

< 1.5

Return Loss

> 14

PIM3 (2×43 dBm Carrier)

dBc

< -150

Lightning Protection

—

DC Ground

Maximum Average Input Power per Port, at 50° C Ambient Temperature

Watts

200

Mechanical Specifications

Connector Type

—

(2x) 4.3/10 Female

Connector Position

—

Bottom

Electrical Tilt Control

—

Integrated RET

Radome Material

—

UPVC

Antenna Dimensions (H x W x D)

mm (in)

1057 x 160 x 81 (41.6 x 6.3 x 3.2)

Antenna Weight

Antenna Only

kg (lbs)

5.5 (12.1)

with Clamps

kg (lbs)

9.5 (20.9)

Maximum Wind Speed

km/h (mph)

200 (124.3)

Wind Load at 150 km/h

Frontal

N (lbf)

160 (36.0)

Rear

N (lbf)

180 (40.5)

Lateral

N (lbf)

100 (22.5)

Operating Temperature

°C (°F)

-40 to +60 (-40 to +140)

Integrated RET Specifications

Protocols

Compliant to AISG v2.0 and 3GPP

Supply Voltage Range

10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0

Power

Standby

< 2 W

Consumption

In Motion

< 10 W

Connectors

2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG
Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs

Hardware Interfaces

RS485 and Power

Adjustment Time

≤ 90 sec (typical, depending on antenna type)

Adjustment Cycles

> 20,000

Torque Maximum

≥ 160 mN·m (@ 30RPM)

Lightning Protection Rating

IEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions
Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Remote Control

Can manage from OMC, BTS/Node B
