2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 17.6 dBi

Electrical Specifications
	Y1
Frequency Range	MHz	1710-2690
MHz	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization	—	±45°
Gain	at Mid Tilt	dBi	16.8	17.3	17.4	17.6	17.3
Over All Tilts	dBi	16.0 ± 0.4	16.6 ± 0.4	17.0 ± 0.5	17.1 ± 0.5	16.8 ± 0.6
Horizontal Beamwidth	degree	68.2 ± 2.9	65.5 ± 4.0	64.6 ± 3.3	63.3 ± 3.2	62.9 ± 3.9
Vertical Beamwidth	degree	7.8 ± 0.5	7.4 ± 0.5	6.9 ± 0.5	6.2 ± 0.4	5.7 ± 0.3
Electrical Downtilt, Continuously Adjustable	degree	0-8
First Upper Sidelobe Suppression	dB	15	15	15	15	15
Front-To-Back Ratio Co-Pol, ±30°	dB	25	25	25	25	25
Cross Polar	at Boresight	dB	15	15	15	15	15
Discrimination	Over Sector	dB	10	10	10	10	10
Isolation	Between Ports	dB	≥ 28
Impedance	Ohm	50
VSWR	—	≤ 1.5
PIM3 (2×43 dBm Carrier)	dBc	≤ -107
Lightning Protection	—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	250

Mechanical Specifications

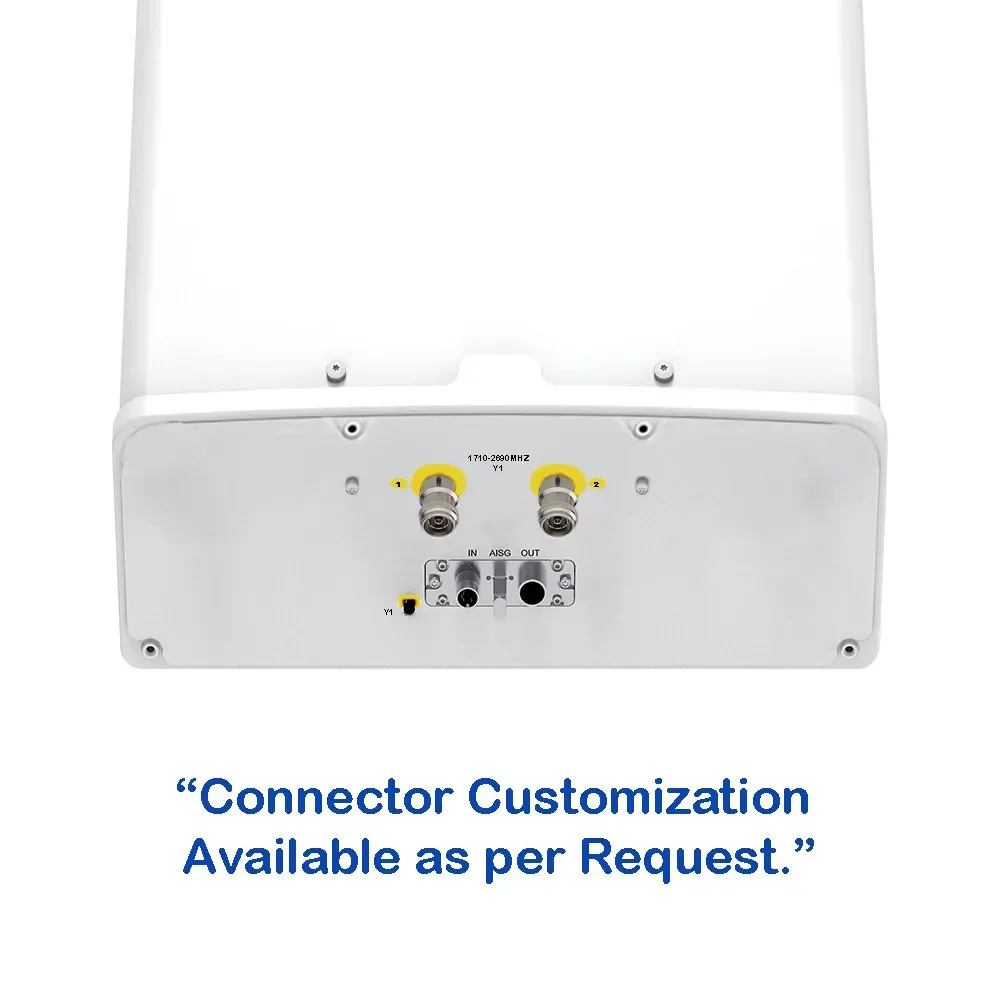

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	UPVC

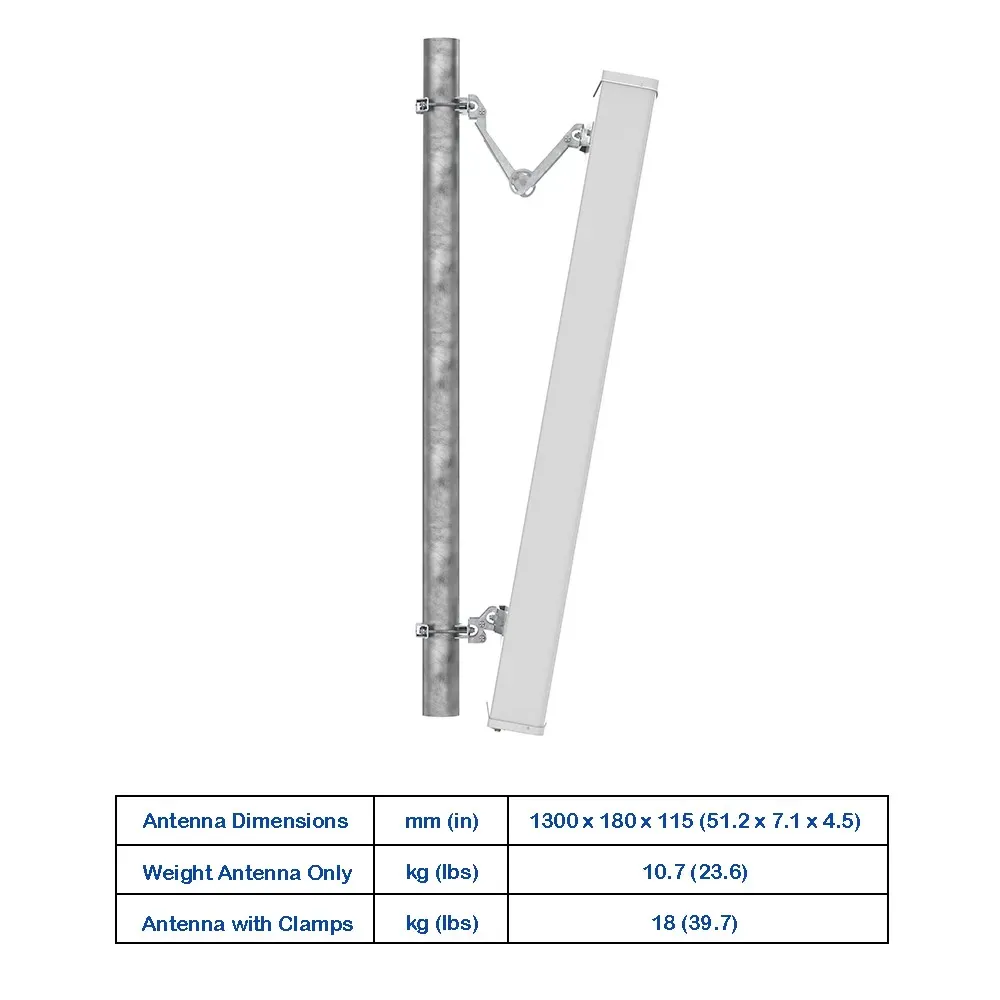

Antenna Dimensions (H x W x D)	mm (in)	1300 x 180 x 115 (51.2 x 7.1 x 4.5)
Antenna Weight	Antenna Only	kg (lbs)	10.7 (23.6)
with Clamps	kg (lbs)	18 (39.7)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	263 (59.1)
Rear	N (lbf)	285 (64.1)
Lateral	N (lbf)	144 (32.4)
Operating Temperature	°C (°F)	-40 to +60 (-40 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE

Electrical Specifications

Frequency Range

MHz

1710-2690

MHz

1710-1880

1850-1990

1920-2170

2300-2400

2490-2690

Polarization

—

±45°

Gain

at Mid Tilt

dBi

16.8

17.3

17.4

17.6

17.3

Over All Tilts

dBi

16.0 ± 0.4

16.6 ± 0.4

17.0 ± 0.5

17.1 ± 0.5

16.8 ± 0.6

Horizontal Beamwidth

degree

68.2 ± 2.9

65.5 ± 4.0

64.6 ± 3.3

63.3 ± 3.2

62.9 ± 3.9

Vertical Beamwidth

degree

7.8 ± 0.5

7.4 ± 0.5

6.9 ± 0.5

6.2 ± 0.4

5.7 ± 0.3

Electrical Downtilt, Continuously Adjustable

degree

0-8

First Upper Sidelobe Suppression

Front-To-Back Ratio Co-Pol, ±30°

Cross Polar

at Boresight

Discrimination

Over Sector

Isolation

Between Ports

≥ 28

Impedance

Ohm

VSWR

—

≤ 1.5

PIM3 (2×43 dBm Carrier)

dBc

≤ -107

Lightning Protection

—

DC Ground

Maximum Average Input Power per Port, at 50° C Ambient Temperature

Watts

250

Mechanical Specifications

Connector Type

—

(2x) 4.3/10 Female

Connector Position

—

Bottom

Electrical Tilt Control

—

Integrated RET

Radome Material

—

UPVC

Antenna Dimensions (H x W x D)

mm (in)

1300 x 180 x 115 (51.2 x 7.1 x 4.5)

Antenna Weight

Antenna Only

kg (lbs)

10.7 (23.6)

with Clamps

kg (lbs)

18 (39.7)

Maximum Wind Speed

km/h (mph)

200 (124.3)

Wind Load at 150 km/h

Frontal

N (lbf)

263 (59.1)

Rear

N (lbf)

285 (64.1)

Lateral

N (lbf)

144 (32.4)

Operating Temperature

°C (°F)

-40 to +60 (-40 to +140)

Integrated RET Specifications

Protocols

Compliant to AISG v2.0 and 3GPP

Supply Voltage Range

10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0

Power

Standby

< 2 W

Consumption

In Motion

< 10 W

Connectors

2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs

Lightning Protection Rating

IEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions
Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Safety Standard

Compliant to EN 60950/UL 60950/RoHS, CE
