Product code: 2P-698-960F-14G-70H16V

2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 14 dBi,

Frequency Range 698-960 MHz
HBW 65°
Gain 14 dBi
Tilt 2-14°
Connectors (other connectors by request) (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
2P-698-960F-14G-70H16V
Electrical & Mechanical Specification
Electrical Specifications

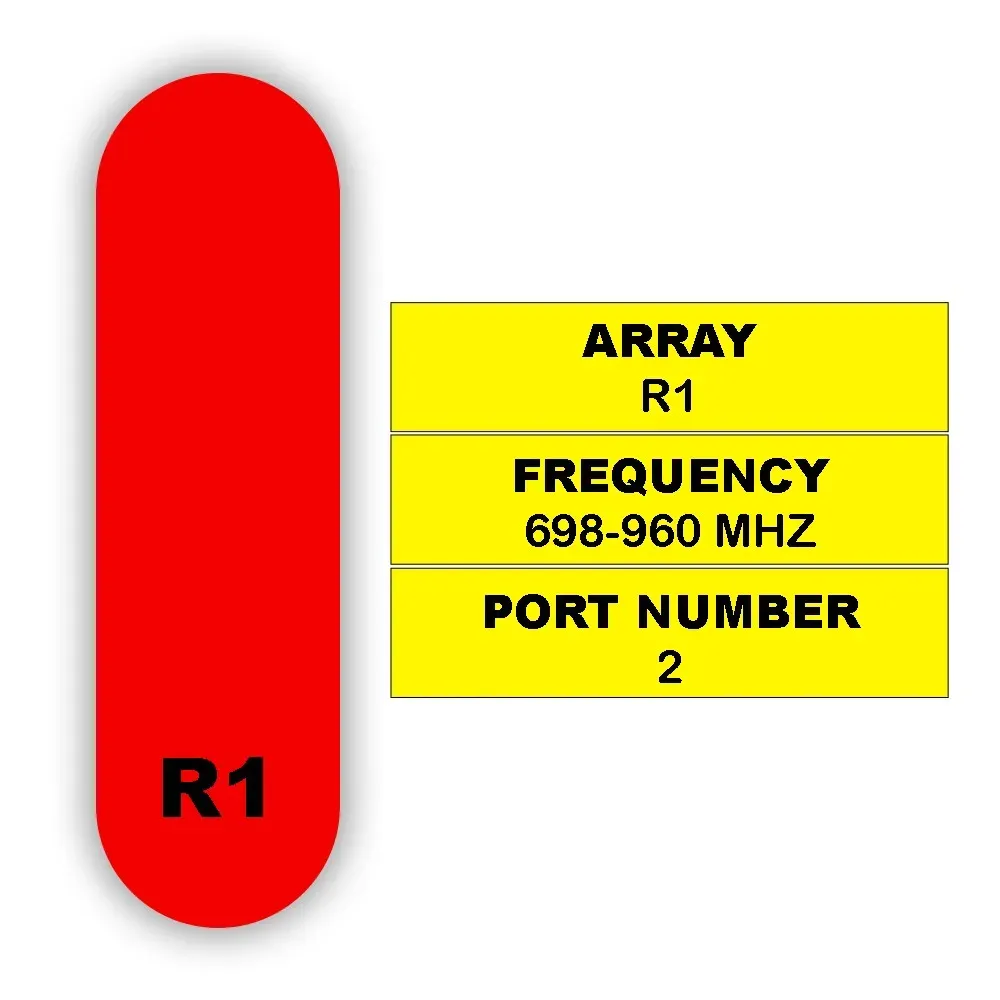

R1
Frequency RangeMHz698-960
MHz698-806790-894880-960
Polarization—±45°
Gainat Mid TiltdBi12.713.313.7
Over All TiltsdBi12.6 ± 0.613.2 ± 0.613.6 ± 0.6
Horizontal Beamwidthdegree70 ± 567 ± 563 ± 5
Vertical Beamwidthdegree15.5 ± 2.013.9 ± 1.512.8 ± 1.5
Electrical Downtilt, Continuously AdjustabledegreeFeb-14
First Upper Side Lobe SuppressiondB> 15> 15> 15
Front-To-Back Ratio Co-Pol, ±30°dB> 22> 23> 23
Cross Polarat BoresightdB> 16> 16> 16
DiscriminationOver SectordB> 8> 8> 8
Cross-Polar IsolationdB> 25
Intra Band IsolationdB> 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200
Mechanical Specifications

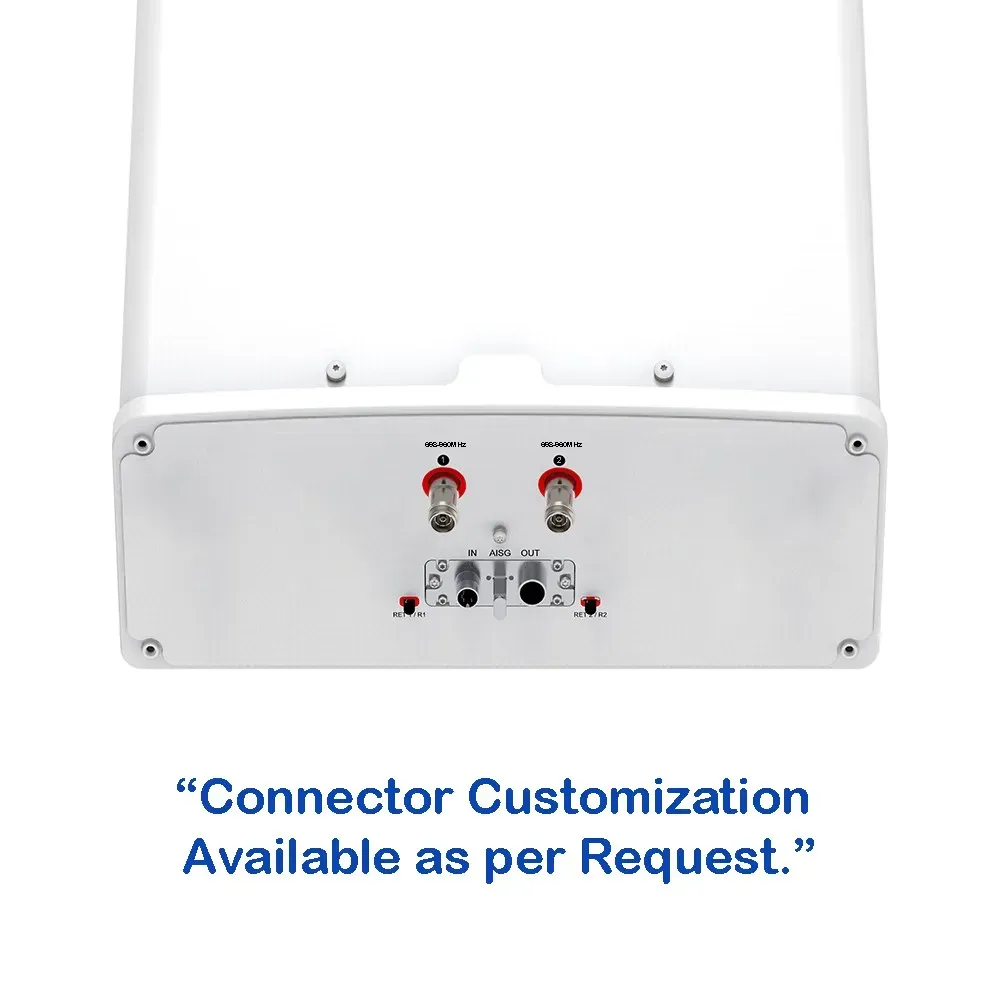

Connector Type—(2x) 4.3-10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—UPVC

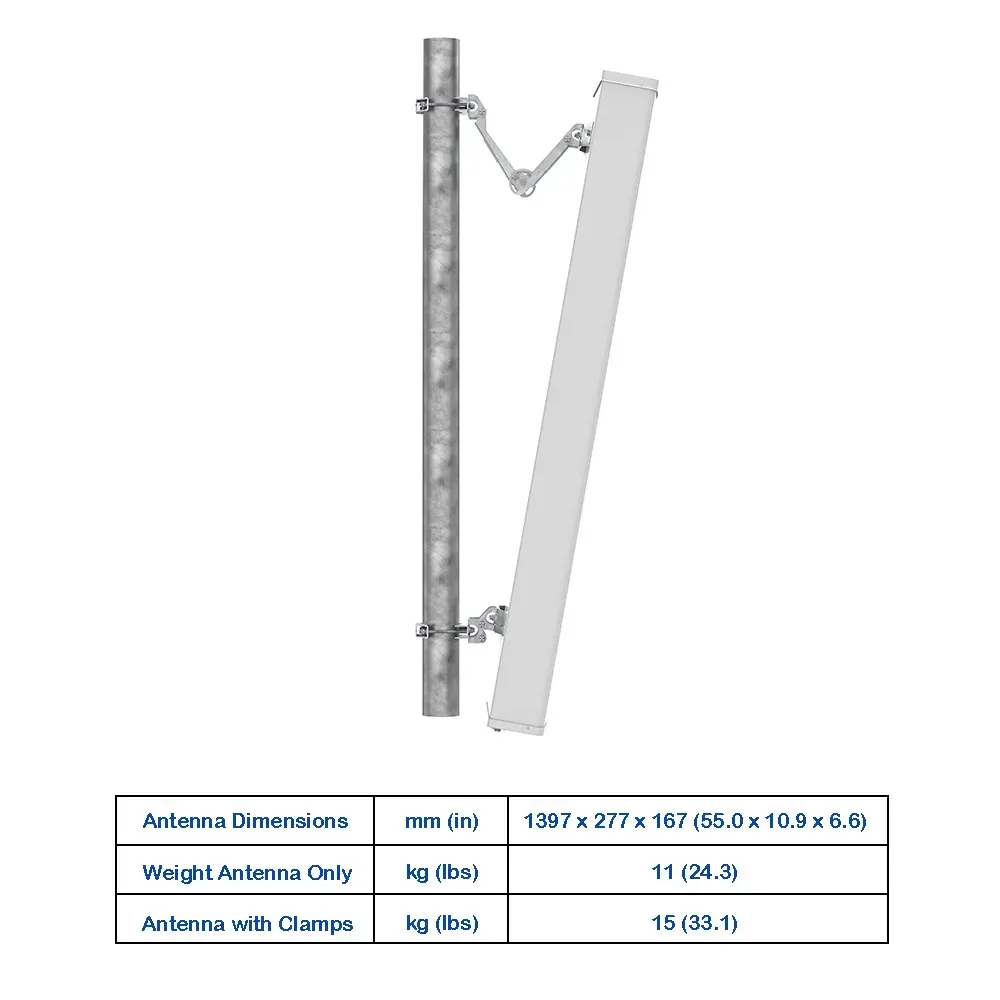

Antenna Dimensions (H x W x D)mm (in)1397 x 277 x 167 (55.0 x 10.9 x 6.6)
Antenna WeightAntenna Onlykg (lbs)11 (24.3)
with Clampskg (lbs)15 (33.1)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)360 (80.9)
RearN (lbf)400 (89.9)
LateralN (lbf)265 (59.6)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
