2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 16 dBi,


Electrical Specifications

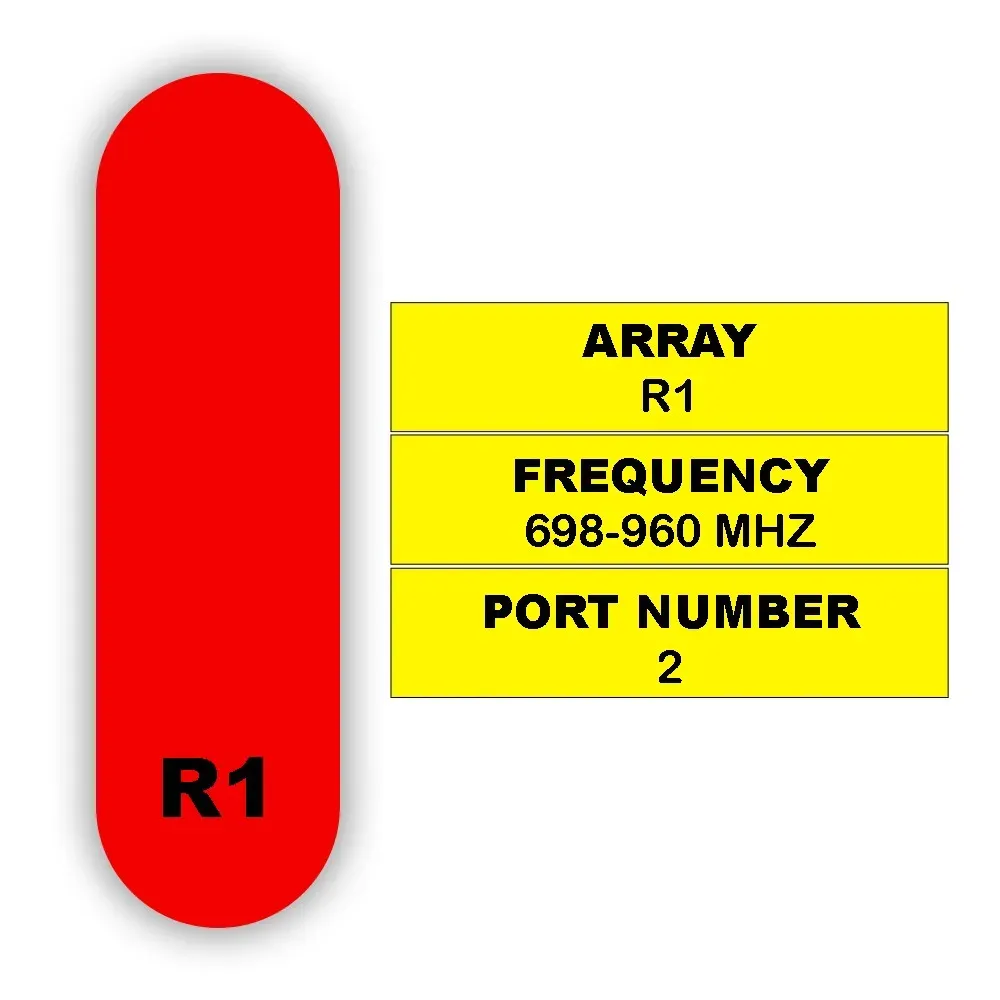

	R1
	MHz	698-960
Frequency Range	MHz	698-806	790-894	880-960
Polarization	—	±45°
	at Mid Tilt	dBi	14.8	15.4	15.7
Gain	Over All Tilts	dBi	14.7 ± 0.6	15.3 ± 0.6	15.6 ± 0.6
Horizontal Beamwidth	degree	70 ± 5	68 ± 5	64 ± 5
Vertical Beamwidth	degree	10.8 ± 1.1	9.8 ± 1.0	9.0 ± 0.9
Electrical Downtilt, Continuously Adjustable	degree	0-10
First Upper Side Lobe Suppression	dB	> 16	> 16	> 16
Front-To-Back Ratio ±30°	dB	> 23	> 24	> 24
Cross Polar	at Boresight	dB	> 17	> 17	> 17
Discrimination	Over Sector	dB	> 8	> 8	> 8
	Cross-Polar	dB	> 28
Isolation	Intraband	dB	> 28
Impedance	Ohm	50
VSWR	—	< 1.5
Return Loss	dB	> 14
PIM3 (2×43 dBm Carrier)	dBc	< -150
Lightning Protection	—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	250

Mechanical Specifications

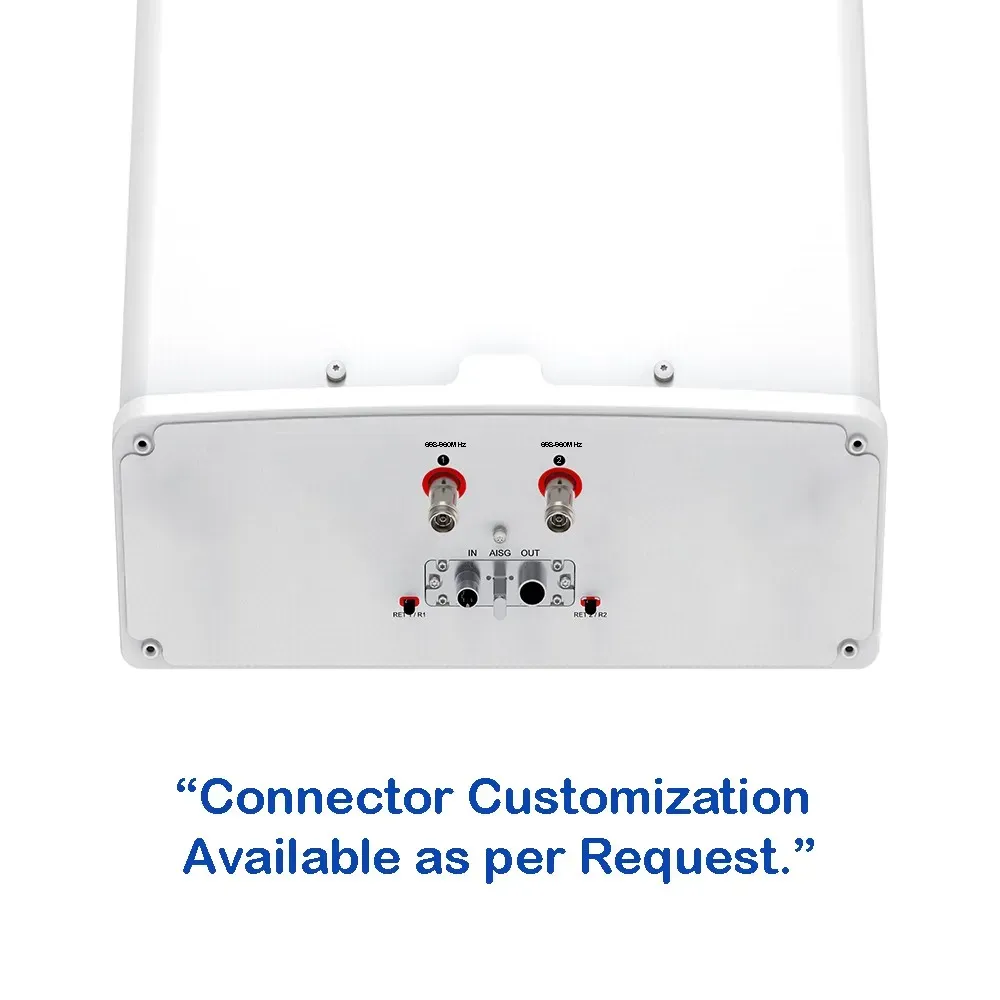

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	UPVC
Antenna Dimensions (H x W x D)	mm (in)	1997 x 277 x 167 (78.6 x 10.9 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	14.5 (32.0)
with Clamps	kg (lbs)	20 (44.1)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	510 (114.7)
Rear	N (lbf)	570 (128.1)
Lateral	N (lbf)	380 (85.4)
Operating Temperature	°C (°F)	-40 to +60 (-40 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs


Hardware Interfaces	RS485 and Power
Adjustment Time	≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles	> 20,000
Torque Maximum	≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Remote Control	Can manage from OMC, BTS/Node B
Daisy Chaining Method	Ready for daisy-chaining
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color	Aluminum / Grey
Operating Temperature	-40° to +70° C (-40° to +158° F)
Storage Temperature	-55° to +75° C (-67° to +167° F)
Humidity	Up to 95%
IP Rating	IP65
Weight	≤ 500 g
