2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 17 dBi,


Electrical Specifications
	R1
	MHz	698-960
Frequency Range	MHz	698-806	790-894	880-960
Polarization	—	±45°
	at Mid Tilt	dBi	16	16.6	17
Gain	Over All Tilts	dBi	15.9 ± 0.6	16.5 ± 0.6	16.9 ± 0.6
Horizontal Beamwidth	degree	70 ± 5	68 ± 5	64 ± 5
Vertical Beamwidth	degree	8.2 ± 0.9	7.3 ± 0.8	6.7 ± 0.7
Electrical Downtilt, Continuously Adjustable	degree	0-10
First Upper Side Lobe Suppression	dB	> 16	> 16	> 16
Front-To-Back Ratio ±30°	dB	> 23	> 24	> 24
Cross Polar	at Boresight	dB	> 17	> 17	> 17
Discrimination	Over Sector	dB	> 8	> 8	> 8
	Cross-Polar	dB	> 28
Isolation	Intraband	dB	> 28
Impedance	Ohm	50
VSWR	—	< 1.5
Return Loss	dB	> 14
PIM3 (2×43 dBm Carrier)	dBc	< -150
Lightning Protection	—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	250

Mechanical Specifications

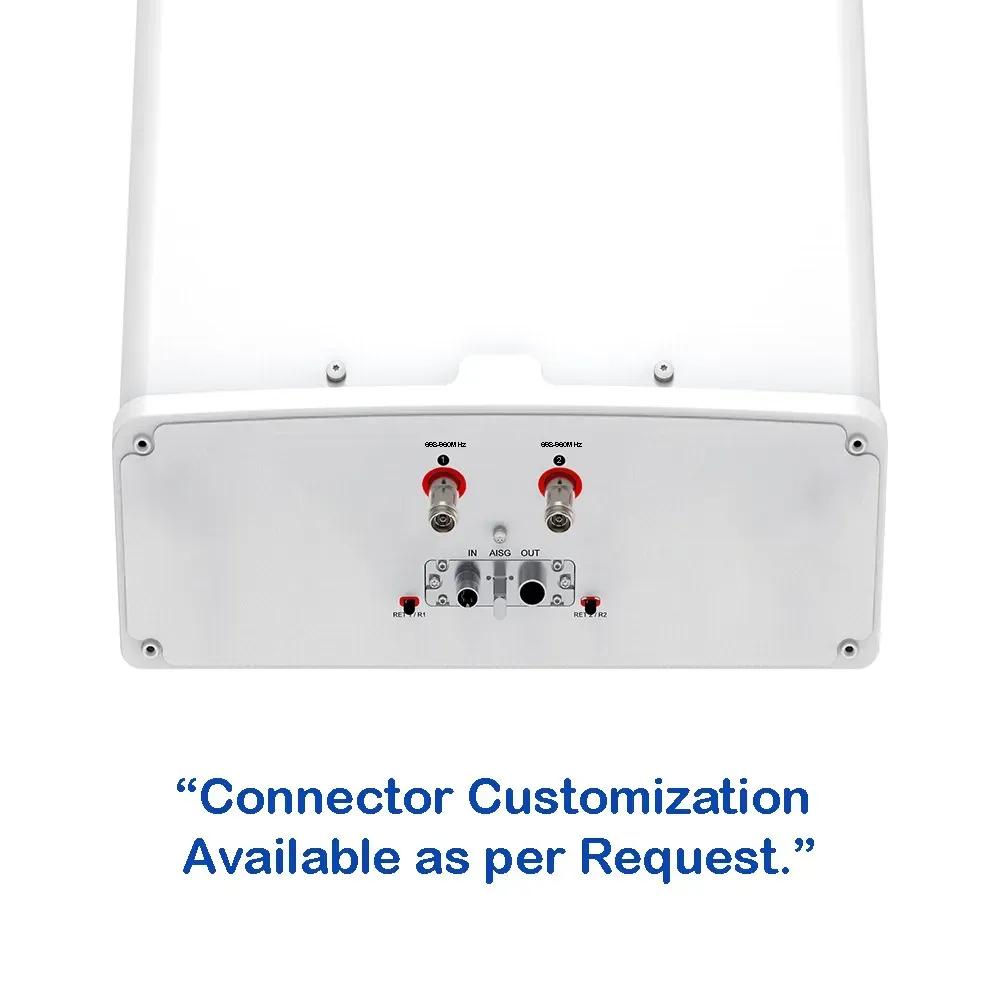

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	UPVC

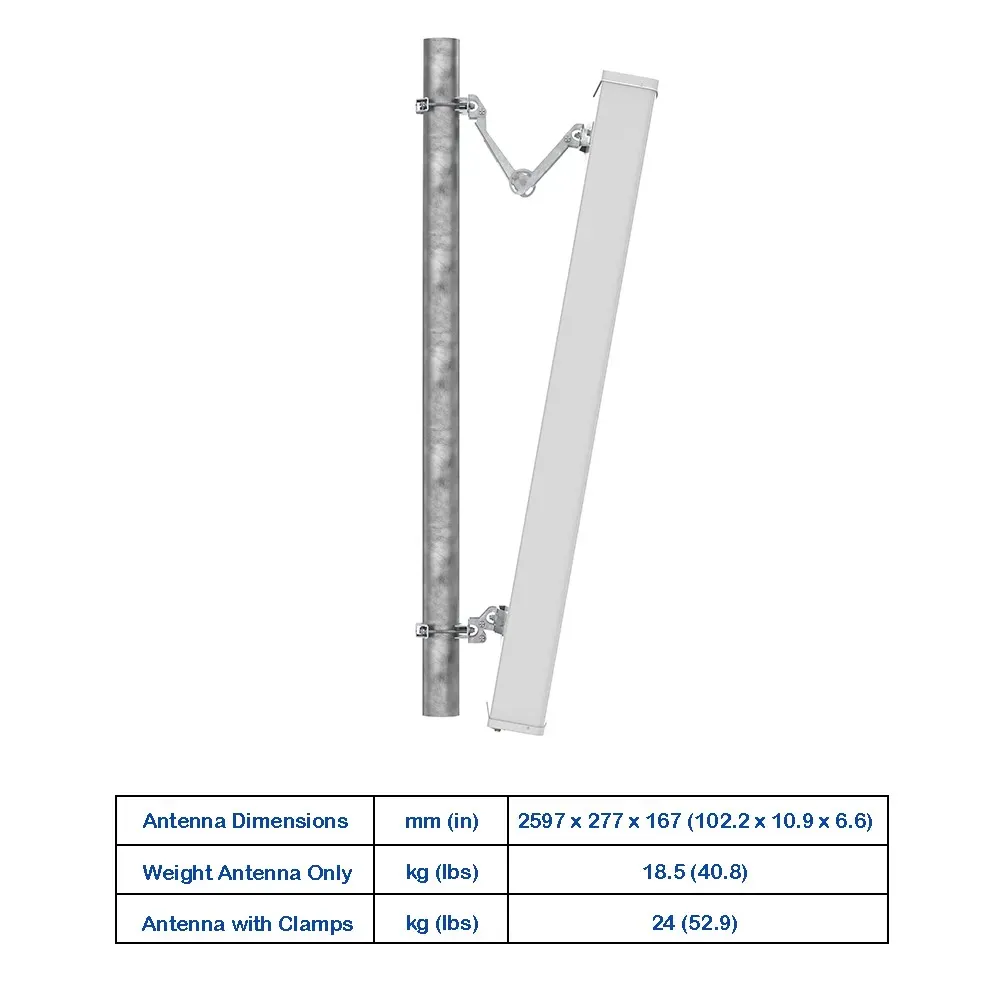

Antenna Dimensions (H x W x D)	mm (in)	2597 x 277 x 167 (102.2 x 10.9 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	18.5 (40.8)
with Clamps	kg (lbs)	24 (52.9)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	665 (149.5)
Rear	N (lbf)	745 (167.5)
Lateral	N (lbf)	495 (111.3)
Operating Temperature	°C (°F)	-40 to +60 (-40 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces	RS485 and Power
Adjustment Time	≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles	> 20,000
Torque Maximum	≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote Control	Can manage from OMC, BTS/Node B
Daisy Chaining Method	Ready for daisy-chaining
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color	Aluminum / Grey
Operating Temperature	-40° to +70° C (-40° to +158° F)
Storage Temperature	-55° to +75° C (-67° to +167° F)
Humidity	Up to 95%
IP Rating	IP65
Weight	≤ 500 g

Electrical Specifications

MHz

698-960

Frequency Range

MHz

698-806

790-894

880-960

Polarization

—

±45°

at Mid Tilt

dBi

16.6

Gain

Over All Tilts

dBi

15.9 ± 0.6

16.5 ± 0.6

16.9 ± 0.6

Horizontal Beamwidth

degree

70 ± 5

68 ± 5

64 ± 5

Vertical Beamwidth

degree

8.2 ± 0.9

7.3 ± 0.8

6.7 ± 0.7

Electrical Downtilt, Continuously Adjustable

degree

0-10

First Upper Side Lobe Suppression

> 16

Front-To-Back Ratio ±30°

> 23

> 24

Cross Polar

at Boresight

> 17

Discrimination

Over Sector

> 8

Cross-Polar

> 28

Isolation

Intraband

> 28

Impedance

Ohm

VSWR

—

< 1.5

Return Loss

> 14

PIM3 (2×43 dBm Carrier)

dBc

< -150

Lightning Protection

—

DC Ground

Maximum Average Input Power per Port, at 50° C Ambient Temperature

Watts

250

Mechanical Specifications

Connector Type

—

(2x) 4.3/10 Female

Connector Position

—

Bottom

Electrical Tilt Control

—

Integrated RET

Radome Material

—

UPVC

Antenna Dimensions (H x W x D)

mm (in)

2597 x 277 x 167 (102.2 x 10.9 x 6.6)

Antenna Weight

Antenna Only

kg (lbs)

18.5 (40.8)

with Clamps

kg (lbs)

24 (52.9)

Maximum Wind Speed

km/h (mph)

200 (124.3)

Wind Load at 150 km/h

Frontal

N (lbf)

665 (149.5)

Rear

N (lbf)

745 (167.5)

Lateral

N (lbf)

495 (111.3)

Operating Temperature

°C (°F)

-40 to +60 (-40 to +140)

Integrated RET Specifications

Protocols

Compliant to AISG v2.0 and 3GPP

Supply Voltage Range

10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0

Power

Standby

< 2 W

Consumption

In Motion

< 10 W

Connectors

2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs

Hardware Interfaces

RS485 and Power

Adjustment Time

≤ 90 sec (typical, depending on antenna type)

Adjustment Cycles

> 20,000

Torque Maximum

≥ 160 mN·m (@ 30RPM)

Lightning Protection Rating

IEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Remote Control

Can manage from OMC, BTS/Node B
