2-Port, Panel Sector Antenna, 65° HBW, 790-960/ 1710-2180 MHz, 17/17 dBi,

Electrical Specifications
	R1	B1
Frequency Range	MHz	790-960	1710-2170
MHz	790-894	880-960	1710-1880	1850-1990	1920-2180
Polarization	—	±45°	±45°
Gain	at Mid Tilt	dBi	16	16.4	16.2	16.7	17
Over All Tilts	dBi	15.8 ± 0.5	16.2 ± 0.5	16.0 ± 0.6	16.5 ± 0.5	16.8 ± 0.5
Horizontal Beamwidth	degree	69 ± 4.5	67 ± 4.5	67 ± 6.5	65 ± 6.0	63 ± 6.5
Vertical Beamwidth	degree	8.1 ± 0.6	7.4 ± 0.7	6.4 ± 0.5	5.8 ± 0.5	5.1 ± 0.5
Electrical Downtilt, Continuously Adjustable	degree	2-Dec	2-Dec
Tilt Accuracy	degree	< 1	< 1	< 1	< 1	< 1
Upper Side Lobe Suppression	First Upper Lobe	dB	> 15	> 15	> 15	> 15	> 15
Peak to 20°	dB	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio ±30°	dB	> 24	> 24	> 24	> 25	> 25
Cross Polar	at Boresight	dB	> 16	> 17	> 16	> 16	> 16
Discrimination	Over Sector	dB	> 8.0	> 8.0	> 6	> 6	> 4
Isolation	Cross-Polar	dB	> 26	> 26
Port-To-Port	dB	> 28	> 28
Impedance	Ohm	50	50
VSWR	—	< 1.5	< 1.5
Return Loss	dB	> 14	> 14
PIM3 (2×43 dBm Carrier)	dBc	< -150	< -150
Lightning Protection	—	DC Ground	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	200	200

Mechanical Specifications

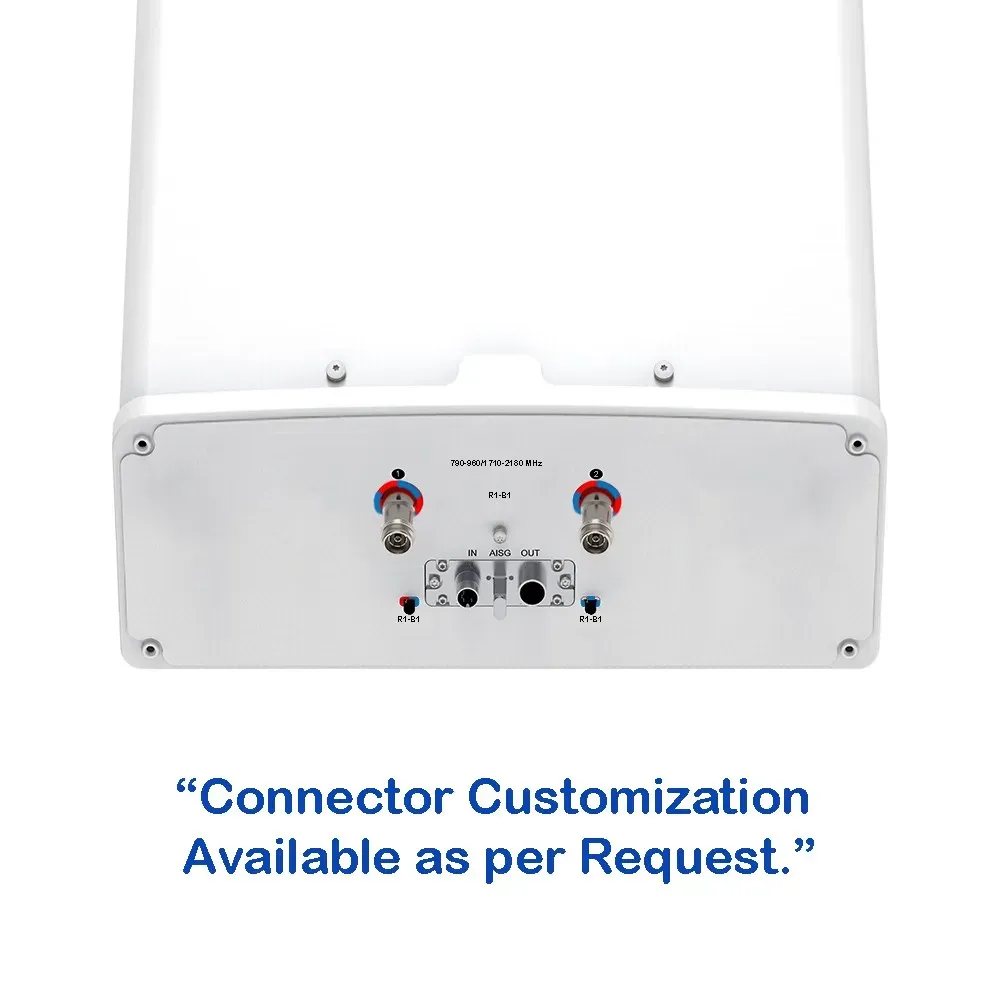

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	Fiberglass

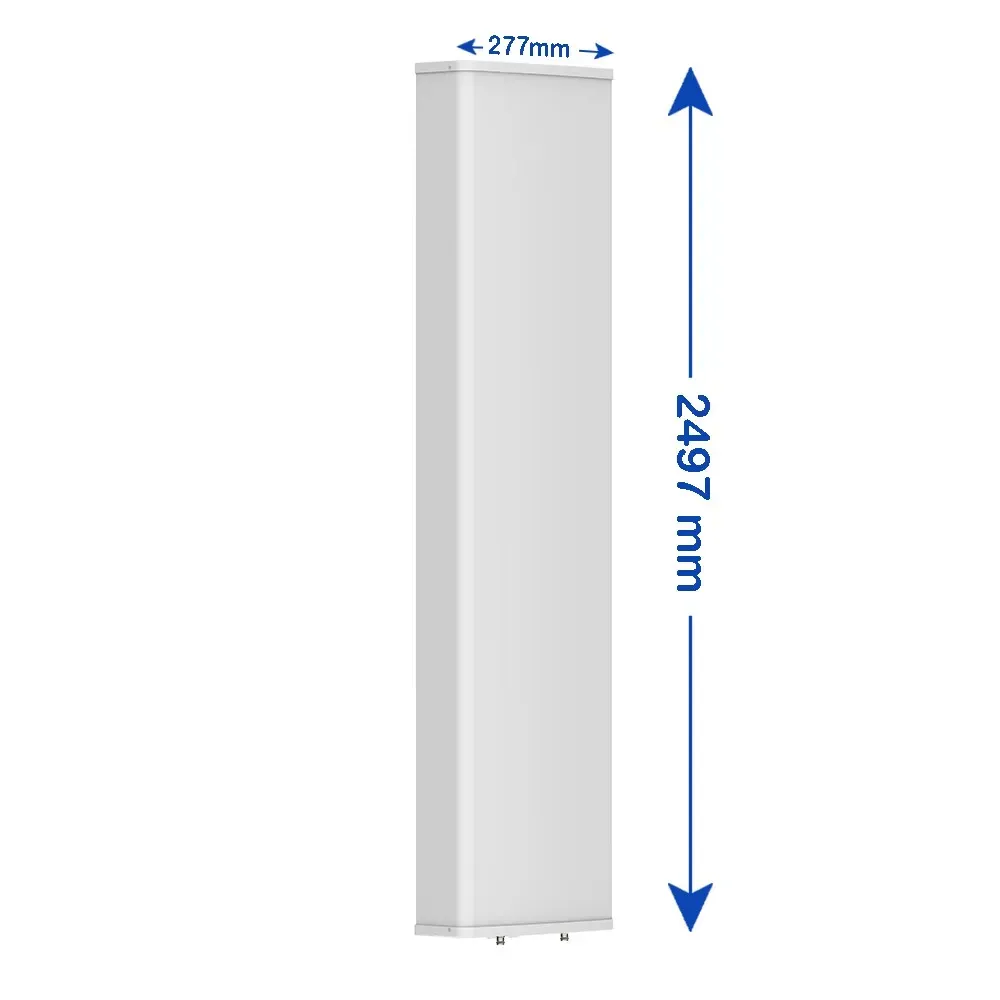

Antenna Dimensions (H x W x D)	mm (in)	2497 x 277 x 167 (98.3 x 10.9 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	23 (50.7)
with Clamps	kg (lbs)	27 (59.5)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	640 (143.9)
Rear	N (lbf)	715 (160.7)
Lateral	N (lbf)	505 (113.5)
Operating Temperature	°C (°F)	-40 to +60 (-40 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces	RS485 and Power
Adjustment Time	≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles	> 20,000
Torque Maximum	≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote Control	Can manage from OMC, BTS/Node B
Daisy Chaining Method	Ready for daisy-chaining
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color	Aluminum / Grey
Operating Temperature	-40° to +70° C (-40° to +158° F)
Storage Temperature	-55° to +75° C (-67° to +167° F)
Humidity	Up to 95%
IP Rating	IP65
Weight	≤ 500 g

Electrical Specifications

Frequency Range

MHz

790-960

1710-2170

MHz

790-894

880-960

1710-1880

1850-1990

1920-2180

Polarization

—

±45°

Gain

at Mid Tilt

dBi

16.4

16.2

16.7

Over All Tilts

dBi

15.8 ± 0.5

16.2 ± 0.5

16.0 ± 0.6

16.5 ± 0.5

16.8 ± 0.5

Horizontal Beamwidth

degree

69 ± 4.5

67 ± 4.5

67 ± 6.5

65 ± 6.0

63 ± 6.5

Vertical Beamwidth

degree

8.1 ± 0.6

7.4 ± 0.7

6.4 ± 0.5

5.8 ± 0.5

5.1 ± 0.5

Electrical Downtilt, Continuously Adjustable

degree

2-Dec

Tilt Accuracy

degree

< 1

Upper Side Lobe Suppression

First Upper Lobe

> 15

Peak to 20°

> 15

Front-To-Back Ratio ±30°

> 24

> 25

Cross Polar

at Boresight

> 16

> 17

> 16

Discrimination

Over Sector

> 8.0

> 6

> 4

Isolation

Cross-Polar

> 26

Port-To-Port

> 28

Impedance

Ohm

VSWR

—

< 1.5

Return Loss

> 14

PIM3 (2×43 dBm Carrier)

dBc

< -150

Lightning Protection

—

DC Ground

Maximum Average Input Power per Port, at 50° C Ambient Temperature

Watts

200

Mechanical Specifications

Connector Type

—

(2x) 4.3/10 Female

Connector Position

—

Bottom

Electrical Tilt Control

—

Integrated RET

Radome Material

—

Fiberglass

Antenna Dimensions (H x W x D)

mm (in)

2497 x 277 x 167 (98.3 x 10.9 x 6.6)

Antenna Weight

Antenna Only

kg (lbs)

23 (50.7)

with Clamps

kg (lbs)

27 (59.5)

Maximum Wind Speed

km/h (mph)

200 (124.3)

Wind Load at 150 km/h

Frontal

N (lbf)

640 (143.9)

Rear

N (lbf)

715 (160.7)

Lateral

N (lbf)

505 (113.5)

Operating Temperature

°C (°F)

-40 to +60 (-40 to +140)

Integrated RET Specifications

Protocols

Compliant to AISG v2.0 and 3GPP

Supply Voltage Range

10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0

Power

Standby

< 2 W

Consumption

In Motion

< 10 W

Connectors

2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG
Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs

Hardware Interfaces

RS485 and Power

Adjustment Time

≤ 90 sec (typical, depending on antenna type)

Adjustment Cycles

> 20,000

Torque Maximum

≥ 160 mN·m (@ 30RPM)

Lightning Protection Rating

IEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions
Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Remote Control

Can manage from OMC, BTS/Node B
