2-Port, Panel Sector Antenna, 90° HBW, 698-960 MHz, 14.5 dBi,


Electrical Specifications
	R1
	MHz	698-960
Frequency Range	MHz	698-806	790-894	880-960
Polarization	—	±45°
	at Mid Tilt	dBi	12.6	13	13.3
Gain	Over All Tilts	dBi	12.5 ± 0.6	12.9 ± 0.6	13.2 ± 0.6
Horizontal Beamwidth	degree	90 ± 7	87 ± 7	85 ± 7
Vertical Beamwidth	degree	15.2 ± 1.5	13.6 ± 1.4	12.5 ± 1.3
Electrical Downtilt, Continuously Adjustable	degree	2-Dec
First Upper Side Lobe Suppression	dB	> 15	> 15	> 15
Front-To-Back Ratio ±30°	dB	> 22	> 22	> 22
Cross Polar Discrimination at Boresight	dB	> 15	> 15	> 15
Intraband Isolation	dB	> 23
Impedance	Ohm	50
VSWR	—	< 1.5
Return Loss	dB	> 14
PIM3 (2×43 dBm Carrier)	dBc	< -150
Lightning Protection	—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature	Watts	250

Mechanical Specifications

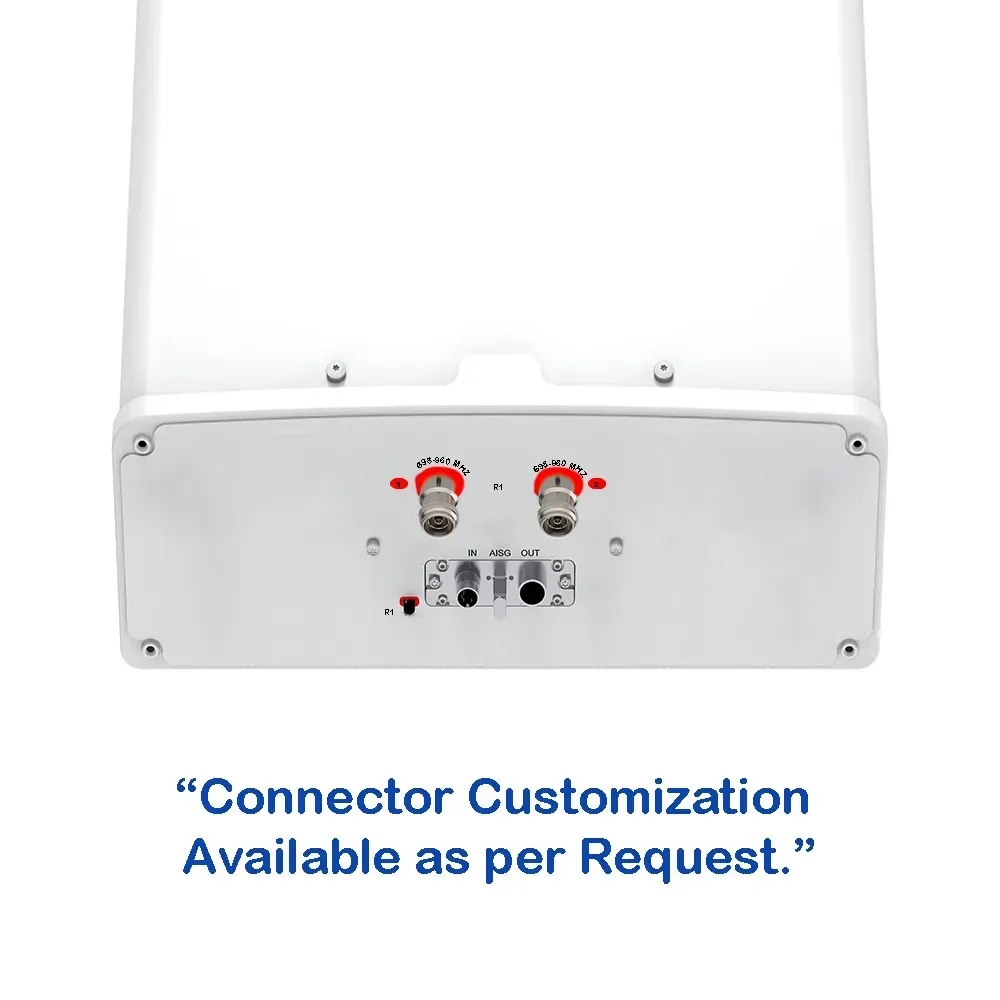

Connector Type	—	(2x) 4.3/10 Female
Connector Position	—	Bottom
Electrical Tilt Control	—	Integrated RET
Radome Material	—	UPVC
Antenna Dimensions (H x W x D)	mm (in)	1497 x 277 x 167 (58.9 x 10.9 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	11.6 (25.6)
with Clamps	kg (lbs)	15.6 (34.4)
Maximum Wind Speed	km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	385 (86.6)
Rear	N (lbf)	430 (96.7)
Lateral	N (lbf)	285 (64.1)
Operating Temperature	°C (°F)	-40 to +60 (-40 to +140)

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range	10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors	2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs


Hardware Interfaces	RS485 and Power
Adjustment Time	≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles	> 20,000
Torque Maximum	≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating	IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions

Remote Control	Can manage from OMC, BTS/Node B
Daisy Chaining Method	Ready for daisy-chaining
Safety Standard	Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color	Aluminum / Grey
Operating Temperature	-40° to +70° C (-40° to +158° F)
Storage Temperature	-55° to +75° C (-67° to +167° F)
Humidity	Up to 95%
IP Rating	IP65
Weight	≤ 500 g
