Product code: 20P-698-2690F-16G-65H11V
20-Port, Hybrid Split Beam, Panel Sector Antenna, (2x) 65°/(8x) 33° HBW, 698-960/ (4x) 1710-1880/ (1x) 1710-2690/ (4x) 2300-2400 MHz, 16/17.5/17.5/17/17/18/18.5/18.5/18/18 dBi, 2-12°T, 2.097 m

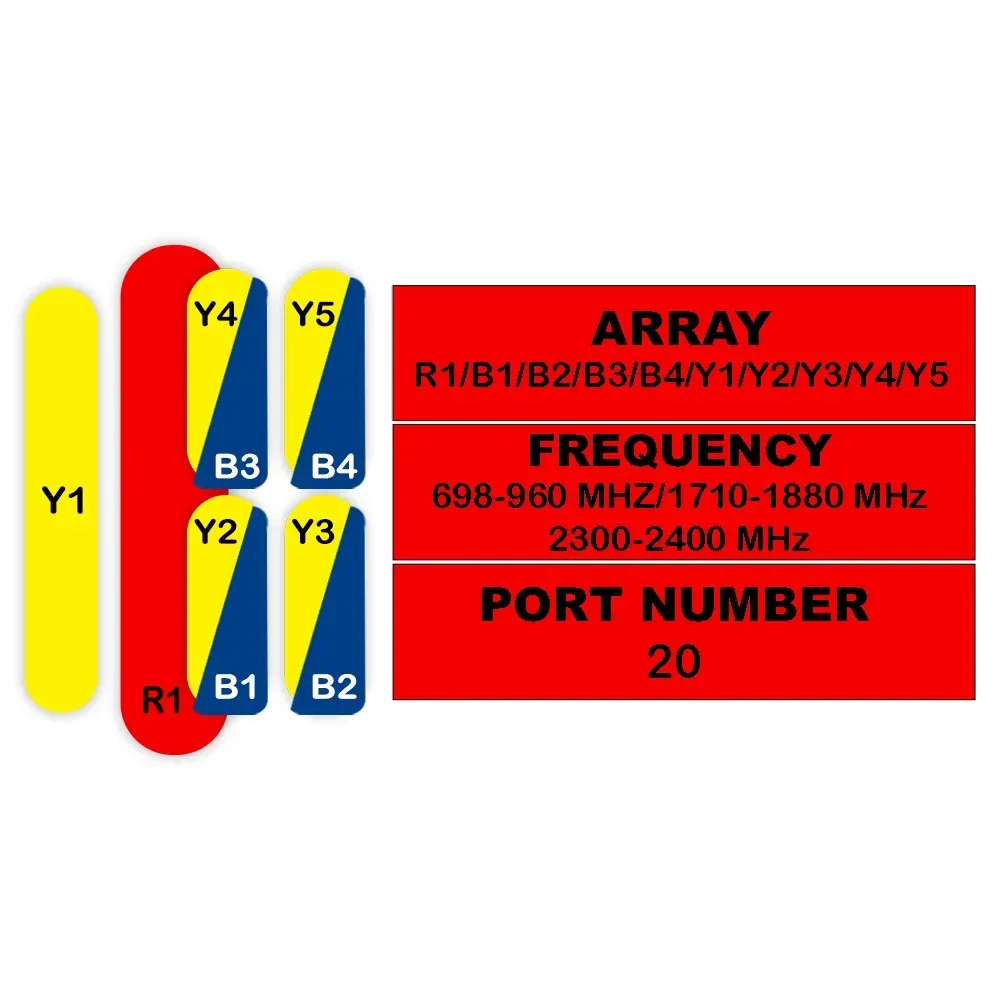

20-Port Antenna | R1 | B1 | B2 | B3 | B4 | Y1 | Y2 | Y3 | Y4 | Y5 |
Frequency Range (MHz) | 698-960 | 1710-1880 | 1710-1880 | 1710-1880 | 1710-1880 | 1710-2690 | 2300-2400 | 2300-2400 | 2300-2400 | 2300-2400 |
HBW | 65° | 33° | 33° | 33° | 33° | 65° | 33° | 33° | 33° | 33° |
Gain | 16 dBi | 17.5 dBi | 17.5 dBi | 17 dBi | 17 dBi | 18 dBi | 18.5 dBi | 18.5 dBi | 18 dBi | 18 dBi |
Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
20P-698-2690F-16G-65H11V
Electrical & Mechanical Specification
Electrical Specifications | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R1 | B1/B2 | B3/B4 | Y1 | Y2 / Y3 | Y4 / Y5 | |||||||||
Frequency Range | MHz | 698-960 | 1710-1880 | 1710-1880 | 1710-2690 | 2300-2400 | 2300-2400 | |||||||
MHz | 698-806 | 790-894 | 880-960 | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2500-2690 | ||||||
Polarization | — | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° | |||||||
Gain | at Mid Tilt | dBi | 14.7 | 15.2 | 15.5 | 17.3 | 17 | 16.6 | 16.9 | 17.1 | 17.6 | 17.5 | 18.5 | 18 |
Over All Tilts | dBi | 14.6 ± 0.6 | 15.1 ± 0.6 | 15.4 ± 0.6 | 17.2 ± 0.6 | 16.9 ± 0.6 | 16.5 ± 0.6 | 16.8 ± 0.6 | 17.0 ± 0.6 | 17.5 ± 0.6 | 17.4 ± 0.8 | 18.4 ± 0.6 | 17.9 ± 0.6 | |
Horizontal Beamwidth | degree | 70 ± 7.0 | 68 ± 7.0 | 63 ± 7.0 | 35 ± 3 | 35 ± 3 | 71 ± 6.0 | 68 ± 6.0 | 65 ± 6.0 | 65 ± 6.0 | 64 ± 7.0 | 27 ± 3 | 27 ± 3 | |
Horizontal Beam Pointing | degree | — | — | — | B1: +30° | B1: +30° | — | — | — | — | — | Y2: +30° | Y4: +30° | |
B2: -30° | B2: -30° | Y3: -30° | Y5: -30° | |||||||||||
Vertical Beamwidth | degree | 11.0 ± 1.1 | 9.5 ± 1.0 | 8.8 ± 0.9 | 10.5 ± 1.1 | 10.5 ± 1.1 | 7.1 ± 0.7 | 6.7 ± 0.7 | 6.3 ± 0.6 | 5.4 ± 0.5 | 5.0 ± 0.5 | 8.0 ± 0.8 | 8.0 ± 0.8 | |
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | |||||||
First Upper Side Lobe Suppression | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | |
Front-To-Back Ratio Co-Pol, ±30° | dB | > 23 | > 24 | > 24 | > 23 | > 24 | > 24 | > 25 | > 25 | > 25 | > 25 | > 25 | > 25 | |
Cross Polar | at Boresight | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
Discrimination | Over Sector | dB | > 7 | > 6 | > 6 | — | — | > 7 | > 7 | > 7 | > 6 | > 5 | — | — |
Isolation | Intraband (Same Beam) | dB | > 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ||||||
Beam-to-Beam | dB | — | ≥ 15 | ≥ 15 | — | ≥ 15 | ≥ 15 | |||||||
Interband | dB | > 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 | |||||||
Impedance | Ohm | 50 | 50 | 50 | 50 | 50 | 50 | |||||||
VSWR | — | < 1.5 | < 1.5 | < 1.5 | < 1.5 | < 1.5 | < 1.5 | |||||||
Return Loss | dB | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 | |||||||
PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | < -150 | < -150 | < -150 | < -150 | |||||||
Lightning Protection | — | DC Ground | ||||||||||||
Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | 200 | 200 | 200 | 200 | |||||||
Integrated RET Specifications | ||||||||||||||
Protocols | Compliant to AISG v2.0 and 3GPP | |||||||||||||
Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||||||||||
Power | Standby | < 2 W | ||||||||||||
Consumption | In Motion | < 10 W | ||||||||||||

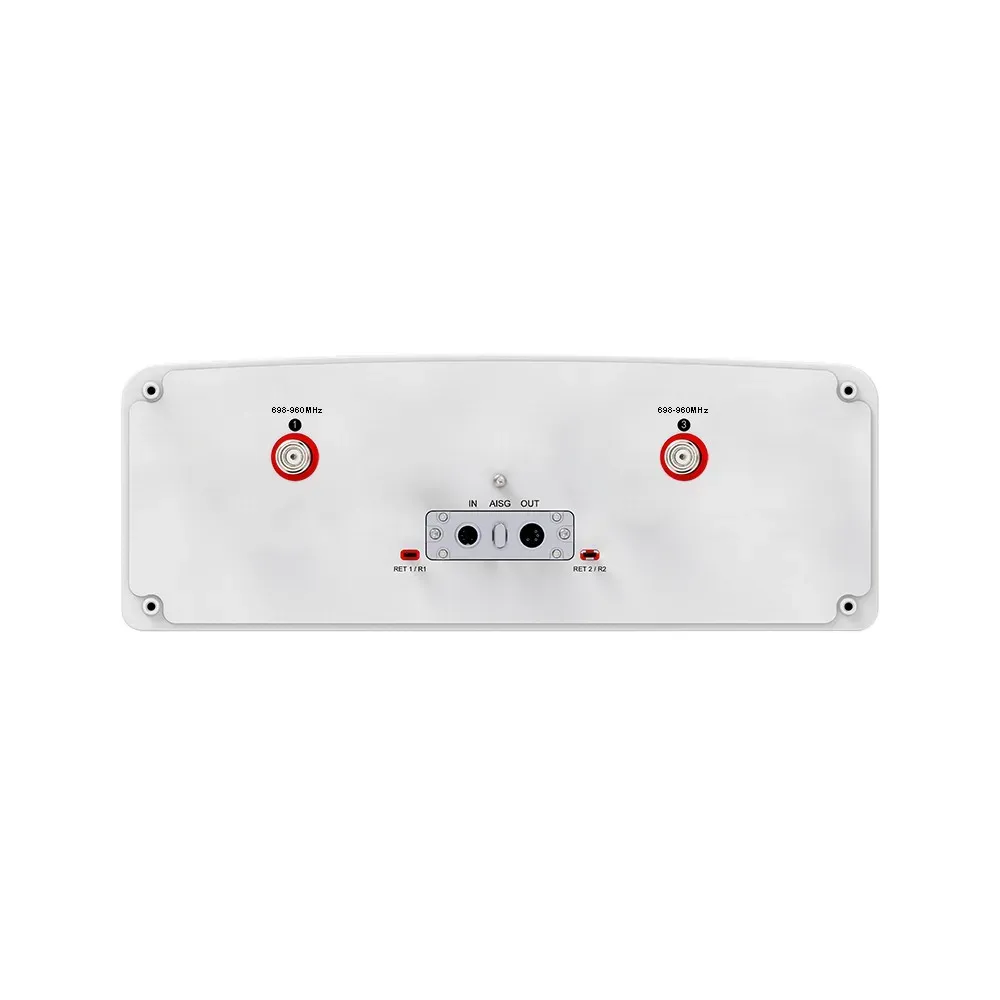

Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female | |||||||||||||
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||||||||||
Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||||||||||
Hardware Interfaces | RS485 and Power | |||||||||||||
Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | |||||||||||||
Adjustment Cycles | > 20,000 | |||||||||||||
Torque Maximum | ≥ 160 mN·m (@ 30RPM) | |||||||||||||
Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||||||||||
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | ||||||||||||||
Remote Control | Can manage from OMC, BTS/Node B | |||||||||||||
Daisy Chaining Method | Ready for daisy-chaining | |||||||||||||
Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||||||||||
Housing Material / Color | Aluminum / Grey | |||||||||||||
Operating Temperature | -40° to +70° C (-40° to +158° F) | |||||||||||||
Storage Temperature | -55° to +75° C (-67° to +167° F) | |||||||||||||
Humidity | Up to 95% | |||||||||||||
IP Rating | IP65 | |||||||||||||
Weight | ≤ 500 g | |||||||||||||
Mechanical Specifications | ||||||||||||||

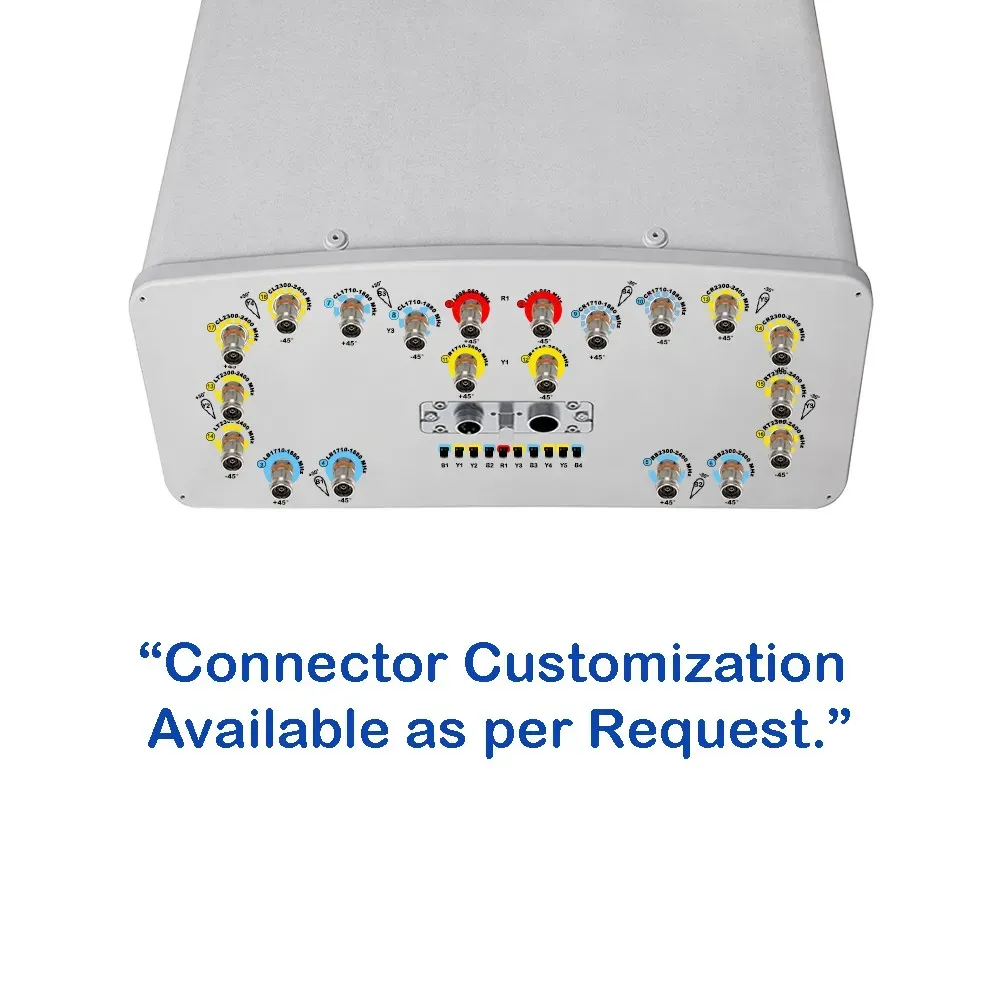

Connector Type | — | (20x) 4.3/10 Female | ||||||||||||
Connector Position | — | Bottom | ||||||||||||
Electrical Tilt Control | — | Integrated RET | ||||||||||||
Radome Material | — | Fiberglass | ||||||||||||

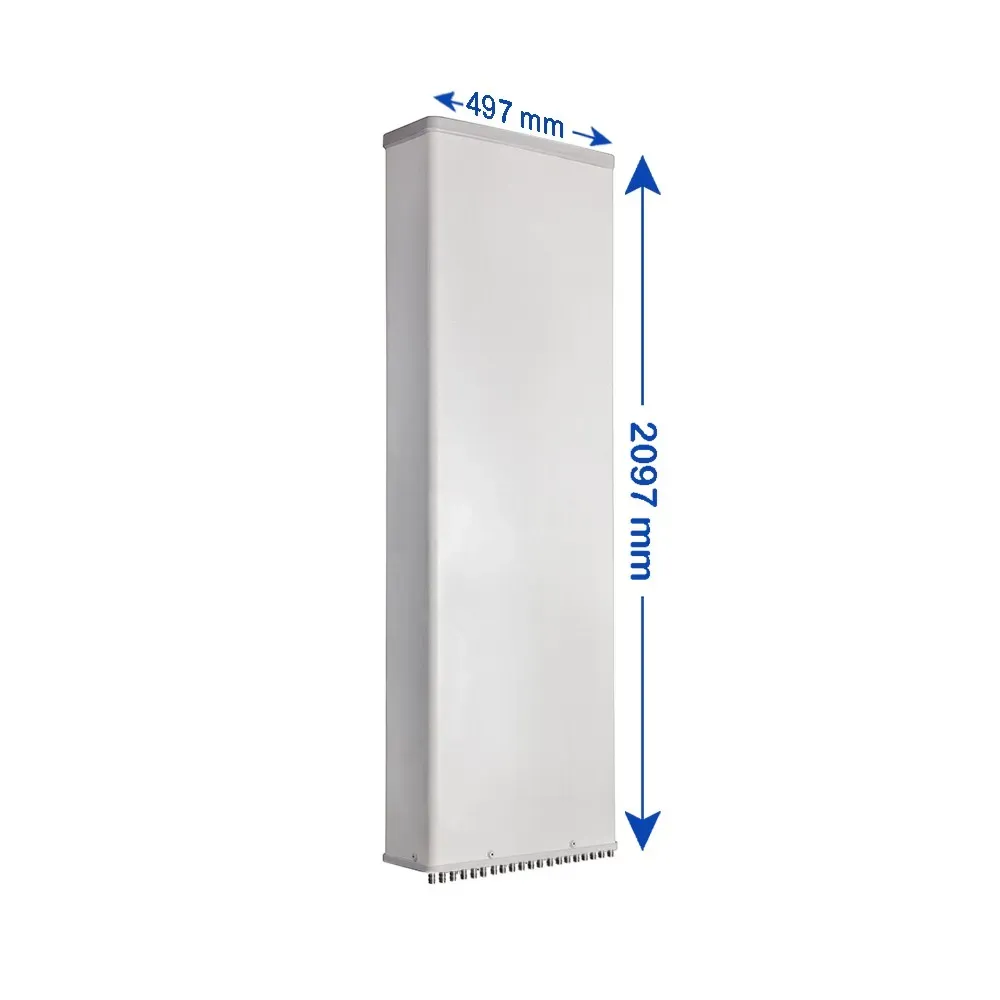

Antenna Dimensions (H x W x D) | mm (in) | 2097 x 497 x 197 (82.6 x 19.6 x 7.8) | ||||||||||||
Antenna Weight | Antenna Only | kg (lbs) | 40 (88.2) | |||||||||||
with Clamps | kg (lbs) | 45.5 (100.3) | ||||||||||||
Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||||||||||
Wind Load | Frontal | N (lbf) | 965 (216.9) | |||||||||||
at 150 km/h | Rear | N (lbf) | 1075 (241.7) | |||||||||||
Lateral | N (lbf) | 470 (105.6) | ||||||||||||
Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) |
