Product code: 20P-698-2690F-15G-65H15V

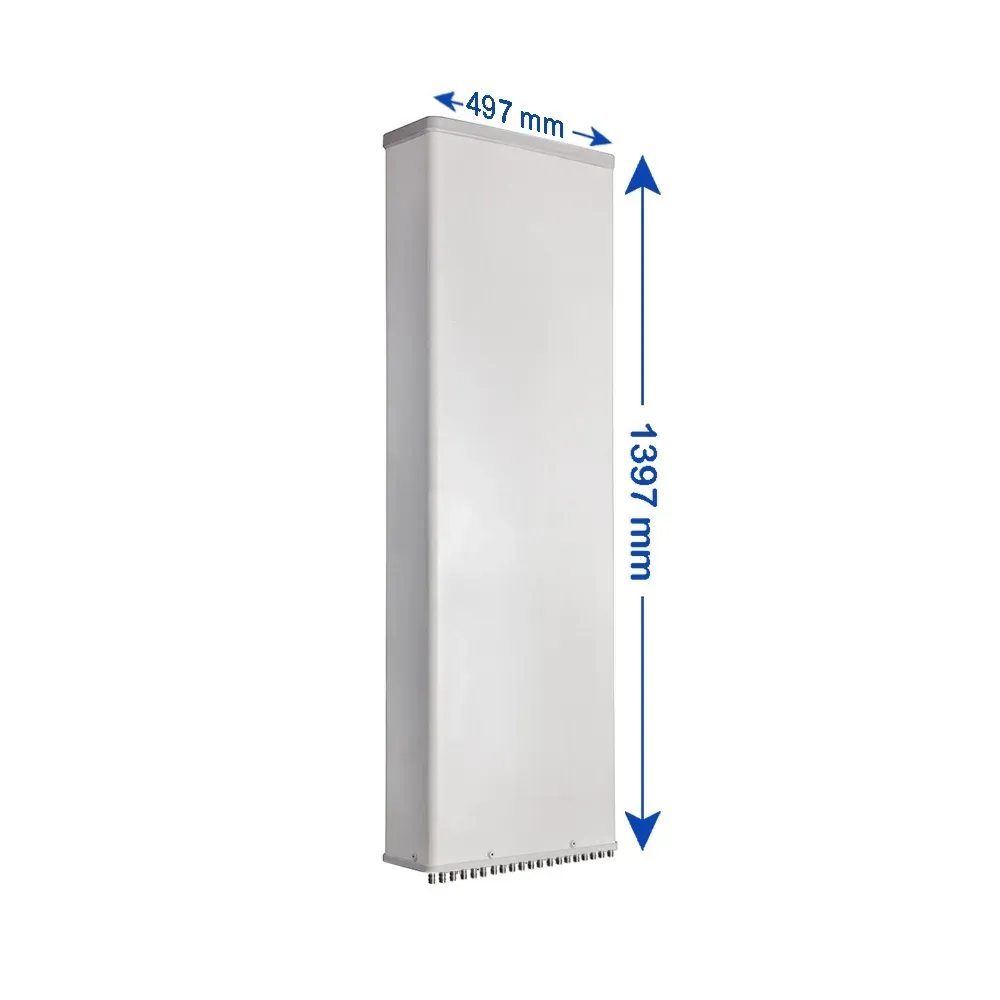

20-Port, Panel Sector Antenna, 65° HBW, (2x) 698-960/(8x) 1710-2690 MHz, 14.5/14.5/15/14.5/15/14.5/15/14.5/15/14.5 dBi, 2-12°T, 1.397 m

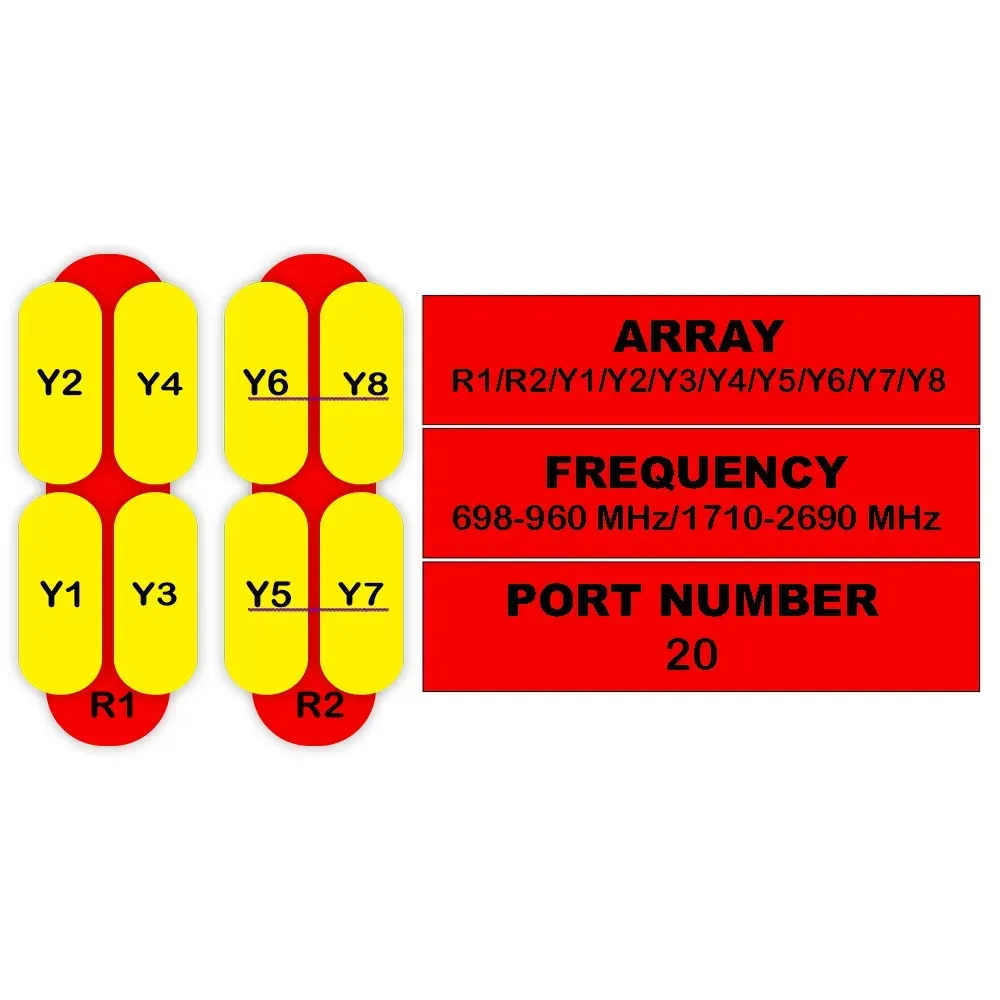

20-Port Antenna R1 R2 Y1 Y2 Y3 Y4 Y5 Y6 Y7 Y8
Frequency Range (MHz) 698-960 698-960 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690
HBW 65° 65° 65° 65° 65° 65° 65° 65° 65° 65°
Gain 14.5 dBi 14.5 dBi 15 dBi 14.5 dBi 15 dBi 14.5 dBi 15 dBi 14.5 dBi 15 dBi 14.5 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

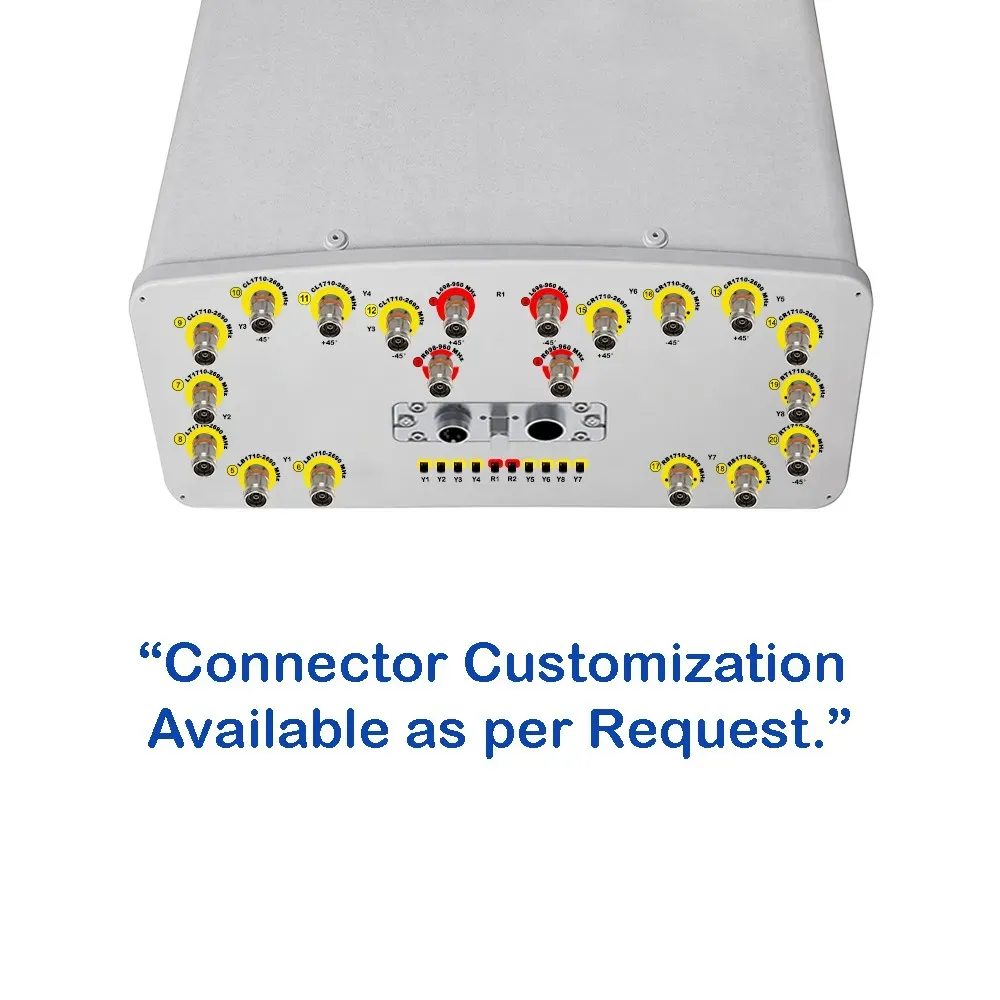

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
