Product code: MT-205230M03-NF

205MHz to 230MHz 3dBi Dipole Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-205230M03-NF
Dimension 1200x70x50mm
Weight 870g
Connector N-Female
Beam-width Horz.360 deg Vert.65 deg
WhatsApp Chat
Skype
Product Part Number
MT-205230M03-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range205 to 230MHz
V.S.W.R (MAX)2.0:1
210 to 220MHz 1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)3 dBi
PolarizationVertical
Maximum Power250 Watts
Vertical Beam-width65 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna Design1/4 Wavelength Dipole
Internal MaterialCopper
ConnectorN-Female

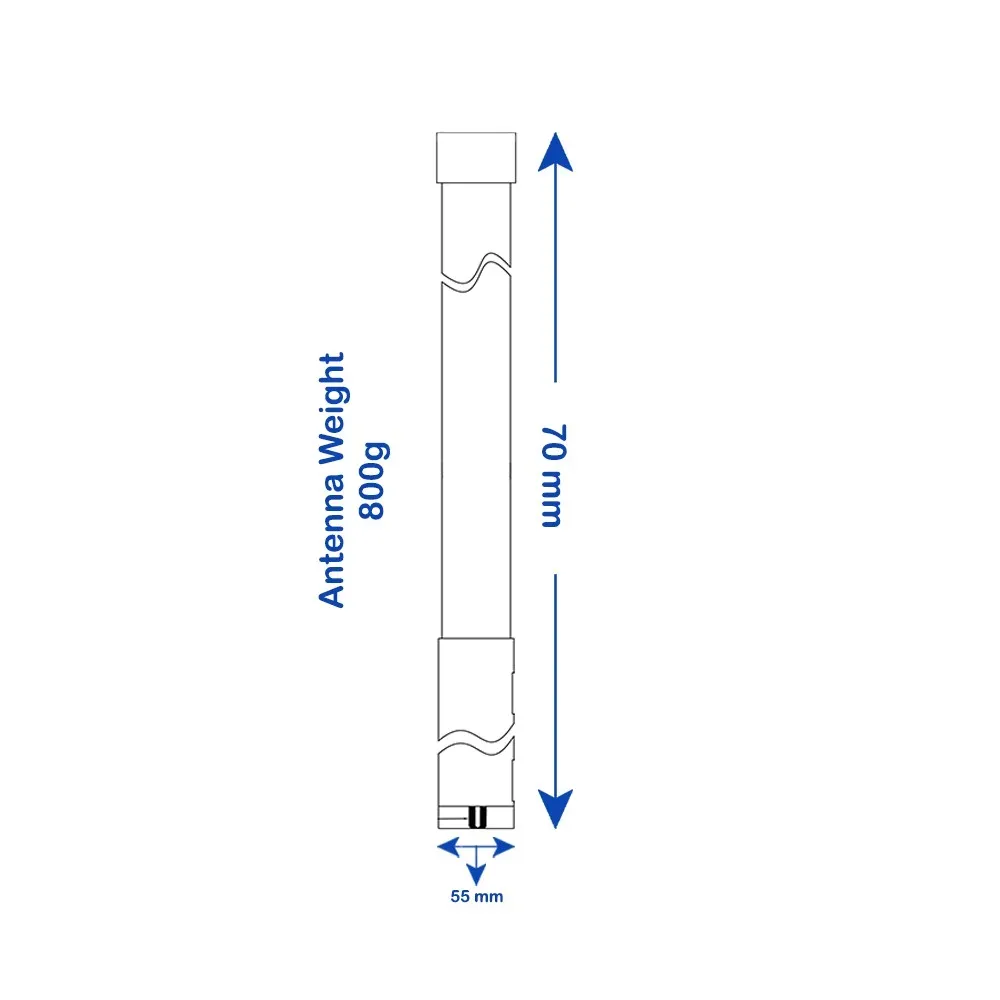

Mechanical
Length (MAX)1200mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)800 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater then 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and other RoHS
